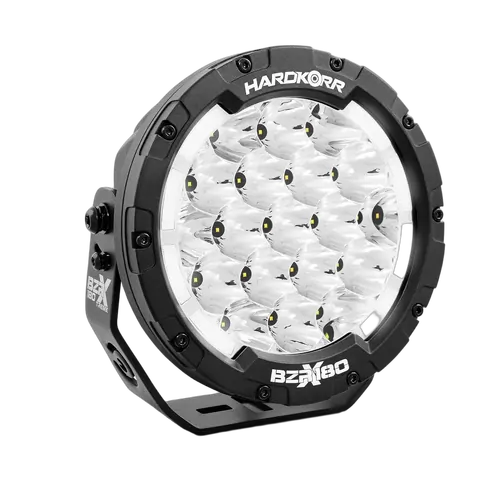

Hardkorr’s flagship BZR-X Series 7″ LED driving lights produce a wide, even combination beam with a market-leading 1 lux @ 1,150m forward distance. Their ultra-slim design means they are particularly suited to vehicles with narrow mounting surfaces such as modern factory bullbars.
As a result of customer feedback, we now offer our bestselling BZR-X Series LED Driving Lights in singles as well as pairs. Primarily this allows customers to run three-light setups on their bull bars, which is an increasingly popular choice among the 4wding community.
The Hard Korr BZR-X Series driving lights are hands down the best driving lights we’ve ever created. In fact, we think they’re the best driving light anyone has ever created. Big call? Maybe, but we don’t think it’s a wrong one!
We’ve started with the best LED chips currently available on the market, from Lumileds. Forget the old argument between OSRAM and CREE, Lumileds LEDs are starting to appear in more and more high-end driving lights, and for good reason. They are incredibly bright, much more than anything else we’ve ever come across, and very efficient as well.
Why does this matter? Good question. Using LED chips with such high brightness means that our reflector engineers have been able to achieve the “holy grail” of driving lights: a true combination beam, as good as you’ll find in a light bar, without sacrificing forward distance.
They’re also CISPR15 compliant, meaning they have been independently tested to ensure they do not interfere with radio frequencies.
Combined with a tough, understated look, integrated daytime running lights (DRL) and strong 4mm 316 stainless steel brackets, they are the ultimate driving lights for keen adventurers, professional drivers and those who spend a lot of time on country roads.
Specifications
Materials | ADC12 aluminium housing with AkzoNobel® powder coating 4mm 316 s/steel bracket with AkzoNobel® powder coating UV-coated Lexan® polycarbonate lens |
---|---|
Dimensions | 175mm (w) x 190mm (h) x 75mm (d) incl. bracket |
LED Manufacturer | Genuine Lumileds® |
LED Number (each) | 19 x 5w |
Lux (pair) | 1 lux @ 1,150m |
Output (pair) | 22,588 effective lumens |
Beam | Combination |
Ingress Protection | IP68 |
EMC rating | CISPR 15 Class 3 |
Impact rating | IK08 (5J) |
Vibration rating | IEC 60068-2-6 & ISO16750-1 (15G R.M.S. @ 24-2000Hz) |
Weight (each) | 1.9kg |
Operating Voltage | 10 – 30v DC |
Current (each) | 7.7A @ 12V / 3.75A @ 24V |
Colour Temp | 6000K |
LED Lifespan | 50,000+ hours |
Certifications | CE, RoHS, RCM |

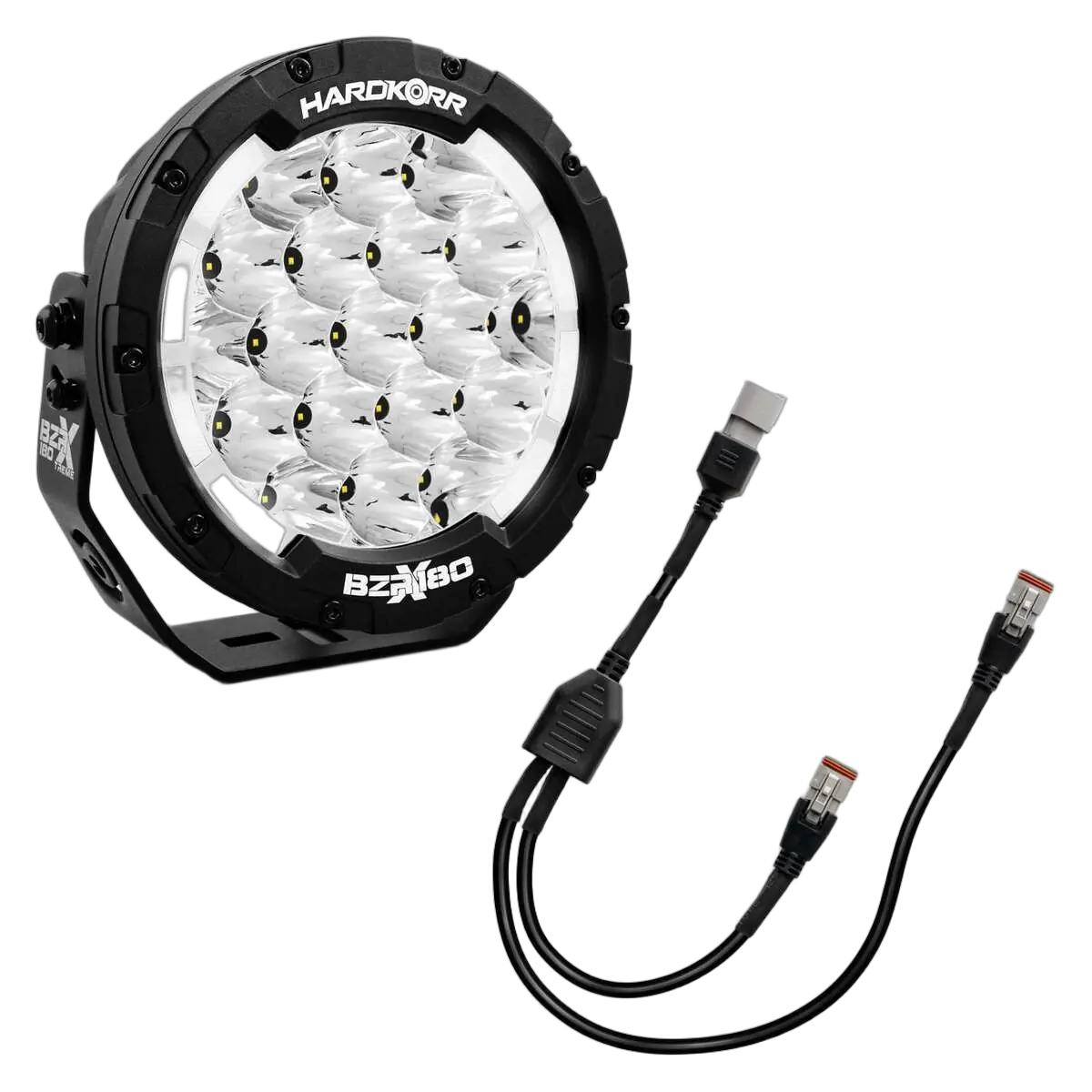

Pack Contents
1x | 95w LED driving light |
---|---|
1x | 316 stainless steel mounting bracket |
1x | set security bolts & anti-vibration rubber base |
1x | 2-into-1 Deutsch adaptor cable |
Dimensions
SKU | HKBZRX180-S |
---|---|
Barcode # | 9350466002065 |
Brand | Hard Korr |
Shipping Weight | 2.5000kg |
