These XDW Series 40W square work lights shine an incredible 120 degree beam up to 102m from the light source. They are often mounted into rear bars or canopies to provide auxiliary lighting for off-road driving, reversing or working around the vehicle.
That’s not a flood beam… THIS is a flood beam.
4,800 RAW LUMENS
1 LUX @ 102M
IP67 WATERPROOF & DUSTPROOF
DRAWS 3.0A @ 13.4V
NEW HYPER FLOOD BEAM
COLOR TEMPERATURE 5700K
Hardkorr’s new XDW Series work lights are characterised by clean lines and a sleek, blacked-out appearance. Their most distinctive feature, however, is the reflectors. Utilising the latest engineering methods and manufacturing techniques, these reflectors are precisely calibrated and manufactured to nanometre precision to create incredible beam patterns that simply weren’t possible in the past. We call this our Hyperflood™ technology.
Our latest addition to this range is the flush mount version of our bestselling 20W cube light. With power doubled to 40W using four 10W genuine OSRAM® LED chips, these lights produce a powerful 120° flood beam that shines up to 102m from the source.
They are primarily designed to be mounted into rear bars to provide additional illumination whilst reversing in the dark, whether at camp or on the tracks.
Having downward-facing LED chips means there is less direct glare from the lights. This is handy for when the lights are mounted in places where they may otherwise interfere with the vision of other drivers.
New Hyperflood™ light beam.
The width of the flood beam on these lights has to be seen to be believed.
Easy to mount and connect.
This light comes with everything you need to easily mount and connect it to any 12v setup.
We include an adaptor cable for those who want to use a barrel plug fitting rather than the Deutsch plug that extends from the back of the light, as well as four extra-long mounting bolts and nuts to give you the flexibility to mount it anywhere in your canopy or bar.
It also comes with a rubber pad which sits between the light and the mounting surface, to help ensure that no water is able to enter behind the light.
Genuine parts, precision optics.
Hardkorr’s HKXDW102FM work lights are made using genuine top-grade OSRAM® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.
This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.
Specifications
| Materials | ADC12 cast aluminium housing Lexan® polycarbonate lens |
|---|---|
| LED type | 4 x 10W OSRAM |
| Output | 4,800 raw lumens |
| Distance | 1 lux @ 102m |
| Beam type | Hyperflood™ |
| Dimensions | 122mm (w) x 89mm (h) x 72mm (d) |
| Ingress protection | IP67 |
| Working voltage | 10-30V DC |
| Current draw | 3.0A @ 13.4V / 1.5A @ 24V |
| Colour temperature | 5700K |
| Weight | 0.5kg |
| LED Lifespan | 50,000+ hours |
| Certifications | CE, RoHS, EMC |

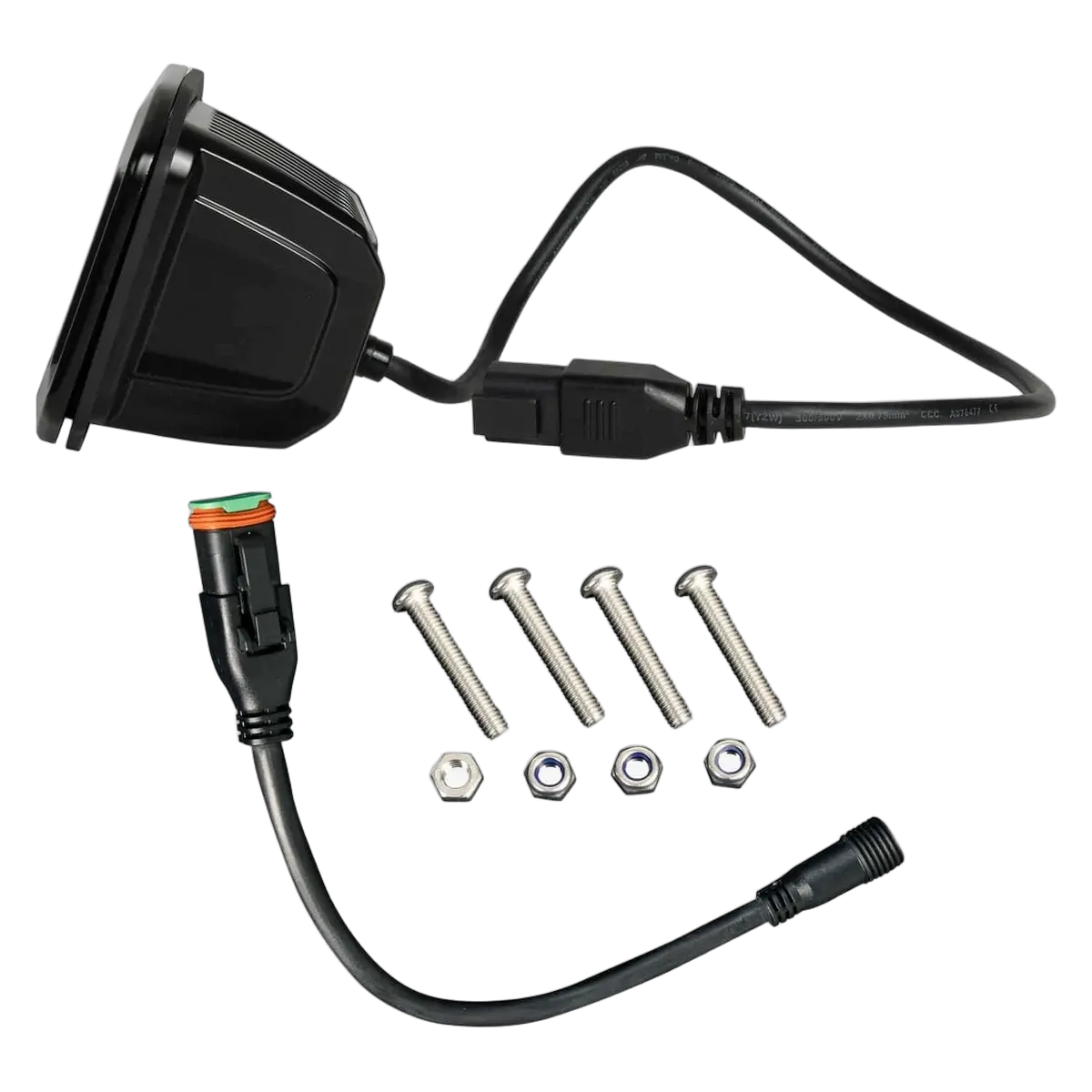

Pack Contents
| 1x | 40W square flush-mount work light with Deutsch lead |
|---|---|
| 1x | Deutsch to DC adaptor |
| 1x | Rubber mounting pad |
| 4x | Extra-long mounting bolts and nuts |
Dimensions
| SKU | HKXDW102FM |
|---|---|
| Barcode # | 9350466002980 |
| Brand | Hard Korr |
| Shipping Weight | 0.5000kg |

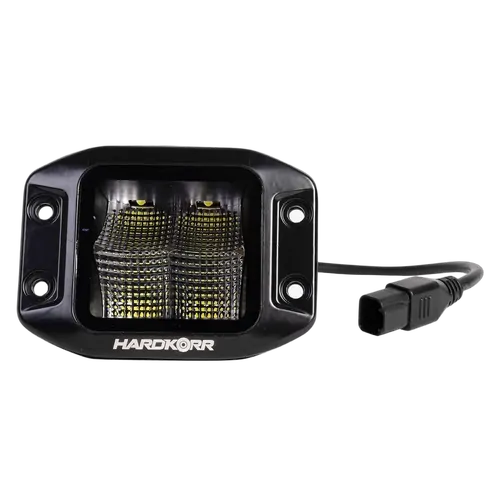

Hard Korr 40W Square Flush Mount Led Work Light 1 Lux @ 102M
