FEATURES |

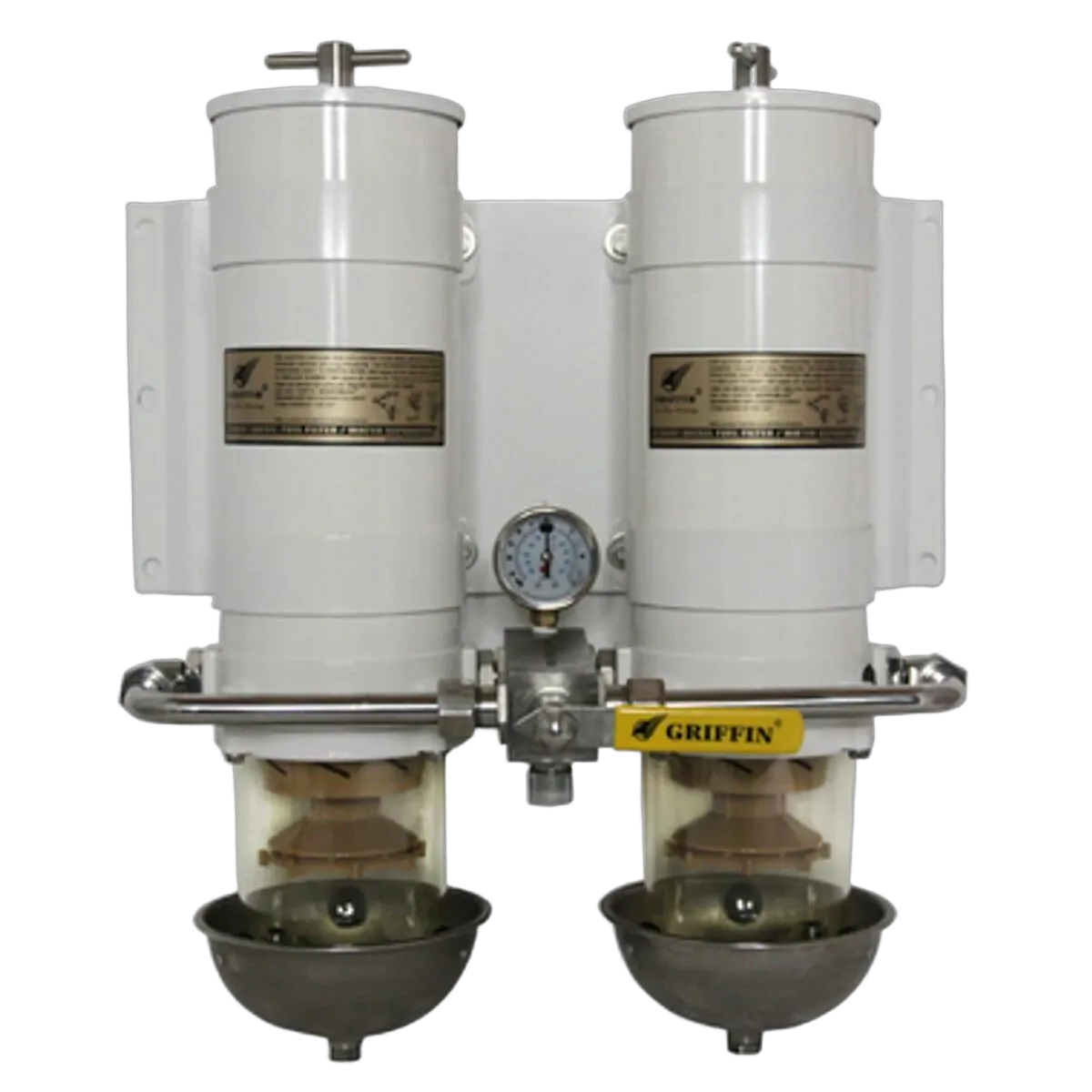

• Provides unsurpassed fuel filtration and water separation, and is comparable to the Racor Marine 1000 series filters. • The GTB681 series filter use GRIFFIN replacement element GTB68, formerly designated as G2020, in 3 micron sizes, 2, 10, & 30. • Comes standard with a 10 micron GRIFFIN MICROBLOC element. • Heat Deflector Shield: PHDS36MA. • Hose fittings are sold separately. |
Part No. | 374132 |
Weight | 12.8kg |
Dimensions | H 542mm x W 476mm x D 253mm |
Temperature | -20°C / +121°C |
Clean Pressure Drop | 25.5kPa |
Max. Operating Pressure | 103kPa |
Cross Ref. | 75/1000MAX / G1000DMS4-MA |
Micron Elements | 374134 / 374135 / 374136 |
Clear Bowl for Gasoline Use | 374138 |
Fuel Port | 7/8-14 inch UNF |
Flow Rate | 1363LPH (360GPH) |
Service Clearance | 254mm |
SKU | 374132 |
---|---|
Barcode # | 9330420091427 |
Brand | Griffin |
Shipping Weight | 12.8000kg |
