FEATURES |

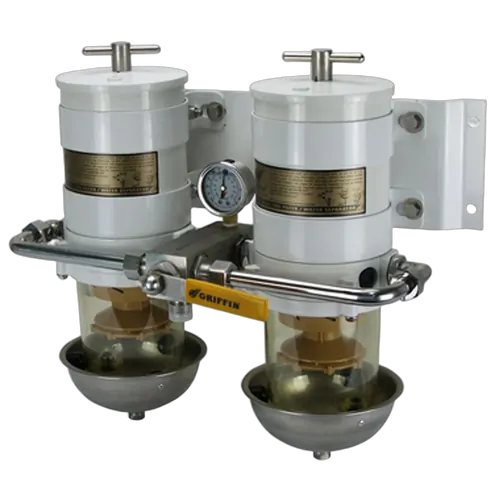

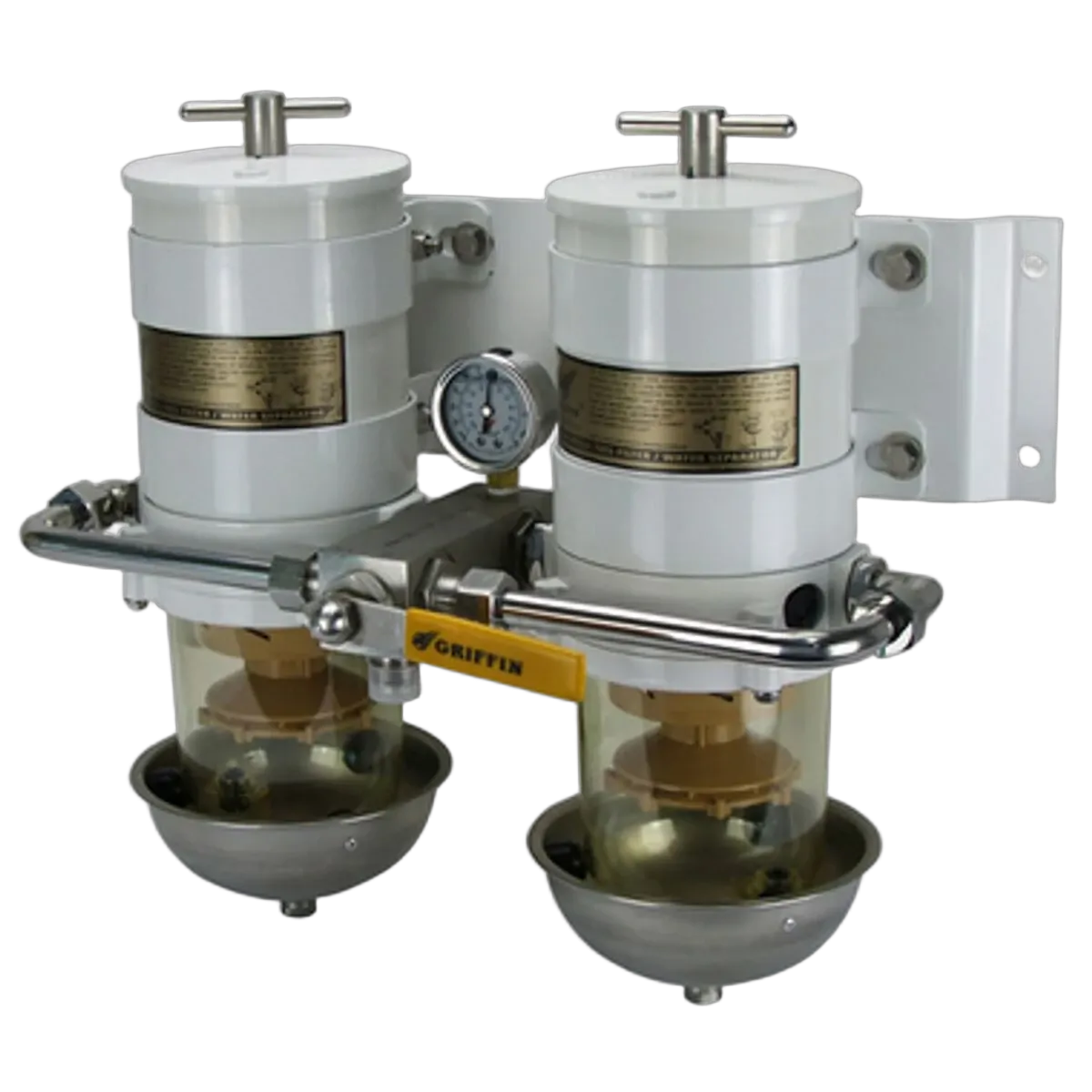

• Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 75/900MAX. • Uses genuine MICROBLOC replacement elements. • MICROBLOC Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and bio-diesel fuels and can remove solid contaminants as small as 2 microns in size, also in 10 and 10 micron sizes. • Comes standard with a 10 micron GRIFFIN MICROBLOC element. • Heat Deflector Shield: PHDS36MA. • Hose fittings are sold separately. |
Part No. | 374122 |
Weight | 10.6kg |
Dimensions | H 412 x W 476mm x D 279mm |
Temperature | -20°C / +121°C |
Clean Pressure Drop | 11.7kPa |
Max. Operating Pressure | 103kPa |
Cross Ref. | 75/900MAX / G900DMS4-MA |
Micron Elements | 374124 / 374125 / 374126 |
Clear Bowl for Gasoline Use | 374138 |
Fuel Port | 7/8-14 inch UNF |
Flow Rate | 681LPH (180GPH) |
Service Clearance | 127mm |
SKU | 374122 |
---|---|
Barcode # | 9330420003789 |
Brand | Griffin |
Shipping Weight | 10.6000kg |
