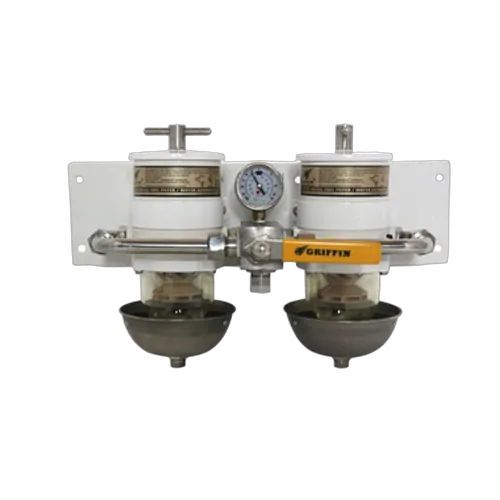

Griffin Diesel Filter Kit GTB228 Dm Double Manifold Bowl & Shield

Description
Specifications

FEATURES

• Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 75/500MAX.
• Uses genuine MICROBLOC replacement elements.
• MICROBLOC Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and bio-diesel fuels and can remove solid contaminants as small as 2 microns in size, also in 10 and 10 micron sizes.
• Comes standard with a 10 micron GRIFFIN MICROBLOC element.
• Heat Deflector Shield: PHDS24MA.
• Hose fittings are sold separately.

Part No.	374102
Weight	7.1kg
Dimensions	H 275mm x W 476mm x D 230mm
Temperature	-20°C / +121°C
Clean Pressure Drop	4.83kPa
Max. Operating Pressure	103kPa
Cross Ref.	Racor 75/500MAX
Micron Elements	374104 / 374105 / 374106
Clear Bowl for Gasoline Use	374108
Fuel Port	7/8-14 inch UNF
Flow Rate	454LPH (120GPH)
Service Clearance	102mm

Specifications

SKU	374102
Barcode #	9330420125474
Brand	Griffin
Shipping Weight	7.1000kg

$1,732.99

SAVE $464.16

DON'T PAY RRP $2,197.15

Description

FEATURES

Part No.	374102
Weight	7.1kg
Dimensions	H 275mm x W 476mm x D 230mm
Temperature	-20°C / +121°C
Clean Pressure Drop	4.83kPa
Max. Operating Pressure	103kPa
Cross Ref.	Racor 75/500MAX
Micron Elements	374104 / 374105 / 374106
Clear Bowl for Gasoline Use	374108
Fuel Port	7/8-14 inch UNF
Flow Rate	454LPH (120GPH)
Service Clearance	102mm
