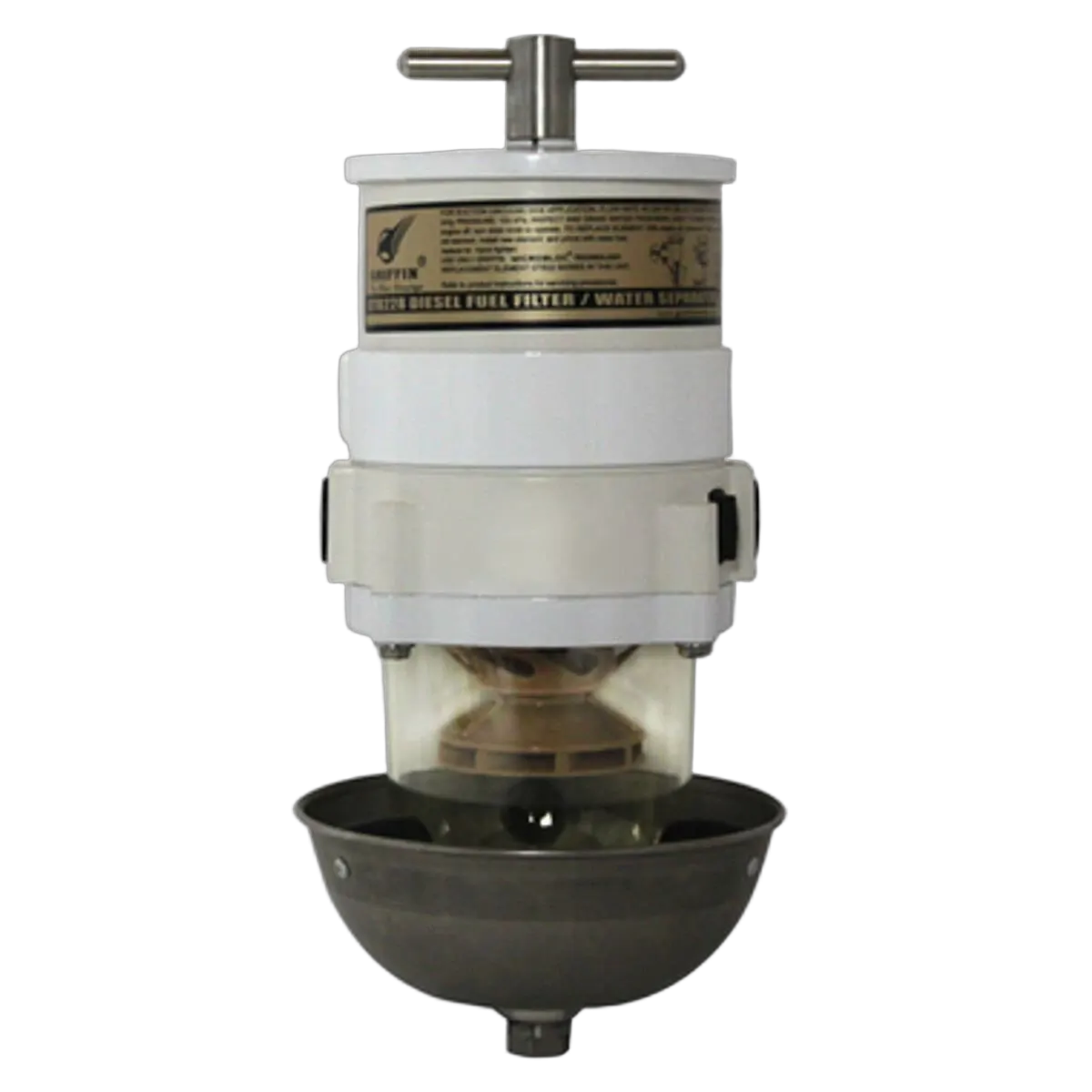

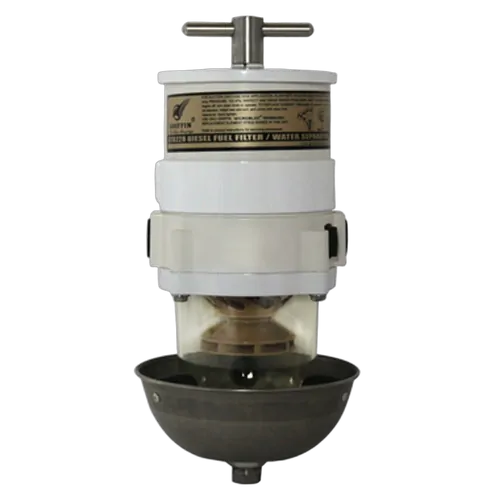

Griffin Diesel Filter GTB228 Clear Bowl & Heat Deflector Shield

Description
Specifications

FEATURES

• Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 500MA.
• Uses genuine MICROBLOC replacement elements.
• MICROBLOC Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and bio-diesel fuels and can remove solid contaminants as small as 2 microns in size, also in 10 and 10 micron sizes.
• Comes standard with a 10 micron GRIFFIN MICROBLOC element.
• Heat Deflector Shield: PHDS24MA.
• Hose fittings are sold separately.

Part No.	374100
Weight	1.3kg
Dimensions	H 275mm x W 120mm x D 125mm
Temperature	-20°C / +121°C
Clean Pressure Drop	1.72kPa
Max. Operating Pressure	103kPa
Cross Ref.	Racor 500MA
Micron Elements	374104 / 374105 / 374106
Clear Bowl for Gasoline Use	374108
Fuel Port	3/4-16 inch UNF
Flow Rate	228LPH (60GPH)
Service Clearance	89mm

Specifications

SKU	374100
Barcode #	9330420045024
Brand	Griffin
Shipping Weight	1.3000kg

$441.99

SAVE $122.21

DON'T PAY RRP $564.20

Description

FEATURES

Part No.	374100
Weight	1.3kg
Dimensions	H 275mm x W 120mm x D 125mm
Temperature	-20°C / +121°C
Clean Pressure Drop	1.72kPa
Max. Operating Pressure	103kPa
Cross Ref.	Racor 500MA
Micron Elements	374104 / 374105 / 374106
Clear Bowl for Gasoline Use	374108
Fuel Port	3/4-16 inch UNF
Flow Rate	228LPH (60GPH)
Service Clearance	89mm
