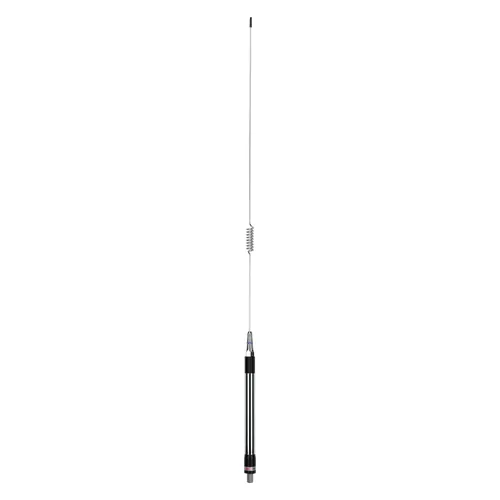

GME’s range of elevated-feed UHF CB radio antennas provide a gain of 6.6 dBi for a great all round performing antenna.
Elevated-feed antennas provide high performance in virtually any mounting position.
The elevated feed-design helps raise the radiating element above the vehicle roof or other obstructions to provide a strong, omni-directional pattern and high performance when mounted on a vehicle gutter, fender or bull bar.
The ability to remove the 6.6dBi whip and replace with a smaller 2.1dBi option allows for a broader radiation pattern which is less likely to be affected by obstacles.
These antennas are a popular choice for the heavy vehicle industry and agricultural vehicles.
It is recommended that the AE4012 are not mounted on the bull bar of diesel vehicles
Key Features
- Elevated-Feed Base
- Stainless Steel Whip
- Ground Independent Design
- 6.6dBi Gain
- Length: 780mm
In the box
- 6.6dBi Stainless Steel Antenna Whip (AE4012)
- Elevated-Feed Base & Lead Assembly (ABL002)
- PL259 Antenna Plug (PL2592S)
SKU | AE4012K1 |
---|---|
Barcode # | 9319493116329 |
Brand | GME |
Shipping Weight | 1.0000kg |
