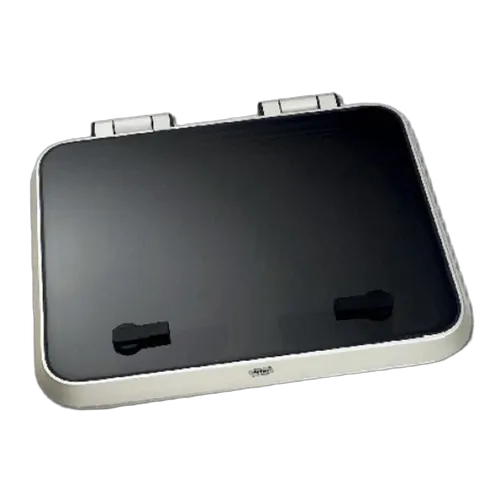

GEBO Standard Range Deck Hatch with Flange
The GEBO standard range of hatches are GEBO's traditional PREMIUM range of hatches. They have a smooth on-deck profile and the frame has been extended to fit flush against the base mounting. A deep groove in the lower frame keeps water from coming in when the hatch is open. 100% watertight when closed.
The Gebo standard range is available in 2 styles - with 5mm deep inner flange - or No flange - where the base sits flat on deck.
- Made from marine grade anodised aluminium giving long life, excellent corrosion resistance, durability, and low maintenance requirements
- All GEBO hatches are CE class-A ocean certified
- 2-year warranty under normal use
- 40mm height above deck. Silicone rubber seals
- 2 styles - Internal flange 5mm deep - or NO flange style
- Durable 10mm to 15mm thick smoked grey acrylic panels
- Heavy-duty no-snag adjustable friction hinges hold the hatch open in any position up to 180 deg, including a fully locked ventilation position
- Not a single catch, lip or knob for sails or rope lines to get caught on
- Inside / outside opening handles with sturdy blue locking button
- All hinges and metal parts are made from non-corrosive materials
- Mosquito/fly screens, inner dress rims and spare parts available
- Hatches WITH flange have a 55mm cut-out radius
PART NUMBER | CUT OUT SIZE (L X W) | RADIUS | ACRYLIC | OVERALL SIZE (L X W) |
---|---|---|---|---|
RWB-6035 | 450 x 320 mm | 55 mm | 10 mm | 505 x 375 mm |
RWB-6036 | 500 x 370 mm | 55 mm | 10 mm | 555 x 425 mm |
RWB-6037 | 500 x 500 mm | 55 mm | 10 mm | 555 x 555 mm |
RWB-6038 | 620 x 620 mm | 55 mm | 10 mm | 675 x 675 mm |
RWB-6040 | 900 x 600 mm | 55 mm | 10 mm | 955 x 655 mm |
SKU | RWB6037 |
---|---|
Barcode # | 9324608030735 |
Brand | Gebo |
Shipping Weight | 3.0000kg |
GEBO Standard Range Deck Hatch with Flange
The GEBO standard range of hatches are GEBO's traditional PREMIUM range of hatches. They have a smooth on-deck profile and the frame has been extended to fit flush against the base mounting. A deep groove in the lower frame keeps water from coming in when the hatch is open. 100% watertight when closed.
The Gebo standard range is available in 2 styles - with 5mm deep inner flange - or No flange - where the base sits flat on deck.
- Made from marine grade anodised aluminium giving long life, excellent corrosion resistance, durability, and low maintenance requirements
- All GEBO hatches are CE class-A ocean certified
- 2-year warranty under normal use
- 40mm height above deck. Silicone rubber seals
- 2 styles - Internal flange 5mm deep - or NO flange style
- Durable 10mm to 15mm thick smoked grey acrylic panels
- Heavy-duty no-snag adjustable friction hinges hold the hatch open in any position up to 180 deg, including a fully locked ventilation position
- Not a single catch, lip or knob for sails or rope lines to get caught on
- Inside / outside opening handles with sturdy blue locking button
- All hinges and metal parts are made from non-corrosive materials
- Mosquito/fly screens, inner dress rims and spare parts available
- Hatches WITH flange have a 55mm cut-out radius
PART NUMBER | CUT OUT SIZE (L X W) | RADIUS | ACRYLIC | OVERALL SIZE (L X W) |
---|---|---|---|---|
RWB-6035 | 450 x 320 mm | 55 mm | 10 mm | 505 x 375 mm |
RWB-6036 | 500 x 370 mm | 55 mm | 10 mm | 555 x 425 mm |
RWB-6037 | 500 x 500 mm | 55 mm | 10 mm | 555 x 555 mm |
RWB-6038 | 620 x 620 mm | 55 mm | 10 mm | 675 x 675 mm |
RWB-6040 | 900 x 600 mm | 55 mm | 10 mm | 955 x 655 mm |
SKU | RWB6037 |
---|---|
Barcode # | 9324608030735 |
Brand | Gebo |
Shipping Weight | 3.0000kg |
