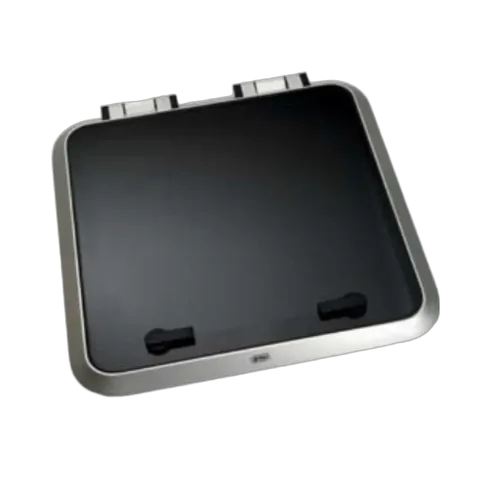

Square GEBO Flushline hatches have a low on-deck profile of only 24mm above deck. Made from marine grade anodised aluminium giving long life, excellent corrosion resistance, durability and low maintenance requirements.
Their sleek low profile lines work perfectly with with the smooth flowing lines of today's craft.
GEBO square hatches have a 25mm internal flange depth.
- All GEBO hatches are CE class-A ocean certified.
- 2 year warranty under normal use.
- Low profile - sleek lines - only 24mm above deck.
- Internal flange 25mm deep.
- Durable 8mm to 10mm thick smoked grey acrylic panels. 100% watertight.
- Heavy duty no-snag adjustable friction hinges hold the hatch open in any position up to 180 deg, including a fully locked ventilation position.
- Clean low-profile design. No catches, lips or knobs for sails or rope lines to get caught on.
- Inside / outside opening handles with sturdy blue locking button.
- All hinges and metal parts are made from non-corrosive materials.
- Silicone rubber seals.
- 42mm cut-out radius - except for RWB6010 which has a 95mm radius.
- Mosquito/fly screens, inner dress rims and spare parts available (sold separately).
- Hatch stays are available for hatches wider than 320mm only (sold separately).
SKU | CUTOUT SIZE | CUTOUT RADIUS | NO. OF HINGES | OVERALL SIZE | ACRYLIC THICKNESS | MOSQUITO SCREEN | INNER RIM ABS | INNER RIM ALUMINIUM | FLY-BLIND COMBO |
---|---|---|---|---|---|---|---|---|---|
RWB-6000 | 260mm x 260mm | 42mm | One | 315mm x 315mm | 8mm | ||||
RWB-6001 | 275mm x 275mm | 42mm | One | 330mm x 330mm | 8mm | RWB-6110 | RWB-6180 | RWB-6195 | |
RWB-6002 | 310mm x 310mm | 42mm | One | 365mm x 365mm | 8mm | RWB-6197 | |||
RWB-6005 | 360mm x 360mm | 42mm | Two | 415mm x 415mm | 8mm | ||||
RWB-6006 | 420mm x 420mm | 42mm | Two | 475mm x 475mm | 8mm | RWB-6112 | RWB-6182 | RWB-6198 | |
RWB-6007 | 440mm x 440mm | 42mm | Two | 495mm x 495mm | 8mm | RWB-6114 | |||
RWB-6009 | 470mm x 470mm | 95mm | Two | 550mm x 550mm | 8mm | RWB-6115 | RWB-6183 | RWB-6200 | |
RWB-6010 | 495mm x 495mm | 95mm | Two | 550mm x 550mm | 10mm | RWB-6117 | |||
RWB-6012 | 510mm x 510mm | 95mm | Two | 550mm x 550mm | 10mm | RWB-6118 | RWB-6185 | RWB-6202 | RWB-6102 |
RWB-6013 | 620mm x 620mm | 95mm | Two | 550mm x 550mm | 10mm | RWB-6119 | RWB-6186 | RWB-6203 | RWB-6103 |
SKU | RWB6010 |
---|---|
Barcode # | 9324608030506 |
Brand | Gebo |
Shipping Weight | 3.0000kg |
