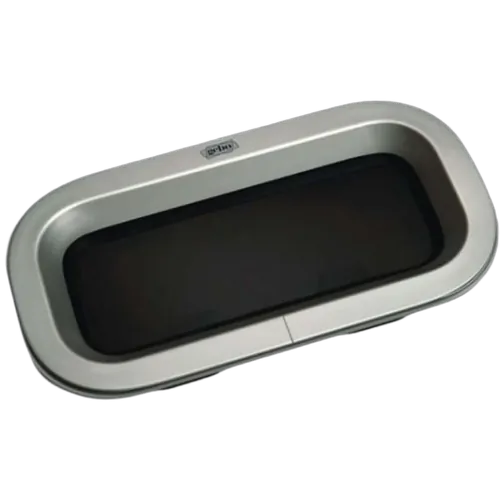

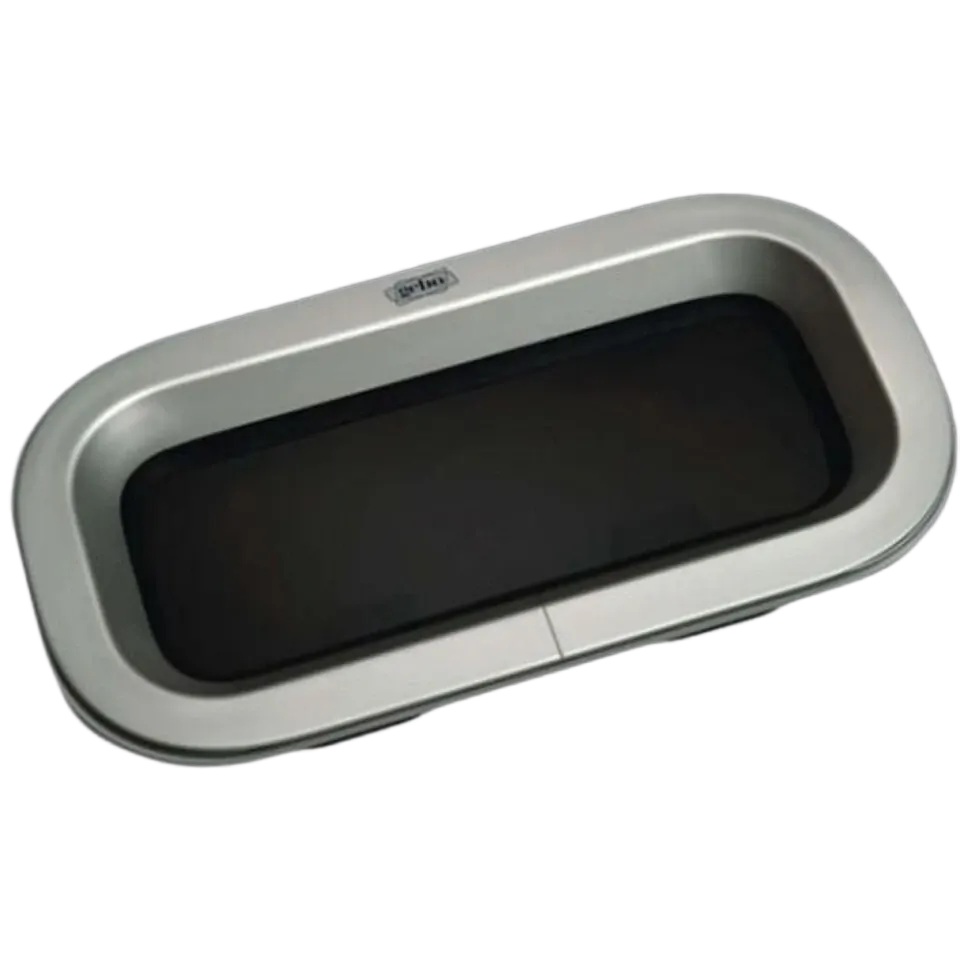

Gebo Econoline Rectangular Opening Portlights
The GEBO Econoline range is NOT suitable for mounting in the hull of a yacht. For watertight hull mounting portlights - see the Standard Portlight range.
The window is made from smoked grey acrylic as standard. Available in fixed or opening style.
Features
- GEBO's renowned quality in a lower priced range
- Made from marine grade anodised aluminium giving long life, excellent corrosion resistance, durability and low maintenance requirements
- Opening or fixed style portlights available
- All GEBO portlights are CE certified.
- Simplified installation with GEBO's unique clamp system - fast & neat finish - no screw holes to drill
- Multi-Position stepless hinges for flexible opening angles
- Durable 10mm thick smoked grey acrylic panel
- Ports should be fitted to a flat surface - max 1mm tolerance
Specifications
SKU | Cutout Size mm | Radius | Overall Size mm | Radius | Acrylic mm | Mosquito/Fly Screen |
RWB6080 | 304 x 155 | 56mm | 329 x 180 | 68mm | 227 x 78 | RWB6167 |
RWB6081 | 347 x 171 | 56mm | 372 x 196 | 68mm | 270 x 94 | RWB6168 |
RWB6082 | 375 x 175 | 56mm | 400 x 200 | 68mm | 310 x 10 | RWB6169 |
RWB6090 | 375 X 175 | 400 x 200 | 310 x 10 | RWB6170 | ||
RWB6083 | 405 x 155 | 56mm | 430 x 180 | 68mm | 328 x 78 | RWB6171 |
RWB6084 | 429 x 171 | 56mm | 454 x 196 | 68mm | 352 x 94 | RWB6172 |
RWB6085 | 627 x 171 | 56mm | 652 x 196 | 68mm | 550 x 94 | RWB6173 |
RWB6086 | 676 x 167 | 56mm | 701 x 192 | 68mm | 599 x 90 | RWB6174 |
RWB6087 | 676 x 191 | 56mm | 701 x 216 | 68mm | 599 x 114 | RWB6175 |
SKU | RWB6080 |
---|---|
Barcode # | 9324608031077 |
Brand | Gebo |
Shipping Weight | 3.0000kg |
