INFO:

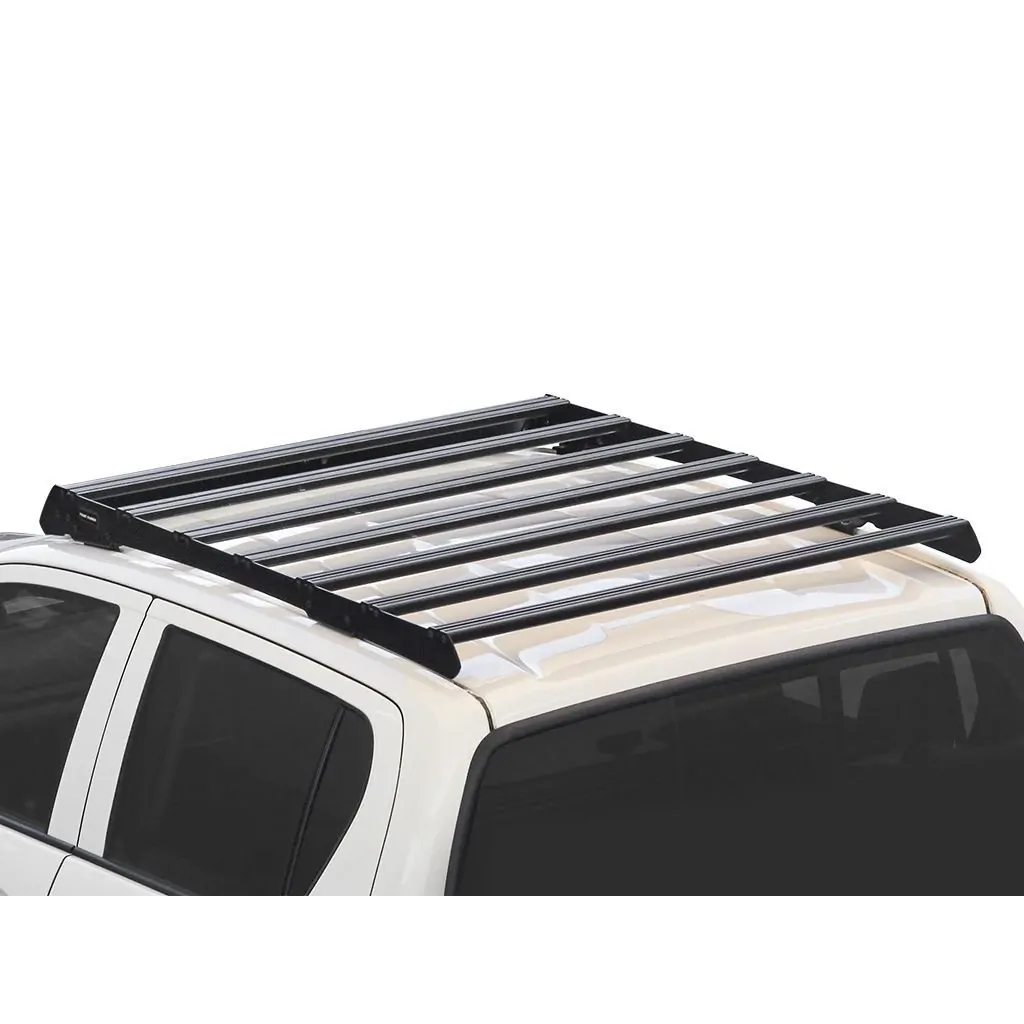

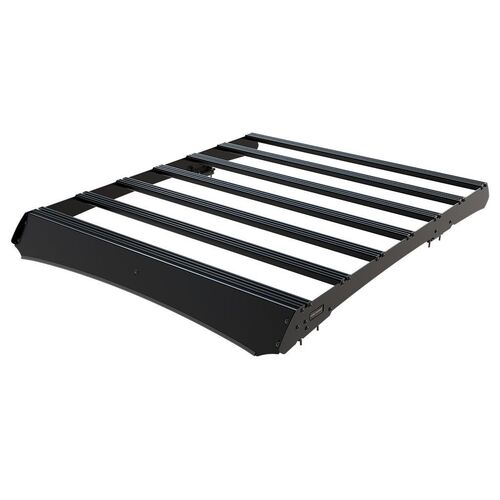

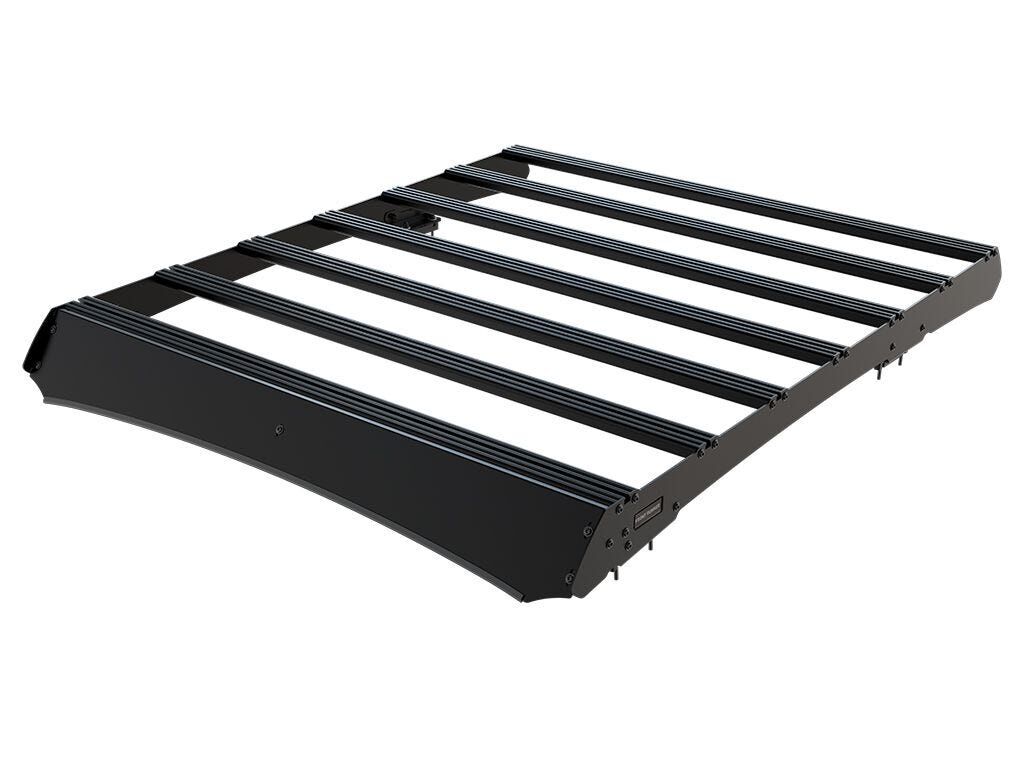

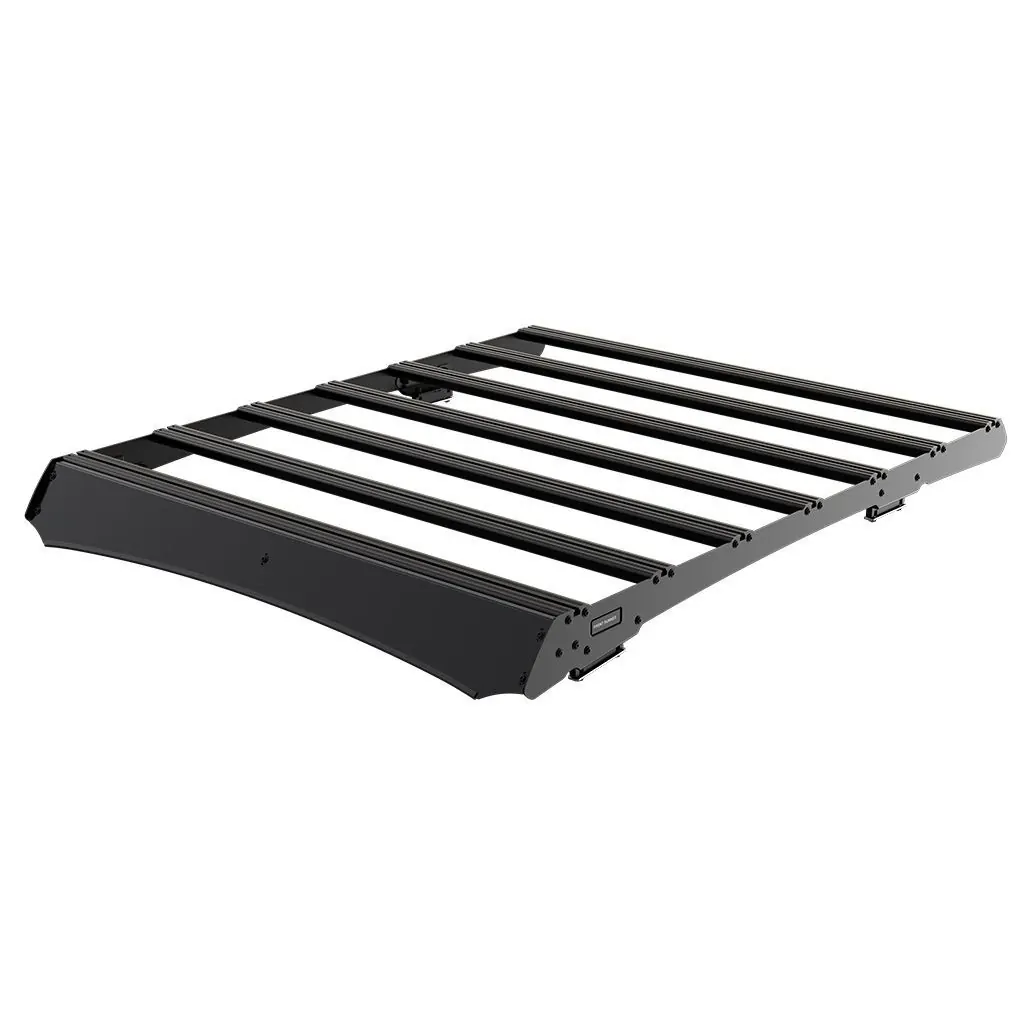

- This low-profile flat deck Slimsport rack has a load carrying area of 1272mmL (50.07") x 1135mmW (44.68").

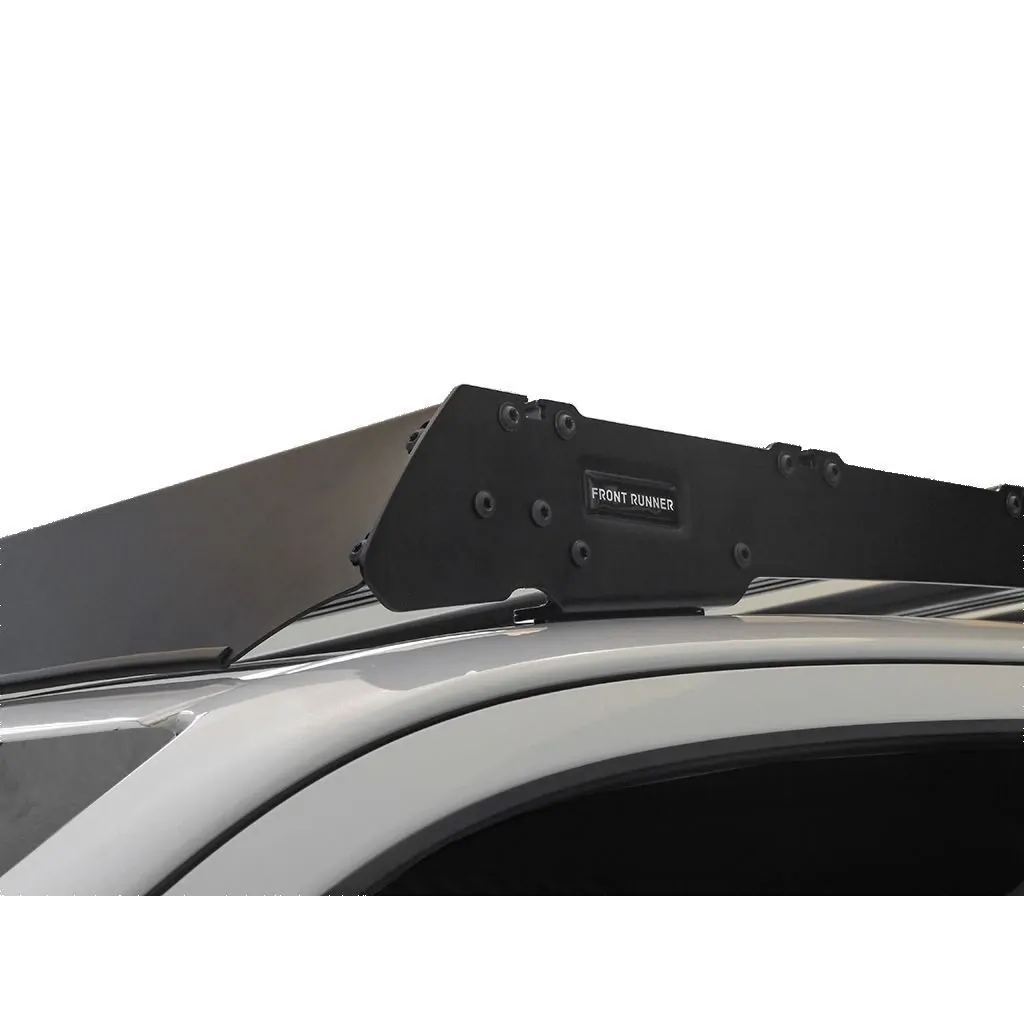

- The sleek side rails have integrated mounting feet. Mounting feet also have additional brace brackets for added strength.
- The high-strength aluminum slats have top and bottom T-slots suitable for all Front Runner top mount accessories.
- Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket (sold separately).
- Easily add on the Slimsport Side Mount Accessory Bracket / Small – by Front Runner (sold separately) for all Front Runner side mount accessories.
- The included standard full fairing with rubber edge trim makes the rack ultra-quiet.
- Need a lightbar? The optional Toyota Hilux Slimsport Rack Toyota Hilux (2015-Current) Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow the use of 40" LED Slim Light Bar VX1000-CB / 12V/24V / Single Mount (sold separately).
- Fitment guide and all mounting hardware included.
- 6"/T30 Torx Allen Key for Slimsport Rack is required for installation (sold separately).
- Note: Drilling required.
- Note: Under Rack Tables are not compatible with the Slimsport rack kit range.
- Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.
SPECS:
KSTH003TBP - Toyota Hilux DC (2015-2021) Slimsport Roof Rack Kit - by Front Runner
Consisting of:
1 x Toyota Hilux DC (2015-Current) Slimsport Roof Rack Kit
1 x RRAC232 - TOYOTA HILUX SLIMSPORT RACK WIND FAIRING
- Fitting Instructions
- Installation Hardware
- Plus enjoy a FREE Wolfpack storage box!
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Assembled Rack Kit Dimensions:
1398mm (55“) L x 1141mm (44.9“) W x 106mm (4.2“) H
Approximate Installed Weight: 25.55kg (56.33lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.
Shipping Dimensions:
Width: 325mm (13")
Length: 1700mm (67")
Height: 160mm (6")
Shipping Weight:
Weight: 25.55kg (56lbs)
SKU | KSTH005TBP |
---|---|
Barcode # | KSTH005TBP |
Brand | Front Runner Outfitters |
Shipping Weight | 25.5000kg |
Shipping Width | 0.325m |
Shipping Height | 0.160m |
Shipping Length | 1.700m |
Shipping Cubic | 0.088400000m3 |
