Features / Specifications

• Low Profile Design
• Surface or Recessed Mount Option
• ADR approved
• IP67 100% Water proof
• 12 Volt or 24 Volt Specific
• 135mm x 38mm x 24mm
• 145mm x 48mm x 10mm
• 5 Year Warranty

Download Data Sheet

Fitting Instructions

135CAT1 - Horizontally mount onto flat surface & clip lens into place.
135CAT1G - Recess mount grommet (cut out for grommet 133mm x 36mm) horizontally to the ground & push lens into place.

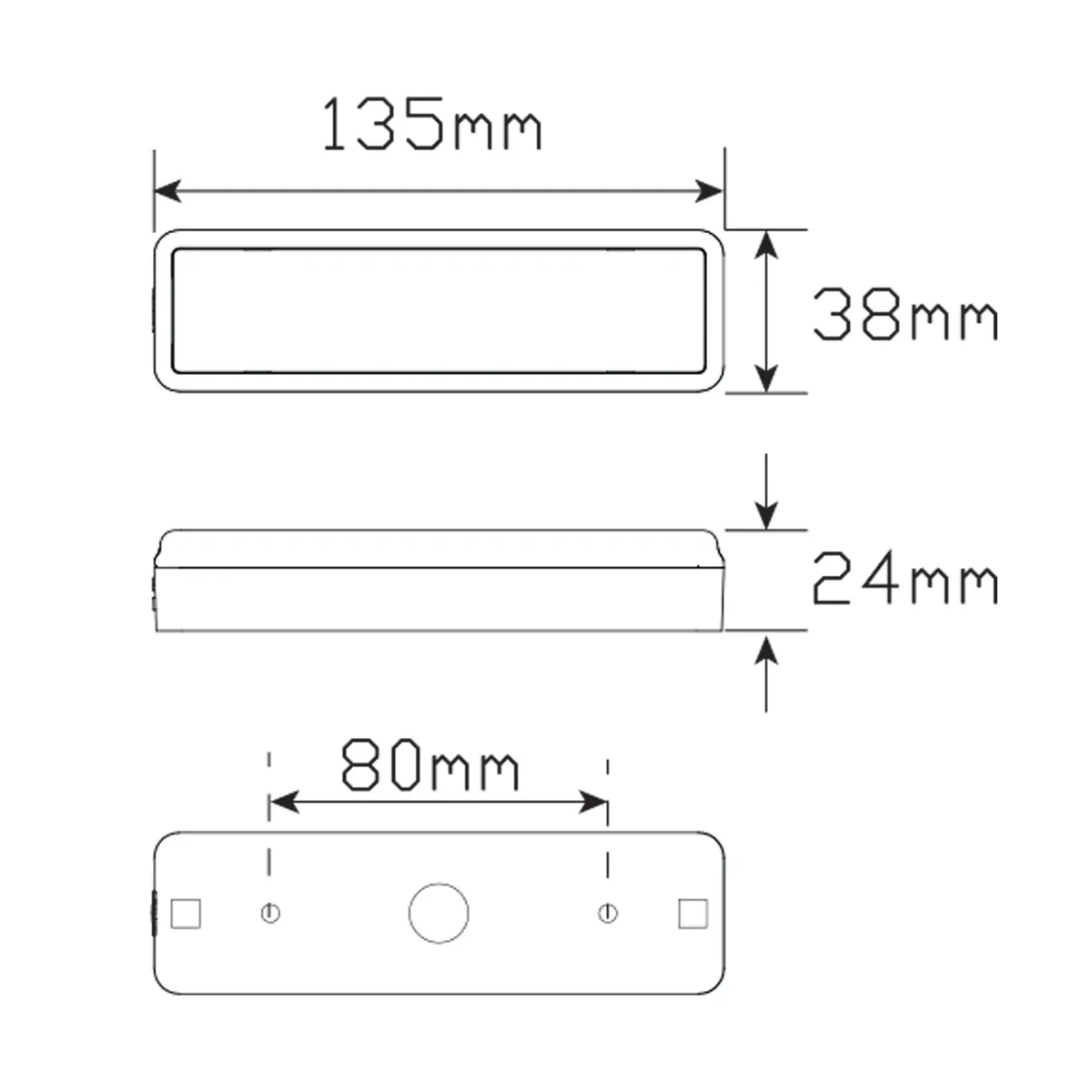

Technical Drawings
