Towing large trailers, caravans and horse floats can be a hard thing for many people which is why our kits make towing and reversing easy.
With this in mind, we created our TCFD1KIT package for select Ford vehicles to make it easier for people to reverse when towing no matter if its a horse float, caravan or a trailer be it large or small.

With the included Echomaster Wireless Camera. thanks to its 45-meter range, there is no video cabling required to be run through the trailer/float/caravan which can be very difficult.

Installation is made by connecting the wireless reverse camera’s power to the trailer reverse lights. The module, receiver, and harness are all connected behind the vehicle dashboard.
If your vehicle is fitted with an OEM factory reverse camera, this feature is retained however the trailer/float/caravan camera overrides the factory OEM factory reverse camera when the trailer is connected. When the trailer is removed, the factory reverse camera works as normal.

• Suitable for vehicles with 8″ (SYNC 3)



  FORD SYNC 3 FACTORY SCREEN EXAMPLE

• Some vehicles may still require a reverse trigger into the AX-ADDCAM module when using this product.

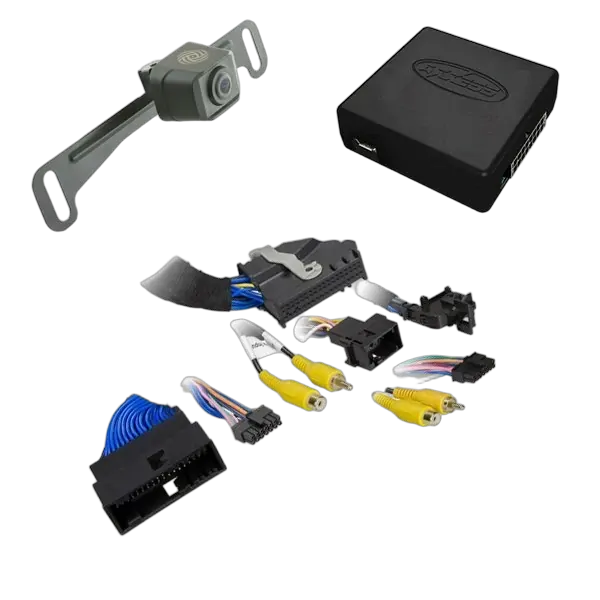

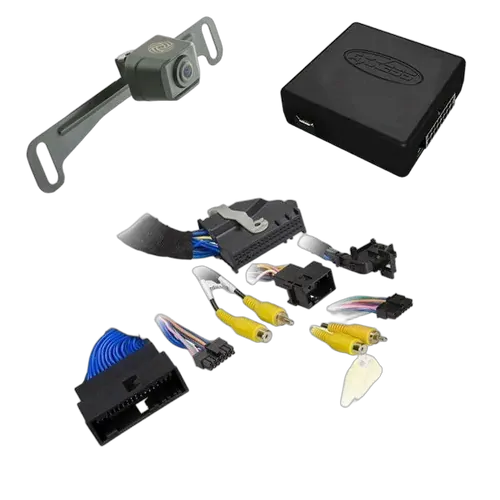

What’s included in the package?

1x Echomaster Wireless Camera (PCAM-WLP)

• With its range of up to 45 meters (without obstacles) no more video signal issues, frustrating cabling lengths and time consumed running additional harnesses.
• 2.4GHz wireless video with digital encryption
• 140 deg viewing angle
• Operating Temperature (-20deg C to 65deg C)
• 0.1 LUX
• PWM Power Supply – Safe for use on CAN controlled tail lights!
• Water/debris-proof rating: IP67
• Includes wireless receiver easily installed behind the dashboard

1x Vehicle Specific Ford Harness (AX-ADDCAM-FD1)

PLEASE NOTE:
Due to the limitations of some factory head units, camera video picture cannot be confirmed whilst the car is in motion. This package is designed to be used as a reverse camera on the additional trailer, horse float, caravan, etc on the OEM radio. May require additional wiring in the vehicle.

The vehicle will require programming via Windows 7 or 10 PC via USB lead to configure the AX-ADDCAM product.
