*Please note this product is made to order and has a 4-6 week lead time*
Features
With Enerdrive breaking into the 4WD canopy market in recent years, we have been consistently asked by manufactures and end users to come up with a compact power solution to operate all of the electrical equipment that is ending up in the back of these canopies. From a simple system to operate a fridge and a couple of lights to a full on power station, these are the type of systems we have been asked for.
After many brainstorming sessions and 3D modelling designs, Enerdrive have produced 3 models to cover just about any customer request for power in their canopies.

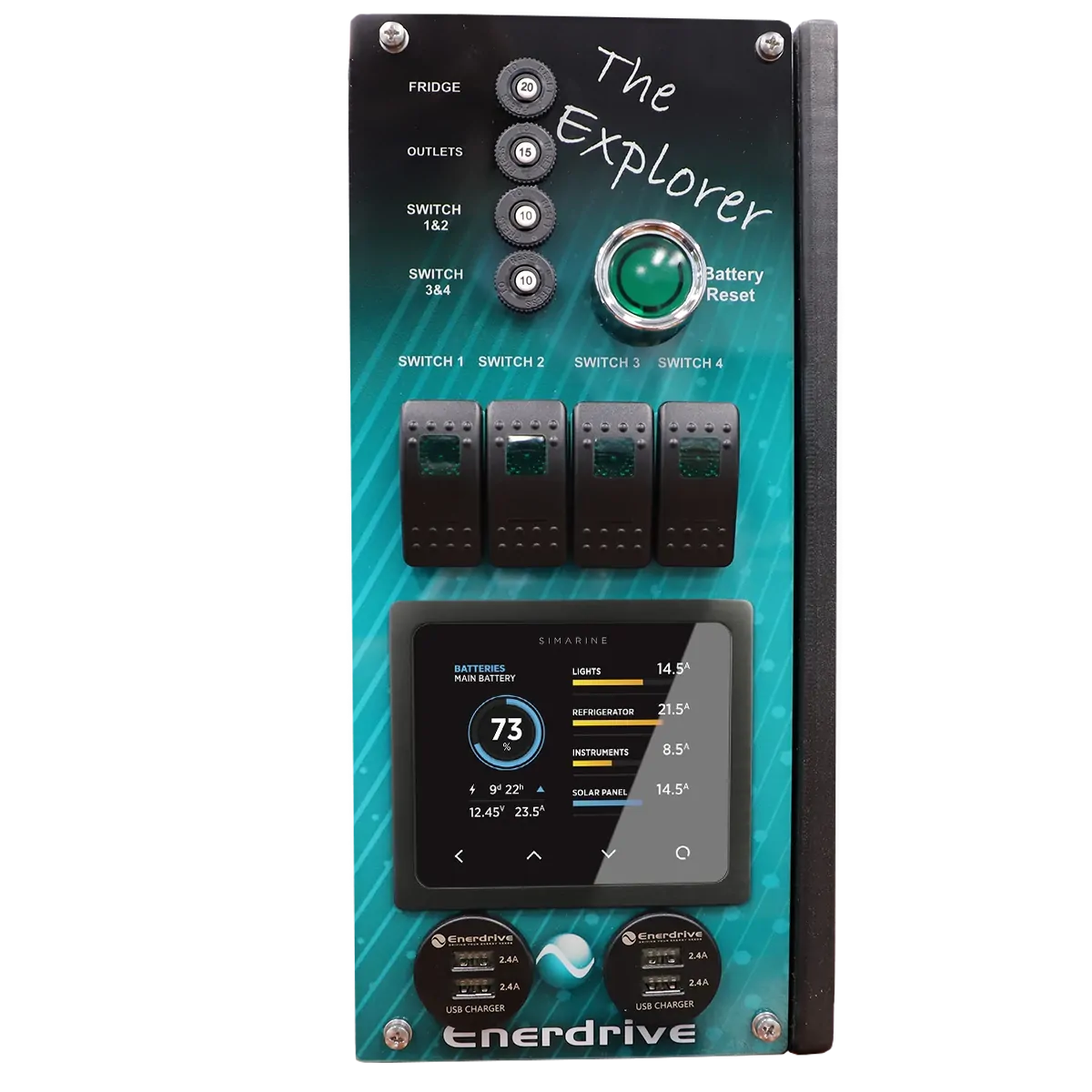

The Explorer:
This system is designed for the end user only requiring a minimum power option in a neat package. Available in 3 different versions;
- K-EXPLORER-03 inc Simarine & Individual Load Monitoring
All Explorer systems are pre-wired by Enerdrive so the only cabling required at installation time is load outputs, battery connection & vehicle/solar/tank inputs

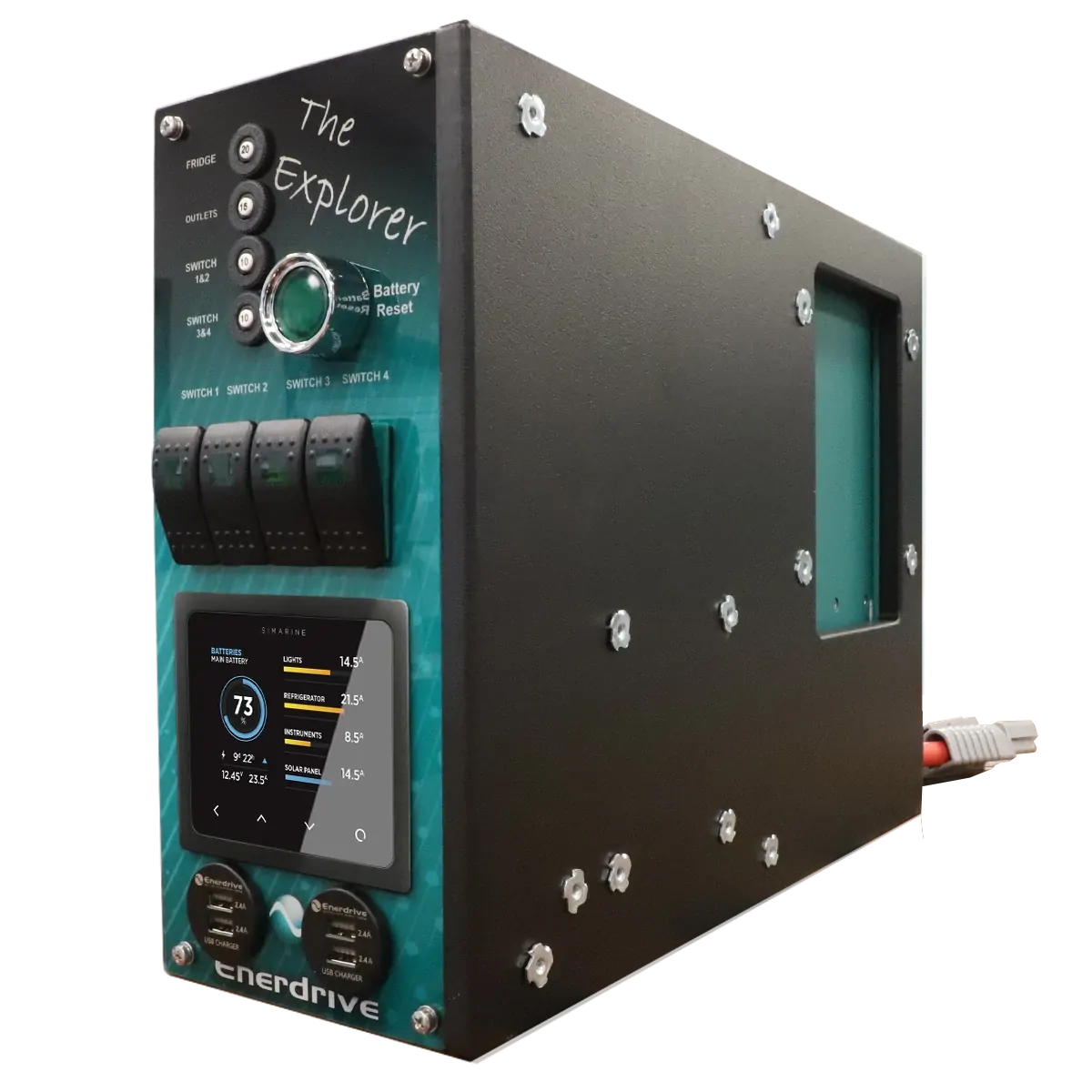

All systems are built into a unique compact box arrangement and designed to mount for example on either the front or rear bulkhead of a vehicles canopy. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.
If you are interested in having custom engraving for switch/circuit breakers to your specific requirements, this option is available at an additional cost.
Enerdrive are proud to bring to market this innovative design that can be installed by the manufacturer or end user in a neat one piece installation.
*Please note this product is made to order and has a 4-6 week lead time*
Specifications
Items Included | The Explorer |
---|---|

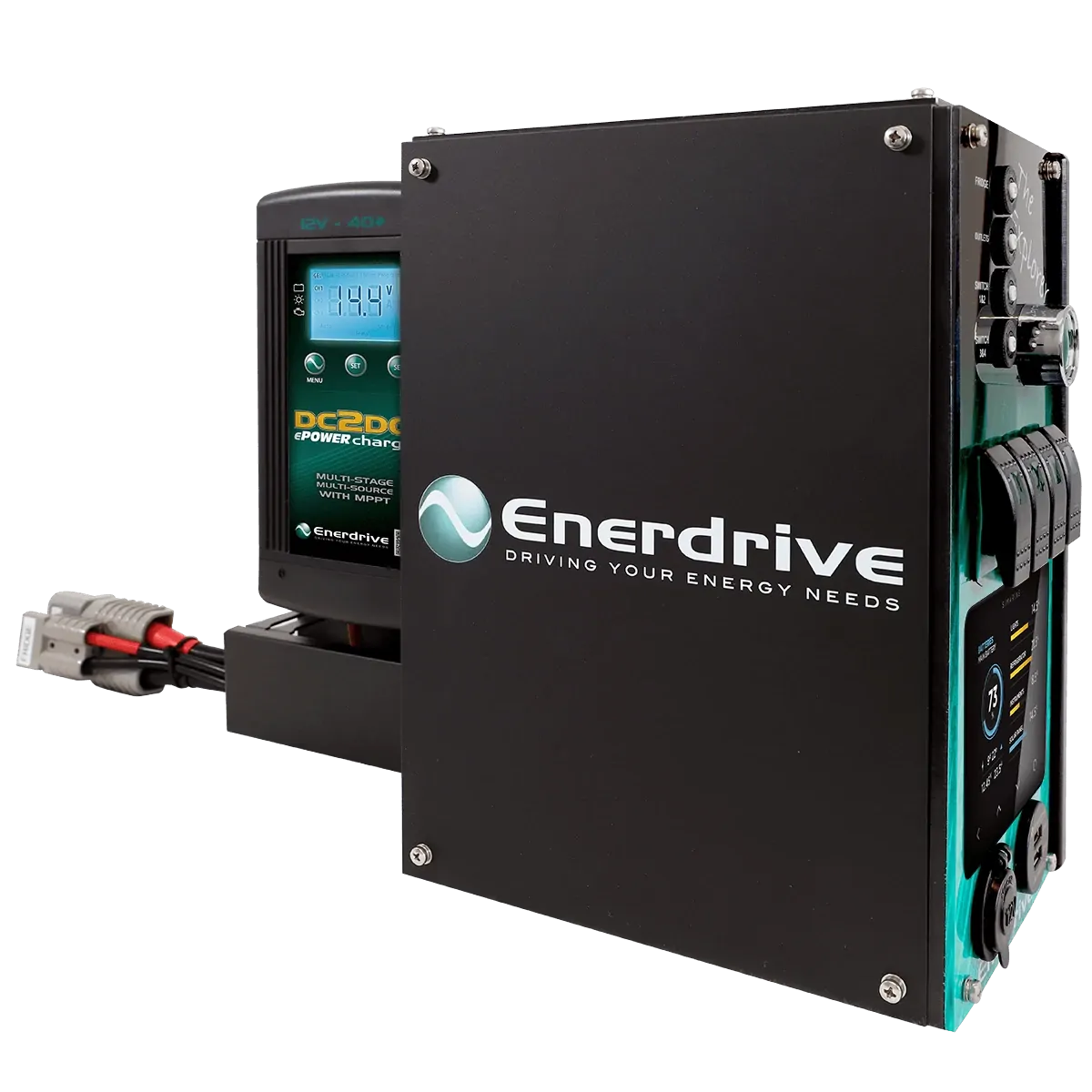

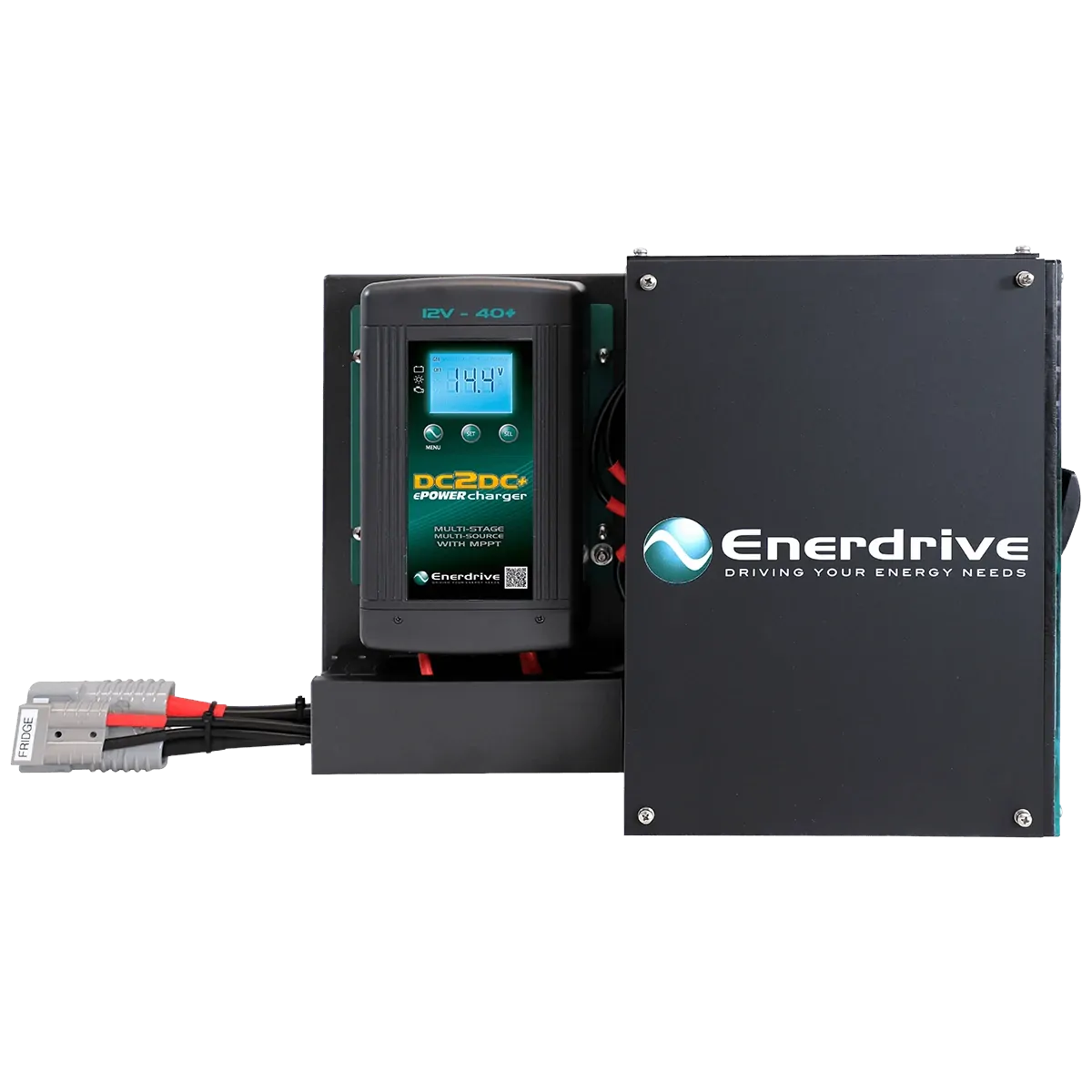

ePOWER DC2DC 40+ Charger (Vehicle/Solar) | * |
Simarine LCD Battery WIFI Monitoring System | K-EXPLORER-02 K-EXPLORER-03 |
4x Pre-Wired Circuit Breakers for Main Power Equipment | * |
4 x Contura Switches | * |
Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse | * |
Pre-wired Fridge 50A Anderson Plug connection | * |
Twin USB 2.4A Hi Amp Sockets | * |
Battery Reset Button | * |
Individual Load/Charge Module for Simarine. (#SI-SCQ50) | K-EXPLORER-03 |
Dimensions (Left, Right & Rooftop Model) | 455L x 155W x 330Hmm |
Weight | 7kg |
(*) Indicates Standard Fitment |
SKU | K-EXPLORER-03-L |
---|---|
Barcode # | OEBC580215 |
Brand | Enerdrive |
Shipping Weight | 7.0000kg |
