Description:
120W Portable Solar Blanket Expansion Kit - Model No. SP551B - is to be used with the Explore Planet Earth Portable Solar Blanket Kit with Controller (Model No. SP551A - sold separatley) - This expansion kit allows for expansion to 240W

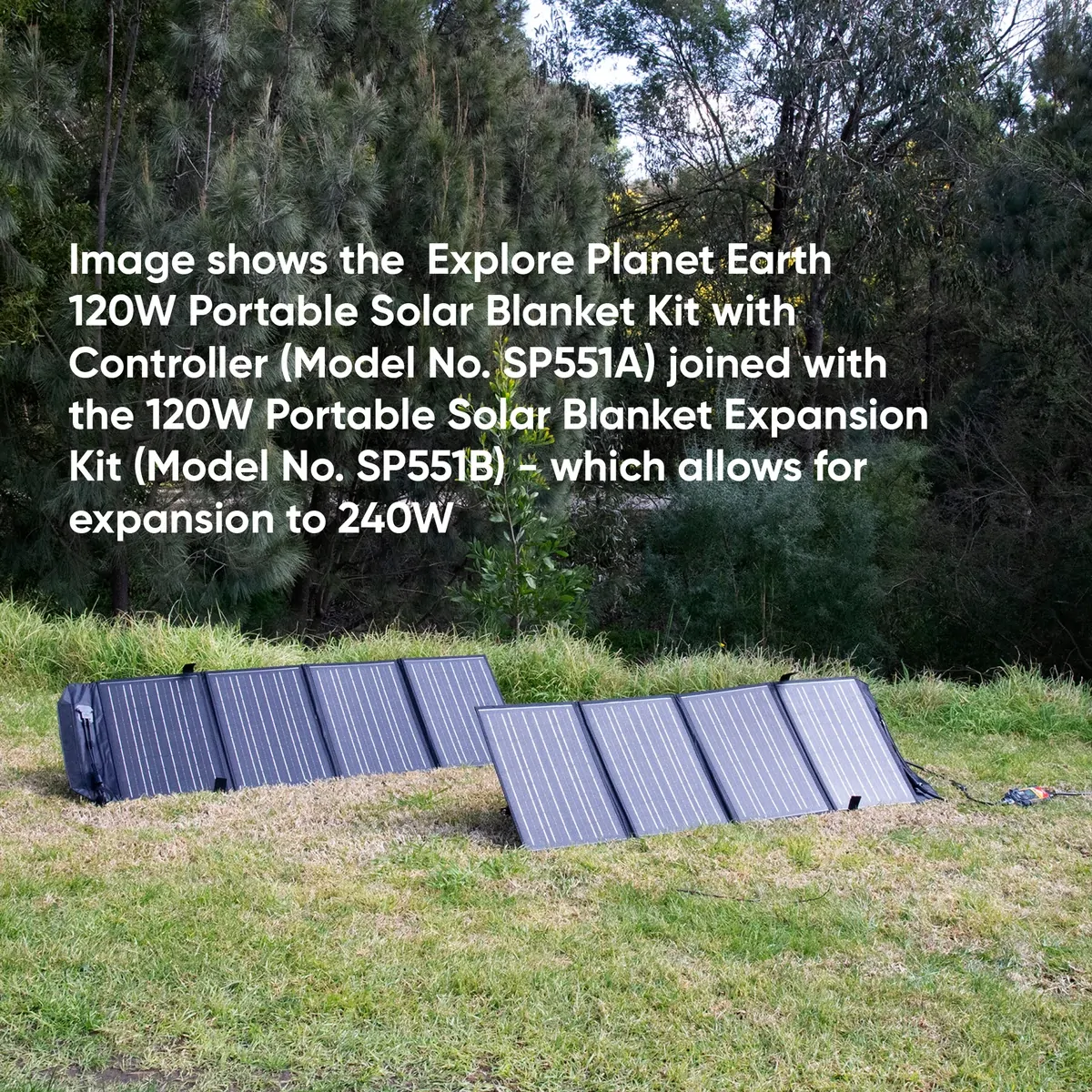

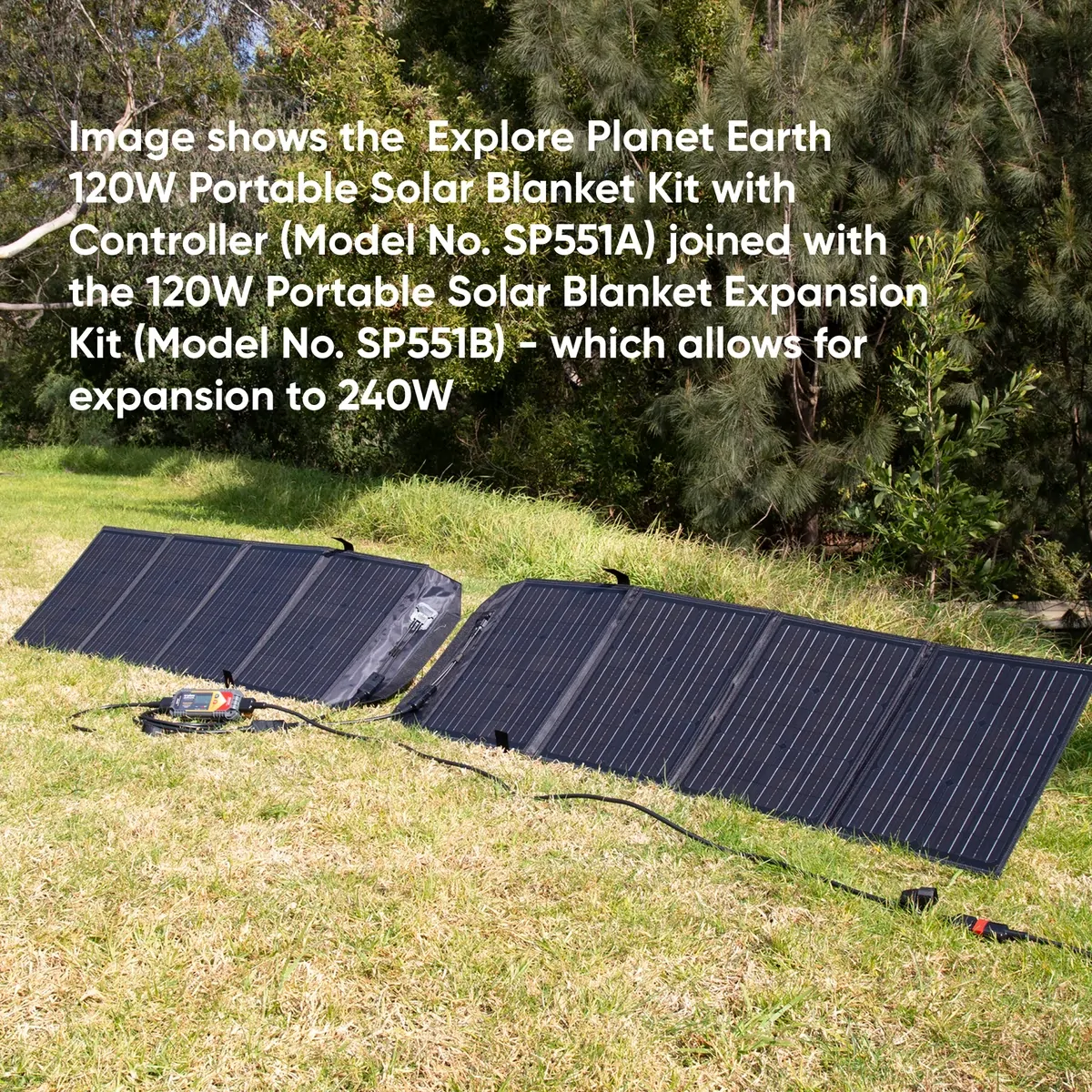

Explore Planet Earth is the first to market with this unique system in offering two separate 120W Solar Blanket Kits, each with the necessary items required to connect the two kits together, effectively doubling the wattage output to 240W.
Firstly, the ‘complete’ Portable Solar Blanket Kit with Controller (Model No. SP551A - sold separately) that has everything included to charge your 12V DC system and secondly, a separate ‘expansion’ add-on 120W PORTABLE SOLAR BLANKET EXPANSION KIT (Model No. SP551B) that includes only the necessary items for connection to the ‘complete’ Portable Solar Blanket Kit with Controller (Model NO. SP551A) allowing for the expansion.

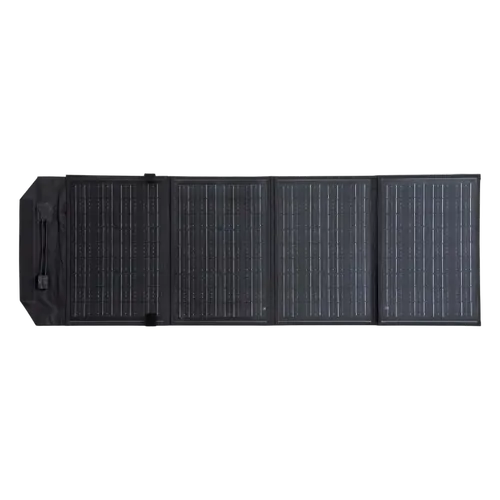

The Explore Planet Earth 120W Portable Solar Blanket Kit is a high performance, ultra-compact solution for solar charging most common chemistry types of 12V DC batteries, including Lithium Iron Phosphate (LiFeP04). It is one of the easiest and fastest ways to keep your battery charged up at your campsite. It folds out in seconds and takes less than a minute to hook up to the 120W Portable Solar Blanket Kit with Contoller thanks to the quick connect, Anderson type plugs!
The monocrystalline solar cells ensure the highest efficiency possible! This lightweight and compact blanket will produce up to 6.6A in optimal conditions.
The 120W Portable Solar Blanket Kit is designed for Australia’s tough conditions, using high quality components and the latest in solar cell technology which provide dependable performance and reliability in an easy to use extremely compact and portable solar kit.
Specifications:

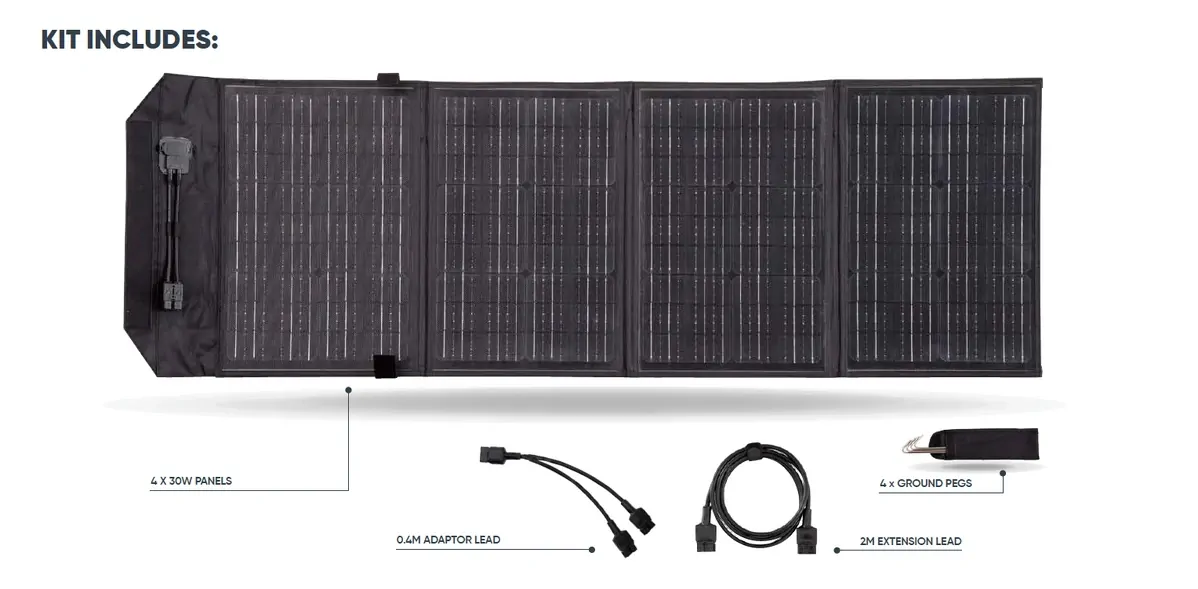

KIT INCLUDES:
- 4 x 30W panels
- 50A heavy duty Anderson type plugs on all leads
- 2M extension lead
- 0.4M adaptor lead
- 4 x ground pegs
CELLS / PANELS:

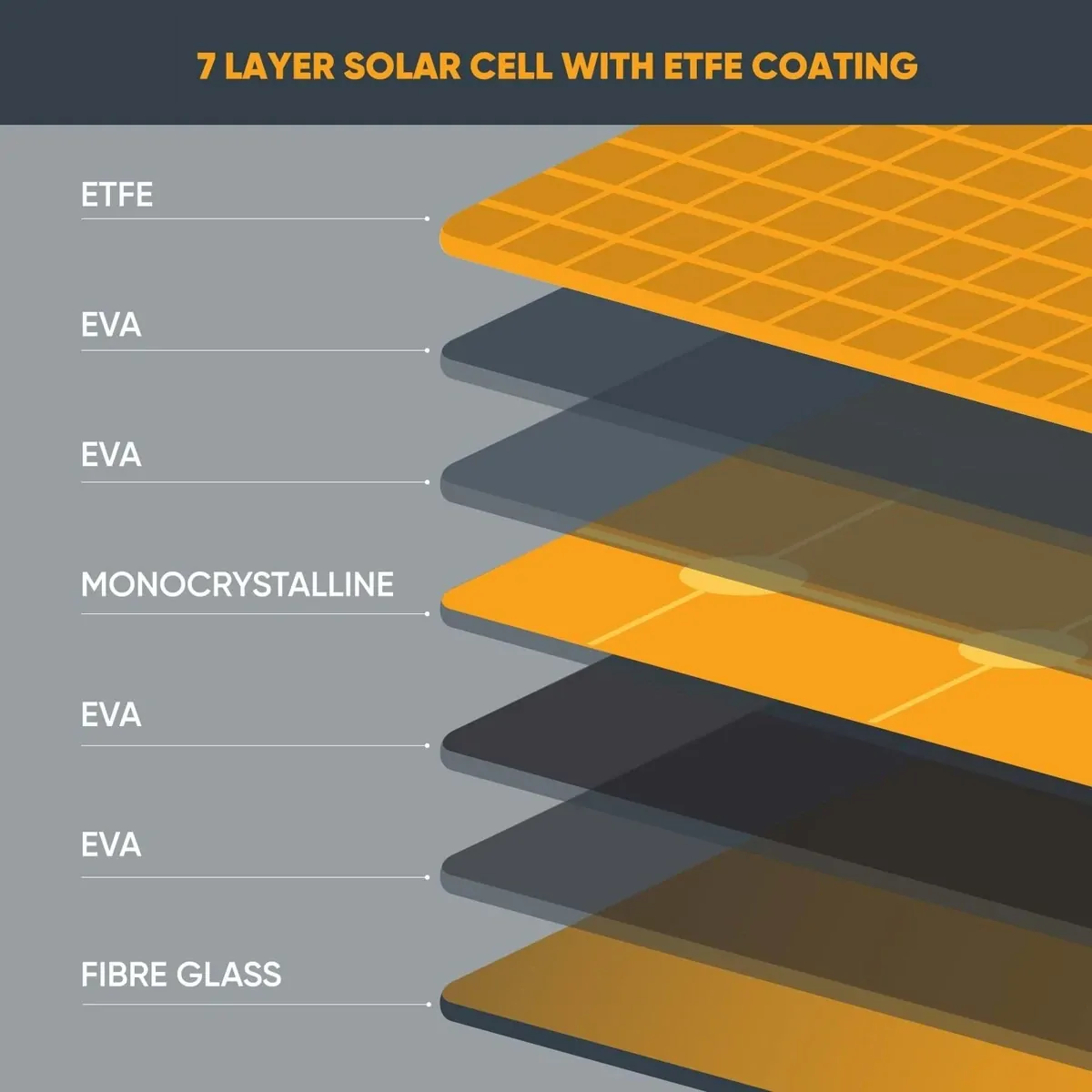

7 layer cell with ETFE Coating

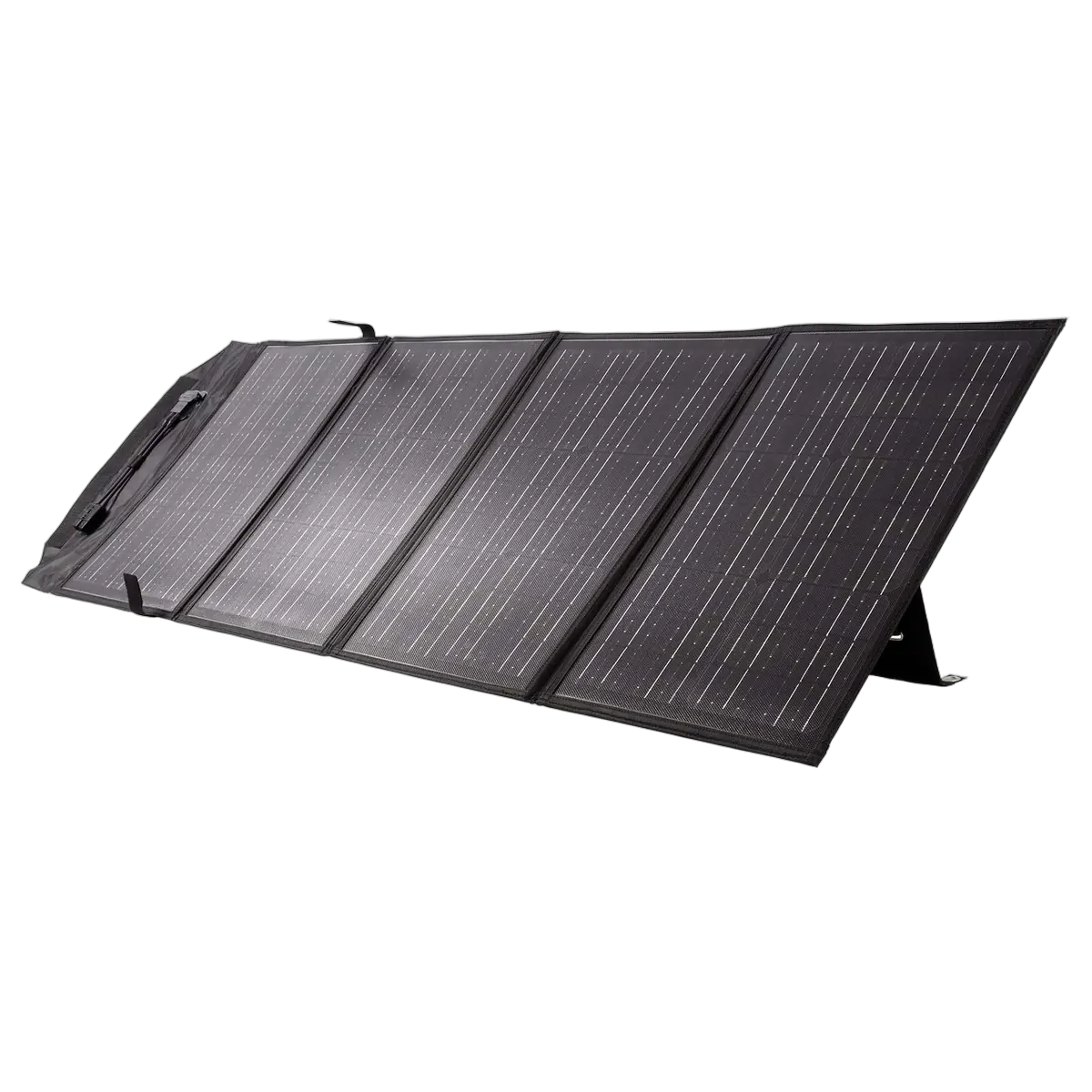

Built in panel stand
| Cell make: | PERC |
| Cell type: | Monocrystalline |
| Cell efficiency: | 21.65% |
| Cell qty & panel qty: | 4 x 30W panels |
| Maximum power (Pm): | 120W |
| Current at max power (Imp): | 6.66A |
| Voltage at max power (Vmp): | 18V |
| Open circuit voltage (Voc): | 22V |
| Short circuit current (lsc): | 7A |
| Extension leads: | 4mm2 (AWG12) |
| Output and lead connection: | 50A Anderson Type |
| Cell Encapsulation: | ETFE lamination |
| Bag fabric: | Polyester 900D |
| Adjustable support legs: | Yes |
| Folded dimension L x W x H: | 560mm x 420mm x 40mm |
| Unfold dimension L x W: | 1700mm x 560mm |
| Net weight (total kit): | 6.0Kg (including accessories) |
Suitable for camping, 4WDriving, caravaning, boating and other outdoor activities
Suggested applications depending on battery capacity: 12V LED lighting, 12V portable TV, 12V bilge pump, mobile devices, 12V portable fridge, 12V portable fan, 12V shower water pump
| SKU | SP551B |
|---|---|
| Barcode # | 9314388082451 |
| Brand | Explore Planet Earth |
| Shipping Weight | 6.0000kg |
| Shipping Width | 0.380m |
| Shipping Height | 0.540m |
| Shipping Length | 0.100m |
