EVAPOWER PRECISION WATT METER
Measure the charge output from solar panels or draw from 12 volt fridges and appliances using the EvaPower 150A High Precision Watt Meter. Designed for caravan, camping, 4wd and dual battery systems, this handy accessory is Anderson-style plug compatible and the ultimate tool to add to your 12V kit.
Features:
- Real time readings and diagnostics

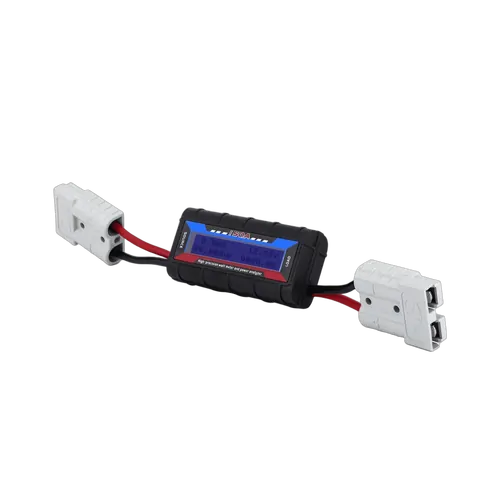

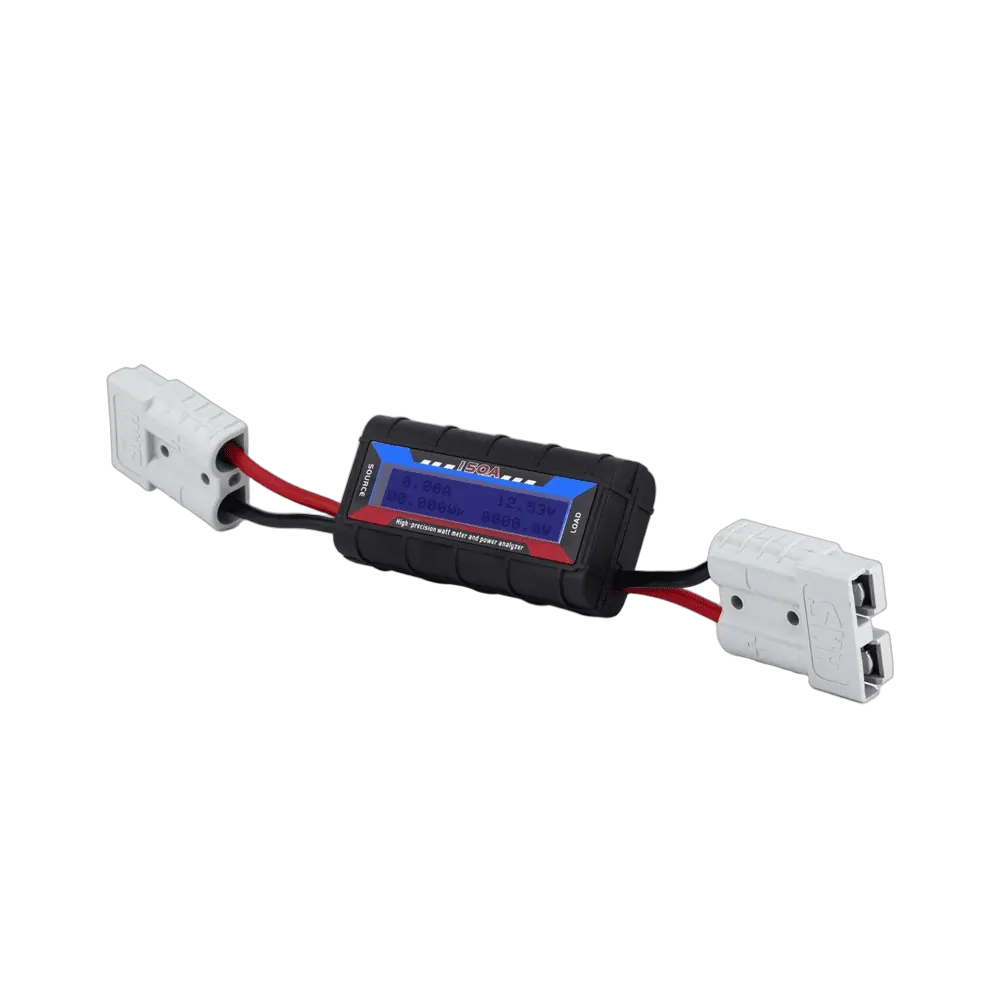

- Anderson-style connectors for a plug & play operation

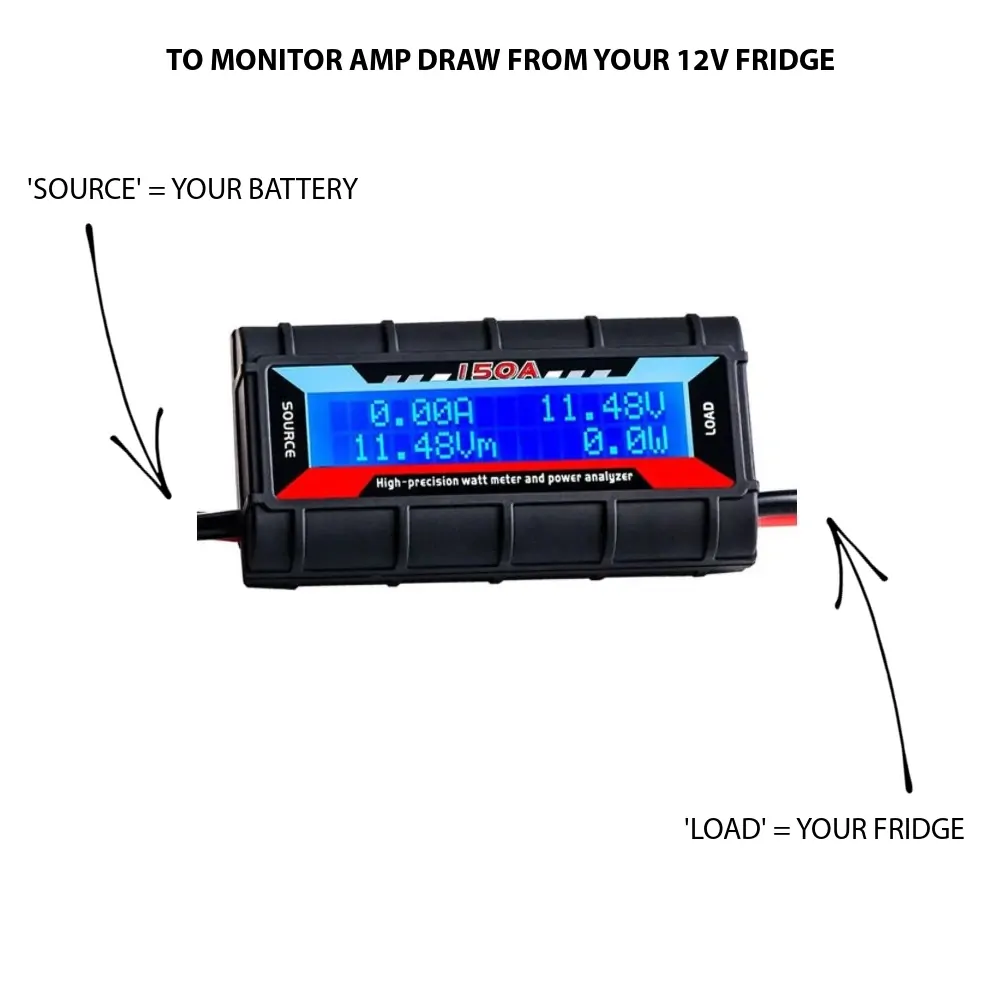

- Measure load draw or solar charge
- Blue backlit digital display
- Super low power draw (0.007mA/hr)
What your Watt Meter can tell you:
- Current (Amps/A) at the present moment
- Voltage (Volts/V) at the present moment
- Power (Watts/W) at the present moment
- Total Amps (Amp hours/Ah) since device initialized
- Total Power (Kilo Watt hours/KWh) since device initialized
- Highest Voltage Maximum (Vm) since device initialized
- Highest Power Peak (Watt Peak/Wp) since device initialized
- Highest Current Peak (Amp Peak/Ap) since device initialized
Please note, this product does not have a long term memory and is not designed to be permanently installed in-line in your 12V system.
Weight: 140G
Warranty: 1 YEAR
Specifications:
Operating Voltage: 0-60V DC
Current: 0-100A Intermittent (50A Continuous)
Temperature Range: 0-50C Ambient Air Temp
Measurement Update Period: 400mS
Data Queue Sequence Time: 400mS
In Circuit Resistance: 0.001 Ohms
SKU | EKPWR-WATT |
---|---|
Barcode # | 9330263000044 |
Brand | Evakool |
Shipping Weight | 1.0000kg |
Assembled Length | 0.100m |
Assembled Height | 0.100m |
Assembled Width | 0.100m |
