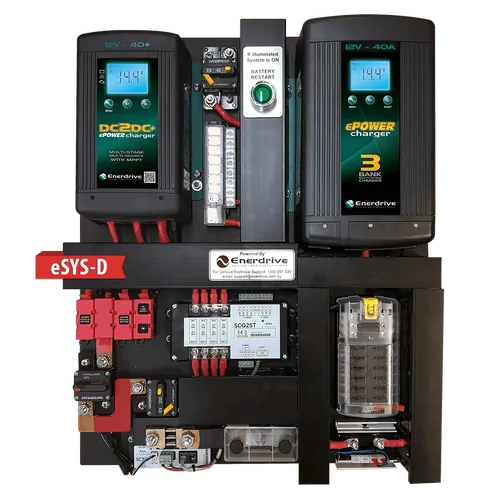

Enerdrive Esystem 40/40 Ac/Dc And Simarine

Description
Specifications

'Made to Order 3 week Lead time'

Features

Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.

Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small systems with AC & DC charging and battery monitoring up to systems with 2000w inverters and individual charge/load monitoring.

The eSYSTEM’s are all pre-wired by Enerdrive where possible to keep the them simple to install. All eSYSTEMS have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Enerdrive also have you covered from a service and support angle with the eSYSTEM DIY Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely.

Specifications

Items Included	eSYS-C	eSYS-D	eSYS-E	eSYS-F	eSYS-G	eSYS-H	eSYS-I	eSYS-J	K-DIY-Board-01
ePOWER AC 40Amp 230v Charger	*	*	*	*	*				*
ePOWER AC 60Amp 230v Charger						*	*	*
ePOWER DC2DC 40+ Charger (Vehicle/Solar)	*	*	*	*	*	*	*	*	*
Morningstar Tristar PWM-45A Solar Controller						*	*	*
ePRO Plus 500A Battery Monitor with Remote Display	*		*			*		*	*
Simarine Pico LCD WIFI Monitoring Screen		*		*	*		*
Simarine SC303 300A Main Battery Shunt		*		*	*		*
Simarine SCQ25T Individual Load/Charge Module		*		*	*
Simarine SCQ50 Individual Load/Charge Module							*
3 Stud Main Negative Bus Bar	*	*	*	*	*	*	*	*	*
40A Low Battery Cutout	*	*	*	*	*	*	*	*
Main System Circuit Breaker 120A	*	*	*	*	*				*
Main System Circuit Breaker 200A						*	*	*
Inverter Circuit Breaker 200A	*	*	*	*	*	*	*	*	*
Solar Input Positive Circuit Breaker 40A		*	*	*	*	*		*
Solar Input Positive Circuit Breaker 60A		*	*	*	*	*	*	*
ePOWER DC2DC 60A Output Fuse Connection	*	*	*	*	*	*	*	*	*
ePOWER AC Charger 50A Output Fuse Connection	*	*	*	*	*				*
ePOWER AC Charger 70A Output Fuse Connection						*	*	*
1 x 30A Load Output Fuse Connections							*		*
2 x 30A Load Output Fuse Connections				*	*	*		*
50A Load Output Fuse Connection	*						*
24hr Critical Load 4 Circuit "Wedge" Fuse Block		*		*	*
24hr Critical Load 8 Circuit "Wedge" Fuse Block			*
Main 6 Circuit "Wedge" Fuse Block with Negative Bus and Cover						*	*		*
Main 12 Circuit "Wedge" Fuse Block with Negative Bus and Cover		*	*
ePOWER 2000W AC Transfer Inverter	*			*
Battery Restart Switch (Lithium Batteries)	*	*	*	*	*
12mm Black Plastic Mounting Board. Water & Rot Resistance	*	*	*	*	*	*	*	*	*
175A Anderson Plug (Inverter)									*
50A Anderson Plug (Solar Input)									*
50A Anderson Plug (Vehicle Input)									*
Dimensions	1185L x 380W x 130Dmm	600L x 490W x 100Dmm	600L x 490W x 100Dmm	1185L x 380W x 130Dmm	790L x 380W x 100Dmm	1195L x 380W x 111Dmm	1195L x 380W x 111Dmm	920L x 380W x 111Dmm	580L x 580W x 100Dmm
Weight
(*) Indicates Standard Fitment

Specifications

SKU	ESYS-D
Barcode #	ESYS-D
Brand	Enerdrive
Shipping Weight	15.0000kg
Assembled Length	0.600m
Assembled Height	0.100m
Assembled Width	0.490m

$3,399.99

SAVE $229.01

DON'T PAY RRP $3,629.00
