Description
Features

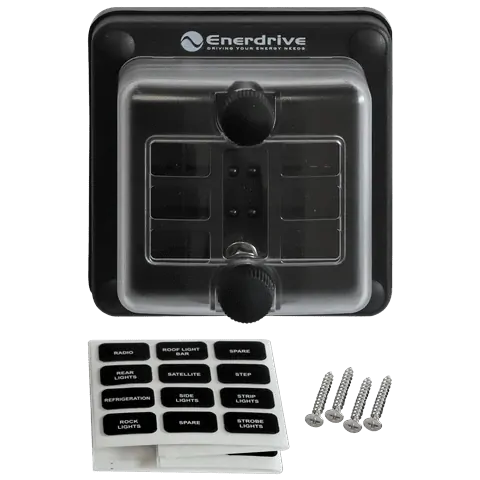

Fuse Block Panel Mount 1 In 6 Out with LEDs
- Panel Mount 1 in – 6 out fuse block with rear connections.
- Suits ATO/ATC Blade Fuses
- 32V 50Amp Max – 20Amp Max per circuit
- Fuse blown LED’s for easy fault finding.
- Panel mount with rear connections and cover make this fuse block ideal for canopy installs.
- Includes two label sets.
- Retail Packaging
Specifications
| Fuse Block Panel Mount 1 In 6 Out with LEDser | |
|---|---|
| Circuits | 6 |
| Maximum Amperage | 20A per circuit 100A per block |
| Maximum Voltage | 32V DC |
| Mounting | 8″ Screw [M4] |
| Positive Input | #8-32 with Flat/Spring Washers |
| Positive Bus Output | Spade Terminals |
| Recommended Torque | 24 in-lb (2.71 N.m) |
| Weight | 0.17 kg |
| Size | 92 x 87 x 61mm |
Specifications
| SKU | EA-FB-01 |
|---|---|
| Barcode # | OEBC527638 |
| Brand | Enerdrive |
| Shipping Weight | 0.4000kg |

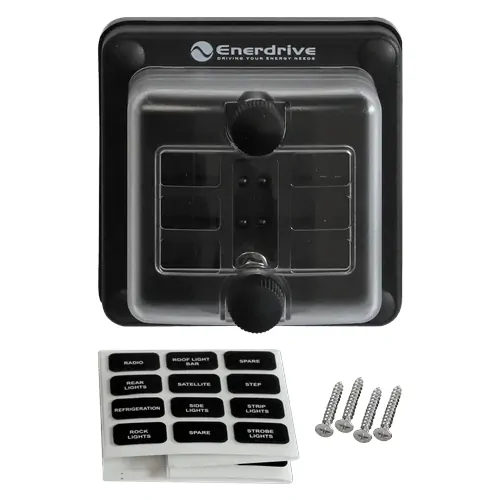

Enerdrive Use Block, Rear Entry Panel Mount 1 In 6 Out With Leds
