Features

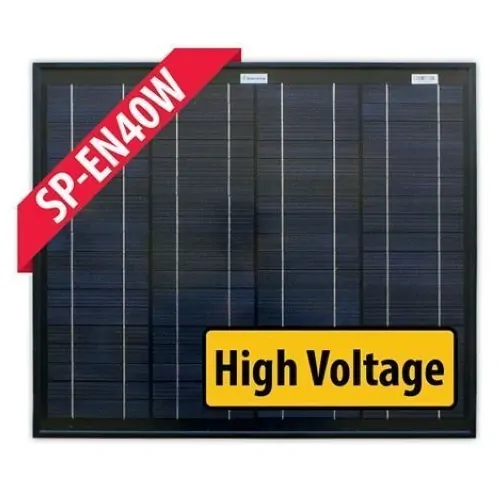

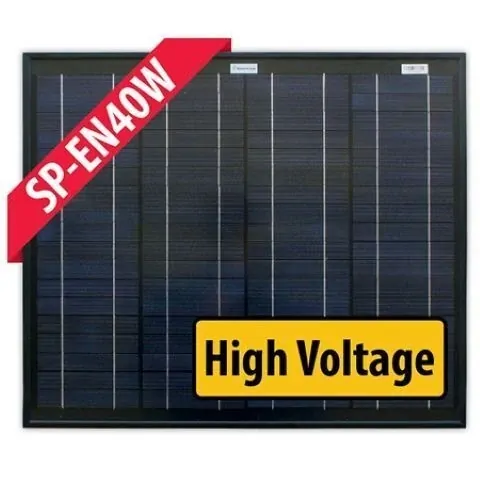

Enerdrives 40W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).
PLEASE NOTE: SP-EN40W-24V are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided
for many years with all Enerdrive products.
Specifications
| Enerdrive Part Number | SP-EN40W |
|---|---|
| Max Power Pm(W) | 40 |
| Power Tolerance % | 0% ∼ 3% |
| Max Power Voltage Vm(V) | 35.5 |
| Max Power Current Im(A) | 1.13 |
| Open Circuit Voltage Voc(V) | 43.1 |
| Short Circuit Current Isc(A) | 1.85 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 567 x 670 x 30 |
| Weight (kg) | 3.9 |
| Test Conditions |
1000W/m² , AM1.5 , 25°C |
| SKU | SP-EN40-24V |
|---|---|
| Barcode # | SP-EN40-24V |
| Brand | Enerdrive |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.100m |
| Shipping Length | 0.700m |
| Shipping Cubic | 0.049000000m3 |
| Assembled Length | 0.550m |
| Assembled Height | 0.300m |
| Assembled Width | 0.350m |
