Description
Specifications
| Circuit Breakers | |
|---|---|
| Maximum Voltage | 48V DC |
| Circuit Breaker Class | Type III – switchable/manual reset – trip free |
| Circuit Breaker Type | Single Pole Thermally Responsive Bi-metal Blade |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temp | -32° C |
| Maximum Operating Temp | 82° C |
| Ignition Protected | Meets SAE J553, J1625, J1171, UL1550 |
| Splash & Dust Proof | IP67 |
| UL Rating | Housing is Thermal Plastic UL Rated, 94V0 |
| Terminal Stud | 25-70A - M6 (accepts 1/4″ ring Terminal) 80-200A - M10 (accepts 3/8″ ring Terminal) |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
| Weight | 0.23 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | EN-RCB30 |
|---|---|
| Barcode # | OEBC527631 |
| Brand | Enerdrive |
| Shipping Weight | 0.4500kg |

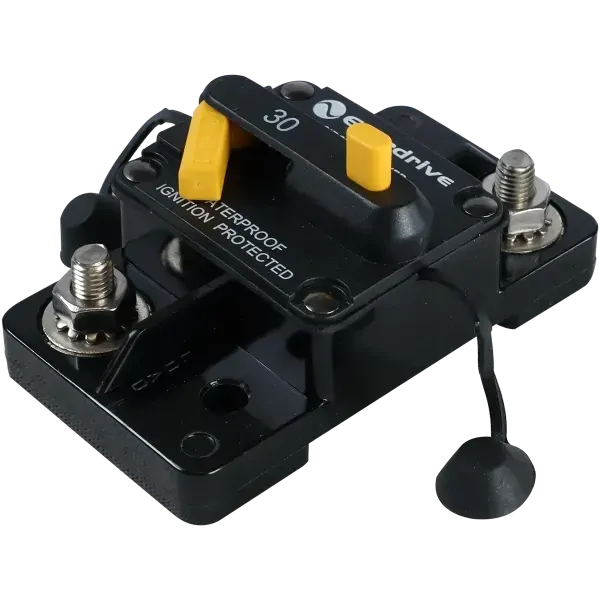

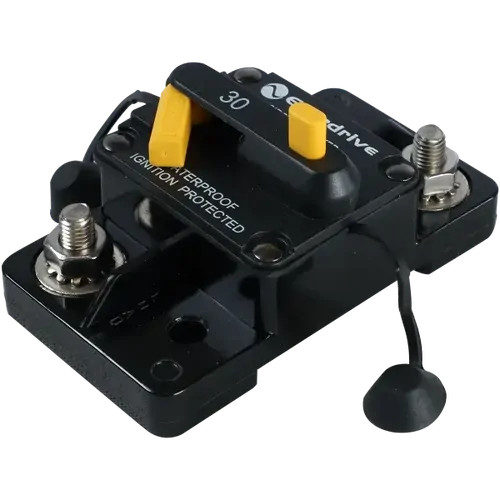

Enerdrive Enerdrive 285-Series Circuit Breakers Surface Mount 5/16 Stud 30A
SKU: EN-RCB30
In stock
More infoMake 4 payments of $12.75 over 8 weeks and get it now!
Calculate Shipping
Description
Specifications
| Circuit Breakers | |
|---|---|
| Maximum Voltage | 48V DC |
| Circuit Breaker Class | Type III – switchable/manual reset – trip free |
| Circuit Breaker Type | Single Pole Thermally Responsive Bi-metal Blade |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temp | -32° C |
| Maximum Operating Temp | 82° C |
| Ignition Protected | Meets SAE J553, J1625, J1171, UL1550 |
| Splash & Dust Proof | IP67 |
| UL Rating | Housing is Thermal Plastic UL Rated, 94V0 |
| Terminal Stud | 25-70A - M6 (accepts 1/4″ ring Terminal) 80-200A - M10 (accepts 3/8″ ring Terminal) |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
| Weight | 0.23 kg |
Note: Specifications subject to change without notice.
Specifications
| SKU | EN-RCB30 |
|---|---|
| Barcode # | OEBC527631 |
| Brand | Enerdrive |
| Shipping Weight | 0.4500kg |
