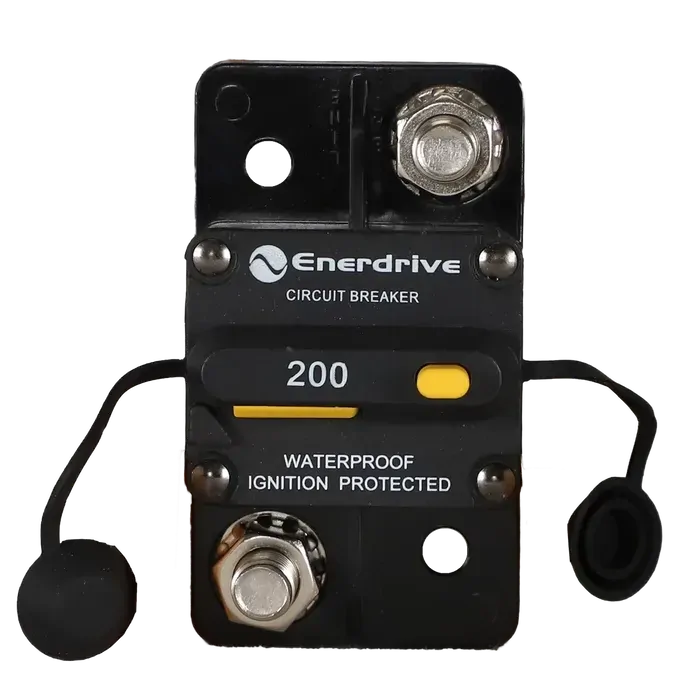

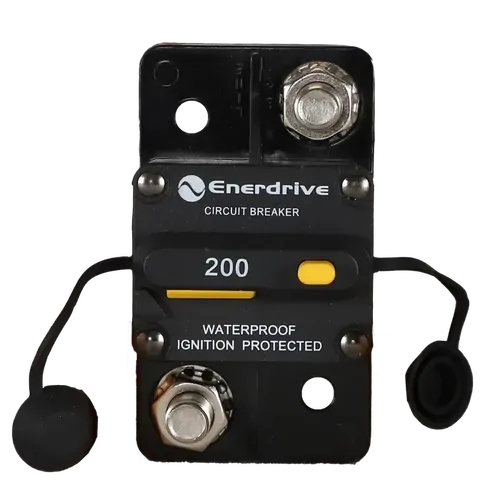

Specifications
Circuit Breakers | |
---|---|
Maximum Voltage | 48V DC |
Circuit Breaker Class | Type III – switchable/manual reset – trip free |
Circuit Breaker Type | Single Pole Thermally Responsive Bi-metal Blade |
Interrupt Capacity | 3000A @ 48V |
Minimum Operating Temp | -32° C |
Maximum Operating Temp | 82° C |
Ignition Protected | Meets SAE J553, J1625, J1171, UL1550 |
Splash & Dust Proof | IP67 |
UL Rating | Housing is Thermal Plastic UL Rated, 94V0 |
Terminal Stud | 25-70A - M6 (accepts 1/4″ ring Terminal) 80-200A - M10 (accepts 3/8″ ring Terminal) |
Terminal Stud Torque | 50 in-lb (5.65 Nm) |
Weight | 0.23 kg |
Note: Specifications subject to change without notice.
SKU | EN-RCB200 |
---|---|
Barcode # | OEBC527628 |
Brand | Enerdrive |
Shipping Weight | 0.4500kg |
