Description
Features
- Stainless steel studs, nuts and washers for optimal corrosion resistance
- Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
- Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
- Unique grid optimized footprints allow space saving arrangements of multiple products
- Common interconnection heights for easy combining of multiple products using link plates (except Mega and ANL (300A) fuseholders)
- Robust transparent covers with breakouts to allow wire access from any direction
- Smart terminal design allows dual mirrored cable lug connections
- Easy in-system connection access due to top locked covers (except Mega and ANL (300A) fuseholders)
Specifications
| Model | Part No. | Grid size1) | Fuse range2) | Max. Voltage | Connection stud size |
|---|---|---|---|---|---|

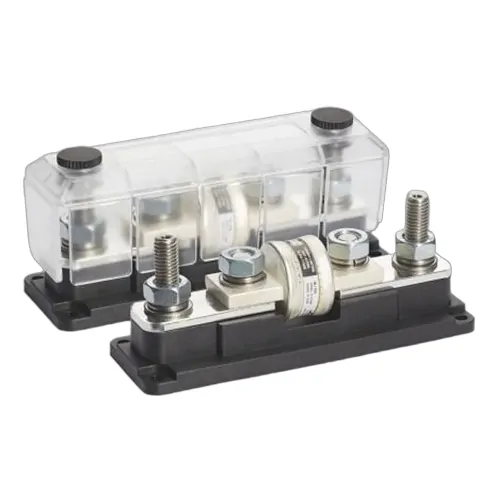

| DCM Class-T Fuseholder (400A) | DCM-5073850 | 1 x 3 | 225 .. 400A | 50V | M10 |
1) Compatible with Littelfuse® ‘JLLN’, Cooper Bussmann® / Edison® ‘JJN’ and ‘TJN’ and Mersen® ‘A3T’ fuses
2) Higher voltages may require additional safety measures
Specifications
| SKU | DCM-5073850 |
|---|---|
| Barcode # | OEBC527644 |
| Brand | Enerdrive |
| Shipping Weight | 0.0600kg |
