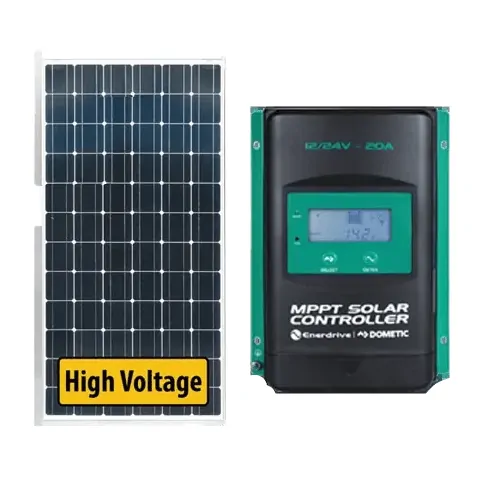

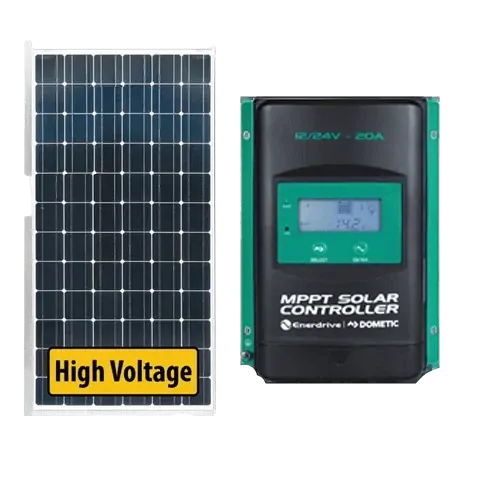

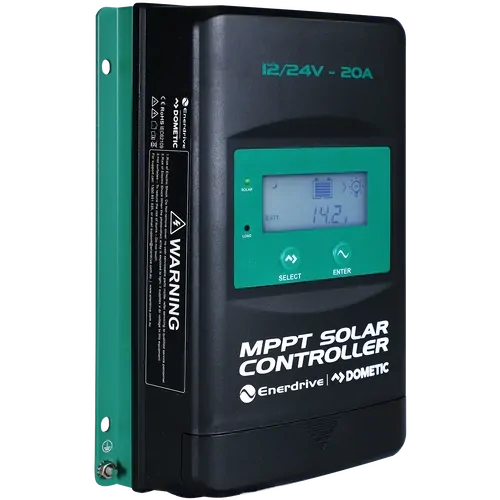

The Enerdrive MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.

The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote off grid monitoring and many other applications.

IP33 Ingress protection and isolated RS485 design further improves the controller’s reliability and meet the different application requirements.

Enerdrive MPPT Solar Controller Features:

• CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)
• LCD display
• Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
• Maximum DC/DC transfer efficiency is as high as 98.6%.
• Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
• Accurate recognition and tracking of multi-peaks maximum power point
• Wide MPP operating voltage range
• Support lead-acid and lithium batteries
• Real-time energy statistics function
• Power reduction automatically over temperature value
• Multiple load work modes
• Comprehensive electronic protection
• IP33 Ingress protection
• Comms port included for future applications

Specifications

1. When lithium battery is used, the system voltage can’t be identified automatically.
2. At minimum operating environment temperature.
3. At 25°C environment temperature.
4. When lithium battery is used, the temperature compensate coefficient must be 0, and can’t be changed.
5. The controller can supply full load working in the environment temperature. When the internal temperature reaches 81°C, the reduced charging power mode is turned on.

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).

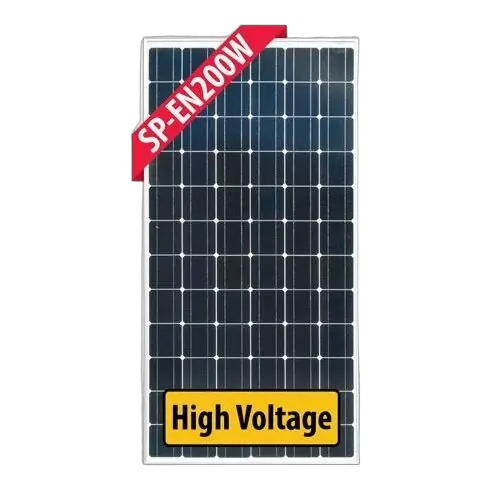

Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).

A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided
for many years with all Enerdrive products.

If you buy from us you will ALWAYS be dealing with Enerdrive for warranty, and we won’t hide behind supplier warranty statements or clauses. Enerdrive’s volume will allow us to ensure that any quality or warranty issue can be dealt with LOCALLY.

PLEASE NOTE: The SP-EN40W, SP-EN100W-24 and SP-EN200W are suitable for Charging 24V Battery System when using a PWM Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.

Specifications
