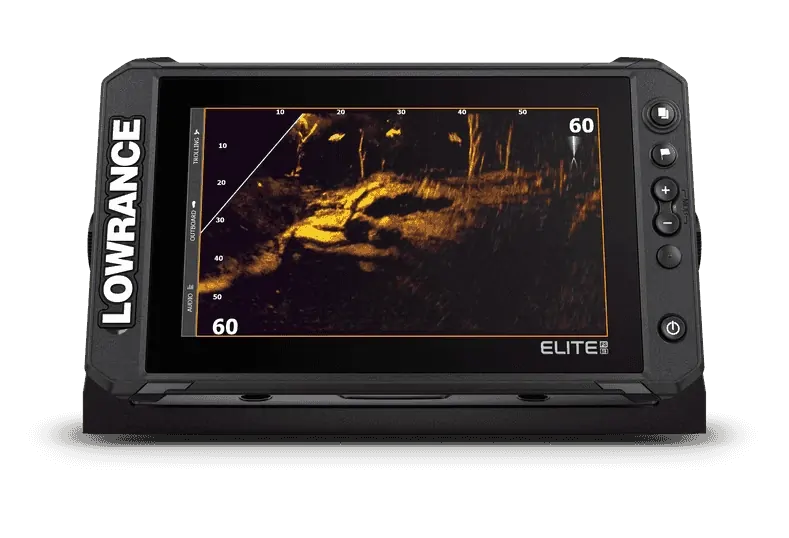

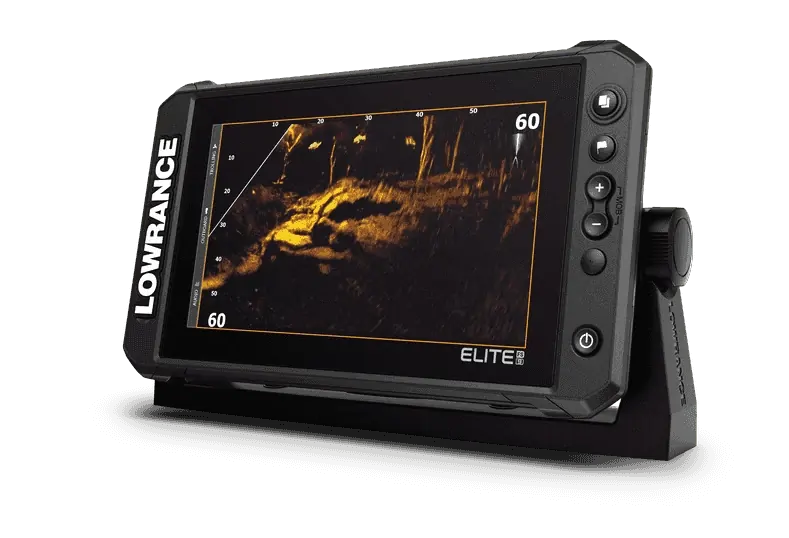

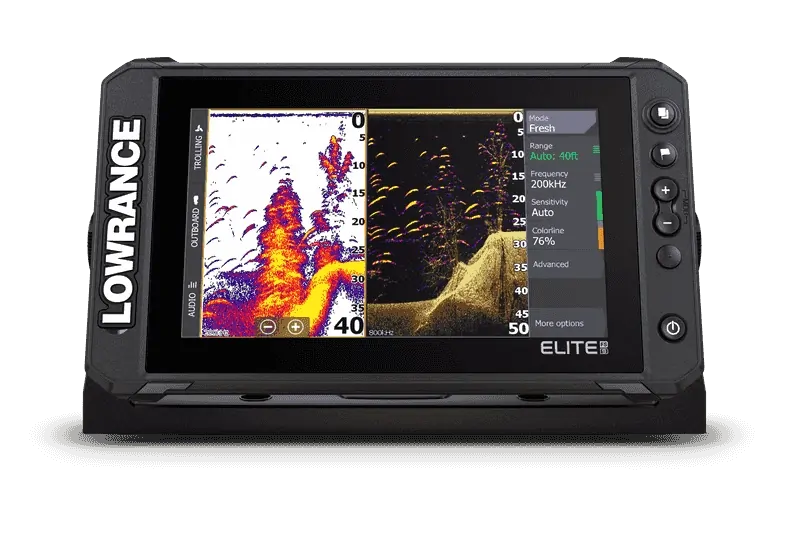

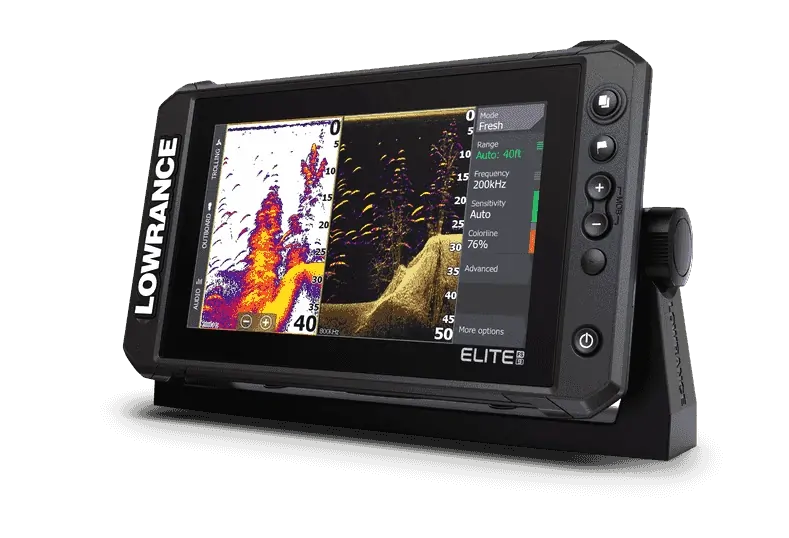

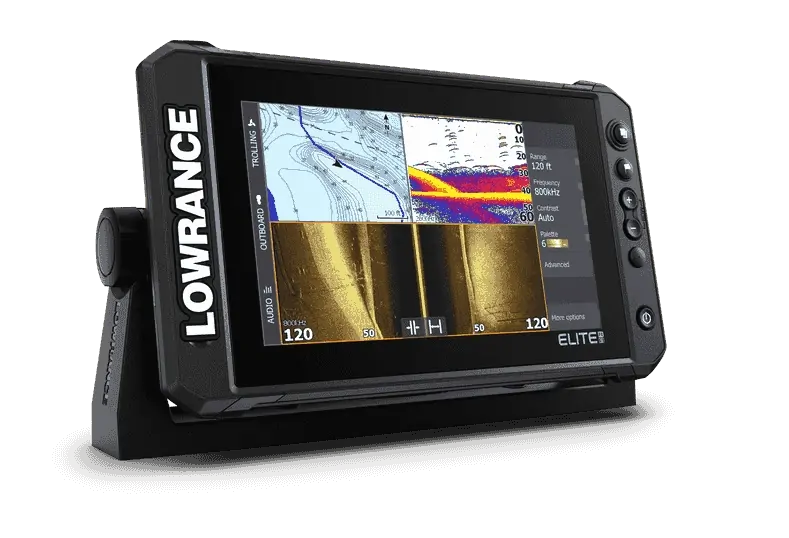

ELITE FS 9 with Active Imaging 3-in-1 Transducer (AUS/NZ) The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts – all at a more affordable price than other fishfinder/chartplotters in its category
The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts
Key Features
- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER,APAC)
- NMEA 2000®: Support and control NMEA 2000® devices
- Halo Radar: Drive Lowrance radar domes directly
- Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
Sonar Power Output Max 1 kW RMS Sonar Connections One connector for Active Imaging SideScan, DownScan and CHIRP Active Imaging 3-in-1 DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side CHIRP Sonar High Range (160-240kHz)/200 kHz: 1000 ft / 305 m CHIRP Sonar Med Range (60-100kHz)/83 kHz: 1000 ft / 305 m CHIRP Sonar Low Range (40-60kHz)/50 kHz: 3000 ft / 900 m Available Sonar Frequencies Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging Depth Alarm Yes Shallow Alarm Yes Temperature Readings Yes Transducer Type Single 9-pin Connection; Multiple Transducer Selections from Lowrance® and Airmar® Environmental Operating temperature range -15°C to +55°C (5°F to 131°F) Storage temperature -20°C to +60°C (4°F to 140°F) Waterproof rating IPX6 and IPX7 Electrical Supply voltage 12 V DC (10 - 17 V DC min - max) Recommended fuse rating 3 A Power consumption (maximum) 28 W (2 A at 13.8 V DC) Display Resolution 800 x 480 pixels Viewing angles in degrees 50° top, 60° bottom, 70° left and right Brightness > 1200 nits Touch screen Multitouch Physical Weight (display only) 1.2 kg (2.7 lbs.) Compass Safe Distance 0.5 m (1.6 ft.) Interface/Connectivity NMEA 2000® 1 port (Micro-C connector) Data card reader 1x slot (microSD, SDXC) Ethernet 1 port, (5-pin Ethernet connector, 100Base-T) Sonar 1 port (9-pin connector) WiFI Internal 802.11b/g/n : No wireless networking between units Bluetooth® 4.0 with support for Bluetooth® Classic GPS 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS
| SKU | 000-15695-001 |
|---|---|
| Barcode # | 9420064116973 |
| Brand | Lowrance |
| Shipping Weight | 4.9000kg |
| Shipping Width | 0.406m |
| Shipping Height | 0.141m |
| Shipping Length | 0.357m |

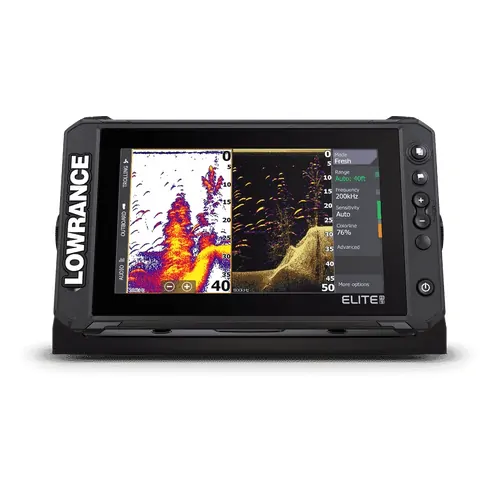

Lowrance ELITE FS 9 with Active Imaging 3-in-1 Transducer (AUS/NZ)
More infoMake 4 payments of $412.25 over 8 weeks and get it now!
Calculate Shipping
