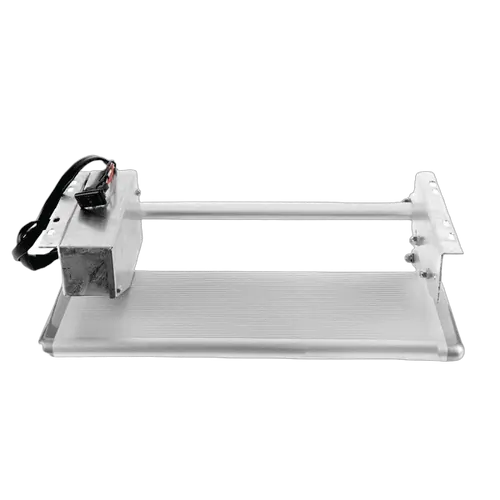

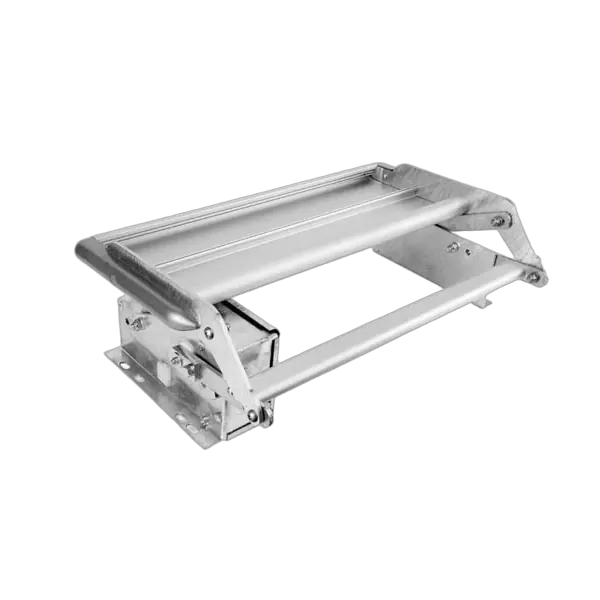

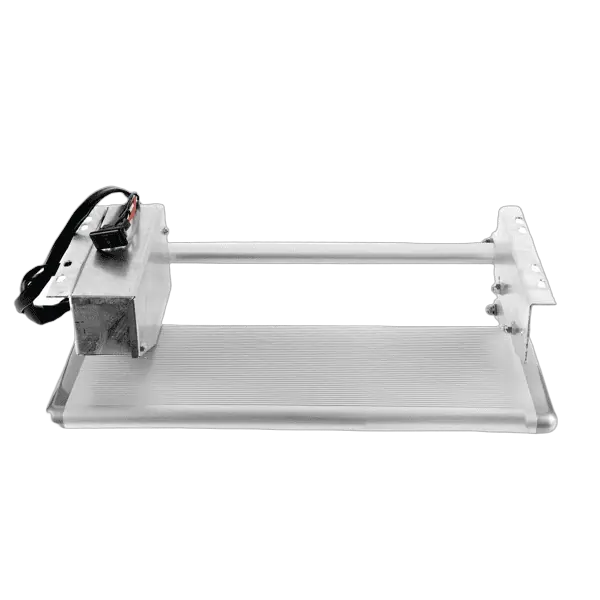

The Camec electric step is a fantastic addition to your caravan or motorhome. These steps have an aluminium tread and the frame is constructed from galvanised steel. They have a 12V motor that extends and stores the step which is operated by a switch that is placed just inside the doorway. The mounting bracket can be bolted or welded to the chassis and are 554mm from outside to outside.
Product features:
- 560mm wide electric step

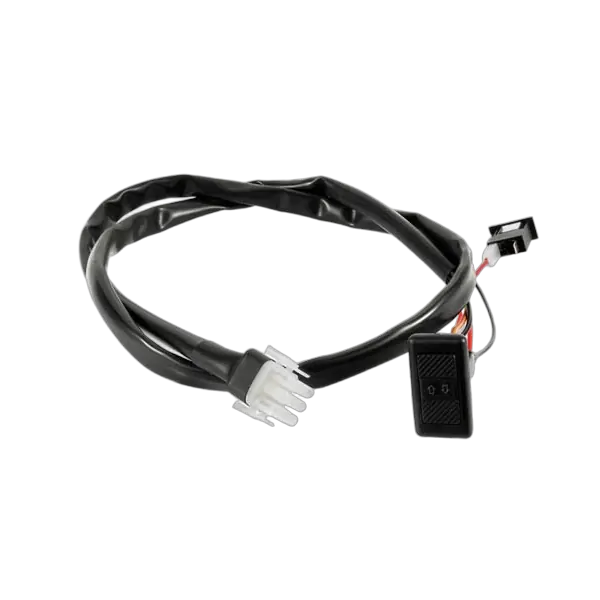

- Operated by a switch
- Dimensions of step tread: 560mm x 210mm
- Weight: 5.6kg
- Clearance required: 170mm deep when closed
- Closed step is 50mm proud of mounting flange and open step is 300mm proud of mounting flange
- motor is located on the LH side as pictured
SKU | 051410-A |
---|---|
Barcode # | 051410-A |
Brand | Camec |
Shipping Weight | 5.5000kg |
