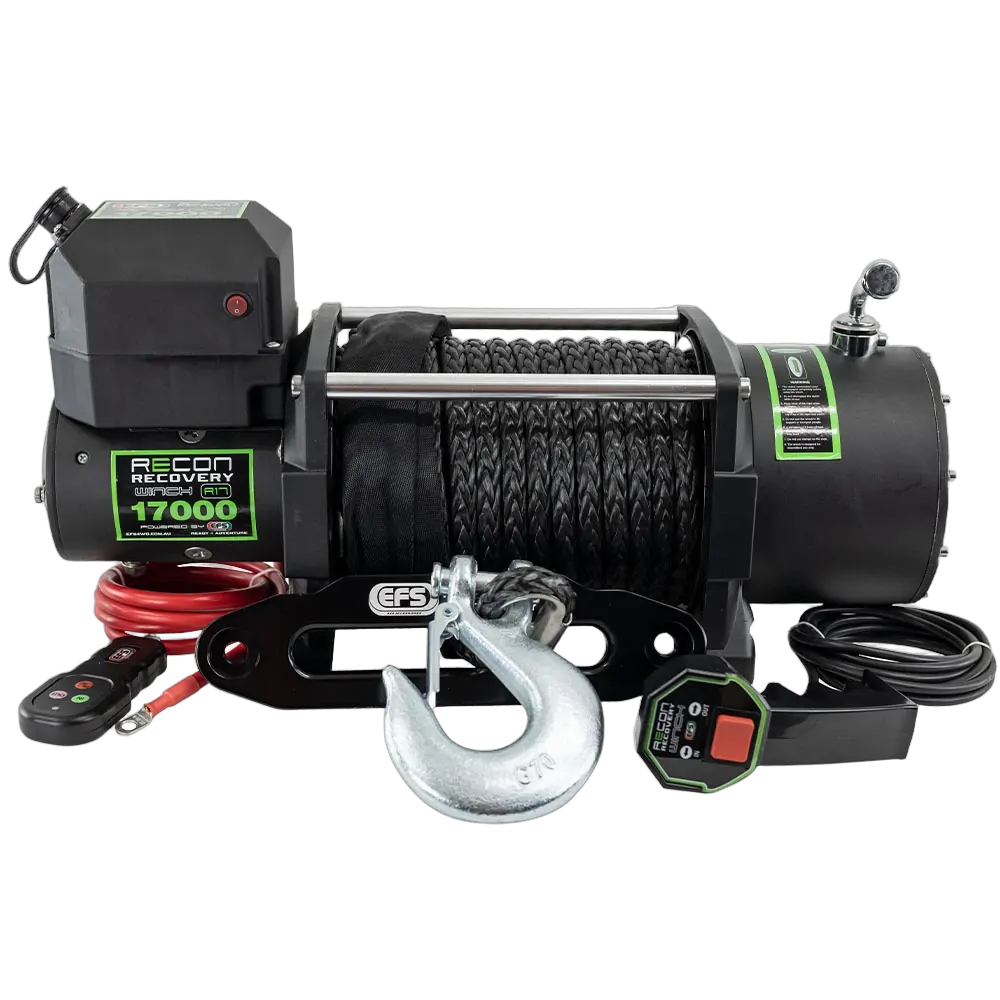

EFS RECON 17000 LBS (7720KG) electric winch, 12 volt, remote safety switch comes with wireless and wired remotes, automatic motor brake which reduces drum heat.
SPECIFICATIONS:
Part Number | RECON-17 |
Single line rated pull | 17,000lb (7,720kg) |
Motor | 12V 6.0hp/4.5kw Series Wound |
Control | Remote Switch,3.6m lead & wireless remote |
Gear Ratio | 360:1 |
Clutch | Sliding ring gear |
Braking Action | Automatic in the motor bracket. No heat on drum when winch works |
Drum Size | 90mmx224mm |
Rope | 12mmx24m |
Fairlead | Aluminum Hawse |
Weight | 54kg |
Overall Dimensions(LxWxH) | 587x215x246mm |
Packing Dimensions(LxWxH) | 650x410x254mm |
Mounting bolt pattern | 254×114.3mm |
12V DC performance specs (first layer of drum) | |||
Line Pull Lbs.(Kgs.) |
Line Speed M/min |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
0 | 7.2 | 75 amps | 1/17,000 (7,720) |
2000 (910) | 3.1 | 120 amps | 2/14,160(6,430) |
6000 (2725) | 2.6 | 190 amps | 3/11,800 (5,360) |
10000 (4540) | 2.0 | 280amps | 4/9,830(4,465) |
14000 (6355) | 1.4 | 340 amps | |
17000 (7720) | 1.0 | 410 amps |
We recommend a battery isolation switch to be used & to check measurements to see if winch will fit into bar
SKU | RECON17 |
---|---|
Barcode # | OEBC673116 |
Brand | EFS 4x4 Accessories |
Shipping Weight | 45.0000kg |
Shipping Width | 0.410m |
Shipping Height | 0.254m |
Shipping Length | 0.650m |
