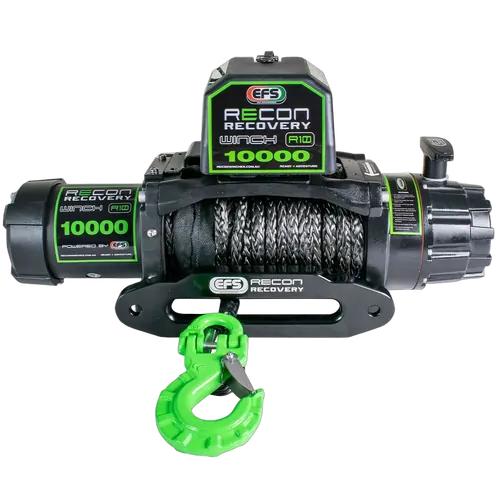

EFS RECON 10000lb ELECTRIC WINCH 25M SYNTHETIC ROPE WITH BREATHER KIT The EFS Recon R10 Winch has been developed with a super fast retrieve rate and boasts a 10,000 LBS rated single line pull. The R10 has a full load automatic brake with a 158:1 gear ratio and comes complete with all pictured accessories.
Specifications:
10,000lbs / 4,540kg rated single line pull
6.0HP 12volt series wound electric motor Waterproof motor/gearbox
Breather
3 stage zinc plated hardened planetary gears
158:1 gear ratio
Rotating ring gear clutch with T-handle clutch engagement
18,000lbs SYNTUFF synthetic multistrand rope
High strength antibind nano technology
Abrasion resistant – 10mm diameter – 25m length
Full load automatic brake located at the motor side of the drum
Designed for synthetic rope – no heat build up in the drum
Recommended battery 650CCA minimum for winching
Battery leads: 1.83m
Mounting bolt pattern: 254mm x 114.3mm
Fairlead: Aluminium
Control box relay: 450A
Waterproof
Incl wireless & wired remote 3.6m lead
We recommend a battery isolation switch to be used
SKU | RECON10 |
---|---|
Barcode # | OEBC673114 |
Brand | EFS 4x4 Accessories |
Shipping Weight | 32.7800kg |
Shipping Width | 0.360m |
Shipping Height | 0.240m |
Shipping Length | 0.630m |
