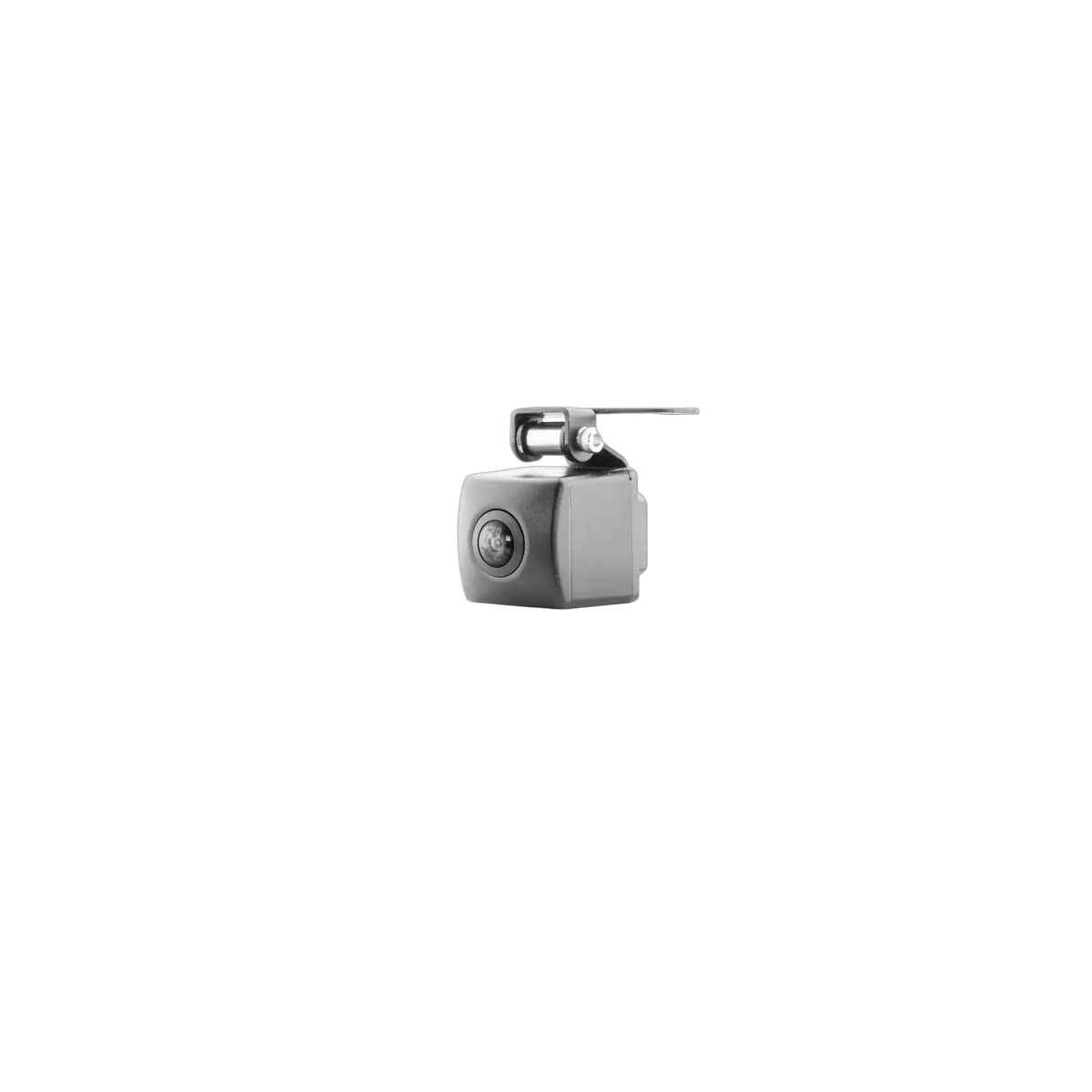

Back-up Camera
Add visibility behind your vehicle plus get moving object alerts with the EchoMaster Back-up Camera with Moving Object Detection. This camera will provide audible moving object alerts on the notification buzzer and visible moving object alerts on a factory of aftermarket radio.
See And Hear What's Behind You
With 180deg of moving object detection and 140deg video viewing angle, the PCAM-CT01 sets itself apart from regular reverse cameras.
Not only can you see what is behind you, you can now also hear if any objects move behind you. Soon as the object moves, you get a visual notification on the camera video picture as well as a buzzer sound.
Built To Last
The PCAM-CT01 is designed to meet IP67 Water/Debris standards so unlike cheap quality cameras, this high-quality camera will last the day to day use.
Great For Factory or Aftermarket Systems
With its universal RCA connection featuring NTSC signal, the PCAM-CT01 can be used with most aftermarket headunits featuring a RCA video input.
Wanting to use it on your factory infotainment system?
The PCAM-CT01 is compatible with our wide range of camera input adaptors available (Click Here)
What Do You Get?

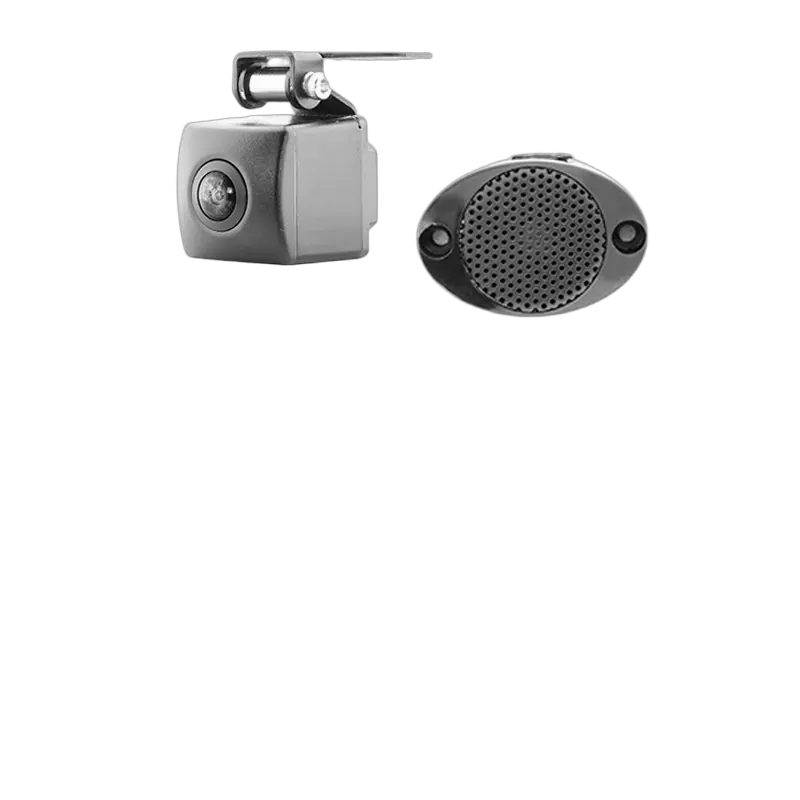

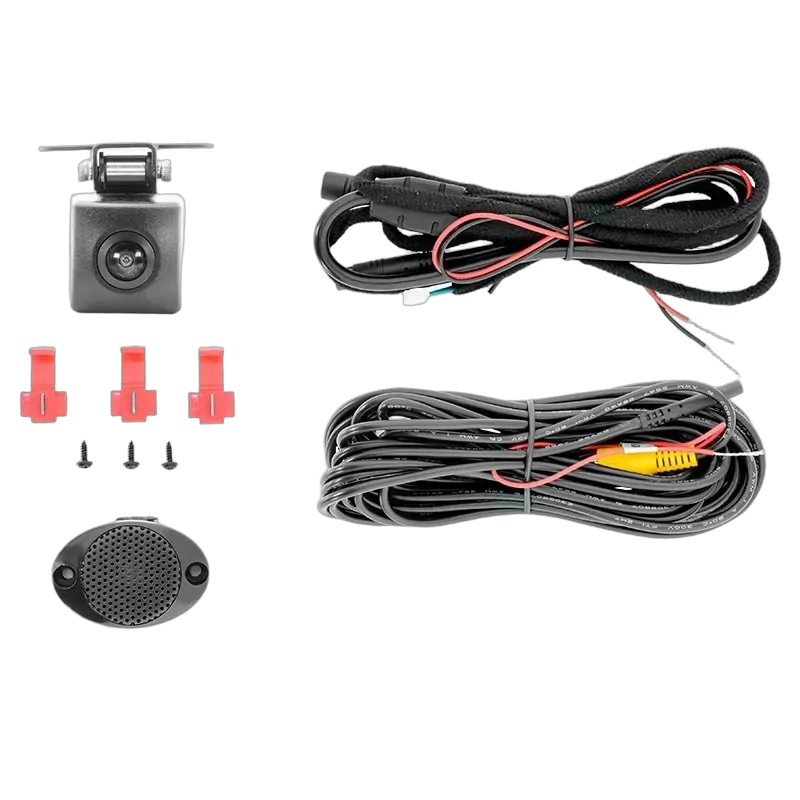

The Echomaster PCAM-CT01 kit includes
- Vehicle Camera
- Vehicle Buzzer

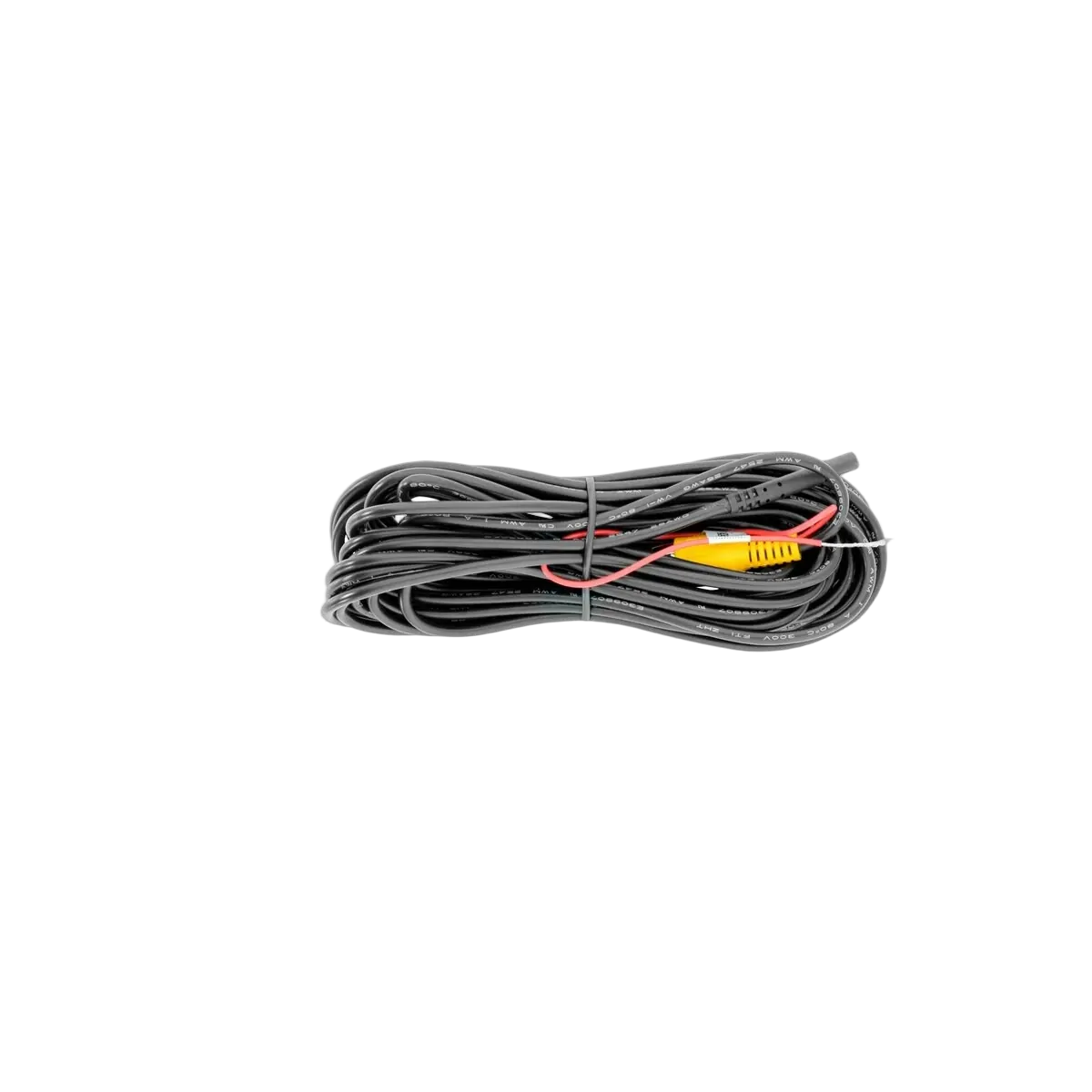

- Camera Harness
- Buzzer Harness
- Mounting Hardwire
- Screws
Features
- Operating Voltage: 12v
- Voltage Range: 9-16v
- Resolution: 720 x 480
- Video Format: NTSC
- Buzzer SPL 90-120dB @ 10cm
- Visible Angle: 140deg
- Audible Detection Angle: 180deg
- Operating Temperature -20c to 70c
- IP Rating: IP67
- Dimensions (mm) 28mm x 28mm 32mm)
- Output: CVBS (RCA Connector)
| Viewing Angle | 140deg Viewing Angle (Video), 180deg Moving Object Detection (Audio) |
|---|---|
| IP Rating | IP67 |
| Parking Lines | Yes – Static |
| Video System | NTSC |
| Manufacturer Warranty | 3 Years |
| SKU | PCAM-CT01 |
|---|---|
| Barcode # | 609098832434 |
| Brand | Echomaster |
| Shipping Weight | 1.5000kg |

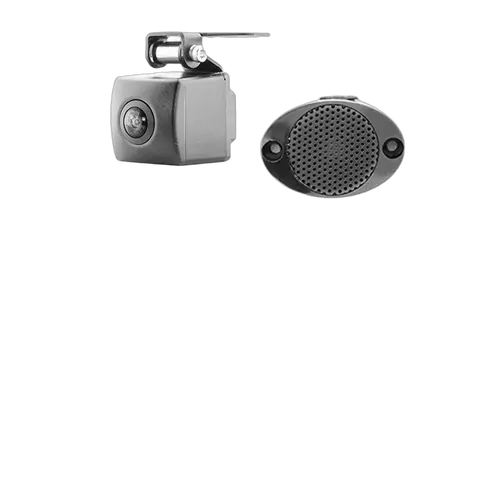

Echomaster Reverse Camera W/Motion Detection Alert
