Description

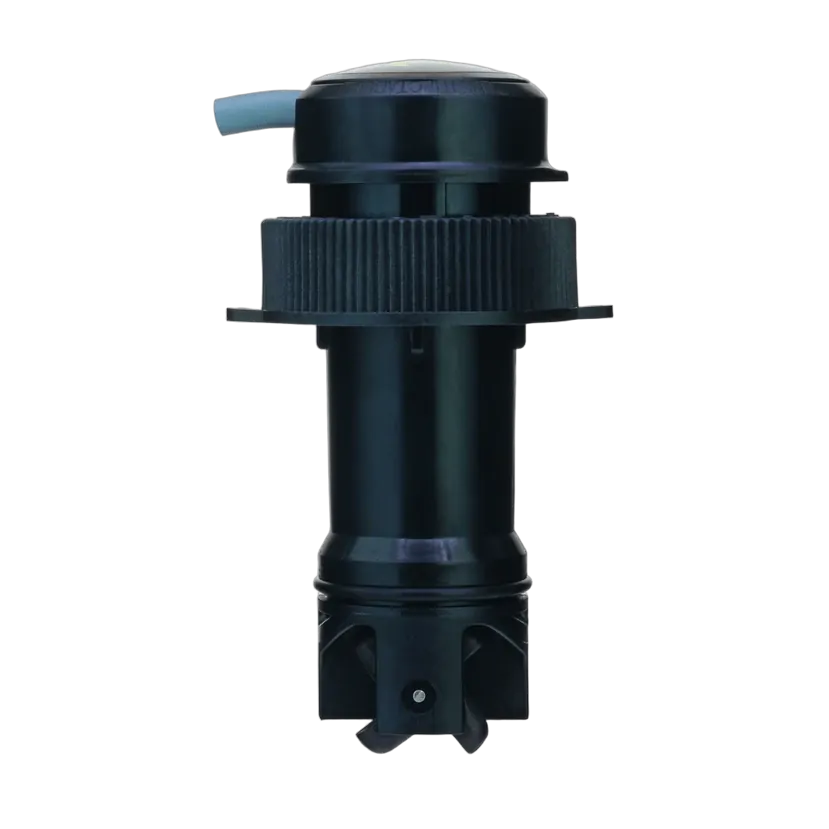

DST-810 Depth/Speed/Temp Sensor. Plastic thru-hull housing.
Combined Depth, Speed and Temperature sensor in one unit. Perfect for ease of installation as only one skin fiiting is needed.
Specifications
| Weight | 0.9 kg (2.0 lb) |
| Acoustic Window | Urethane |
| Hull Deadrise | Up to 22° |
| Data Update Rate | Depth 1Hz |
| Speed 5Hz | |
| Heel/Trim 10Hz | |
| Attitude Accuracy | +/– 1° nominal after sensor calibration |
| Depth Frequency | 235 kHz |
| Minimum Depth Range | 0.5 m (1.6') |
| Maximum Depth Range | Up to 100 m (330')—NMEA 2000® |
| Speed Range | Up to 45 knots |
| Pressure Rating | 3 m (10') |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile |
| Supply Voltage | 9 VDC to 16 VDC—per NMEA 2000 |
| Supply Current | <200 mA—per NMEA 2000® |
| Wireless Protocol | Bluetooth Low Energy (BLE) |
| Wireless Range | Up to 30 feet depending on mount location |
| Standard Cable Length | 6 m (20') NMEA 2000® |
| Temperature Sensor Accuracy | ±0.5°C (±1.8°F) |
| Temperature Sensor Range | -10°C to 40°C (14°F to 104°F) |
| NMEA 2000 Load Equivalency Number (LEN) | 3 LEN |
| CE Regulation: | Complies to IERC60945 |
| SKU | 000-15735-001 |
|---|---|
| Barcode # | 9420064117895 |
| Brand | Lowrance |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.254m |
| Shipping Height | 0.095m |
| Shipping Length | 0.197m |

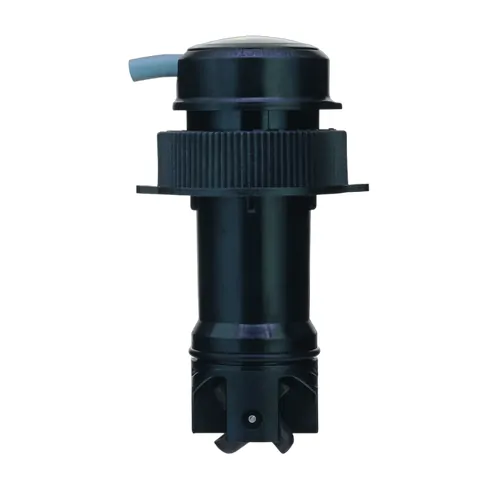

Lowrance DST-810 Depth/Speed/Temp Sensor (Plastic)
SKU: 000-15735-001
Sale price
$639.00
More infoMake 4 payments of $159.75 over 8 weeks and get it now!
