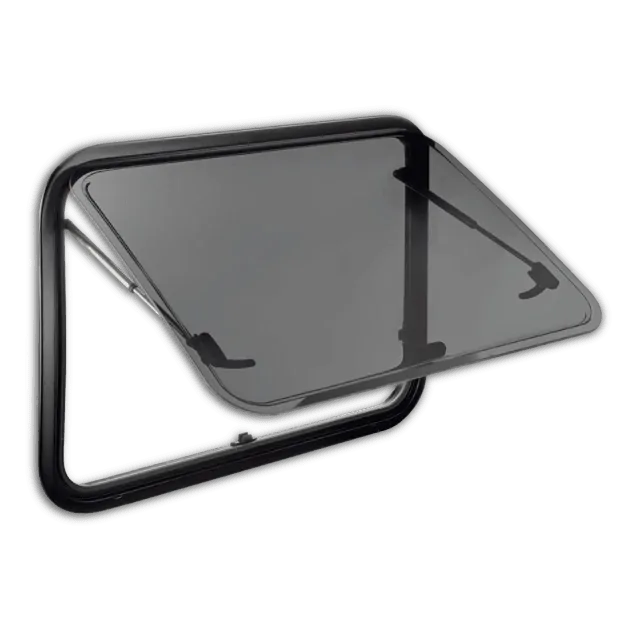

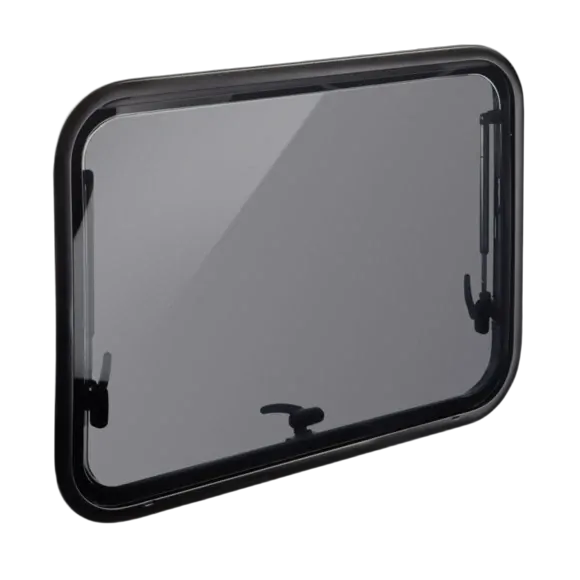

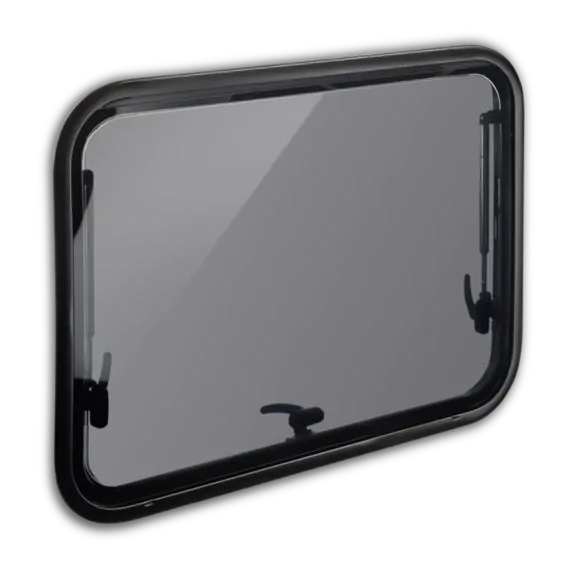

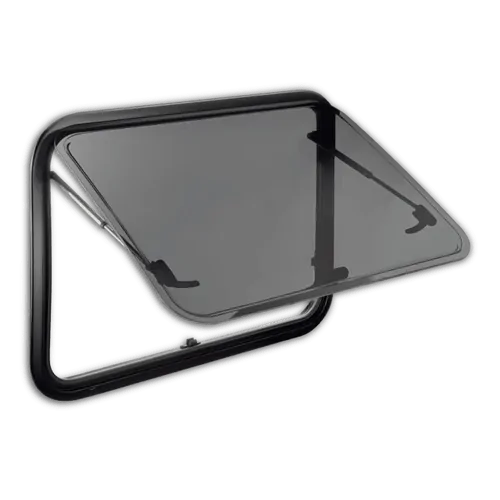

Dometic S7P 27 mm Wall Window, Varied Dimensions, 1 year warranty. Extra side windows in the back are ideal for letting in natural light and creating a pleasant ambiance – especially useful when converting a panel van into a camper. This elegantly designed window does the job perfectly while also providing effective insulation and security.
Features:
- Multi-locking system provides security against intruders
- Powder-coated profiles for outstanding insulation
- Double acrylic glazing
- Double dark-tinted acrylic glazing
- For walls 27 mm thick

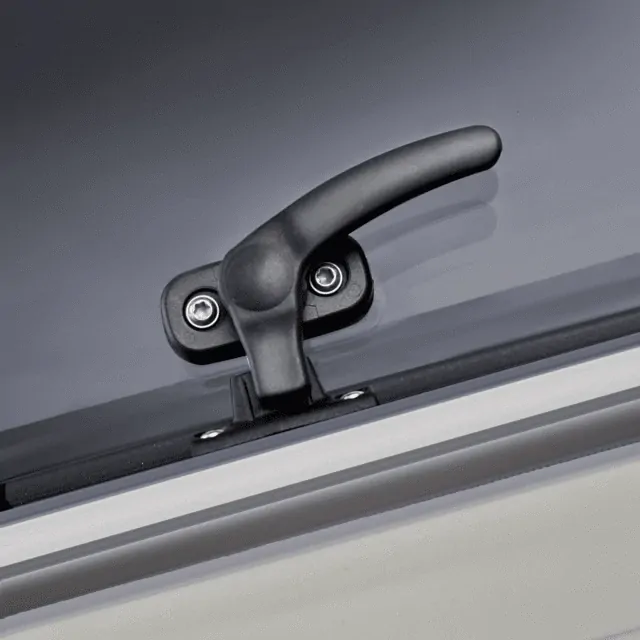

- Multi-locking system with friction hinges for secure closure
Mounting:
- Optional wall clips (see accessories list above) from 26 mm up to 43mm wall thickness
- see the required amount on each clip description - The internal trim is available in metre purchase (see accessories list above) and suggested metre to buy
Powder-coated aluminium profiles reduce the weight, guarantee excellent insulation and a high grade surface finish. Their unique design makes the aluminium windows a genuine alternative to polyurethane windows.
This Dometic S7P wall window looks great with its elegant design and flush-fitting pane. Designed for panel vans with curved or planar contours, it offers an optional available matching blinds system that provides shade and privacy when necessary. The dark-tinted double acrylic glazing and powder-coated profiles of the lightweight aluminium frame ensure excellent insulation and a smart surface finish. The window's multi-locking system with friction hinges guarantees secure closure and protects your vehicle and its contents from intruders. A genuine alternative to polyurethane windows – let there be light!
Sizes:
- Item No: DOM070181 - S7P 27mm window 500 x 250mm - Ref No. 9104115616
- Item No: DOM070170- S7P 27mm window 500 x 400mm - Ref No. 9104115605
- Item No: DOM070171 - S7P 27mm window 510 x 510mm - Ref No. 9104115606
- Item No: DOM070172 - S7P 27mm window 700 x 510mm - Ref No. 9104115607
- Item No: DOM070173 - S7P 27mm window 700 x 900mm - Ref No. 9104115608
- Item No: DOM070174 - S7P 27mm window 800 x 400mm - Ref No. 9104115609
- Item No: DOM070175 - S7P 27mm window 800 x 450mm - Ref No. 9104115610
- Item No: DOM070176 - S7P 27mm window 800 x 510mm - Ref No. 9104115611
- Item No: DOM070177 - S7P 27mm window 900 x 500mm - Ref No. 9104115612
- Item No: DOM070184 - S7P 27mm window 900 x 900mm - Ref No. 9104115619
- Item No: DOM070182- S7P 27mm window 920 x 990mm - Ref No.9104115617
- Item No: DOM070186 - S7P 27mm window 1000 x 250mm - Ref No. 9104115621
- Item No: DOM070178 - S7P 27mm window 1000 x 510mm - Ref No. 9104115613
- Item No: DOM070185 - S7P 27mm window 1100 x 450mm - Ref No. 9104115620
- Item No: DOM070183 - S7P 27mm window 1180 x 575mm - Ref No. 9104115618
- Item No: DOM070179- S7P 27mm window 1200 x 600mm - Ref No. 9104115614
- Item No: DOM070180- S7P 27mm window 1300 x 510mm - Ref No. 9104115615
- Item No: DOM070188- S7P 27mm window 1400 x 575mm - Ref No. 9104115623
- Item No: DOM070187- S7P 27mm window 1570 x 575mm - Ref No. 9104115622
Your Dometic window will have reference codes on the outside acrylic blade. The following reference codes indicate which Dometic Window you have:
AGS5- Dometic S4 Window
These codes will follow with numbers- remove the prefix and the first 0 and that will give you the size. Eg AGS50750x0450 this is a 750x 450 S4 Window.
AGP7- Dometic S7P Window
These codes will follow with numbers- remove the prefix and the first 0 and that will give you the size. Eg AGP71180x0575 this is a 1180 x 575 Dometic S7P Window.
MDL or MD1- Dometic DLux window
These codes will follow with numbers- remove the prefix and the first 0 and that will give you the size. Eg MDL0500x0300 this is a 500x300 Dlux Window
Mobicool - if you find a Mobicool brand on our window you will need to look for physical features to determine which one you need:
-
If it has a aluminium outer frame and flat roller blind it is a Dometic Mobicool CHAL window.
-
If it has a plastic outer frame and concertina blind it is a Dometic Mobicool ABS window.
SKU | DOM070170 |
---|---|
Barcode # | OEBC536428 |
Brand | Dometic |
Shipping Weight | 2.6000kg |
Shipping Width | 0.400m |
Shipping Height | 0.100m |
Shipping Length | 0.500m |
