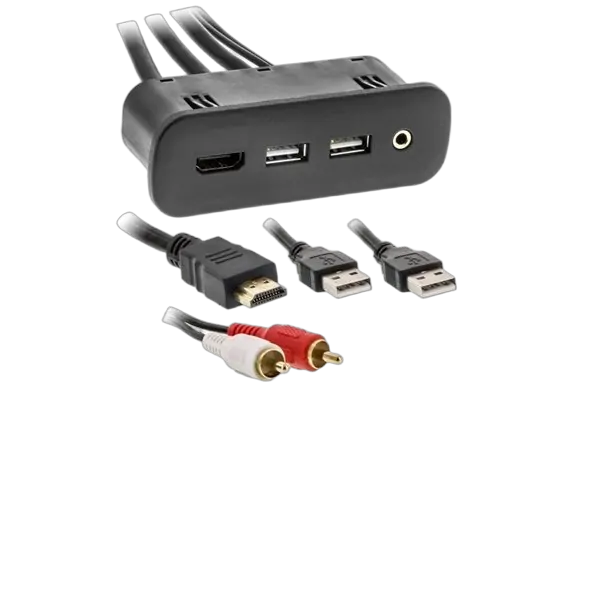

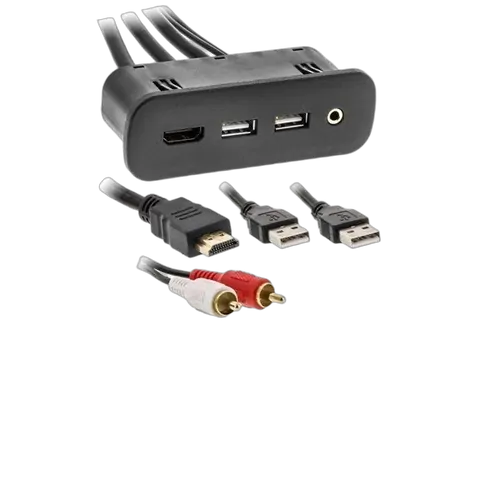

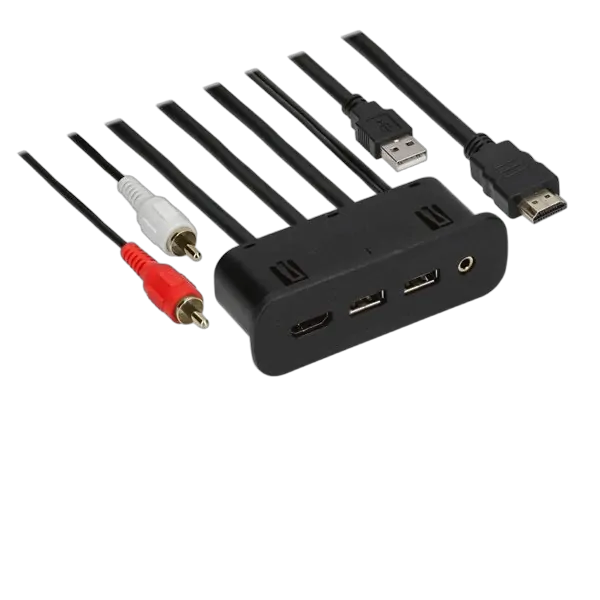

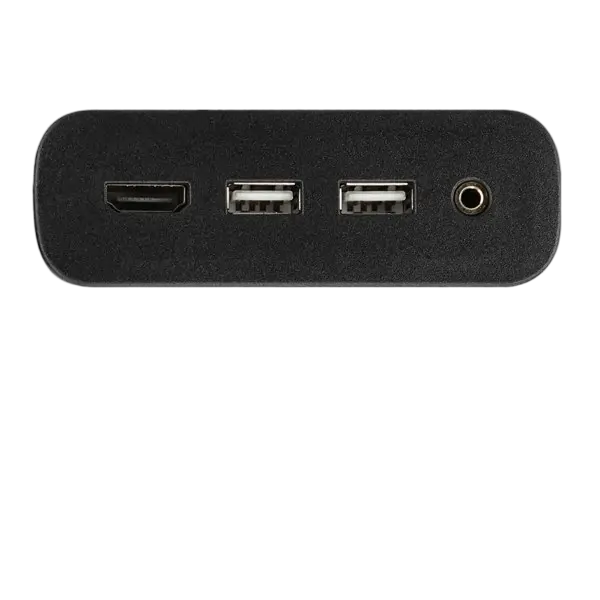

Replace the knockout in Chrysler vehicles that easily allows you to add HDMI, two USB’s and 3.5mm Audio connection!

Install theAXUSB-CH1 in factory Chrysler, Dodge and Jeep vehicles with oblong cut-out. This panel jack fits most 2015 and up Chrysler vehicles that have the factory Hub. The jack panel is designed to be used when replacing the factory radio and where you cannot retain the factory Hub due to the new radio. But now you can provide easy connections to your replacement car radio and have HDMI, Dual USB inputs, and 3.5mm audio input without ever touching the back of the radio.

The AXUSB-CH1 installs into 2015 – 2021 RAM trucks with OEM factory connection hub providing easy connections for your replacement car head unit*.

* Headunit must feature appropriate rear jacks to use the connection.

FEATURES

• Replaces exiting Chrysler Hub when replacing the factory radio to retain jacks to the new radio
• HDMI, (2) USB’s and 3.5mm Auxiliary mount jack with extension cable
• Can be used with any radio that supports HDMI, USB and 3.5mm inputs
• 3.5 mm jack is a 2 ring type for audio connection
• Enables you to conveniently mount the USB on the dash and make connections to the rear of the radio
• Works with USB 2.0 storage devices
• Up to 12Mbps transfer rate
• Hot pluggable
• 3-foot cable

Dimensions:

• Overall: 1-1/4″ (H) x 3-3/4″ (W) x 2-1/2″ (D)
• Cutout: 7/8″ (H) x 3-1/2″ (W)

Vehicle specific fitment: RAM

• • • • 2015 – and Up
      • Media Hub located in the Floor Mounted Centre Console
