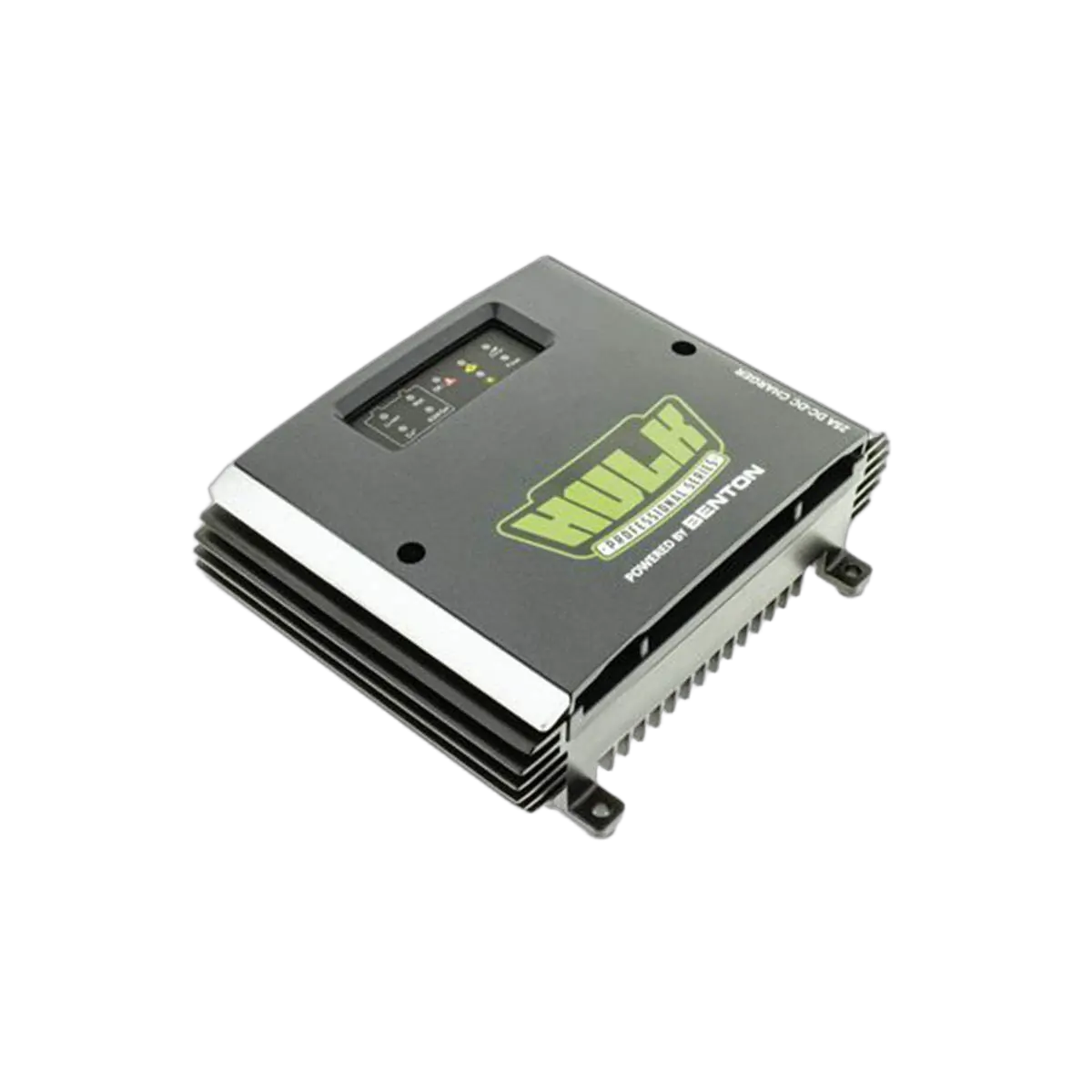

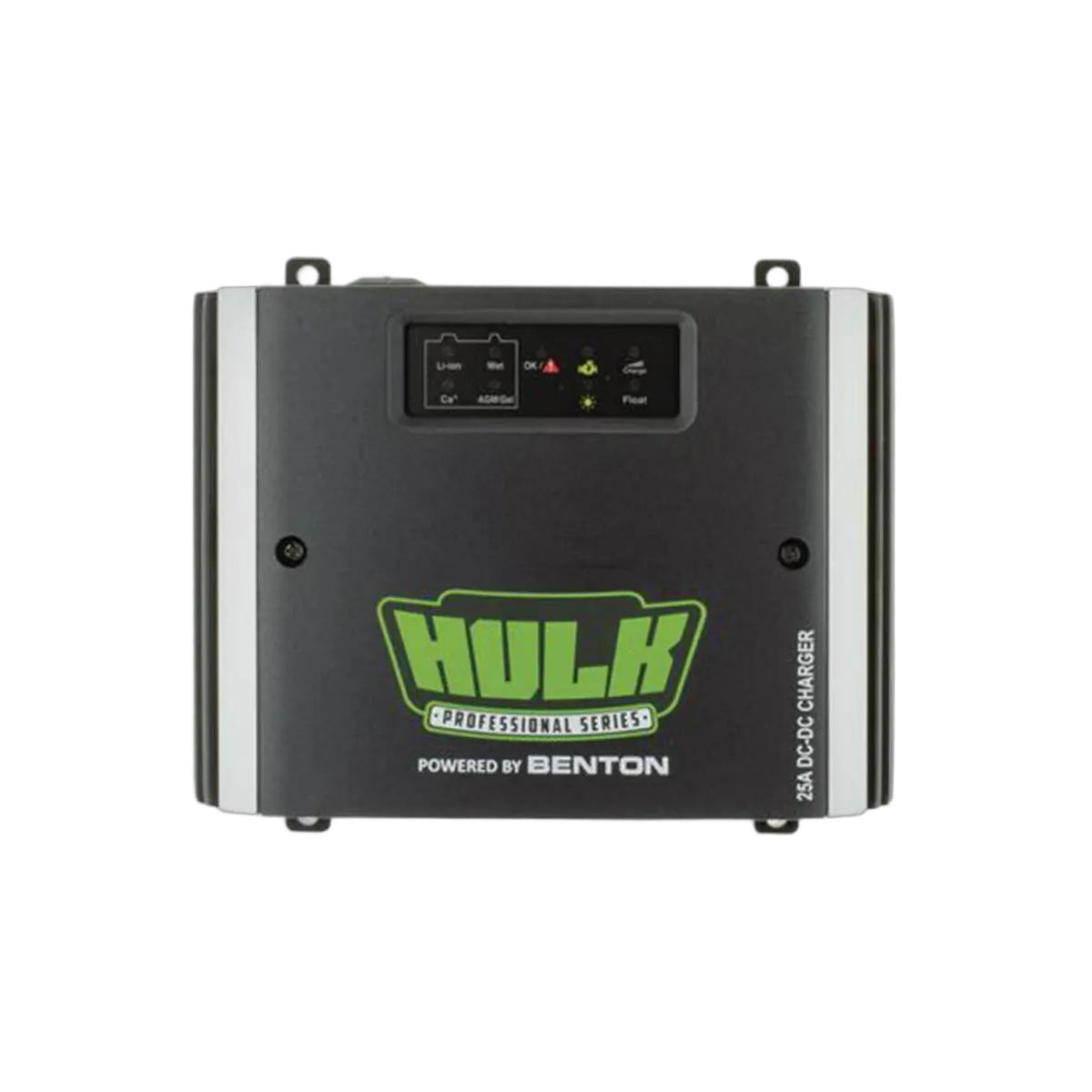

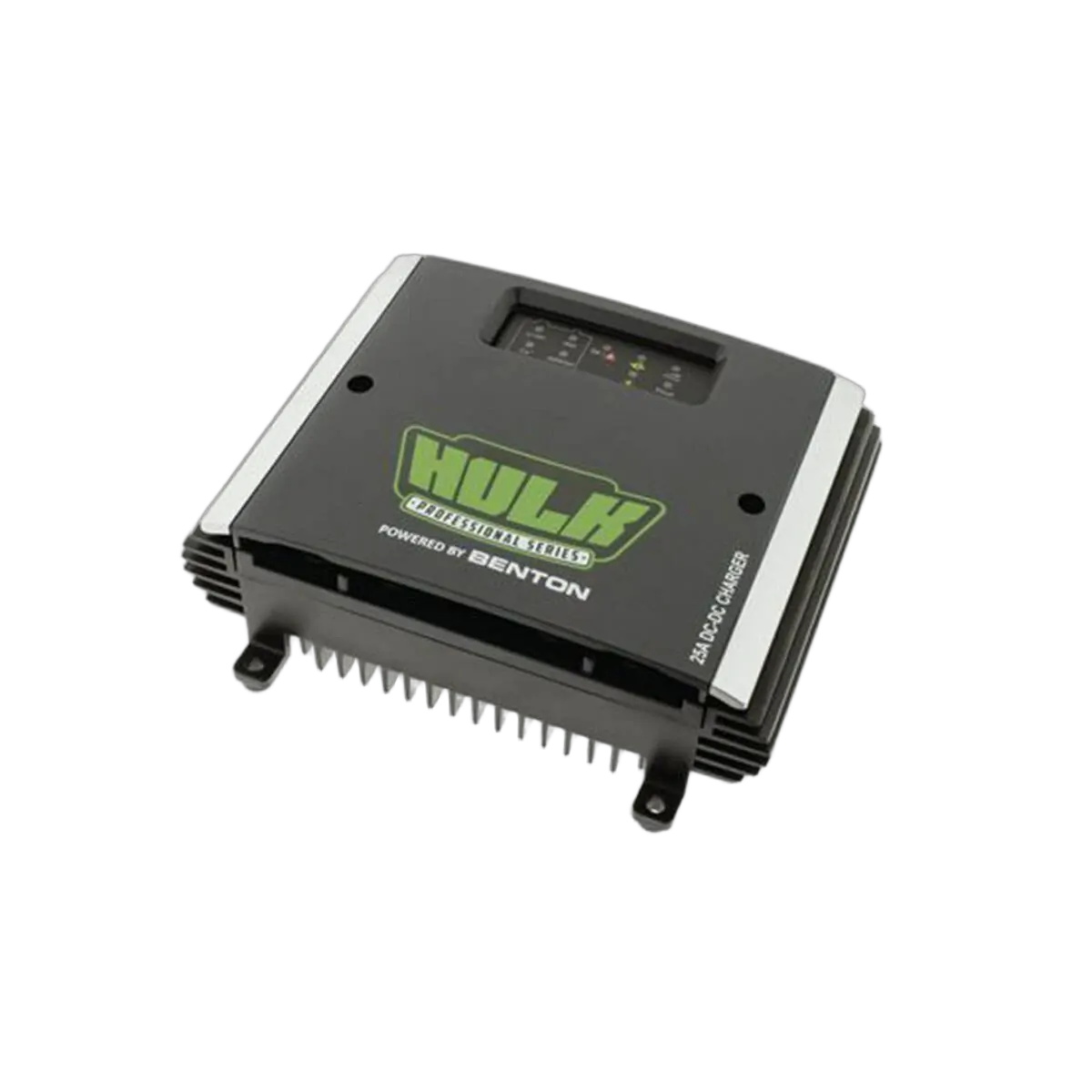

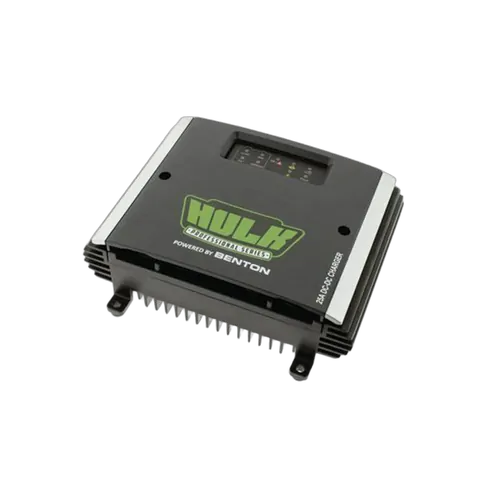

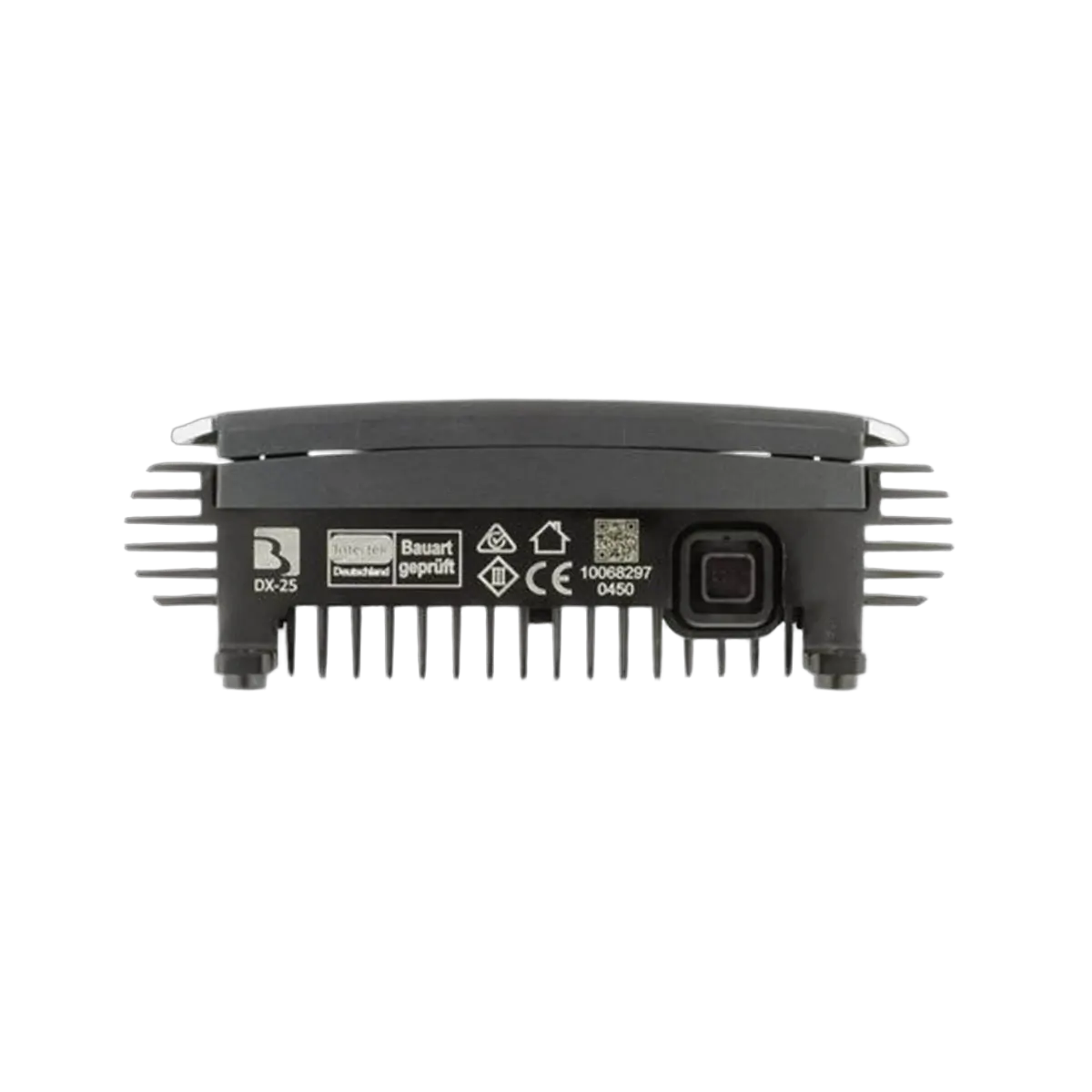

DC-DC FULLY AUTOMATIC BATTERY CHARGER - 25 AMP 12V

Features

• Automatic Input Selection
  Automatically selects the input, Alternator, Solar, DC, based on the Active input. No manual switching required.
• Dual Charging Mode
  Works with both fixed voltage (standard voltage 12-24V) and variable voltage (Smart Alternators).
• Ignition Connection
  Allows “Low Input Operation” suitable for variable voltage alternators.
• Multi-Chemistry Charging
  Capable of charging a variety of rechargeable batteries, like Lead Acid Wet / Flooded types, GEL, AGM, MF, Calcium and Lithium batteries.
• Solar MPPT Regulator
  Maximises the power available from solar panels even in low light.
• 7 Stage Intelligent Switch Mode Charging
  Unique charging algorithm enhances the life of batteries by ensuring a full charge and conditioning. It also recovers batteries many times faster than an alternator.
• Wide Operating Range
  Vehicle voltage input from 11 – 32 Volt, Solar input is from 9 – 42 Volt and DC input (40amp only) 11 – 32 Volt.

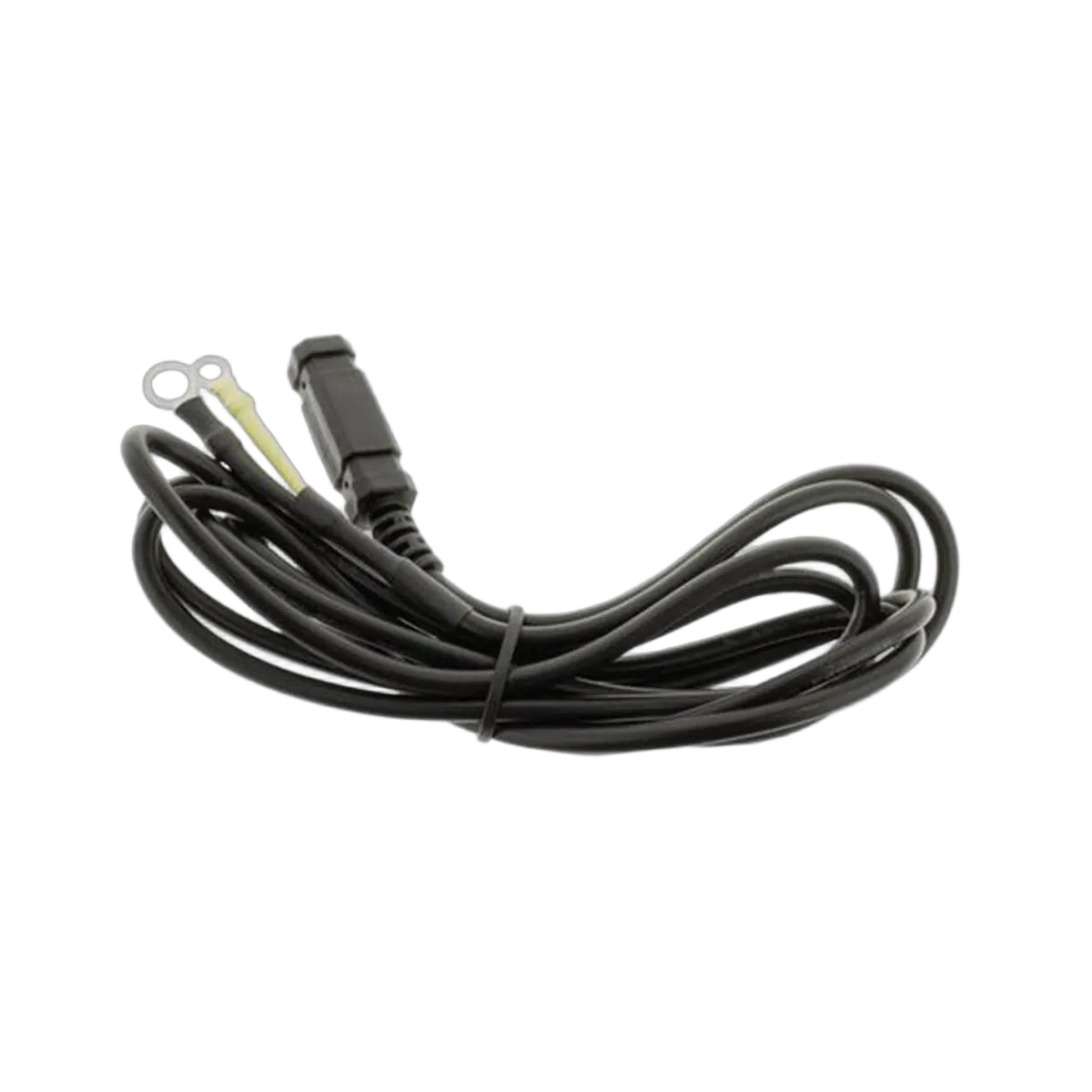

• Temperature Compensation
  Using the temperature sensor, the charger continually adjusts its charge rate to suit the battery temperature protecting the battery from overcharging and overheating.
• Super Quiet Operation
  No internal fan ensures a super quiet operation.
• Parallel Connection Units
  Can be connected in parallel to provide more output when using high output alternators.
• Optional Terminal Block
  Additional accessory that provides ease of wiring when multiple earths are required.
• Compatible Battery Monitor
  An additional accessory the LCD display monitors the Main & Auxiliary batteries status.
• Optional Mounting Bracket

Protection

• Reverse Polarity
  Detects reversed connection on the input or output terminals preventing internal damage.
• Built in Battery Isolator
  Isolates the main and auxiliary batteries at pre-set parameters preventing the main battery from being drained by the accessories connected to the auxiliary battery.
• Spark Free
  Will not begin charging unless the load is securely fastened, preventing output leads from sparking due to an accidental short circuit.
• Versatile Installation
  IP67 Rating, sealed against dust and water ingress. Safe to operate in -20°C to 85°C temperatures.

2 Year Warranty
