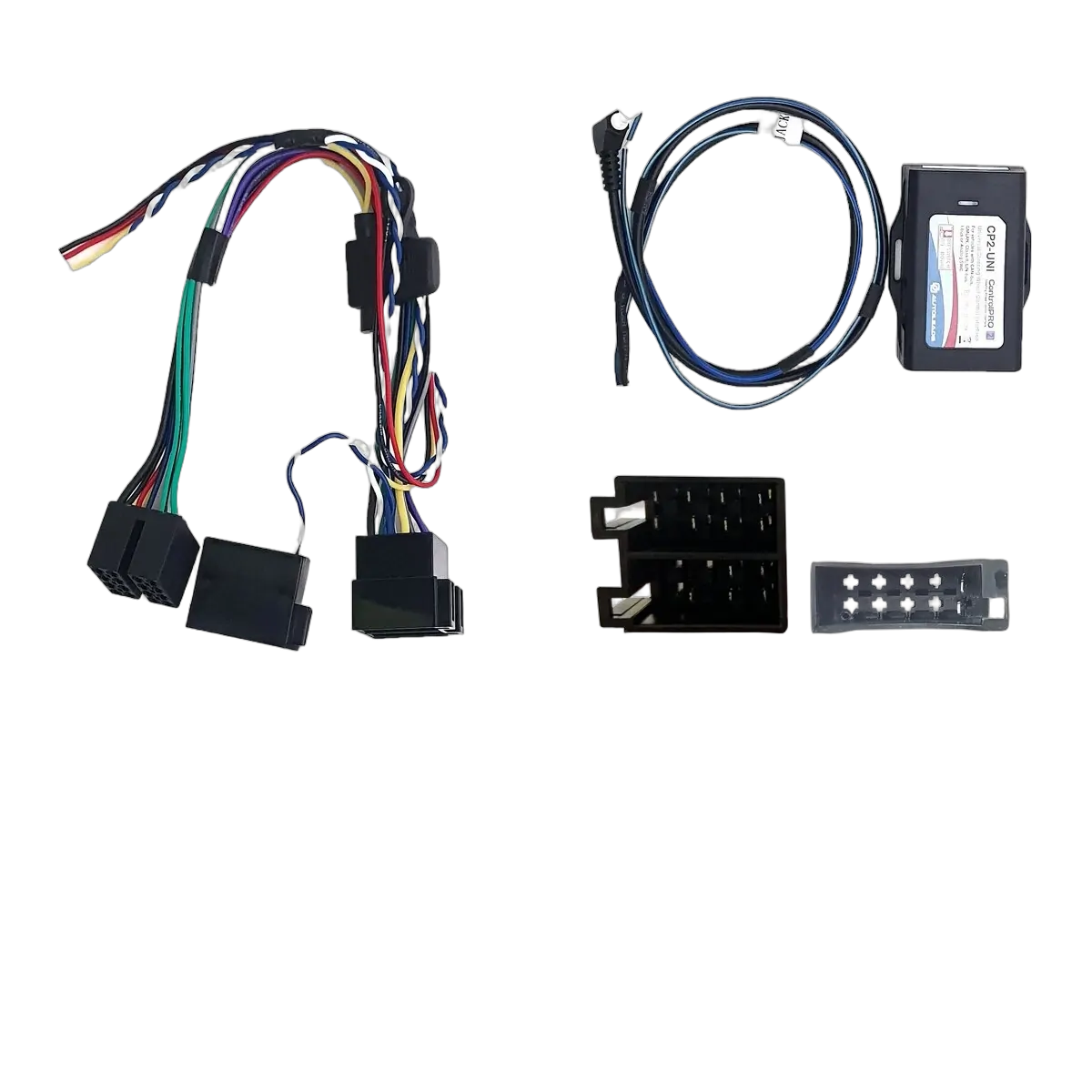

The CP2-MB01 retains the built-in steering wheel controls in compatible vehicles when replacing the factory radio with an aftermarket radio.
Features Included:
- Plug & Play Harness
- Ability to assign two radio functions to one steering wheel button (Short Press / Long Press)
- Provides Accessory output in CAN Bus vehicles
- Easily configurable using either a PC, Dip Switch setting or manual programming
- Highly visible tri-colour LED to keep the user informed of the modules status.
- Retains memory even if power is lost
- Updatable via the Autoleads PC Application.
- Equipped with a manual learning function for compatibility with unlisted vehicles equipped with analog steering wheel controls.
Need more outputs?
Check out the Autoleads ControlPRO2 Multimedia (CP2-MM) add-on module. The CP2-MM (Available Separately) offers expandability to the Autoleads ControlPRO2 interfaces for data vehicles by expanding the trigger outputs from the vehicles data network.
- Park Brake Output (if on vehicle network)
- Reverse Trigger (if on vehicle network)
- Speed Pulse (if on vehicle network)
- Tach Signal (if on vehicle network)
- Illumination Output (if on vehicle network)
| Vehicle Plug Style | 10Way ISO Connector, 8Way ISO Connector |
|---|---|
| Plug & Play | YES – FACTORY CONNECTOR TO STANDARD ISO CONNECTOR |
| Retain Factory Steering Wheel Audio Controls? | YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios |
| Dual Press Steering Wheel Control Function | YES – Customisable |
| Manual Programming Feature | YES – Via Dip Switch or Button Press |
| Retain Factory Amplifier? | NO |
| Retain Parking Sensors? | NO – If vehicle OEM radio was generating the parking sensor tones. If parking sensors are not part of the factory radio, they should not be effected |
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| MERCEDES | C CLASS | 2000 - 2004 (W203) |
| MERCEDES | CLK | 2002 - 2004 (W208) |
| SKU | CP2-MB01 |
|---|---|
| Barcode # | 9342270005035 |
| Brand | Autoleads |
| Shipping Weight | 1.5000kg |

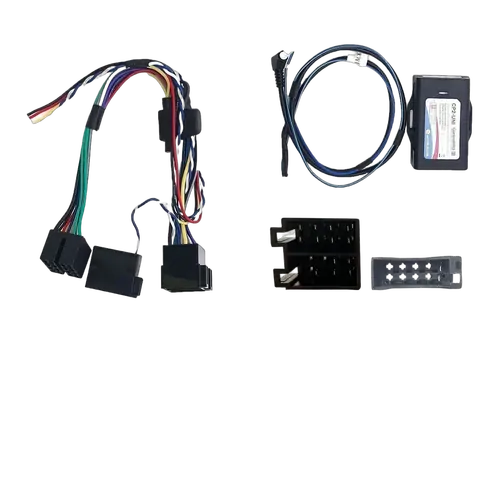

Controlpro2 Swc Interface - Mercedes: Iso&10 Pin Iso
