Selected Part Number: SWI-HY01
General Product Information

Hyundai / Kia

Radio Replacement Interface


Make installation of your new aftermarket radio or infotainment system easy in select Hyundai and KIA vehicles with the Plug & Play ConnectPRO Audi radio replacement solution from Stinger Australia

The Radio Replacement Solution

There's nothing worse than loosing your steering wheel control buttons when updating to the latest technology.

The SWI-HY01 from ConnectPRO from Stinger Australia allows easy retention of steering wheel audio control buttons with your new aftermarket radio or infotainment system.

Keep your eyes on the road and less time fumbling for the radio with ConnectPRO.



The Solid Connection

Each ConnectPRO radio replacement solution includes a Plug and Play interface for a easy and solid connection to your existing vehicle harness.

No need to strip back wires or chop off connectors in your vehicle allowing re-installation of your factory radio if ever required.

Feature Packed

The ConnectPRO SWI-HY01 features:

  • Retains factory fitted steering wheel audio buttons
  • Retains factory reverse camera (SEE NOTES)


Suitable for vehicles with

  • 24PIN & 18PIN Hyundai / Kia Radio Connector

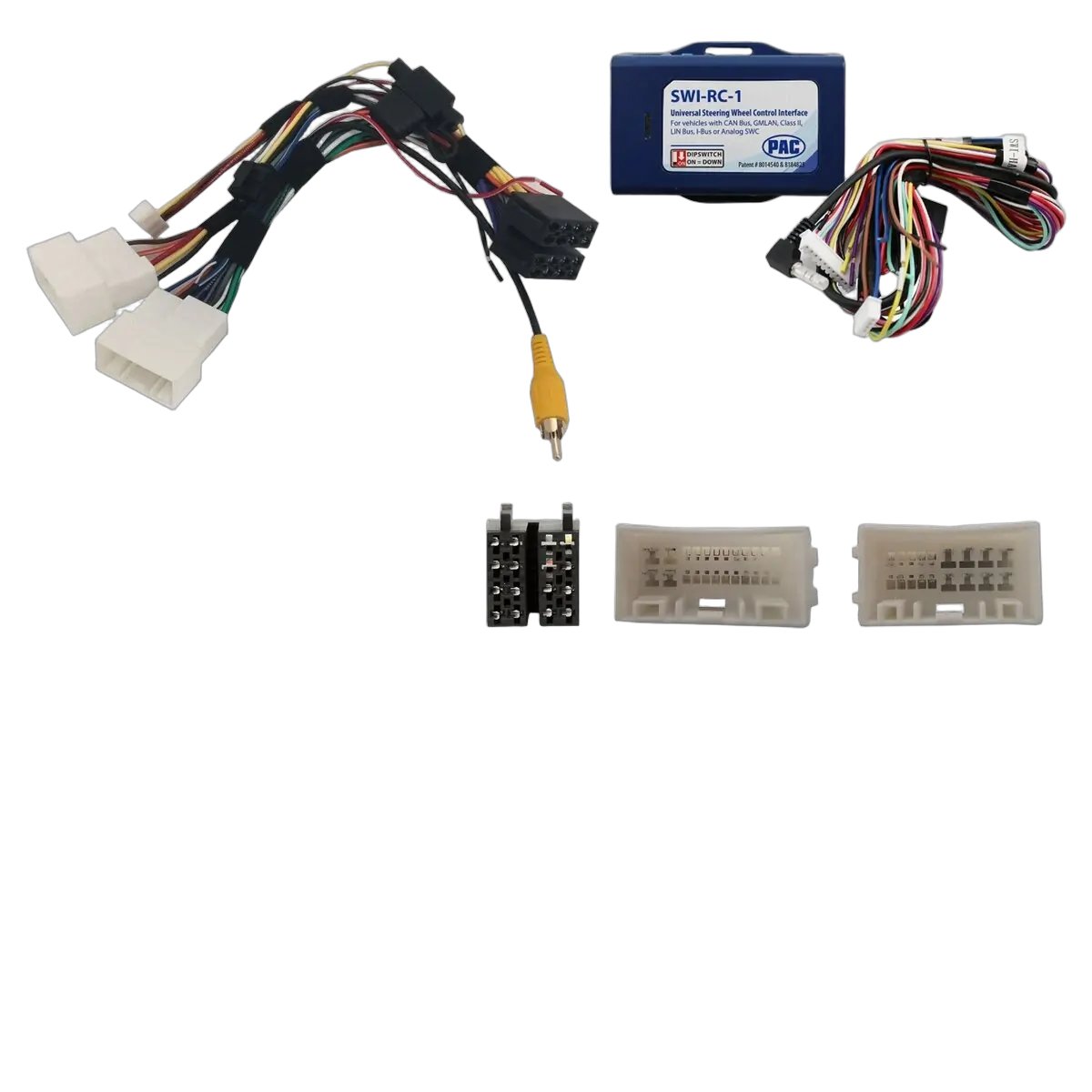

What Do You Get?

The ConnectPRO SWI-HY01 kit includes

  • PAC SWI-RC-1 Interface (See more on the SWI-RC-1 here)
  • 24 & 18 PIN Hyundai & KIA Vehicle Plug and Play Harness
  • Bare wire SWI-RC-1 Harness
  • Instruction Manual

Compatibility Notes

  • Phone buttons cannot be retained in all vehicle models (if fitted)
  • Reverse camera can only be retained if wiring is found in 24+18 connectors. Vehicles with external camera connector require additional products.
  • 2008-2010 Hyundai iLoad – Models in this year range may only have the 24 pin connector. If so the interface will need to be hardwired to the vehicle.
  • 2016-2019 Hyundai Veloster – Suits models with OE Carplay Headunit only (without CD mechanism)
  • 2017-Up Kia Soul – This model may use a different vehicle connector, confirm connector type before ordering.
  • Designed for use with major branded head units including

Alpine, Clarion, Kenwood, JVC, Pioneer, Sony, Stinger plus more



Important Product Compatibility Information
Plug & Play

YES – FACTORY CONNECTOR TO STANDARD ISO CONNECTOR

Manual Programming Feature

YES – SWC Button remapping via control button

Retain Factory Steering Wheel Audio Controls?

YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios

Retain Factory Amplifier?

NO

Retain Parking Sensors?

NO – If vehicle OEM radio was generating the parking sensor tones. If parking sensors are not part of the factory radio, they should not be effected

Vehicle Plug Style

24PIN & 18PIN HYUNDAI Style Connector

Vehicle Notes

2008-2010 Hyundai iLoad – Models in this year range may only have the 24 pin connector. If so the interface will need to be hardwired to the vehicle.
2016-18 Hyundai iLoad: For models with 5 buttons between the volume and tuning dials.
2016-2019 Hyundai Veloster – Suits models with OE Carplay Headunit only (without CD mechanism)
2017-Up Kia Soul – This model may use a different vehicle connector, confirm connector type before ordering.
2012-2016 Hyundai i30(GD) with factory Navigation – Harnesses require wire modification (See Downloads for diagram)

Product Vehicle Applications
What Fits My Car

This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
Vehicle Make Vehicle Model Vehicle Year + Vehicle Chassis Code
HYUNDAI ACCENT 2011 - 2019 (RB)
HYUNDAI ELANTRA 2011 - 2013 (MD-MD2)
HYUNDAI ELANTRA 2014 - 2015 (MD3)
HYUNDAI ELANTRA 2016 - 2018 (AD)
HYUNDAI i30 2012 - 2016 (GD-GD2)
HYUNDAI i40 2012 - 2018 (VF-VF2-VF3)
HYUNDAI i45 2010 - 2012 (YF)
HYUNDAI ILOAD (Incl IMAX) 2008 - 2016 (TQ)
HYUNDAI ILOAD (Incl IMAX) 2016 - 2018 (TQ3-V Series II)
HYUNDAI ix35 2010 - 2013 (LM)
HYUNDAI ix35 2014 - 2015 (LM) - WITH NAV
HYUNDAI ix35 2014 - 2015 (LM) - WITHOUT NAV
HYUNDAI SANTA FE 2012 - 2018 (DM)
HYUNDAI TUCSON 2015 - 2018 (TL)
HYUNDAI VELOSTER 2012 - 2017 (1ST GEN)
KIA CERATO 2013 - 2018 (YD)
KIA OPTIMA 2010 - 2013 (TF1)
KIA OPTIMA 2013 - 2015 (TF2)
KIA PICANTO 2016 - 2017 (TA)
KIA PRO CEED 2014 - 2015 (JD)
KIA RONDO 2013 - 2018 (RP)
KIA SORENTO 2013 - 2015 (XM)
KIA SOUL 2014 - 2018 (PS)
KIA SPORTAGE 2010 - 2015 (SL)
SKU SWI-HY01
Barcode # 9342270006544
Brand ConnectPRO
Shipping Weight 1.5000kg
