Features / Specifications

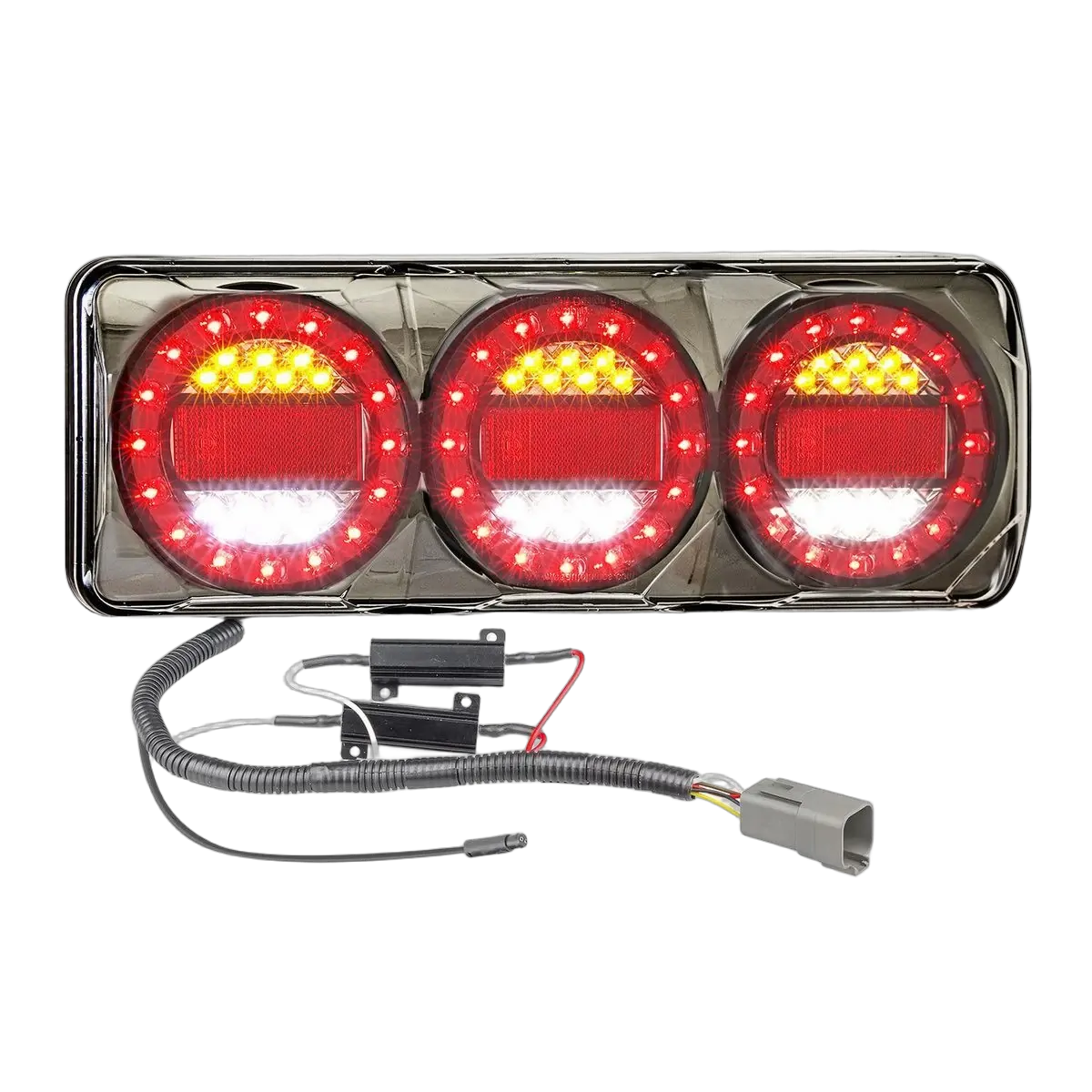

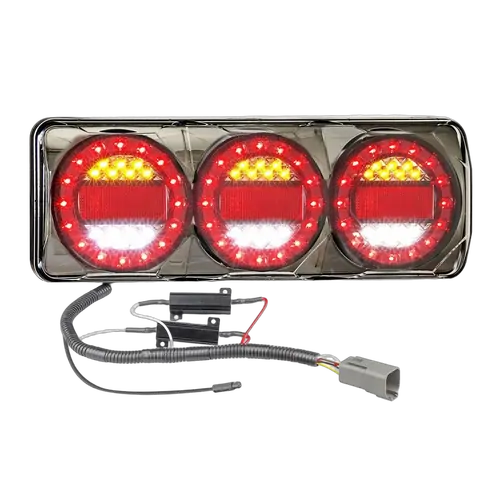

• Adapted to Fit Most Popular Brands of Vehicle Trays
• Pre wired with 2 x Load Resistors
  and Terminated with DT04-6P Male Connector
• Combine with Applicable Patch Lead
• IP67 Rated
• 12 Volt
• 5 Year Warranty
• ADR Approved Lamp
• 370mm x 135mm x 40mm


NOTE: When using load resistors in a vehicle that has lamp failure monitoring, failure of the lamp will not be detected.

Download Data Sheet

Fitting Instructions

Horizontally surface mount using bolts in back of lamp, run wire and plug through hole in fixing surface. Load resistors must be mounted on metal surface, the module can reach temperatures of up to 170 Celsius. Please refer to ADR 13/00 for mounting instructions.

Patch Leads to suit the following vehicles; Ford Ranger, Mazda BT50, Isuzu D-Max, Toyota Landcruiser, Toyata Hilux, Mitsubishi Triton MN/MQ, Holden Colorado, Nissan Navara, Volkswagen Amarok, Mercedez-Benz X-Class.

Technical Drawings
