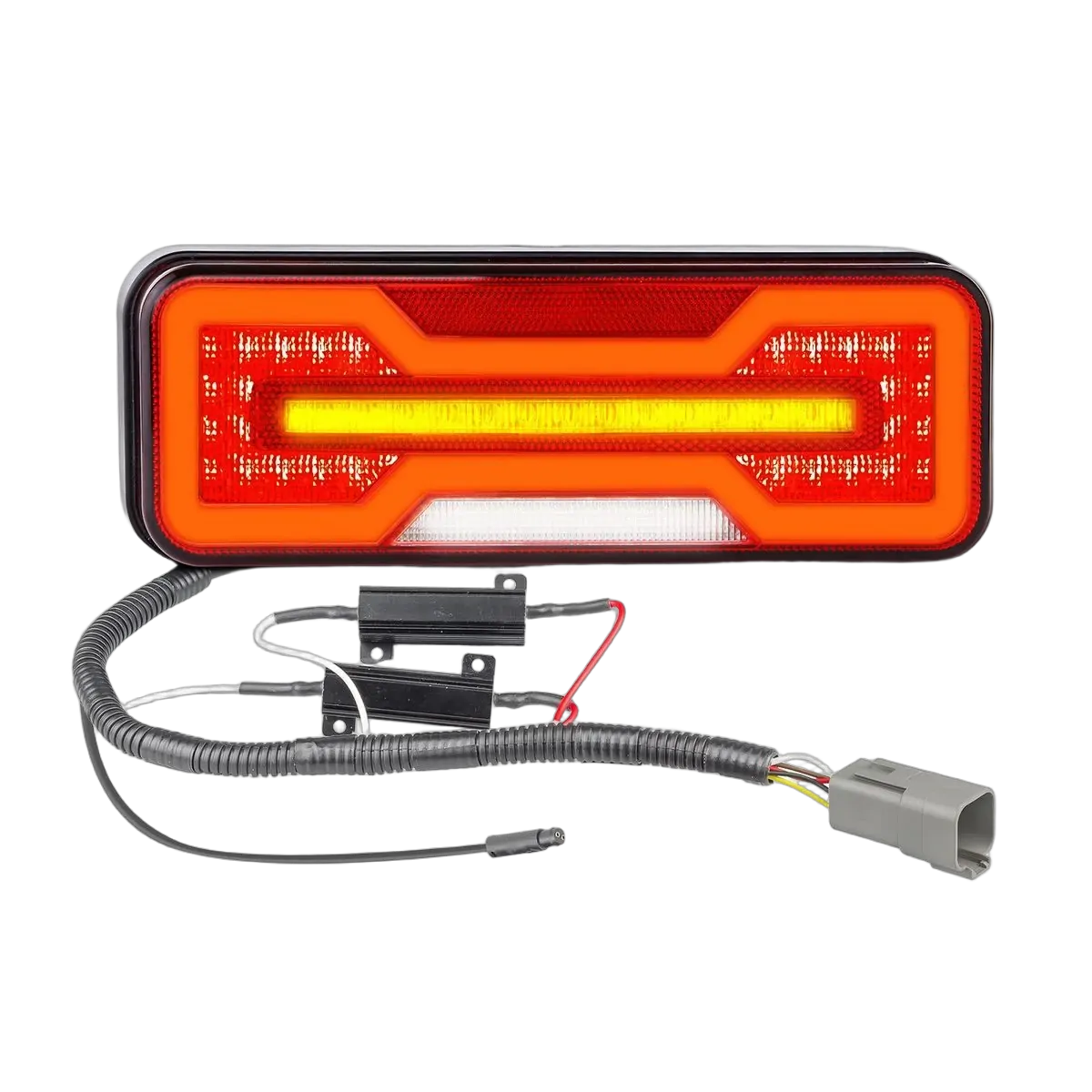

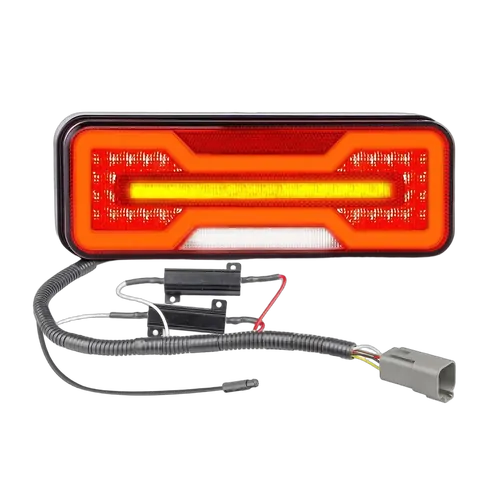

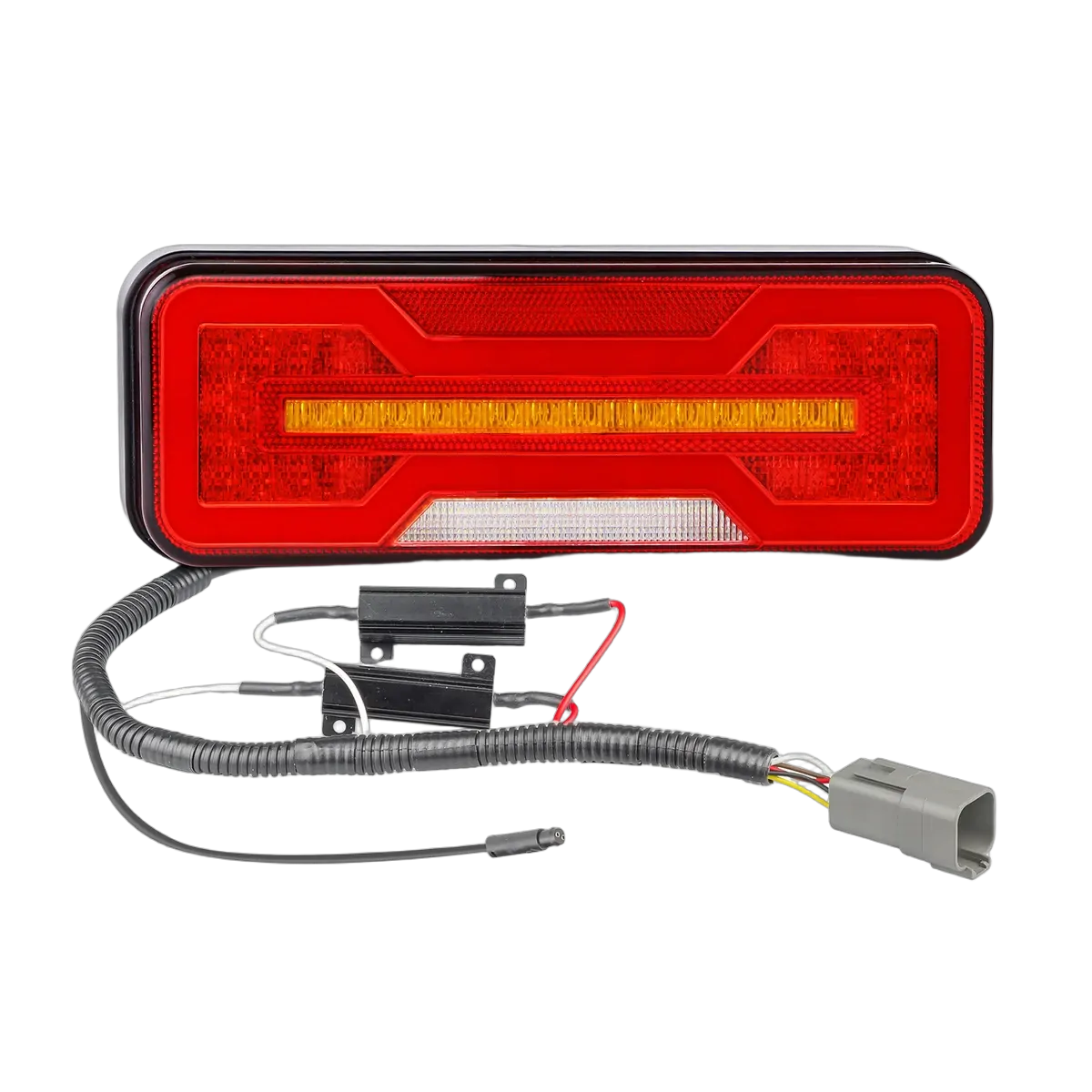

284 Series with Resistors and DT Plug
Reference: 284 Series w Resistors / DT Plug

Features / Specifications
Adapted to Fit Most Popular Brands of Vehicle Trays
Prewired with 2 x Load Resistors
and Terminated with DT04-6P Male Connector
Combine with Applicable Patch Lead
IP67 Rated
12 Volt Only
5 Year Warranty
ECE Approved Lamp
284mm x 100mm x 37mm

NOTE: When using load resistors in a vehicle that has lamp failure monitoring, failure of the lamp will not be detected.

Fitting Instructions
Surface mount using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Load resistors must be mounted on metal surface, the module can reach temperatures of up to 170 Celsius. Please refer to ADR 13/00 for mounting instructions.

Patch Leads to suit the following vehicles; Ford Ranger, Mazda BT50, Isuzu D-Max, Toyota Landcruiser, Toyata Hilux, Mitsubishi Triton MN/MQ, Holden Colorado, Nissan Navara, Volkswagen Amarok, Mercedez-Benz X-Class.

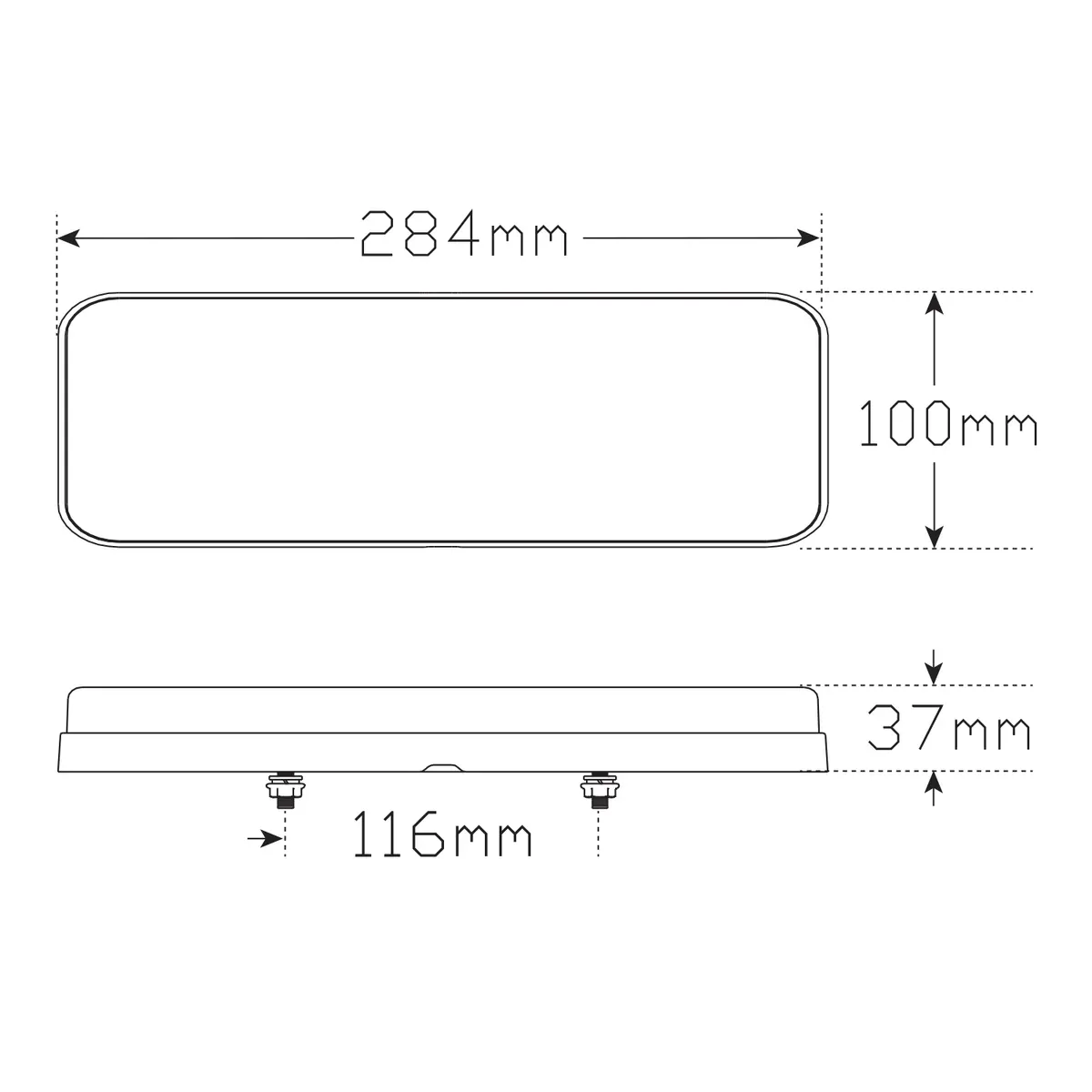

Technical Drawings
