82 Triple Chrome Series
82 Series Triples
Features / Specifications
|

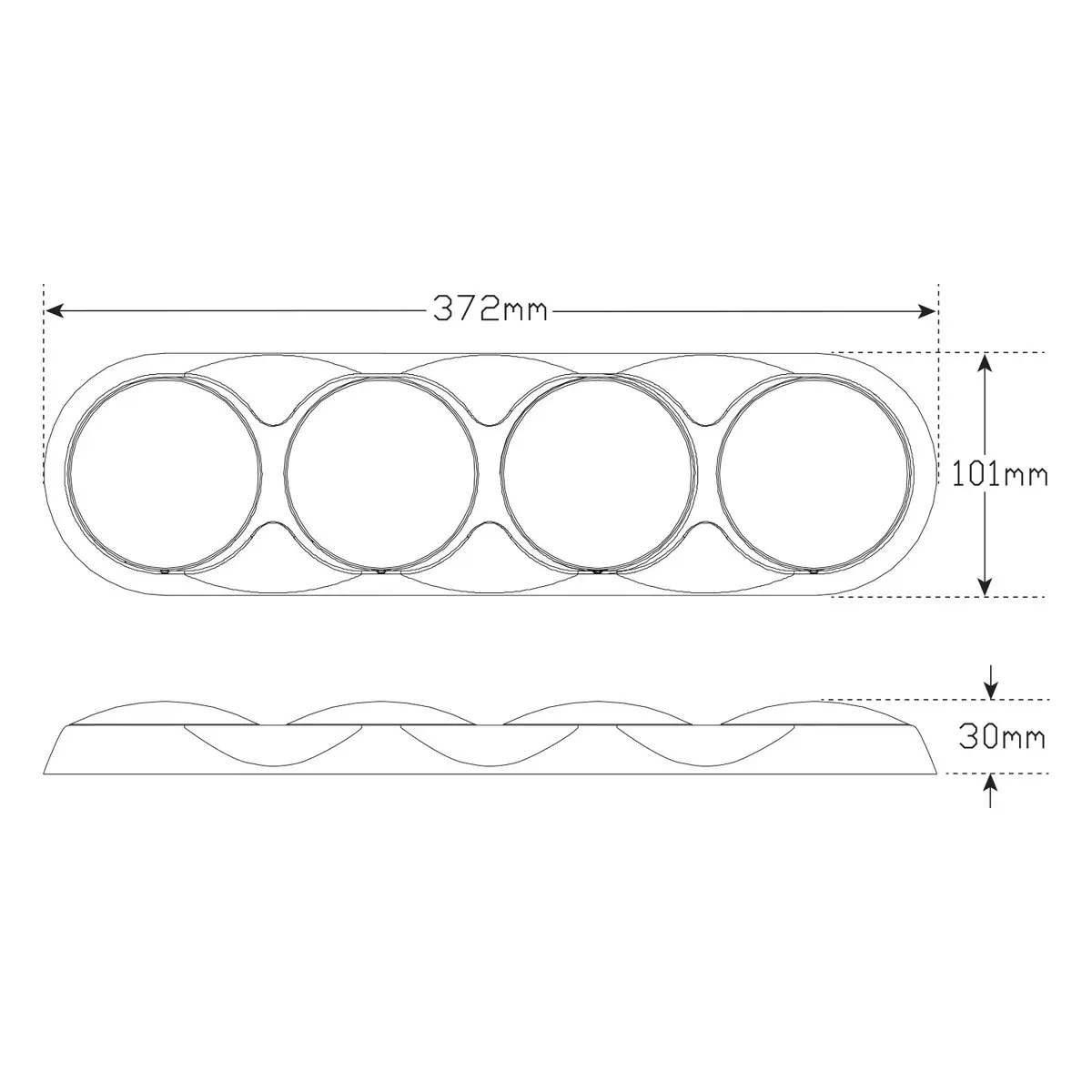

Fitting InstructionsHorizontally mount bracket onto flat surface with screws provided, ensuring TOP markings are positioned above centre holes. Remove backing from 3M tape on back of lens, run wires through desired centre hole and align the locator nodule on edge of lens with the corresponding indentation on bracket. Apply firm hand pressure to ensure lamp adhesion. Repeat for each lens until all are installed securely. Refer to ADR 13/00 for mounting instructions. Technical Drawings |
SKU | 82CARRW |
---|---|
Barcode # | 9335962027989 |
Brand | LED Autolamps |
Shipping Weight | 0.4500kg |
Shipping Width | 0.118m |
Shipping Height | 0.440m |
Shipping Length | 0.055m |
