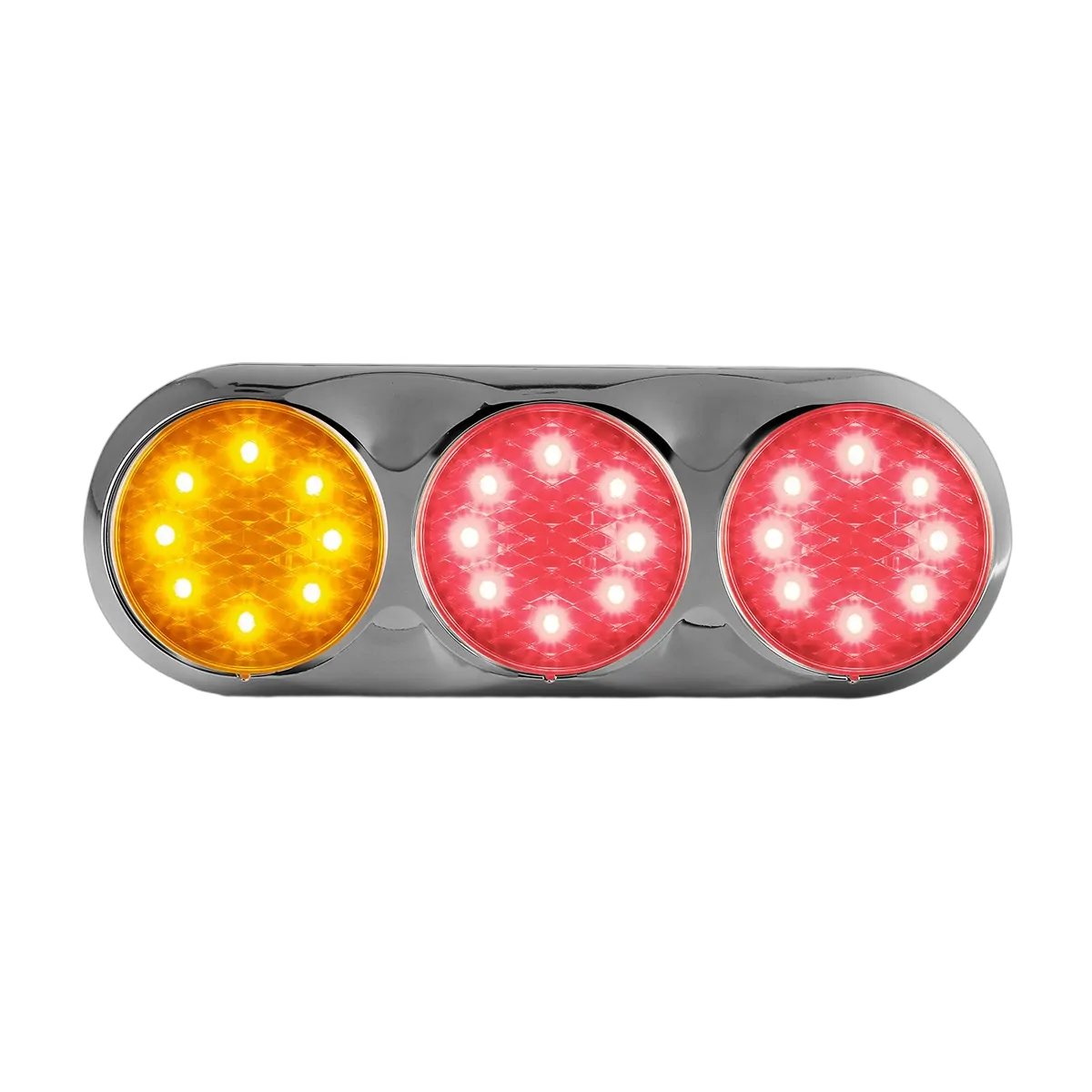

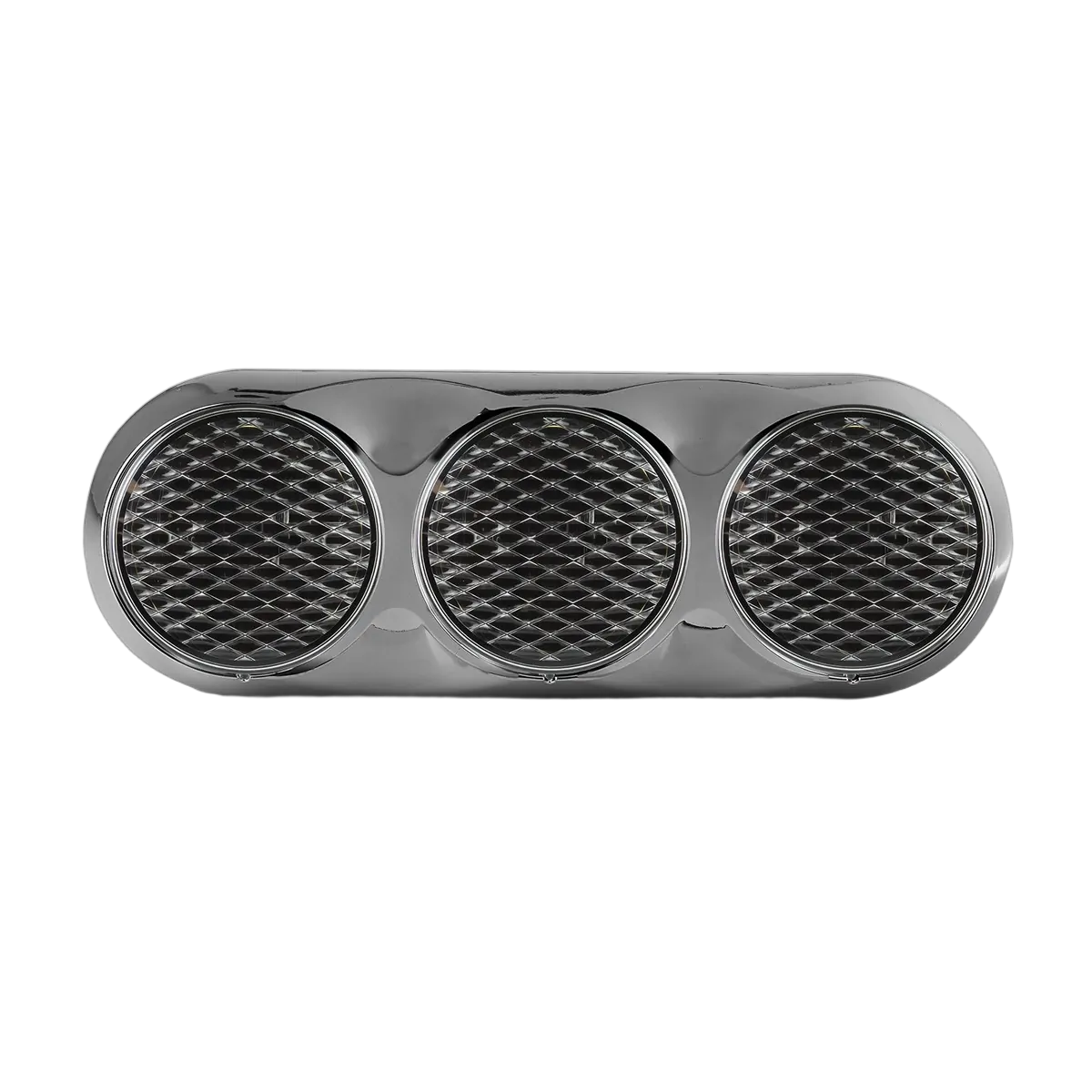

82 Triple Chrome Series

82 Series Triples

Features / Specifications

  • Low Profile Design
  • Surface Mounting
  • ECE Australian Road Approved
  • IP67 Rated
  • 12 Volt
  • 281mm x 101mm x 30mm
  • 5 Year Warranty


Download Data Sheet

Fitting Instructions

Horizontally mount bracket onto flat surface with screws provided, ensuring TOP markings are positioned above centre holes. Remove backing from 3M tape on back of lens, run wires through desired centre hole and align the locator nodule on edge of lens with the corresponding indentation on bracket. Apply firm hand pressure to ensure lamp adhesion. Repeat for each lens until all are installed securely. Refer to ADR 13/00 for mounting instructions.

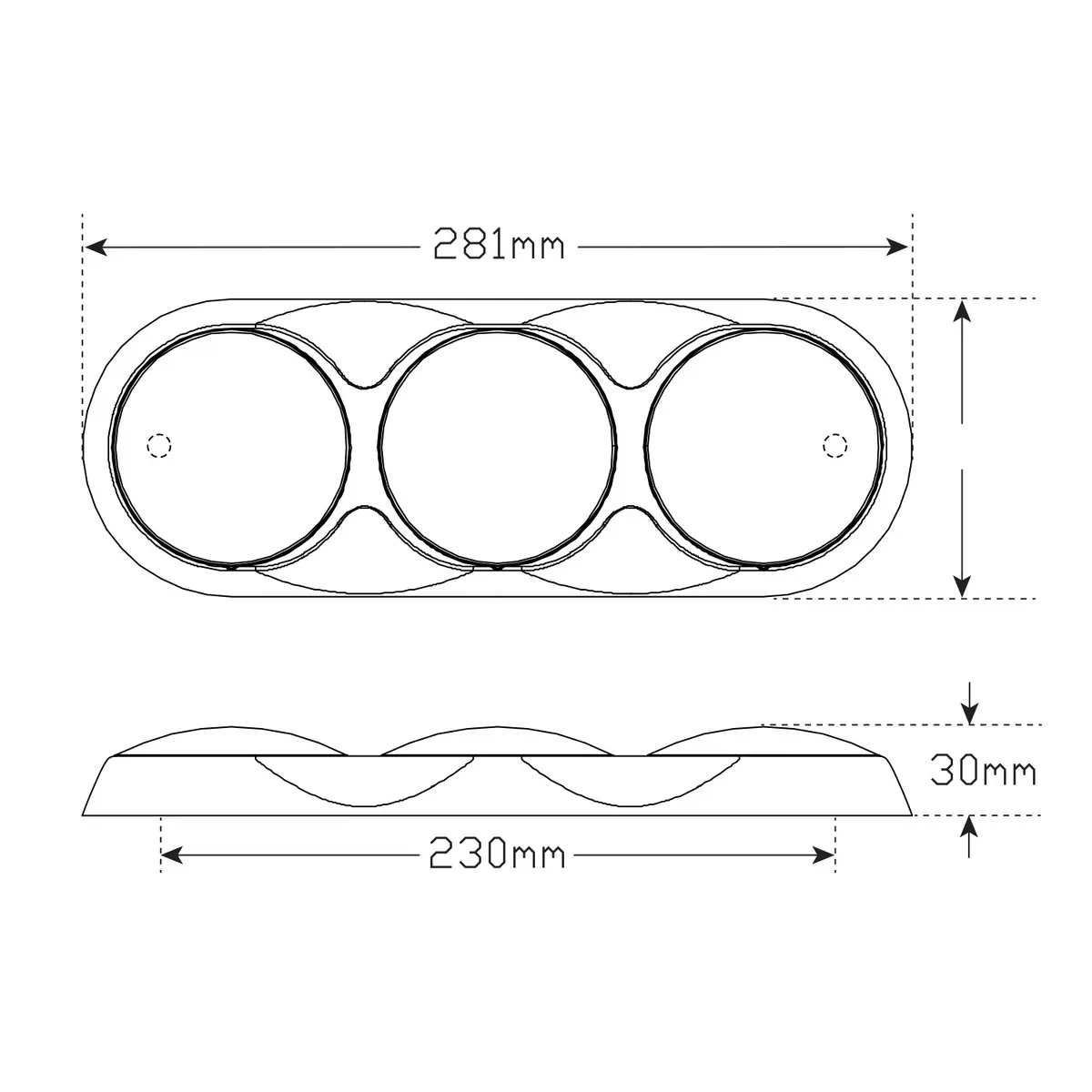

Technical Drawings

More details


SKU 82CARR
Barcode # 9335962027934
Brand LED Autolamps
Shipping Weight 0.4000kg
Shipping Width 0.118m
Shipping Height 0.365m
Shipping Length 0.055m

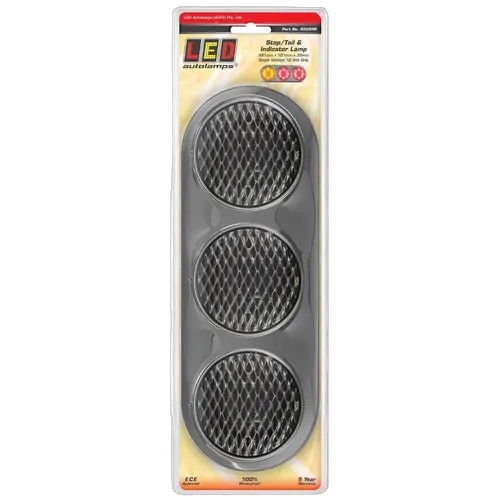

Combination Lamps 82CARR

SKU: 82CARR
Sale price
$97.99
RRP $108.66
Earn 970 Outback Rewards Points
Sale price
$97.99
DON'T PAY RRP $108.66
PayPal Checkout
4 payments of $24.50

afterpay More info.

Make 4 payments of $24.50 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $24.50

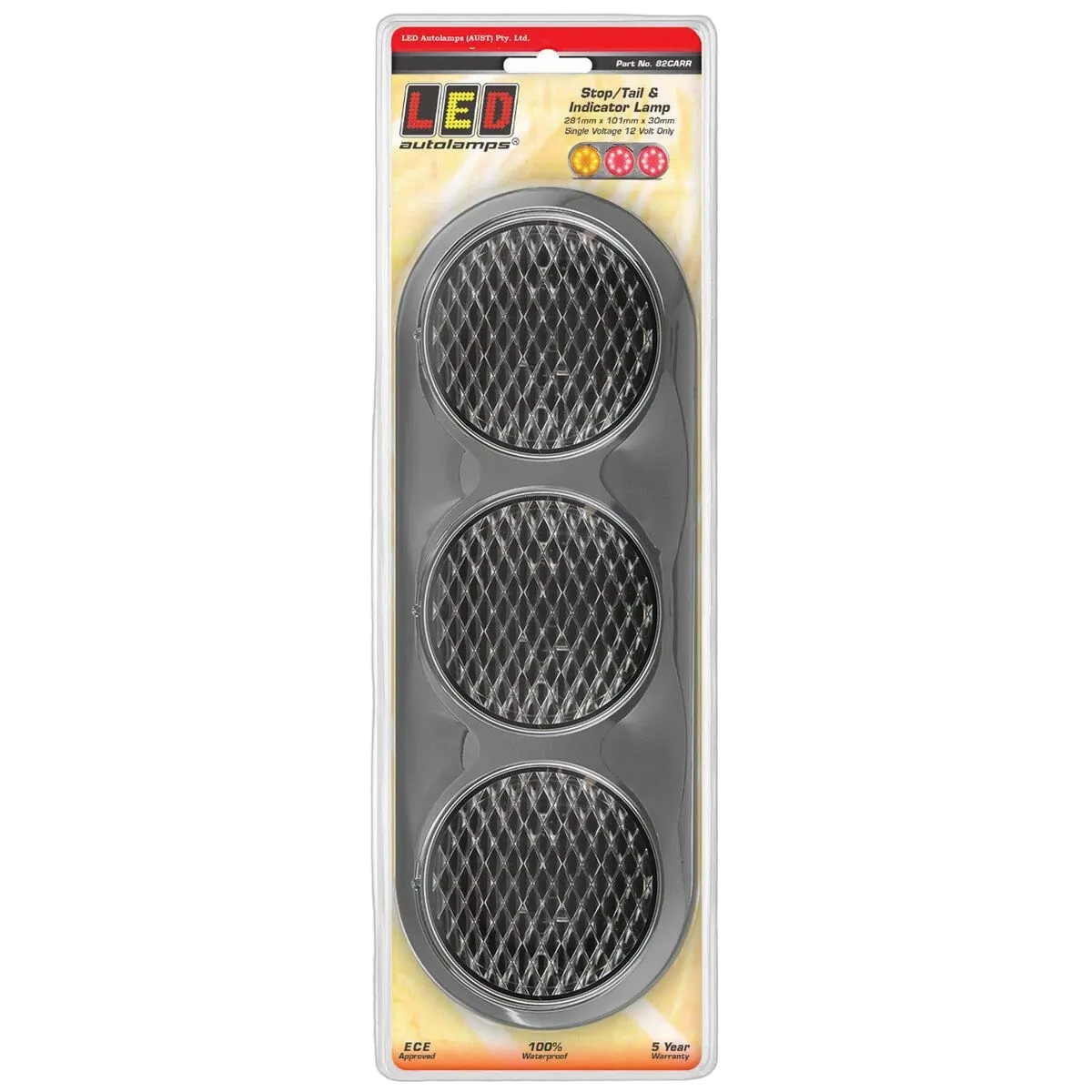

Clear Lens, 12 Volt, Stop/Tail, Indicator Assembly, Chrome Bracket, 281X101X30Mm, Ece Approved, Blister
