Features / Specifications

• Low Profile Design
• Surface Mounting
• ECE Australian Road Approved
• IP67 Rated
• 12 Volt or 12-24 Volt
• 281mm x 101mm x 30mm
• 5 Year Warranty


Download Data Sheet

Fitting Instructions

Horizontally mount bracket onto flat surface with screws provided, ensuring TOP markings are positioned above centre holes. Remove backing from 3M tape on back of lens, run wires through desired centre hole and align the locator nodule on edge of lens with the corresponding indentation on bracket. Apply firm hand pressure to ensure lamp adhesion. Repeat for each lens until all are installed securely. Refer to ADR 13/00 for mounting instructions.

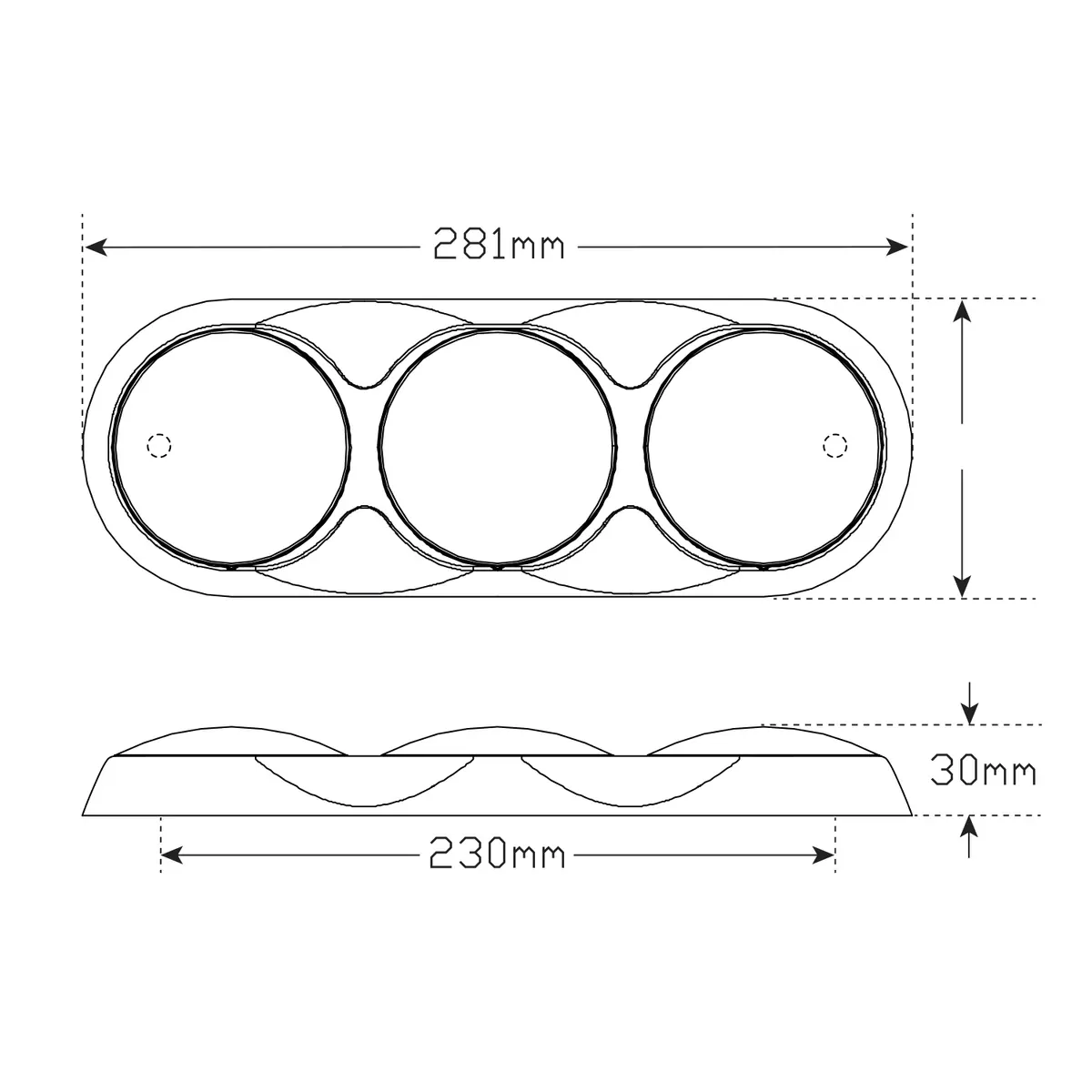

Technical Drawings
