520 Series
520 Series
Features / Specifications
|

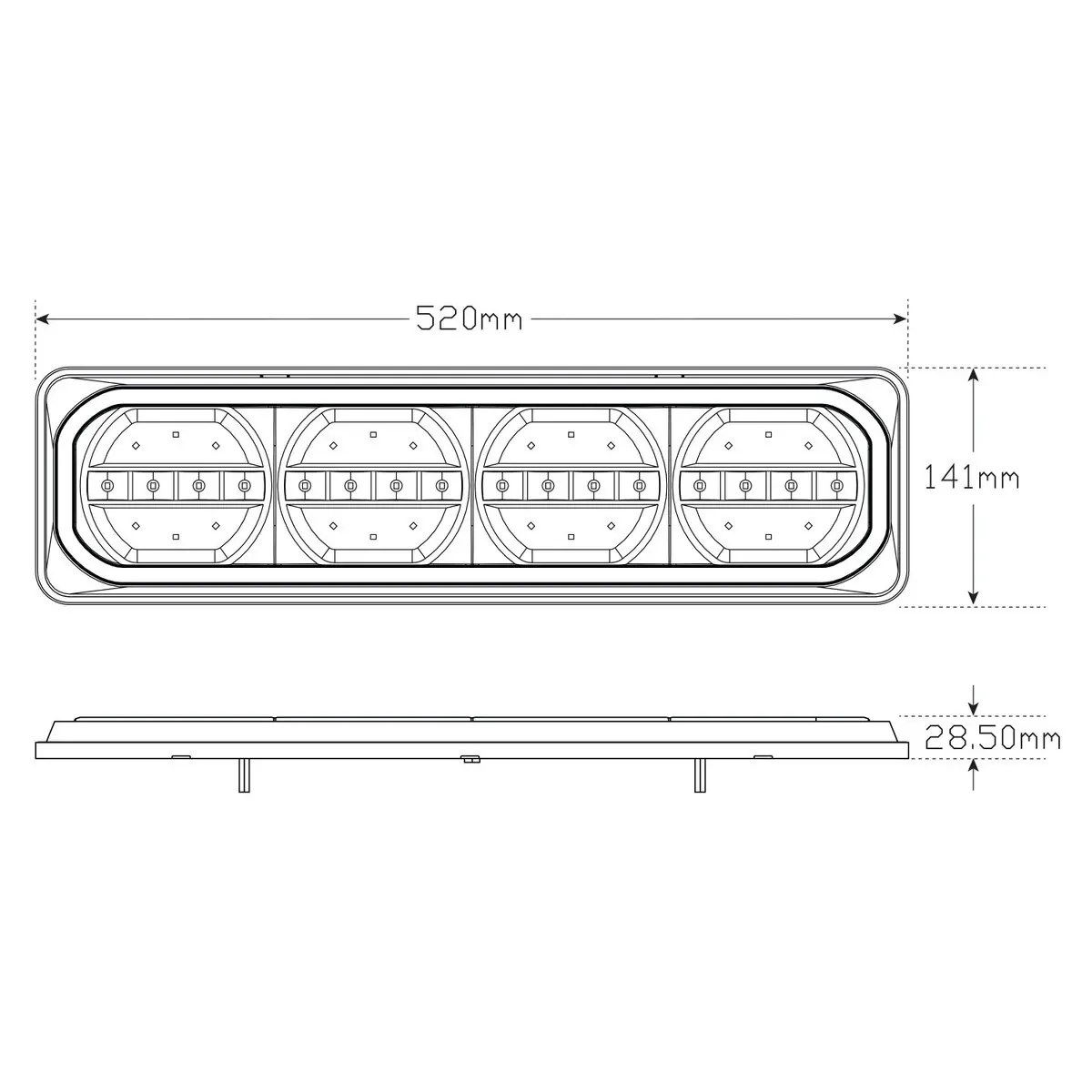

Fitting InstructionsSeparate the base plate from the lamp and horizontally mount it onto a flat surface using the screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in the fixing surface, then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions. Technical Drawings
|
SKU | 520ARWMLCSB |
---|---|
Barcode # | 9335962106103 |
Brand | LED Autolamps |
Shipping Weight | 0.0013kg |
Shipping Width | 0.145m |
Shipping Height | 0.055m |
Shipping Length | 0.524m |
