520 Series
520 Series
Features / Specifications
|

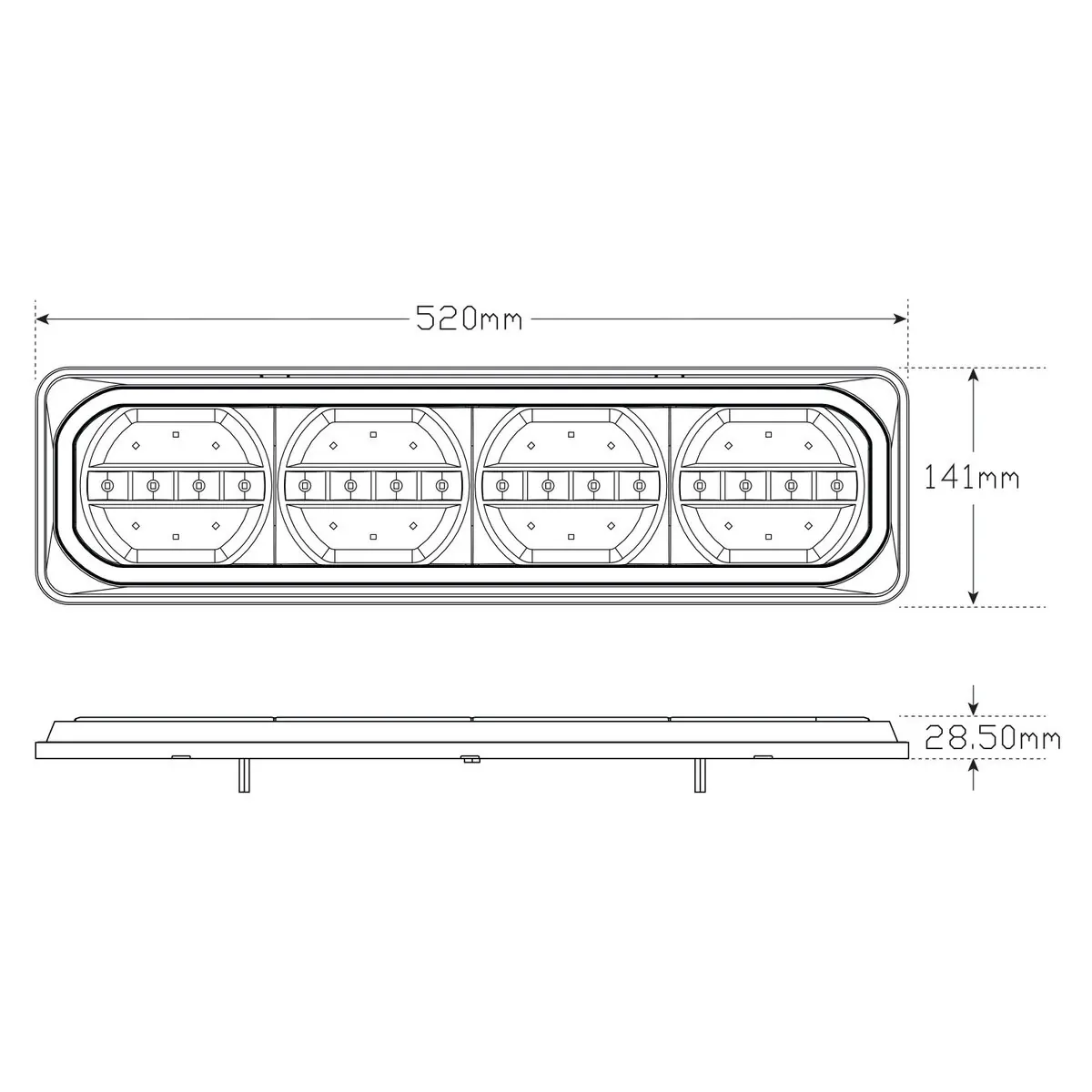

Fitting InstructionsSeparate the base plate from the lamp and horizontally mount it onto a flat surface using the screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in the fixing surface, then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions. Technical Drawings
|
SKU | 520ARWM-2 |
---|---|
Barcode # | 9335962104659 |
Brand | LED Autolamps |
Shipping Weight | 2.6000kg |
Shipping Width | 0.625m |
Shipping Height | 0.220m |
Shipping Length | 0.070m |
