3854 Series

3854 Series

Features / Specifications

  • Diffused Tail Function
  • Sequential Indicator
  • ADR Approved
  • IP67 100% Waterproof
  • Voltage Range 12-24 Volt
  • 387mm x 105mm x 30.5mm
  • 5 Year Warranty


Download Data Sheet

Fitting Instructions

Separate the base plate from the lamp and horizontally mount it onto a flat surface using the screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in the fixing surface, then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions.

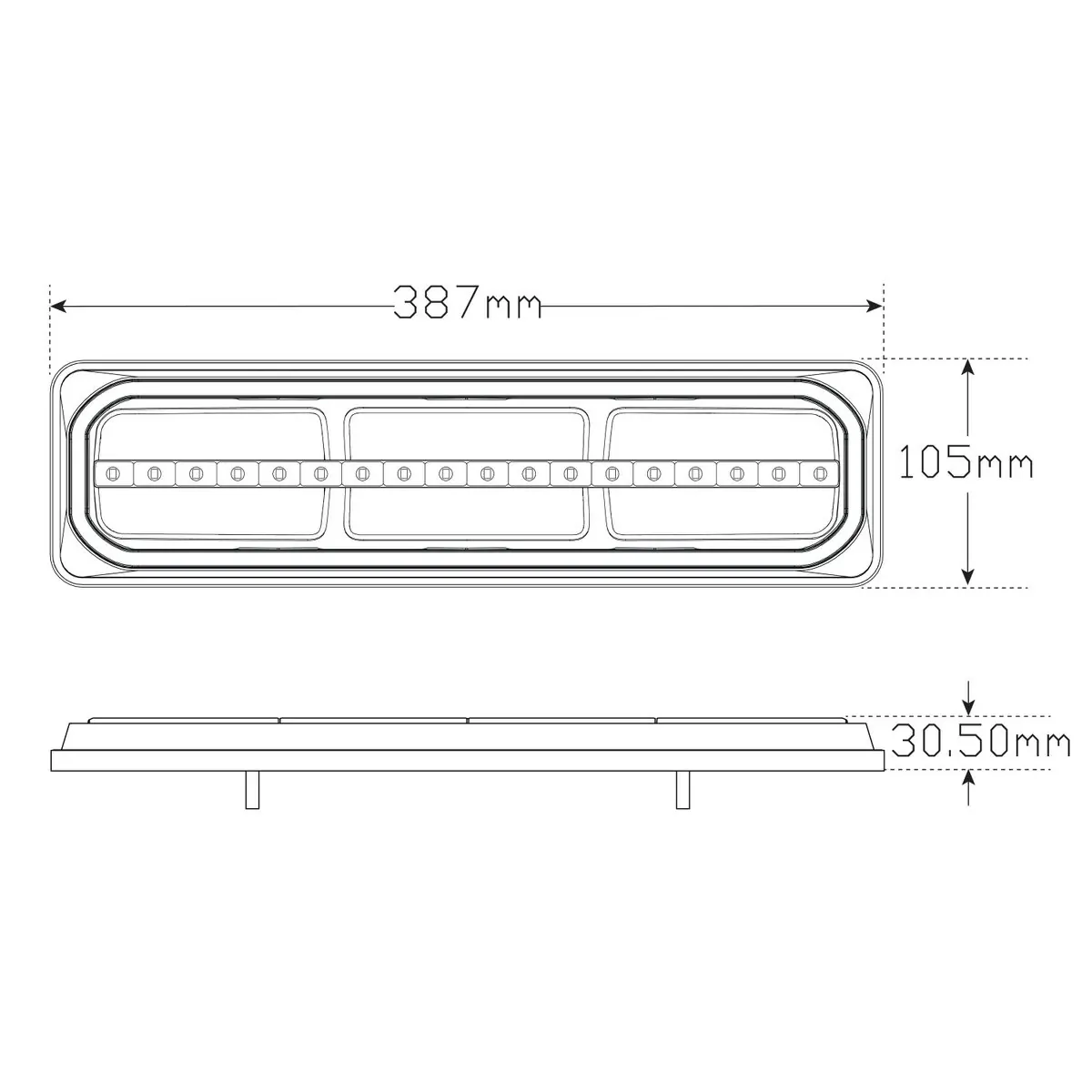

Technical Drawings



More details


SKU 3854ARRM-2
Barcode # 9335962109913
Brand LED Autolamps
Shipping Weight 1.6500kg
Shipping Width 0.445m
Shipping Height 0.210m
Shipping Length 0.075m

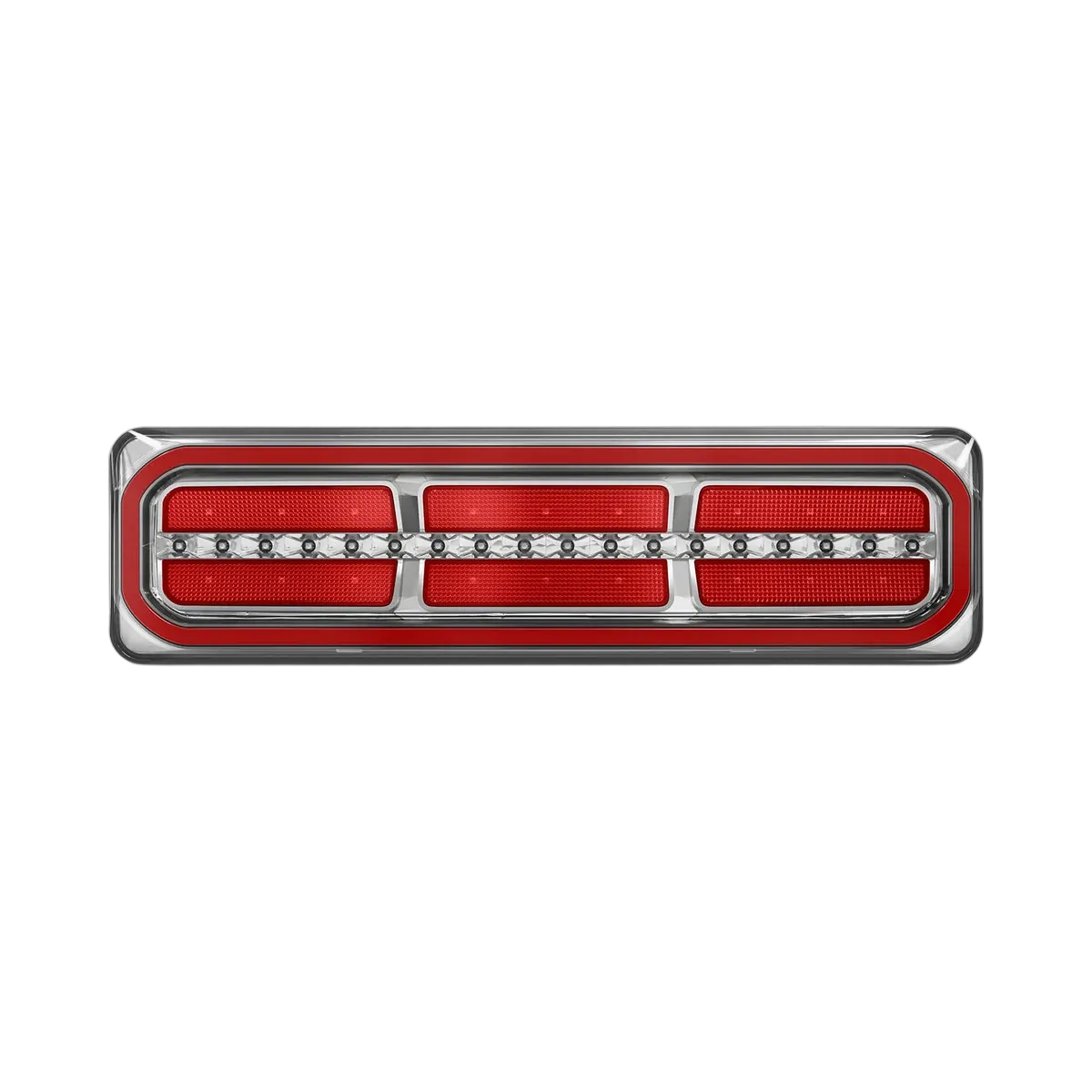

Combination Lamps 3854ARRM-2 (Twin Pack)

SKU: 3854ARRM-2
Sale price
$369.99
RRP $428.51
Earn 3,690 Outback Rewards Points
Sale price
$369.99
DON'T PAY RRP $428.51
PayPal Checkout
4 payments of $92.50

afterpay More info.

Make 4 payments of $92.50 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $92.50

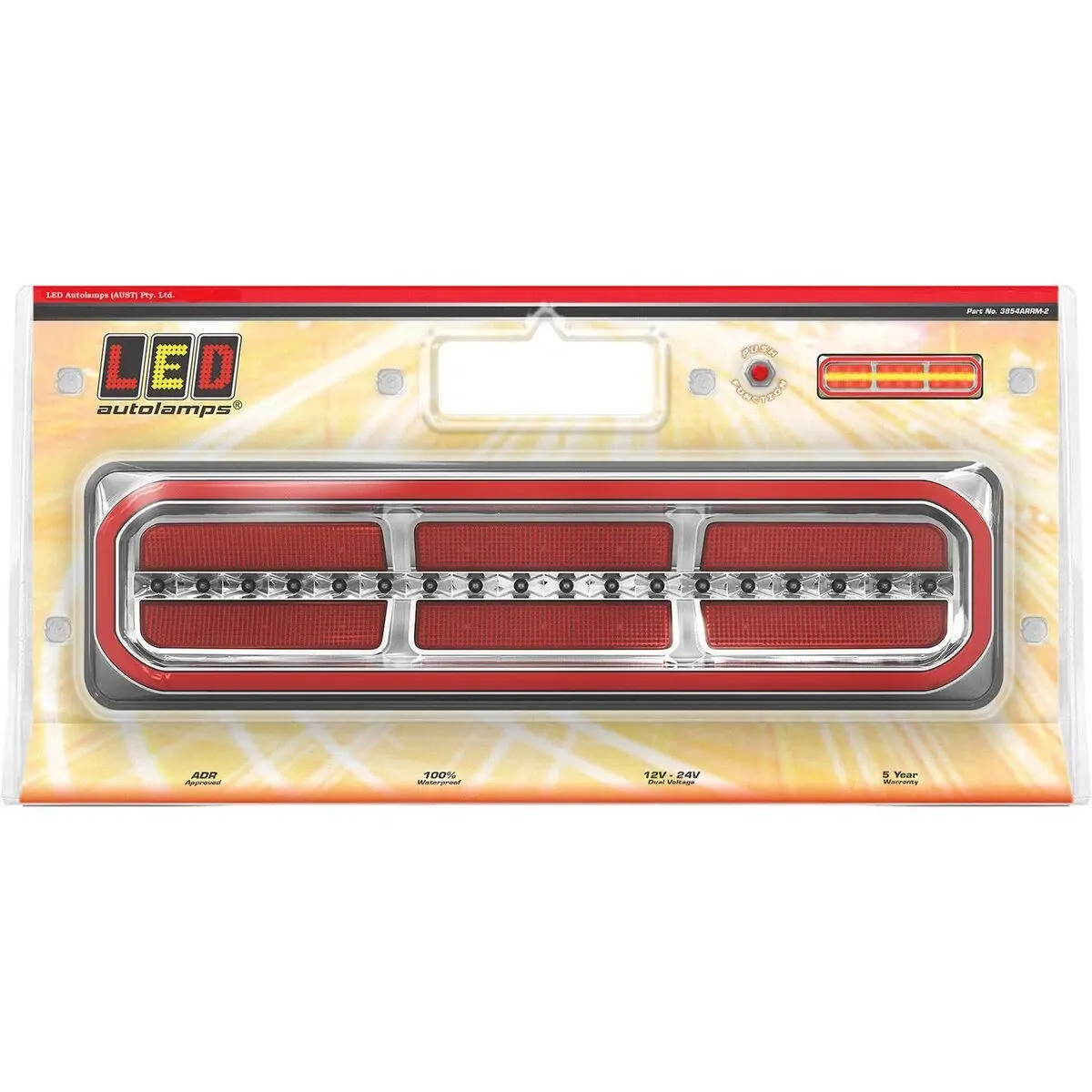

Twin Blister With Try Me Function-Stop/Tail/Ind, Red Diffused Tail With Sequential Indicator, Multivolt, 40Cm Cable, 385 X 104 X 31Mm, Adr
