3853 Series
3853 Series
Features / Specifications
|

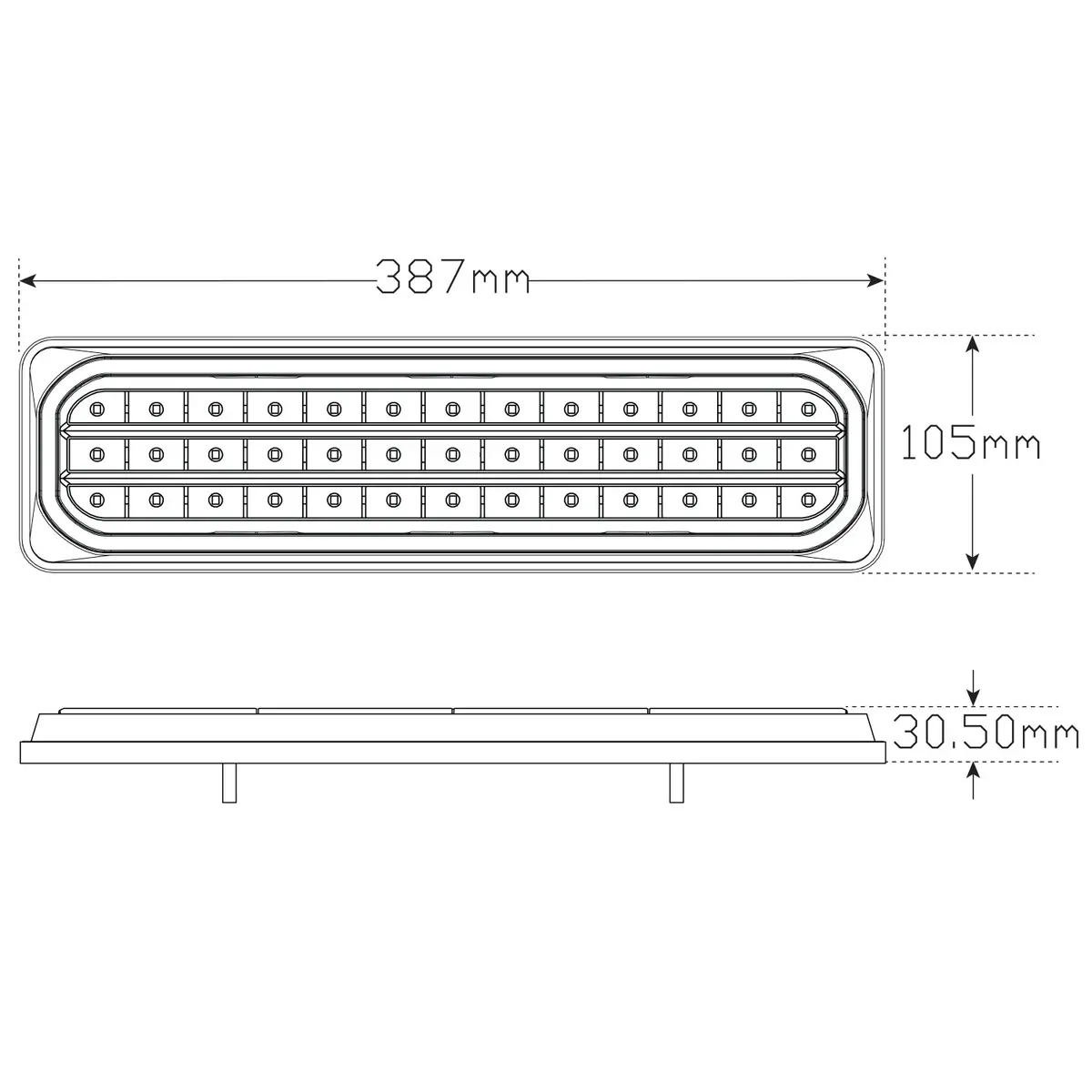

Fitting InstructionsSeparate the base plate from the lamp and horizontally mount it onto a flat surface using screws provided, ensuring the arrow on the lens is pointing outwards of the vehicle. Run the wire through the hole in the fixing surface, then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions. Technical Drawings
|
SKU | 3853ARWM-2 |
---|---|
Barcode # | 9335962107421 |
Brand | LED Autolamps |
Shipping Weight | 1.6500kg |
Shipping Width | 0.445m |
Shipping Height | 0.210m |
Shipping Length | 0.075m |
