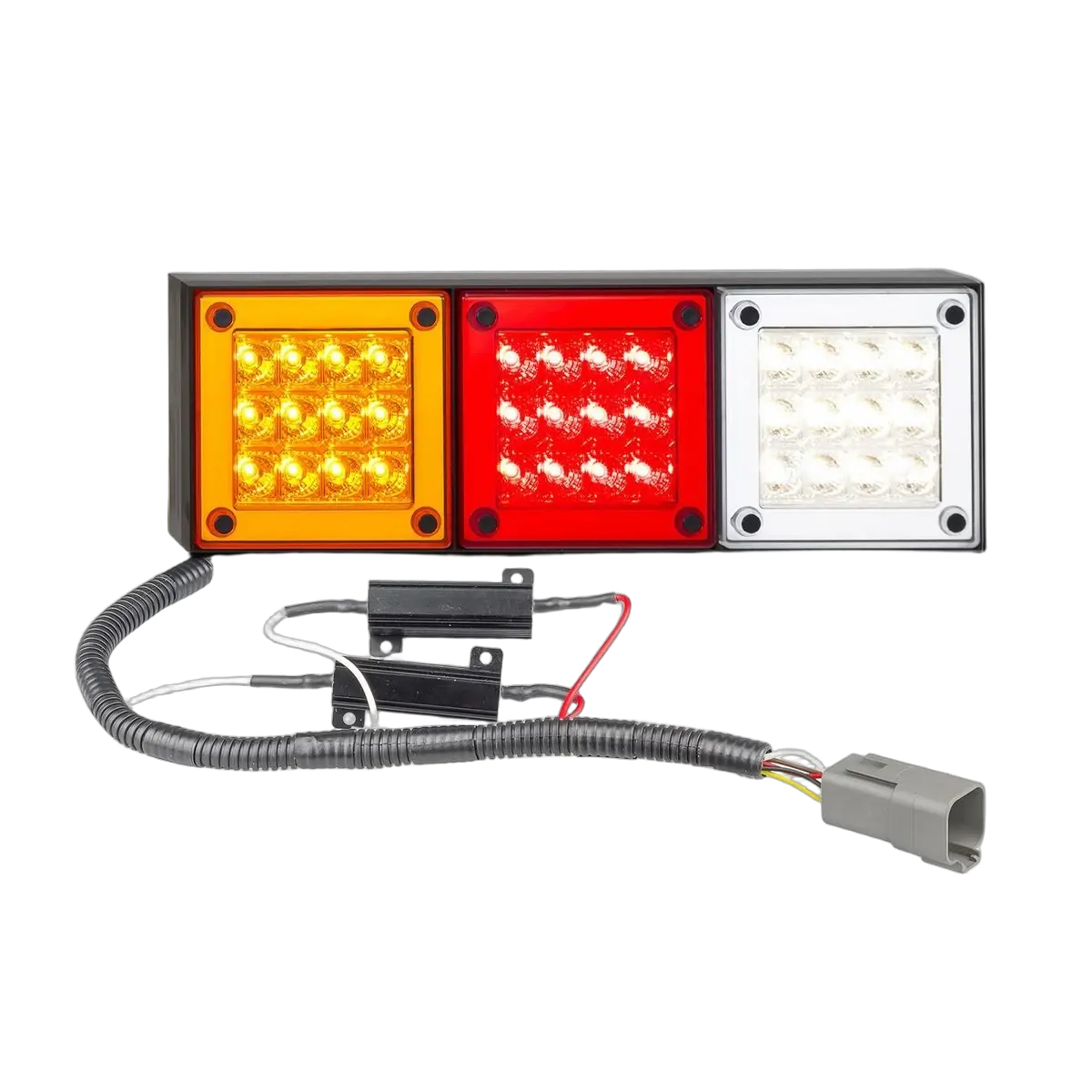

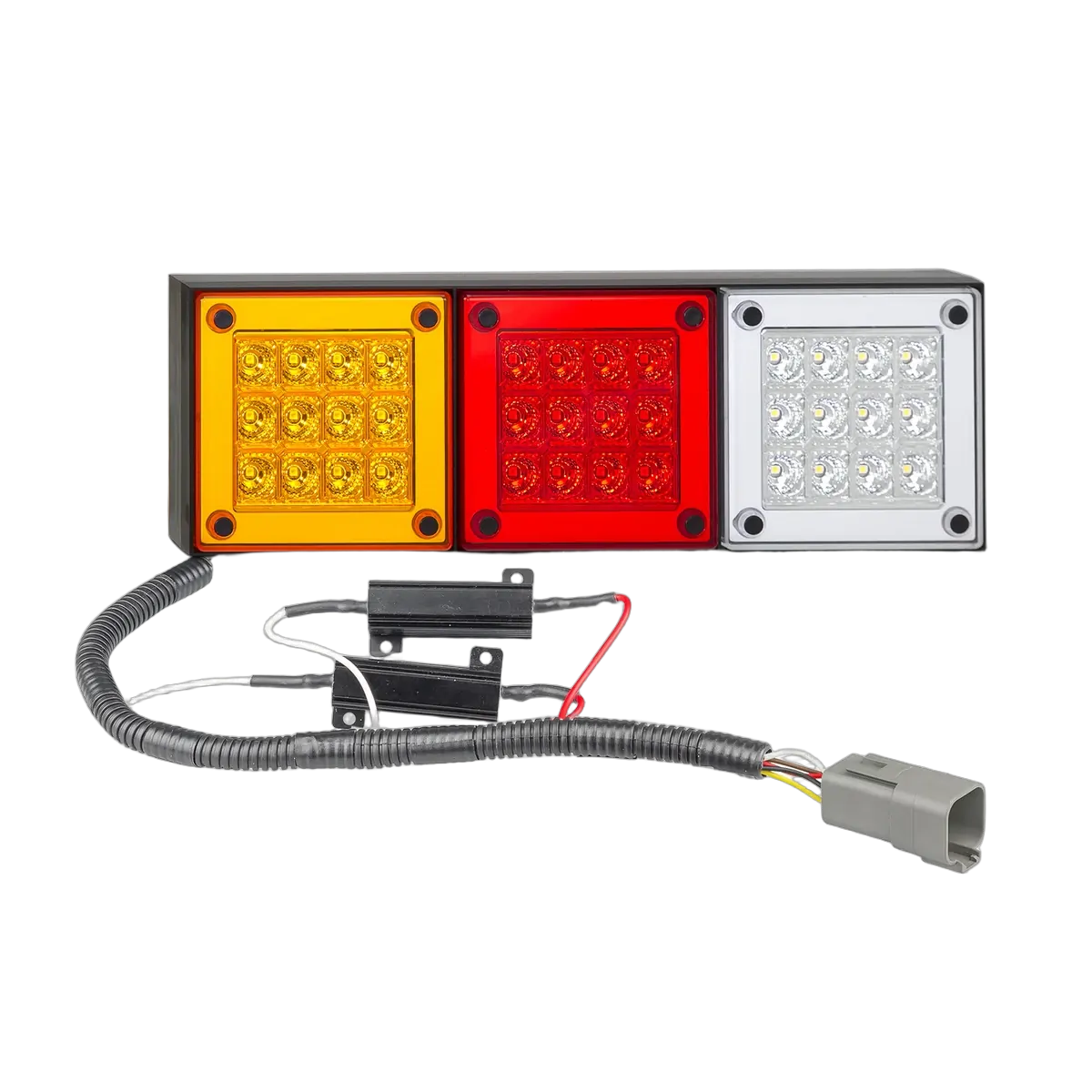

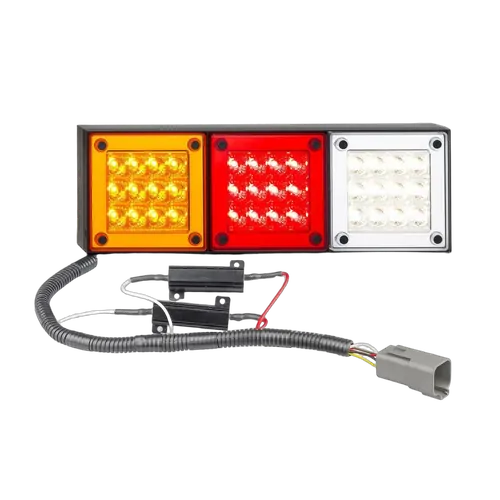

280 Series with Resistors and DT Plug
280 Series Resistors / DT Plug
Features / Specifications
NOTE: When using load resistors in a vehicle that has lamp failure monitoring, failure of the lamp will not be detected.
|

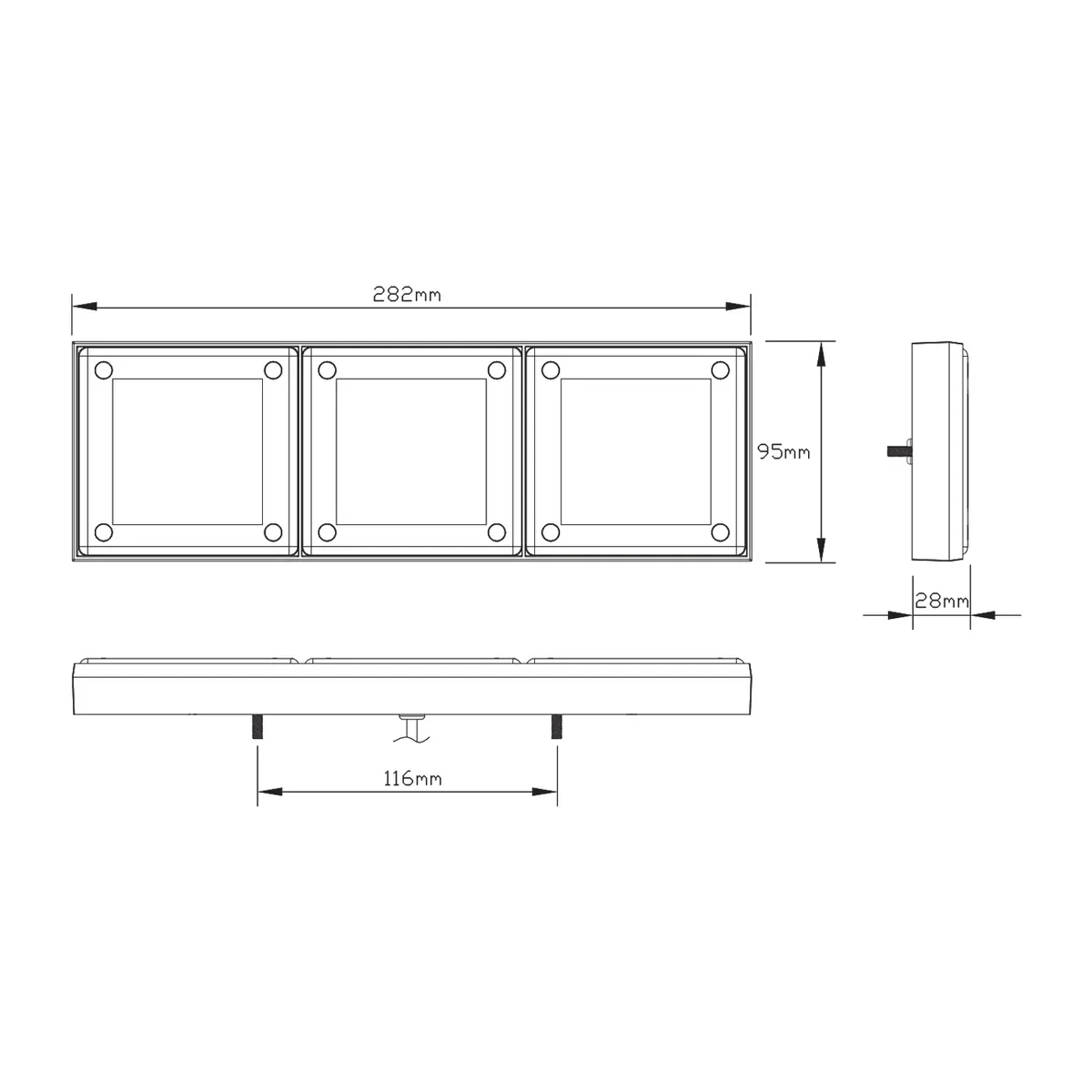

Fitting InstructionsHorizontally surface mount using bolts in back of lamp, run wire and plug through hole in fixing surface. Load resistors must be mounted on metal surface, the module can reach temperatures of up to 170 Celsius. Please refer to ADR 13/00 for mounting instructions. Patch Leads to suit the following vehicles; Ford Ranger, Mazda BT50, Isuzu D-Max, Toyota Landcruiser, Toyata Hilux, Mitsubishi Triton MN/MQ, Holden Colorado, Nissan Navara, Volkswagen Amarok, Mercedez-Benz X-Class. Technical Drawings |
SKU | 280ARWM2LR24450 |
---|---|
Barcode # | 9335962022878 |
Brand | LED Autolamps |
Shipping Weight | 0.6250kg |
Shipping Width | 0.040m |
Shipping Height | 0.060m |
Shipping Length | 0.295m |
