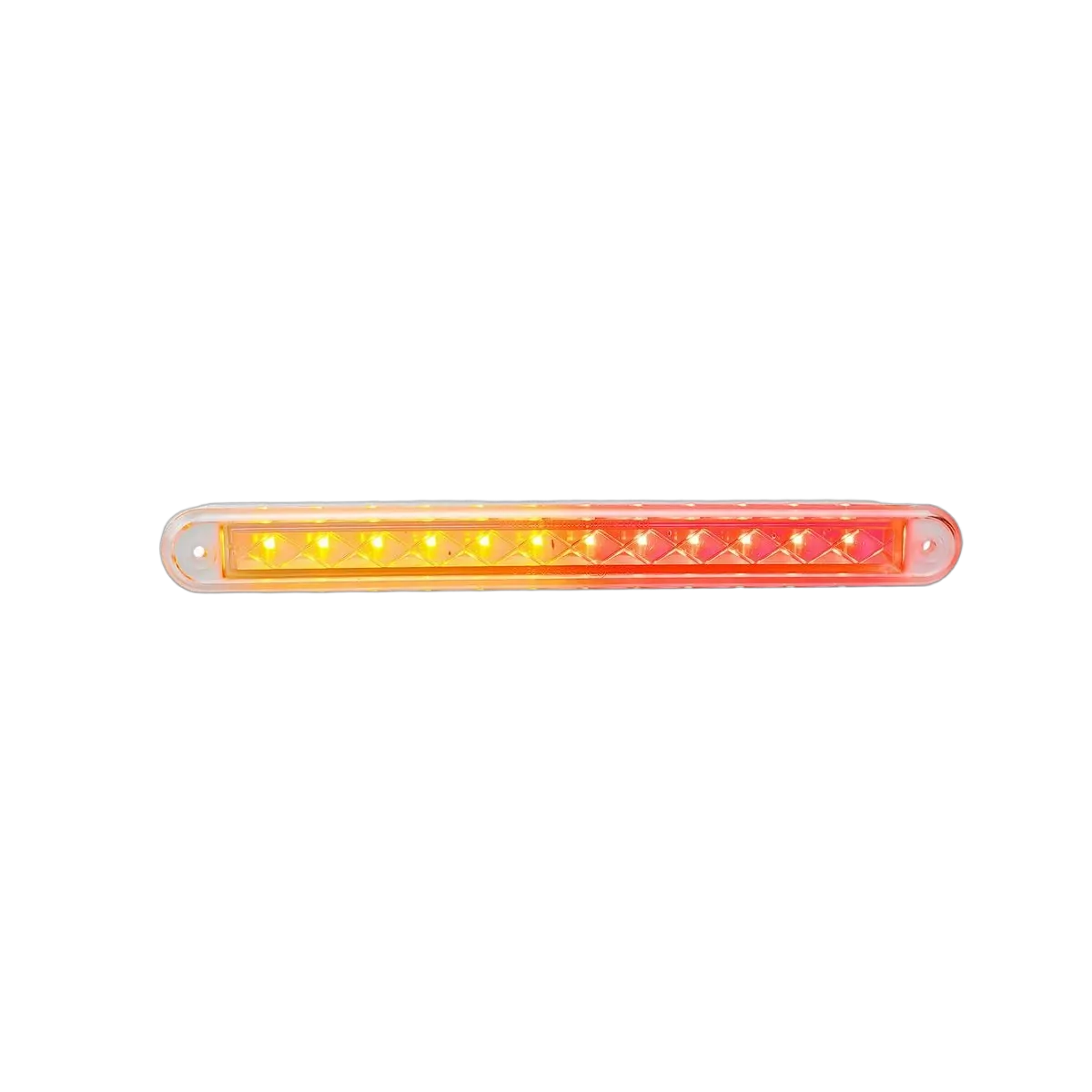

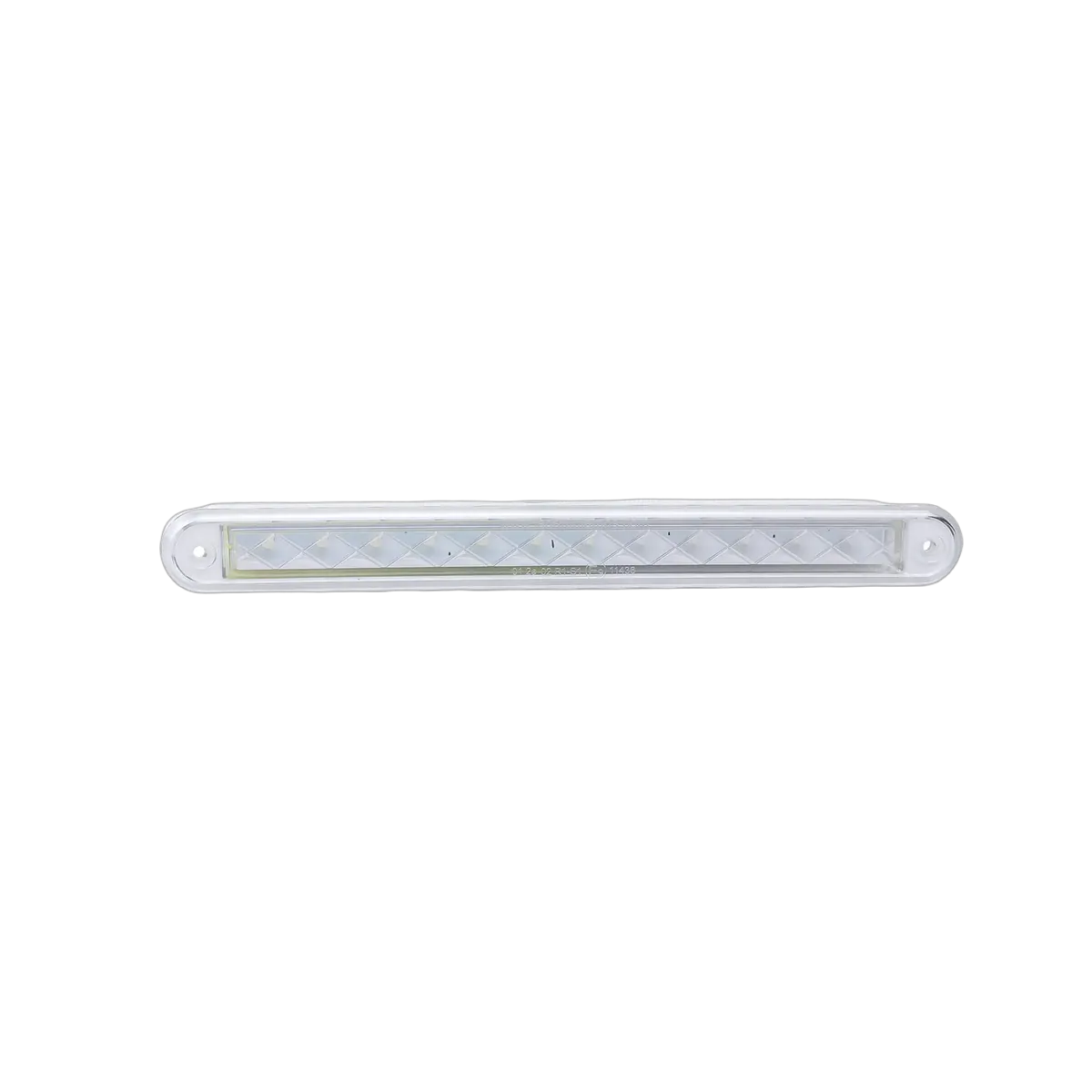

235 Series Recessed Mount

235 Series Recessed Mount

Features / Specifications

  • Recessed mount
  • Surface Mount Brackets Available
  • Low profile slimline design
  • ADR/ECE approved
  • IP67 100% Water proof
  • 12 Volt or 24 Volt
  • 237mm x 25mm x 3mm
  • 5 Year Warranty


Download Data Sheet

Fitting Instructions

Recessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in mounting surface, run wires through back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions.

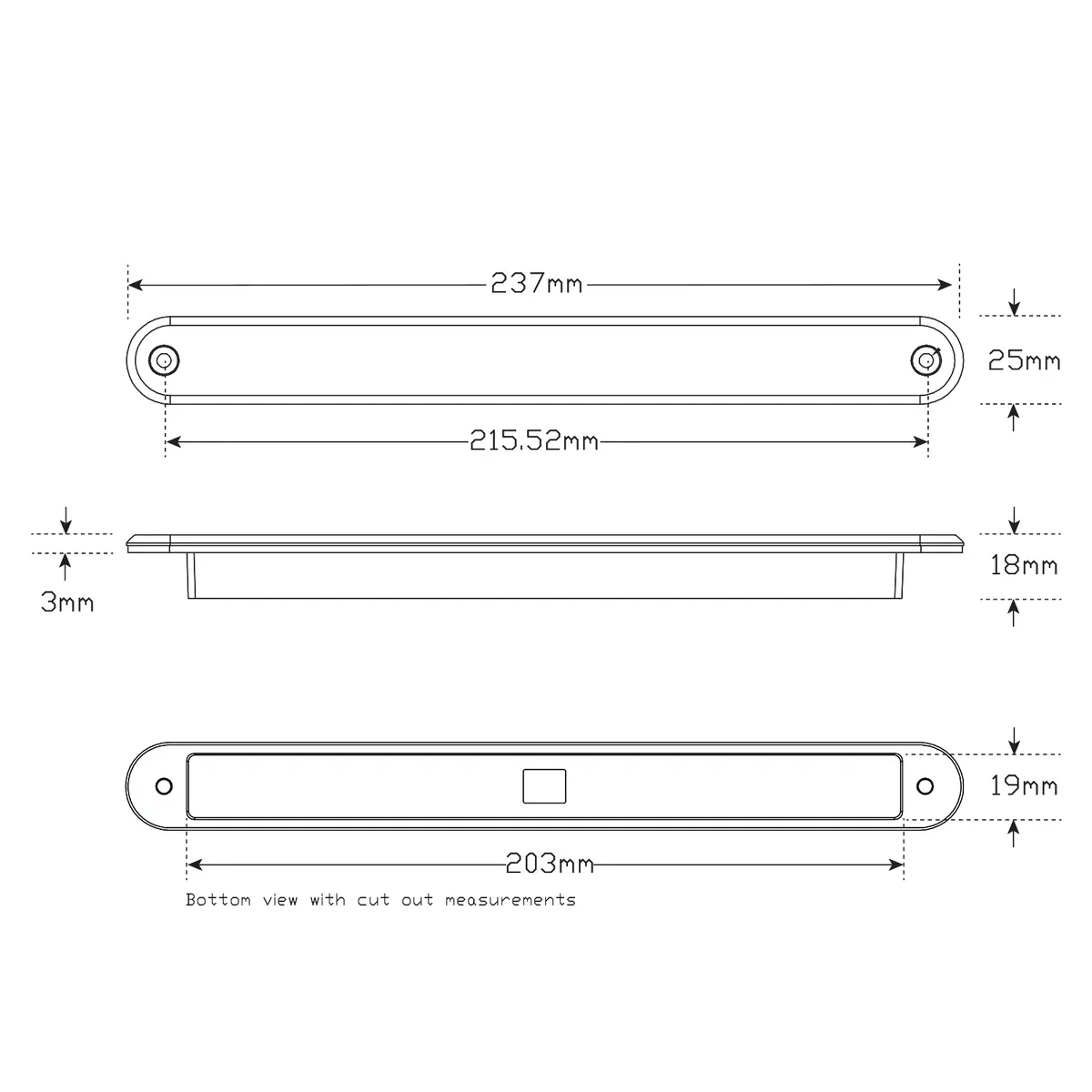

Technical Drawings

More details


SKU 235AR12
Barcode # 9335962017812
Brand LED Autolamps
Shipping Weight 0.1100kg
Shipping Width 0.055m
Shipping Height 0.295m
Shipping Length 0.035m

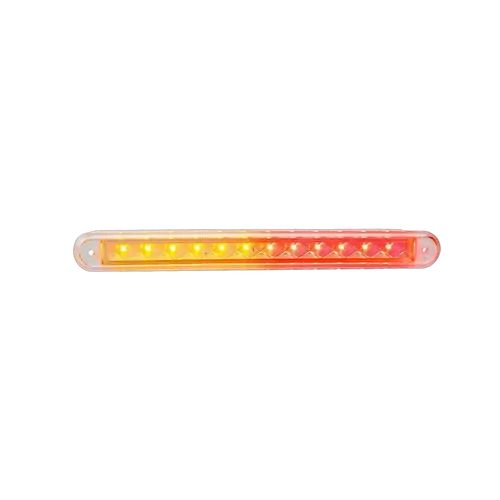

Combination Lamps 235AR12

SKU: 235AR12
Sale price
$34.99
RRP $41.10
Earn 340 Outback Rewards Points
Sale price
$34.99
DON'T PAY RRP $41.10
PayPal Checkout
4 payments of $8.75

afterpay More info.

Make 4 payments of $8.75 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $8.75

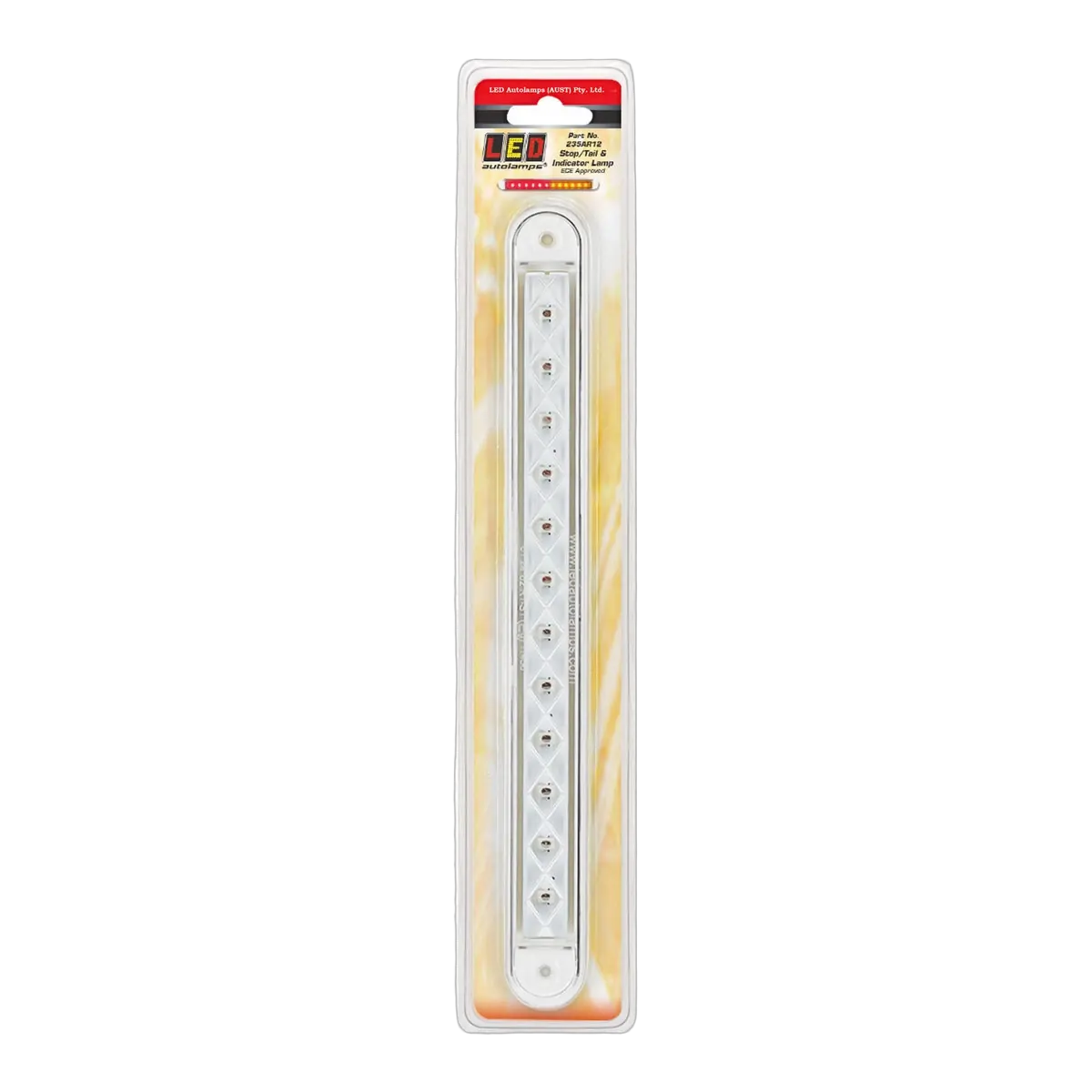

Stop/Tail And Indicator Strip Lamp With White Rubber Grommet, 12 Volt Only, Adr Approved, Blister Packing.
