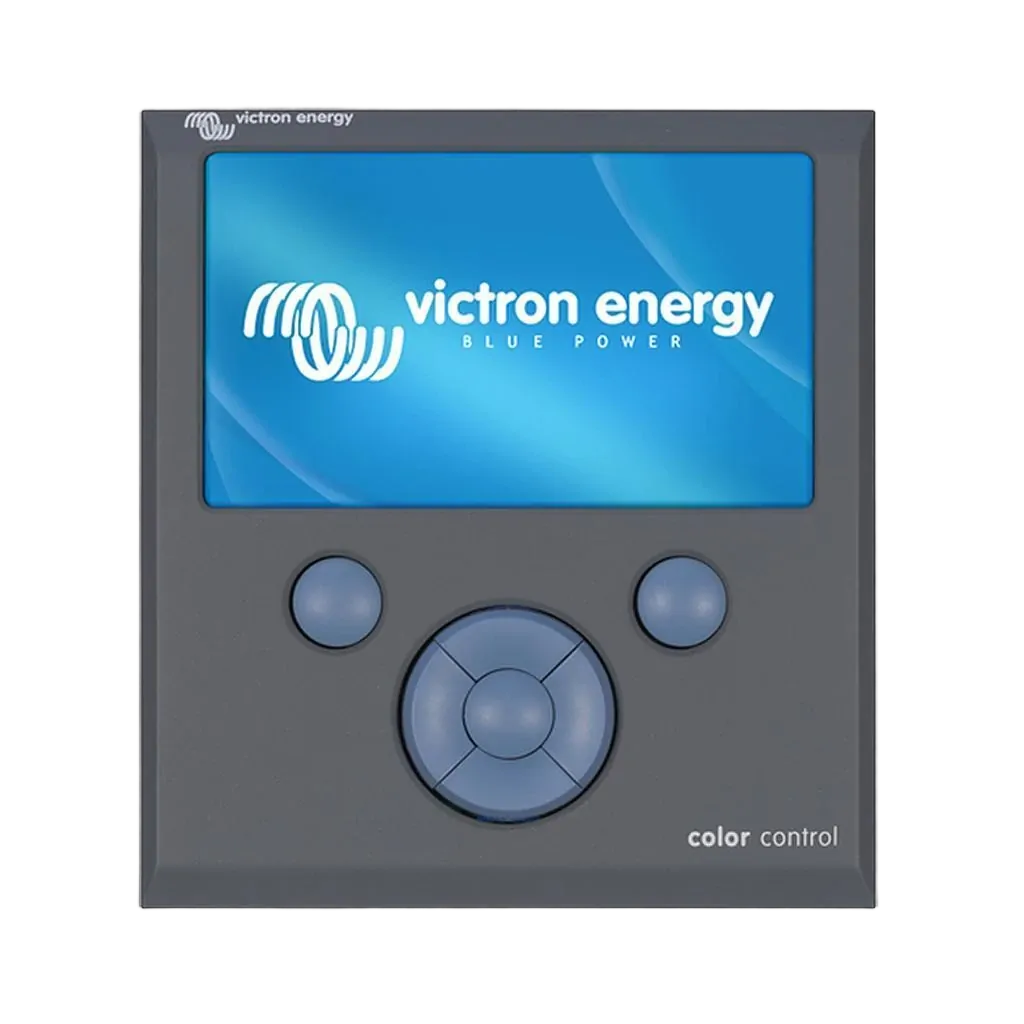

The Color Control GX is the communication-centre of your installation. It offers at-a-glance live information, and lets you control all products connected to it. Full system control is gained - almost anywhere in the world - by accessing your Color Control GX using our free-to-use Victron Remote Management Portal (VRM).
Intuitive system overview - all you need to know

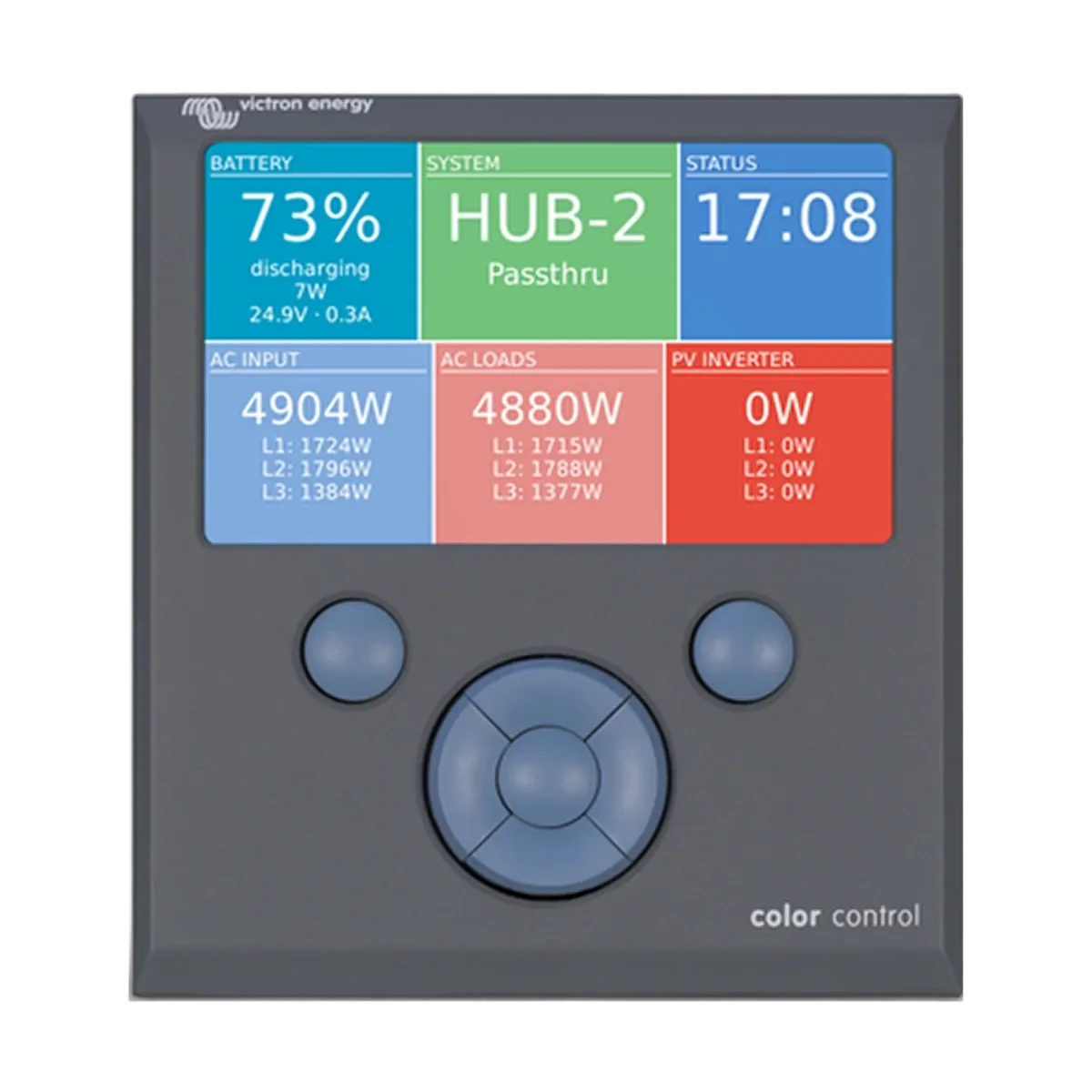

At a single touch, Color Control GX provides an instant overview of your system: battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator.
The full power of Victron Remote Management
Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login - from anywhere, at anytime. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information.
Automatic Generator start/stop
The Color Control GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance at dead of night.
Remote Console - control everything from anywhere...

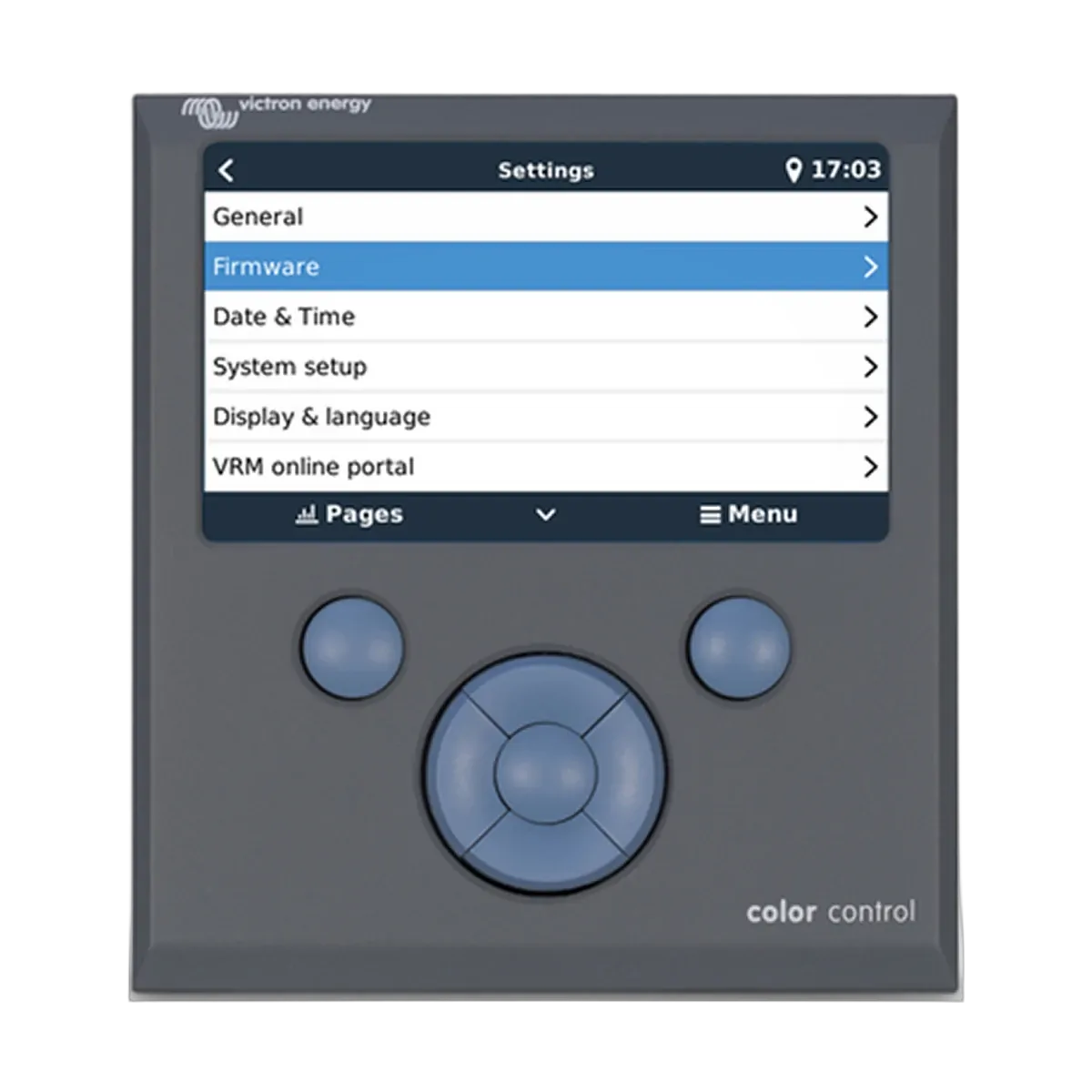

A Remote Console feature is available. It's like carrying the front face of your CCGX control panel around on your phone, or other device.
Energy Storage Systems - 24 hour Monitoring
The Color Control GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption - saving you money. For examples and more detailed information see the ESS (Energy Storage System) manual.
Remotely monitor your boat or motorhome electrics
Planning a trip? Remote monitoring of your Color Control GX allows you to make sure your boat or motorhome are ready to go. Color Control GX also allows you to talk to connected equipment from other manufacturers.
Color Control GX |
|
||
Power supply voltage range |
9 – 70V DC |
||
Current draw |
12V DC |
24V DC |
48V DC |
Display off |
140mA |
80mA |
40mA |
Display at minimum intensity |
160mA |
90mA |
45mA |
Display at maximum intensity |
245mA |
125mA |
65mA |
Potential free contact |
3A / 30V DC / 250V AC (Normally open) |
||
|
Communication ports |
||
VE.Direct |
2 separate VE.Direct ports – isolated |
||
VE.Can |
2 paralleled RJ45 sockets – isolated |
||
VE.Bus |
2 paralleled RJ45 sockets – isolated |
||
USB |
2 USB Host ports – not isolated |
||
Ethernet |
10/100/1000MB RJ45 socket – isolated except shield |
||
|
3rd party interfacing |
||
Modbus-TCP |
Use Modbus-TCP to monitor and control all products connected to the Color Control GX |
||
JSON |
Use the VRM JSON API to retrieve data from the VRM Portal |
||
|
Other |
||
Outer dimensions (h x w x d) |
130 x 120 x 28mm |
||
Operating temperature range |
-20 to +50°C |
||
|
Standards |
||
Safety |
EN 60950-1:2005+A1:2009+A2:2013 |
||
EMC |
EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
||
Automotive |
E4-10R-053535 |
SKU | BPP010300100R |
---|---|
Barcode # | 8719076038344 |
Brand | Victron |
Shipping Weight | 3.0000kg |
