STANDARD PACKS
- Pack 1 and 2 come with Waterproof Carpet underlay - a peel and stick closed cell foam that you stick on the Sound Deadener.
- Pack 1 insulates the floor and rear wall, Pack 2 adds on the doors and roof.
The 4x4 Single Cab Floor pan + rear wall pack includes:
Pack 1 (approx 15kg)

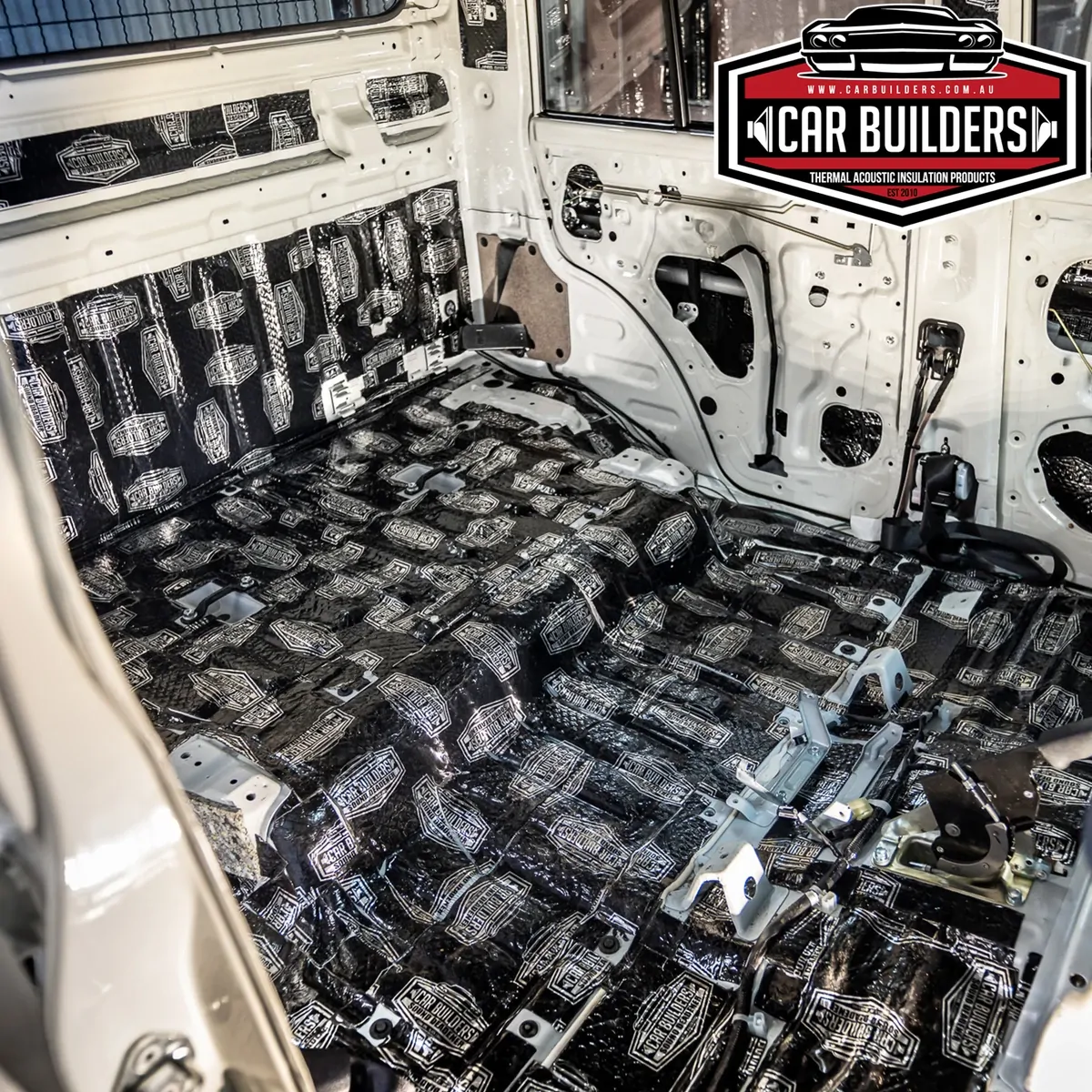

2 Boxes (3.6sq/m) of Stage 1 Sound Deadener - Install on your floorpan and rear firewall, cover from above your pedals, across the floor pan up the rear firewall to below the rear window.
2 Boxes (3.6sq/m) Water Proof Underlay - Peel & stick, 10mm thick flexible foam to cover the floor and rear firewall.
PLUS a bonus install kit including; application roller, utility knife and 1 x roll of foil tape
The 4x4 Single Cab Floor pan, rear wall, roof + door pack includes:
Pack 2 (approx 20kg)
3 Boxes (5.4sq/m) of Stage 1 Sound Deadener - Install on your floorpan and rear firewall, cover from above your pedals, across the floor pan up the rear firewall to below the rear window.
2 Boxes (3.6sq/m) Water Proof Underlay - Peel & stick, 10mm thick flexible foam to cover the floor and rear firewall.
1 Sheet (1sq/m) Insul-Layer 6mm - Light weight, closed cell, peel and stick foam. Stick on your roof skin to soften inbound sound and create a thermal barrier protecting you from external heat.
PLUS a bonus install kit including; application roller, utility knife and 1 x roll of foil tape
PREMIUM PACKS
Please note that pre-cut floors will dispatch within 3-5 business days.
- Pack 3 and 4 come with Mass Noise Liner - a premium non stick underlay, is closed cell foam with a 2mm thick mass loaded vinyl layer on top. This is waterproof as well, and utilising the vinyl layer as a sound blanket it blocks more sound than Waterproof Underlay.
- Pack 3 insulates the floor and rear wall, Pack 4 adds on the doors and roof.
The 4x4 Single Cab Floor pan + rear wall Premium pack includes:
SKU: Pack 3 (approx 30kg)
2 Boxes (3.6sq/m) of Stage 1 Sound Deadener - Install on your floorpan and rear firewall, cover from above your pedals, across the floor pan up the rear firewall to below the rear window.

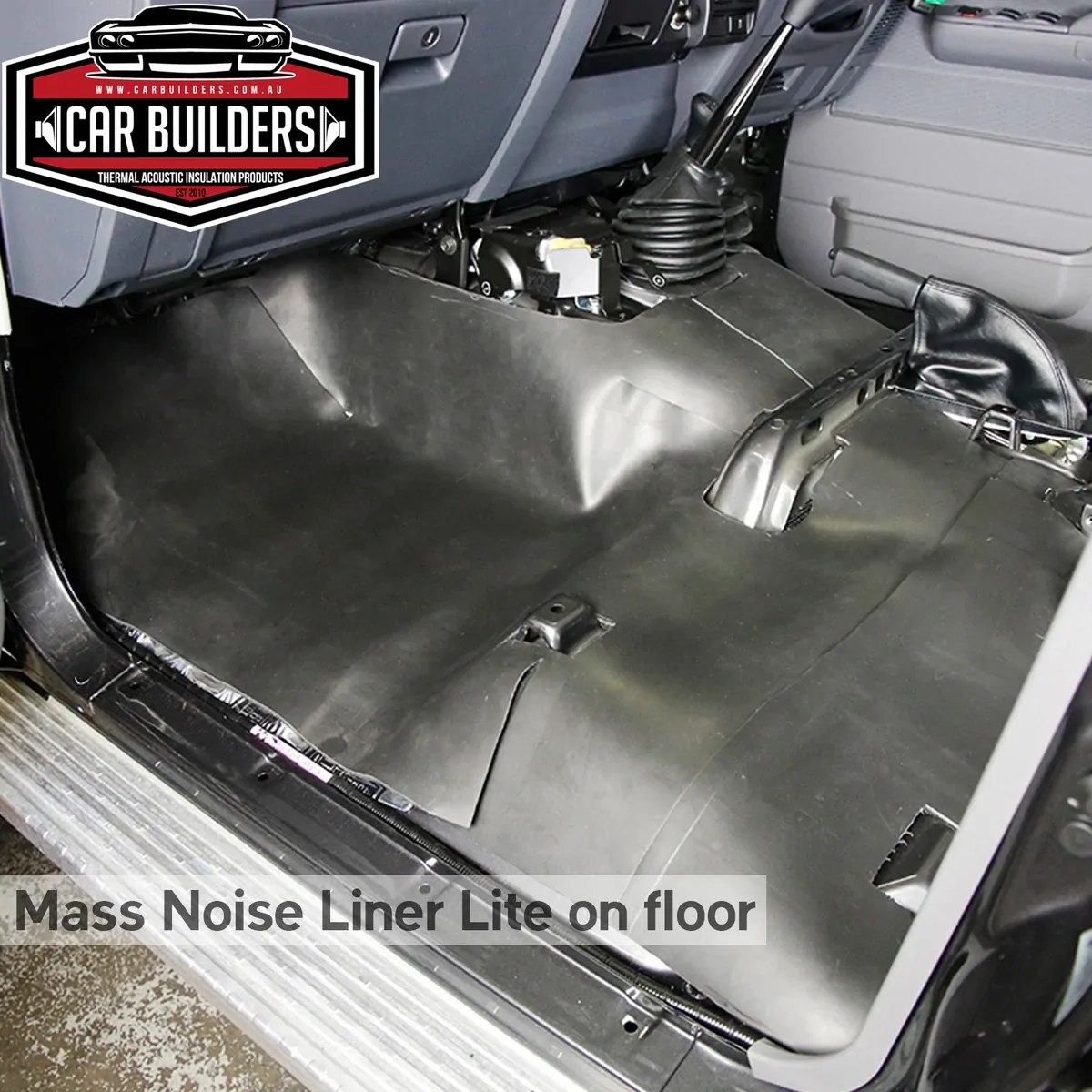

2 Sheets (3sq/m) Mass Noise Liner - Stage 2 Sound barrier to cover firewall and floor pan

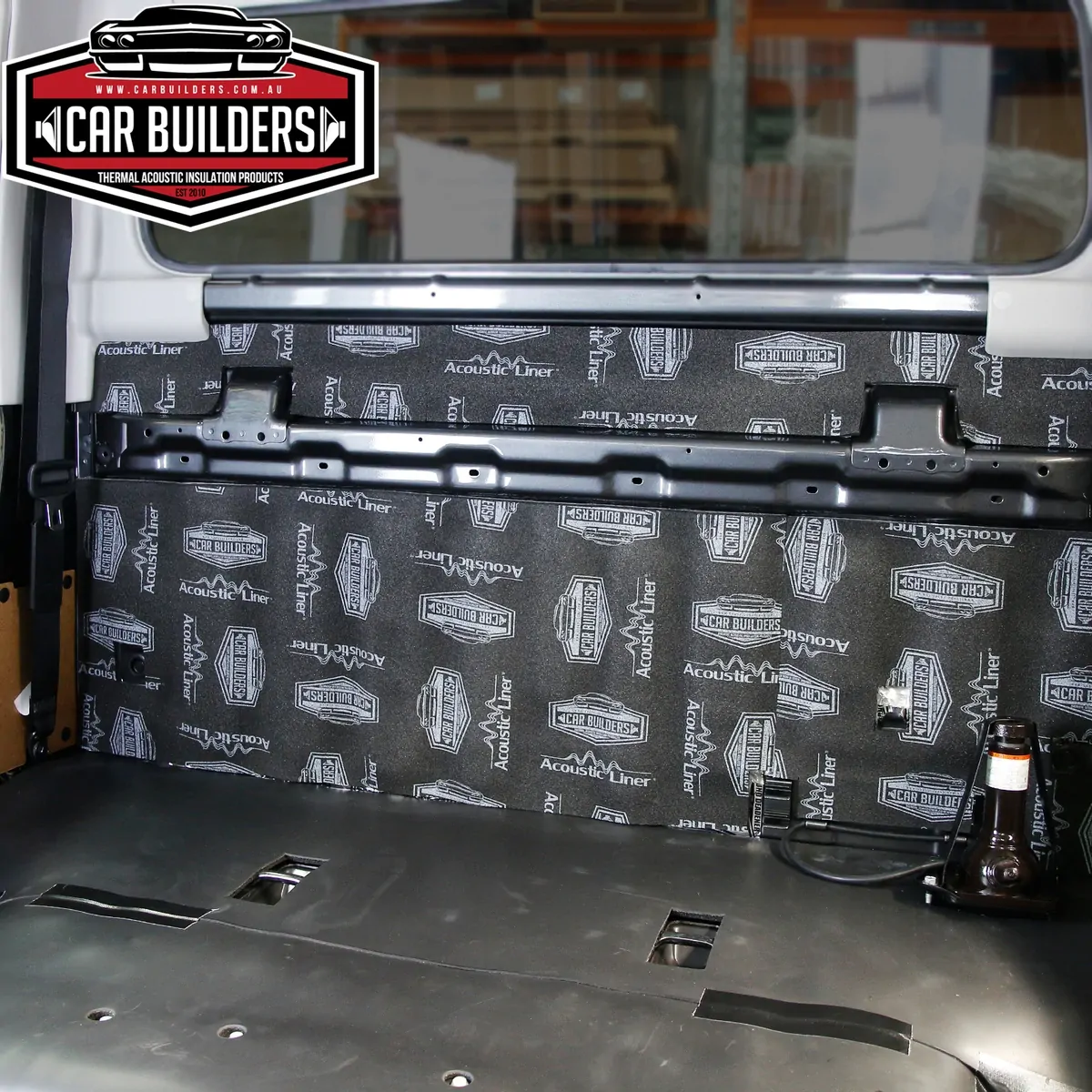

1 Box (1.7sq/m) Acoustic Liner - Peel & stick, 12mm thick flexible foam to cover the rear firewall.
PLUS a bonus install kit including; application roller, utility knife and 1 x roll of foil tape
The 4x4 Single Cab Floor pan, rear wall, roof + door Premium pack includes:
Pack 4 (approx 35kg)

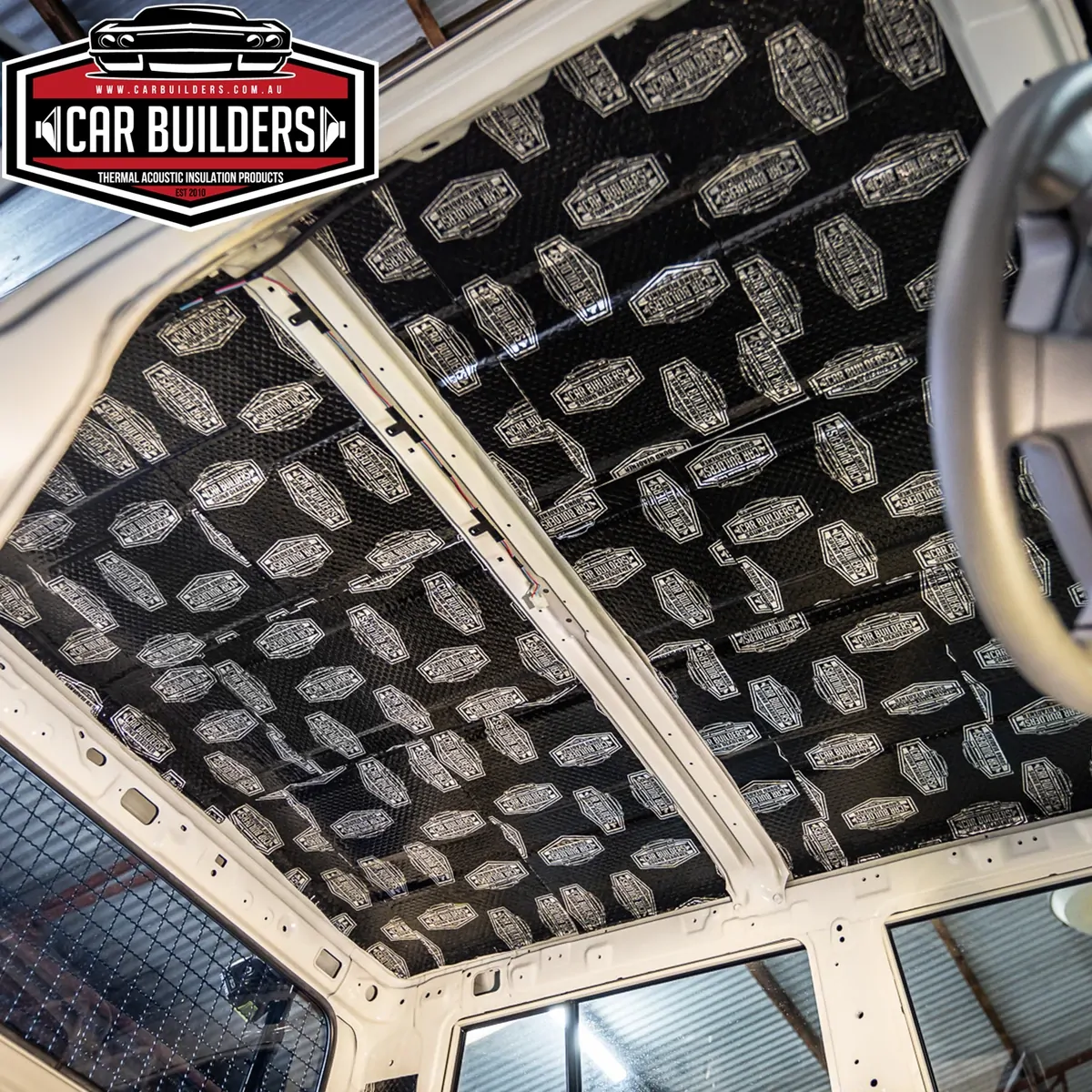

3 Boxes (5.4sq/m) of Stage 1 Sound Deadener - Install on your floorpan, rear firewall, roof & door skins. Cover front firewall, down across the floor pan up the rear firewall to below the rear window. Also enough sheets to cover the roof & door skins.
2 Sheets (3sq/m) Mass Noise Liner - Stage 2 Sound barrier to cover firewall and floor pan
1 Box (1.7sq/m) Acoustic Liner - Peel & stick, 12mm thick flexible foam to cover the rear firewall.

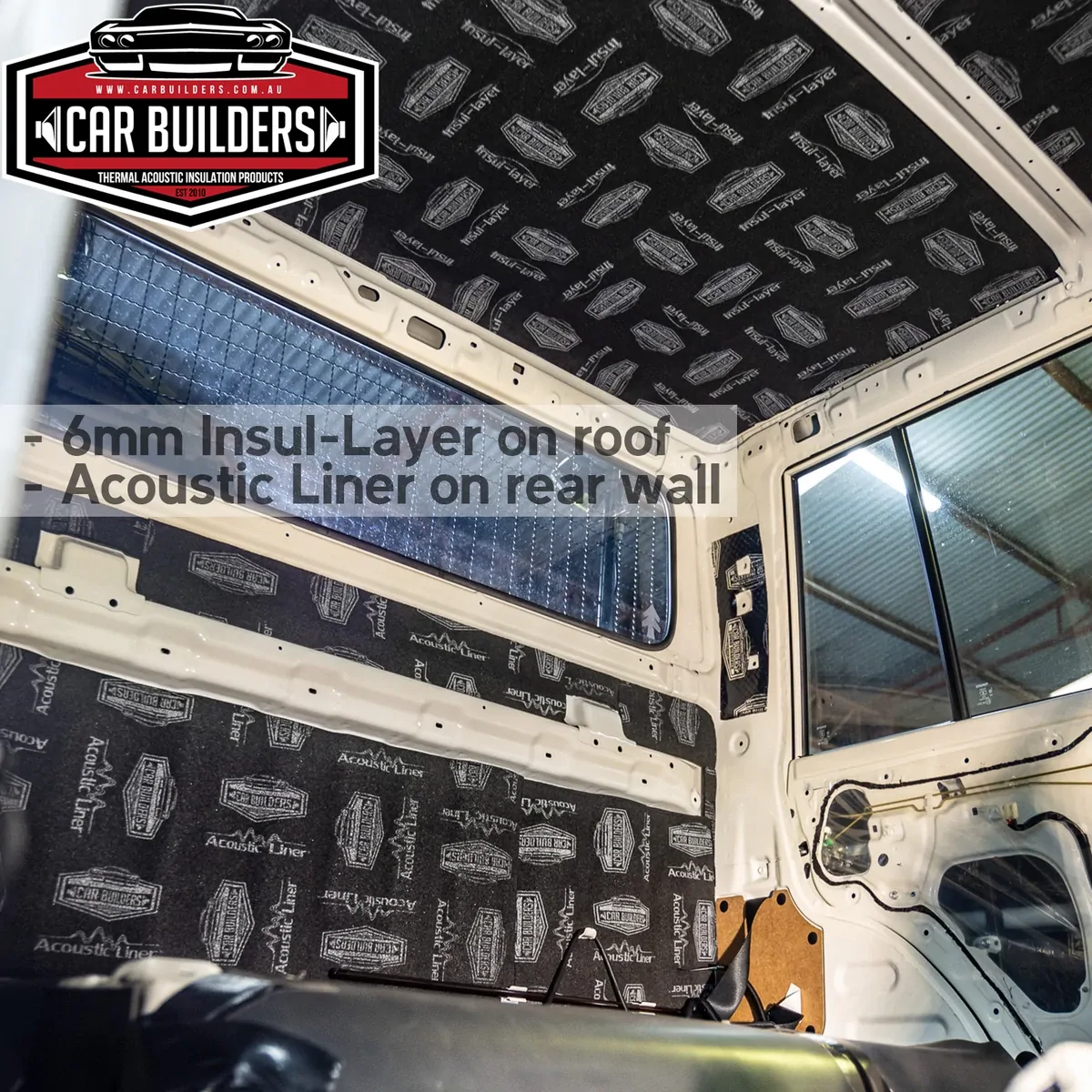

1 Sheet (1sq/m) Insul-Layer 6mm - Light weight, closed cell, peel and stick foam. Stick on your roof skin to soften inbound sound and create a thermal barrier protecting you from external heat.
PLUS a bonus install kit including; application roller, utility knife and 1 x roll of foil tape
SKU | 4X4_SCP_2 |
---|---|
Barcode # | OEBC536091 |
Brand | Car Builders |
Shipping Weight | 28.0000kg |
Shipping Width | 0.200m |
Shipping Height | 1.560m |
Shipping Length | 0.980m |
Shipping Cubic | 1389.060000000m3 |
