Description
Selected Part Number: C8NECTPULSE
General Product Information

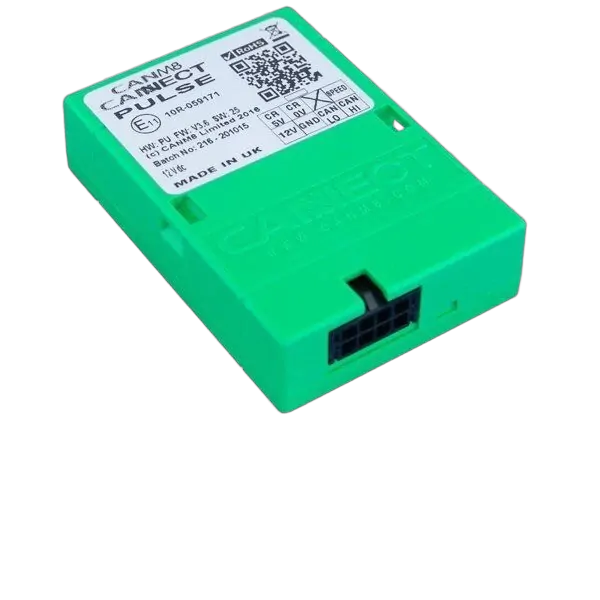

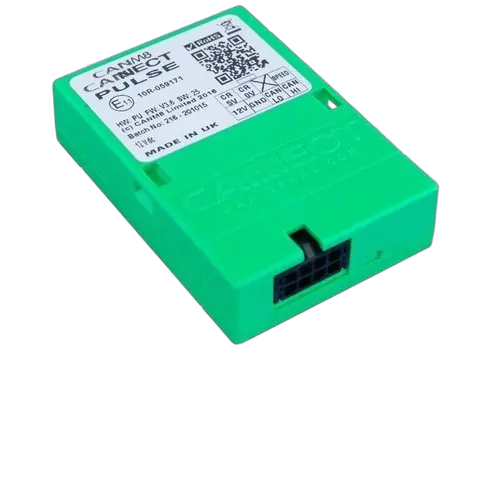

The CANM8 CANNECT PULSE is a CAN Bus interface designed to provide a square pulsed speed signal output from vehicles which feature CAN Bus wiring.
Outputs
| Speed Signal | > | 12v square pulsed output at approximately 1 pulse per 1 MPH. |
N.B. Also available with speed signal output at frequencies of 4 Hz or 10 Hz.
Applications
The CANM8 CANNECT PULSE is most commonly used to provide a speed signal for taxi meter installation via the CAN Bus system, this interface is the speed pulse interface of choice amongst taxi meter installers around the globe.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
 | Flashing Red: Searching for CAN information. |
 | Solid Red: CAN Data received but vehicle not yet identified. |
 | Solid Green: CAN Data received and vehicle type recognised. |
 | Flashing Green: Vehicle speed detected. |
Wiring Harness Details
| Connect via a 5A fuse to a PERMANENT 12v supply. | ||
| Connect to a good chassis GROUND point. | ||
| CAN HI Connection : Vehicle CAN HI wire. | ||
| CAN LO Connection : Vehicle CAN LO wire. | ||
| Speed Signal Output : 12v pulsing (1 Hz = 1 MPH approx). |
Important Product Compatibility Information
Product Vehicle Applications
This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| ALFA ROMEO | 147 | 2000 - 2010 (937) |
| ALFA ROMEO | 156 | 2001 - 2007 (932) |
| ALFA ROMEO | 159 | 2005 - 2014 (939) |
| ALFA ROMEO | BRERA | 2006 - 2011 (939) |
| ALFA ROMEO | GIULIETTA | 2010 - 2014 (940) |
| ALFA ROMEO | GIULIETTA | 2014 - 2015 (940) |
| ALFA ROMEO | GT | 2004 - 2008 (937) |
| ALFA ROMEO | GT | 2008 - 2010 (937) |
| ALFA ROMEO | MITO | 2008 - 2014 (955) |
| ALFA ROMEO | MITO | 2014 - 2015 (955) |
| AUDI | A1 | 2010 - 2018 (8X) |
| AUDI | A3 (Incl S3) | 2004 - 2013 (8P) |
| AUDI | A3 (Incl S3) | 2012 - 2019 (8V) |
| AUDI | A4 (Incl S4) | 2001 - 2008 (B6-B7) |
| AUDI | A4 (Incl S4) | 2009 - 2015 (B8) |
| AUDI | A5 (Incl S5) | 2007 - 2011 (8T3 - 8F7 - 8TA) |
| AUDI | A5 (Incl S5) | 2016 - 2019 (F5) |
| AUDI | A6 (Incl S6) | 2005 - 2011 (4F) |
| AUDI | A6 (Incl S6) | 2011 - 2019 (4G) |
| AUDI | A7 | 2011 - 2018 (4G) |
| AUDI | A8 (Incl S8) | 2004 - 2009 (D3-4E) |
| AUDI | A8 (Incl S8) | 2011 - 2017 (4H) |
| AUDI | Q3 | 2011 - 2018 (8U) |
| AUDI | Q5 | 2009 - 2016 (8R) |
| AUDI | Q5 | 2017 - 2019 (FY) |
| AUDI | Q7 | 2006 - 2015 (4L) |
| AUDI | Q7 | 2015 - 2019 (4M) |
| AUDI | R8 | 2007 - 2015 (42) |
| AUDI | TT | 1999 - 2005 (8N) |
| AUDI | TT | 2006 - 2014 (8J) |
| AUDI | TT | 2014 - 2019 (FV-8S) |
| BMW | 1 SERIES (Incl M1) | 2004 - 2013 (E81-E82-E87-E88) |
| BMW | 2 SERIES | 2015 - 2019 (F25) |
| BMW | 3 SERIES (Incl M3) | 2005 - 2014 (E90) |
| BMW | 4 SERIES | 2013 - 2019 (F32-F33) |
| BMW | 5 SERIES (Incl M5) | 2004 - 2011 (E60) |
| BMW | 6 SERIES | 2004 - 2011 (E63) |
| BMW | 6 SERIES | 2011 - 2019 (F12-F13) |
| BMW | 7 SERIES | 2001 - 2008 (E65-E66-E67-E68) |
| BMW | 7 SERIES | 2008 - 2013 (F01-F02) |
| BMW | X1 | 2009 - 2015 (E84) |
| BMW | X2 | 2016 - 2019 (F39) |
| BMW | X3 | 2003 - 2010 (E83) |
| BMW | X4 | 2014 - 2018 (F26) |
| BMW | X4 | 2018 - 2019 (G02) |
| BMW | X5 | 2000 - 2005 (E53) |
| BMW | X5 | 2006 - 2011 (E70) |
| BMW | X5 | 2013 - 2019 (F15) |
| BMW | X6 | 2008 - 2013 (E71) |
| BMW | Z4 | 2003 - 2008 (E85-E86) |
| BMW | Z4 | 2009 - 2016 (E89) |
| CADILLAC | ESCALADE | 2002 - 2006 (SECOND GEN) |
| CADILLAC | ESCALADE | 2007 - 2014 (THIRD GEN) |
| CHEVROLET | CAMARO | 2010 - 2015 (5TH GEN) |
| CHEVROLET | CAMARO | 2016 - 2019 (6TH GEN) |
| CHRYSLER | 300C | 2005 - 2008 (FIRST GEN) |
| CHRYSLER | 300C | 2009 - 2011 (SECOND GEN) |
| CHRYSLER | 300C | 2011 - 2018 (THIRD GEN) |
| CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 2008 - 2014 (5TH GEN) |
| CITROEN | BERLINGO | 2003 - 2007 (FIRST GEN) |
| CITROEN | BERLINGO | 2008 - 2015 (SECOND GEN) |
| CITROEN | C2 | 2006 - 2008 (FIRST GEN) |
| CITROEN | C3 | 2002 - 2009 (FIRST GEN) |
| CITROEN | C3 | 2010 - 2016 (SECOND GEN) |
| CITROEN | C4 | 2004 - 2010 (FIRST GEN) |
| CITROEN | C4 | 2011 - 2018 (SECOND GEN) |
| CITROEN | C5 | 2004 - 2007 (DC-DE) |
| CITROEN | C5 | 2008 - 2013 (RD-TD) |
| CITROEN | DS3 | 2009 - 2016 (FIRST GEN) |
| DODGE | CALIBER | 2006 - 2009 (FIRST GEN) |
| DODGE | CALIBER | 2009 - 2012 (SECOND GEN) |
| DODGE | CHALLENGER R/T | 2008 - 2014 (THIRD GEN) |
| DODGE | JOURNEY | 2008 - 2011 (FIRST GEN) |
| DODGE | JOURNEY | 2012 - 2015 (SECOND GEN) |
| DODGE | RAM | 2009 - 2012 (4TH GEN) |
| DODGE | RAM | 2013 - 2020 (4TH GEN) |
| FIAT | 500 | 2008 - 2015 (SERIES 1 - SERIES 3) |
| FIAT | 500 | 2015 - 2018 (SERIES 5) |
| FIAT | BRAVO + RITMO | 2007 - 2014 (TYPE 198) |
| FIAT | DUCATO | 2006 - 2012 (THIRD GEN) |
| FIAT | DUCATO | 2012 - 2014 (THIRD GEN) |
| FIAT | DUCATO | 2015 - 2018 (FOURTH GEN) |
| FIAT | PUNTO | 2005 - 2013 (THIRD GEN) |
| FIAT | SCUDO | 2007 - 2011 (SECOND GEN) |
| FIAT | SCUDO | 2012 - 2013 (THIRD GEN) |
| FORD | ESCAPE | 2006 - 2011 (2ND GEN) |
| FORD | ESCAPE | 2016 - 2018 (ZG) |
| FORD | F SERIES | 2005 - 2008 (11th Gen) |
| FORD | F SERIES | 2009 - 2014 (12th Gen) |
| FORD | F SERIES | 2015 - 2019 (13th Gen) |
| FORD | FIESTA | 2002 - 2005 (WP) |
| FORD | FIESTA | 2006 - 2008 (WQ) |
| FORD | FIESTA | 2009 - 2016 (WS-WT-WZ) |
| FORD | FOCUS (Incl XR5) | 2005 - 2007 (LS-LT) |
| FORD | FOCUS (Incl XR5) | 2008 - 2011 (LV) |
| FORD | FOCUS (Incl XR5) | 2012 - 2015 (LW) |
| FORD | FOCUS (Incl XR5) | 2016 - 2019 (LW) |
| FORD | KA | 1997 - 2011 (FIRST GEN) |
| FORD | KUGA | 2011 - 2013 (1ST GEN) |
| FORD | KUGA | 2013 - 2015 (2ND GEN) |
| FORD | MONDEO | 2007 - 2014 (MB - MC) |
| FORD | MONDEO | 2015 - 2019 (MD) |
| FORD | MUSTANG | 2005 - 2011 (5TH GEN) |
| FORD | MUSTANG | 2010 - 2014 (5TH GEN) |
| FORD | MUSTANG | 2015 - 2017 (6TH GEN) |
| FORD | RANGER | 2011 - 2015 (PX) |
| FORD | RANGER | 2015 - 2019 (PX2-PX3) |
| FORD | SUPER DUTY (F SERIES) | 2008 - 2010 (2ND GEN) |
| FORD | SUPER DUTY (F SERIES) | 2011 - 2016 (3RD GEN) |
| FORD | SUPER DUTY (F SERIES) | 2017 - 2019 (4TH GEN) |
| FORD | TRANSIT | 2007 - 2014 (VM) |
| FORD | TRANSIT | 2015 - 2017 (VO) |
| FORD | TRANSIT CUSTOM | 2013 - 2016 (VN-EURO 5) |
| FORD | TRANSIT CUSTOM | 2016 - 2017 (VN-EURO 6) |
| FORD | TRANSIT CUSTOM | 2018 - 2019 (VN) |
| GMC | YUKON | 2007 - 2014 (GMT900 (3RD GEN)) |
| HOLDEN | ASTRA COUPE | 2005 - 2009 (AH) |
| HOLDEN | ASTRA COUPE | 2015 - 2018 (BK) |
| HOLDEN | ASTRA SEDAN | 2005 - 2009 (AH) |
| HOLDEN | ASTRA SEDAN | 2017 - 2018 (BL) |
| HOLDEN | ASTRA WAGON | 2005 - 2009 (AH) |
| HOLDEN | ASTRA WAGON | 2016 - 2018 (BK) |
| HOLDEN | CAPTIVA | 2016 - 2017 (CG) |
| HOLDEN | CAPTIVA 5 (Incl MAXX) | 2006 - 2015 (CG) |
| HOLDEN | CAPTIVA 7 (Incl Variants) | 2006 - 2015 (CG) |
| HOLDEN | COLORADO (Incl 7) | 2009 - 2011 (RC) |
| HOLDEN | COLORADO (Incl 7) | 2012 - 2013 (RG) |
| HOLDEN | COLORADO (Incl 7) | 2014 - 2016 (RG) |
| HOLDEN | COLORADO (Incl 7) | 2016 - 2019 (RG) |
| HOLDEN | COMBO | 2002 - 2012 (XC) |
| HOLDEN | COMMODORE | 2013 - 2015 (VF) |
| HOLDEN | CRUZE | 2008 - 2016 (J300) |
| HOLDEN | EPICA | 2006 - 2011 (EP) |
| HOLDEN | MALIBU | 2013 - 2016 (EM) |
| HOLDEN | SPARK | 2016 - 2017 (M400) |
| HOLDEN | VECTRA | 2003 - 2011 (ZC) |
| HONDA | ACCORD | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD | 2008 - 2012 (8TH GEN) |
| HONDA | ACCORD | 2013 - 2015 (9TH GEN) |
| HONDA | ACCORD EURO | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD EURO | 2008 - 2015 (8TH GEN) |
| HONDA | CIVIC HATCH | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC HATCH | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC HATCH | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC HATCH | 2016 - 2018 (10TH GEN) |
| HONDA | CIVIC SEDAN | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC SEDAN | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2016 - 2018 (10TH GEN) |
| HONDA | CRV | 2007 - 2011 (RE) |
| HONDA | CRV | 2012 - 2015 (RM) |
| HONDA | CRV | 2015 - 2016 (RM) |
| HONDA | CRV | 2017 - 2018 (RW) |
| HONDA | CRZ | 2010 - 2014 (ZF) |
| HONDA | INSIGHT | 2009 - 2013 (ZE) |
| HONDA | JAZZ | 2008 - 2013 (GE) |
| HONDA | JAZZ | 2014 - 2016 (GF) |
| HONDA | JAZZ | 2017 - 2019 (GF) |
| HONDA | ODYSSEY | 2004 - 2009 (3RD GEN (RB1 - RB2)) |
| HONDA | ODYSSEY | 2009 - 2013 (4TH GEN (RB3 - RB4)) |
| HONDA | ODYSSEY | 2014 - 2018 (5TH GEN (RC1 - RC2)) |
| HUMMER | H2 | 2008 - 2011 (H2) |
| HYUNDAI | ACCENT | 2006 - 2008 (MC) |
| HYUNDAI | ACCENT | 2011 - 2019 (RB) |
| HYUNDAI | i20 | 2010 - 2012 (PB) |
| HYUNDAI | i20 | 2012 - 2015 (PB) |
| HYUNDAI | i30 | 2007 - 2011 (FD) |
| HYUNDAI | i30 | 2012 - 2016 (GD-GD2) |
| HYUNDAI | i30 | 2017 - 2021 (PD) |
| HYUNDAI | i40 | 2012 - 2018 (VF-VF2-VF3) |
| HYUNDAI | ILOAD (Incl IMAX) | 2016 - 2018 (TQ3-V Series II) |
| HYUNDAI | ILOAD (Incl IMAX) | 2018 - 2019 (TQ4) |
| HYUNDAI | ix35 | 2010 - 2013 (LM) |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITH NAV |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITHOUT NAV |
| HYUNDAI | KONA | 2017 - 2018 (OS - OS2) |
| HYUNDAI | SANTA FE | 2007 - 2009 (CM) |
| HYUNDAI | SANTA FE | 2009 - 2012 (CM) |
| HYUNDAI | SANTA FE | 2012 - 2018 (DM) |
| HYUNDAI | SONATA | 2006 - 2008 (NF) |
| HYUNDAI | SONATA | 2009 - 2011 (YF) |
| HYUNDAI | SONATA | 2014 - 2016 (LF) |
| HYUNDAI | TUCSON | 2005 - 2010 (JM) |
| HYUNDAI | TUCSON | 2015 - 2018 (TL) |
| HYUNDAI | TUCSON | 2018 - 2019 (TL) |
| HYUNDAI | VELOSTER | 2012 - 2017 (1ST GEN) |
| ISUZU | DMAX | 2009 - 2011 (RA - RC) |
| ISUZU | DMAX | 2012 - 2016 (RT50 - RT85) |
| ISUZU | DMAX | 2016 - 2019 (RT50 - RT85) |
| IVECO | DAILY | 2007 - 2014 (5TH GEN) |
| IVECO | DAILY | 2015 - 2017 (6TH GEN) |
| IVECO | DAILY | 2018 - 2019 (6TH GEN) |
| JAGUAR | S-TYPE | 2003 - 2008 (No Chassis Code) |
| JAGUAR | X-TYPE | 2002 - 2015 (No Chassis Code) |
| JAGUAR | XJ8 | 2003 - 2008 (No Chassis Code) |
| JEEP | CHEROKEE | 2001 - 2007 (KJ) |
| JEEP | CHEROKEE | 2007 - 2012 (KK) |
| JEEP | CHEROKEE | 2014 - 2018 (KL) |
| JEEP | COMMANDER | 2005 - 2008 (XK) |
| JEEP | COMMANDER | 2008 - 2010 (XK) |
| JEEP | COMPASS | 2007 - 2009 (MK) |
| JEEP | COMPASS | 2009 - 2017 (MK) |
| JEEP | COMPASS | 2017 - 2018 (M6) |
| JEEP | GRAND CHEROKEE | 2005 - 2007 (WH-WK) |
| JEEP | GRAND CHEROKEE | 2008 - 2011 (WH-WK) |
| JEEP | GRAND CHEROKEE | 2012 - 2013 (WK2) |
| JEEP | GRAND CHEROKEE | 2014 - 2020 (WK2) |
| JEEP | PATRIOT | 2007 - 2009 (MK) |
| JEEP | PATRIOT | 2010 - 2016 (MK) |
| JEEP | RENEGADE | 2015 - 2016 (BU-520) |
| JEEP | WRANGLER | 2007 - 2018 (JK) |
| KIA | CARNIVAL | 2015 - 2017 (YP) |
| KIA | CARNIVAL | 2018 - 2019 (YP) |
| KIA | CERATO | 2004 - 2009 (LD) |
| KIA | CERATO | 2010 - 2012 (TD) |
| KIA | CERATO | 2013 - 2018 (YD) |
| KIA | MAGENTIS | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2010 - 2013 (TF1) |
| KIA | OPTIMA | 2013 - 2015 (TF2) |
| KIA | OPTIMA | 2016 - 2017 (JF) |
| KIA | PICANTO | 2016 - 2017 (TA) |
| KIA | PICANTO | 2017 - 2018 (JA) |
| KIA | PRO CEED | 2014 - 2015 (JD) |
| KIA | RIO | 2006 - 2009 (JB) |
| KIA | RIO | 2010 - 2014 (UB) |
| KIA | RIO | 2014 - 2017 (UB) |
| KIA | SORENTO | 2007 - 2008 (BL) |
| KIA | SORENTO | 2009 - 2012 (XM) |
| KIA | SORENTO | 2013 - 2015 (XM) |
| KIA | SORENTO | 2015 - 2018 (UM) |
| KIA | SOUL | 2009 - 2011 (AM) |
| KIA | SOUL | 2011 - 2013 (AM) |
| KIA | SOUL | 2014 - 2018 (PS) |
| KIA | SPORTAGE | 2005 - 2009 (KM) |
| KIA | SPORTAGE | 2010 - 2015 (SL) |
| KIA | SPORTAGE | 2016 - 2018 (QL) |
| KIA | SPORTAGE | 2018 - 2019 (QL) |
| LAMBORGHINI | GALLARDO | 2005 - 2011 (No Chassis Code) |
| LAND ROVER | DEFENDER | 2008 - 2015 (No Chassis Code) |
| LAND ROVER | DISCOVERY III | 2005 - 2010 (L319) |
| LAND ROVER | DISCOVERY IV | 2010 - 2016 (L319) |
| LAND ROVER | EVOQUE | 2011 - 2013 (L538) |
| LAND ROVER | FREELANDER | 2004 - 2006 (L314) |
| LAND ROVER | FREELANDER II | 2007 - 2011 (L359) |
| LAND ROVER | FREELANDER II | 2012 - 2014 (L359) |
| LAND ROVER | RANGE ROVER (Incl HSE - VOGUE) | 2002 - 2012 (L322) |
| LAND ROVER | RANGE ROVER SPORT | 2005 - 2010 (L320) |
| LAND ROVER | RANGE ROVER SPORT | 2010 - 2013 (L320) |
| LAND ROVER | RANGE ROVER SPORT | 2013 - 2015 (L494) |
| LDV | V80 | 2013 - 2014 (Maxus) |
| LDV | V80 | 2013 - 2016 (Maxus) |
| LEXUS | CT | 2011 - 2013 (C10) |
| LEXUS | CT | 2014 - 2018 (A10) |
| LEXUS | IS | 2006 - 2015 (XE20) |
| LEXUS | IS | 2016 - 2018 (XE30) |
| LEXUS | RX | 2003 - 2008 (XU30) |
| LEXUS | RX | 2010 - 2015 (AL10) |
| LEXUS | RX | 2016 - 2018 (AL20) |
| MAZDA | 2 | 2003 - 2007 (DY) |
| MAZDA | 2 | 2007 - 2015 (DE) |
| MAZDA | 2 | 2015 - 2016 (DJ) |
| MAZDA | 3 | 2004 - 2009 (BK) |
| MAZDA | 3 | 2009 - 2013 (BL) |
| MAZDA | 3 | 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY |
| MAZDA | 3 | 2016 - 2018 (BN) |
| MAZDA | 6 | 2003 - 2005 (GG) |
| MAZDA | 6 | 2005 - 2008 (GG) |
| MAZDA | 6 | 2008 - 2010 (GH) |
| MAZDA | 6 | 2010 - 2012 (GH) |
| MAZDA | 6 | 2013 - 2015 (GJ) |
| MAZDA | BT-50 | 2007 - 2011 (B Series) |
| MAZDA | BT-50 | 2012 - 2015 (B32Q) |
| MAZDA | BT-50 | 2015 - 2019 (UR) |
| MAZDA | CX5 | 2012 - 2015 (KE) |
| MAZDA | CX5 | 2015 - 2017 (KE) |
| MAZDA | CX5 | 2017 - 2021 (KF) |
| MAZDA | CX7 | 2006 - 2010 (ER) |
| MAZDA | CX7 | 2010 - 2011 (ER) |
| MAZDA | CX9 | 2012 - 2015 (TB) |
| MAZDA | MX5 | 2006 - 2008 (NC) |
| MAZDA | MX5 | 2009 - 2013 (ND) |
| MAZDA | RX8 | 2004 - 2008 (FE) |
| MAZDA | RX8 | 2008 - 2012 (FE) |
| MERCEDES | A CLASS | 2005 - 2007 (W169) |
| MERCEDES | A CLASS | 2007 - 2011 (W169) |
| MERCEDES | A CLASS | 2013 - 2016 (W176) |
| MERCEDES | B CLASS | 2005 - 2007 (W245) |
| MERCEDES | B CLASS | 2007 - 2011 (W245) |
| MERCEDES | C CLASS | 2000 - 2004 (W203) |
| MERCEDES | C CLASS | 2005 - 2008 (W203) |
| MERCEDES | C CLASS | 2008 - 2011 (W204) |
| MERCEDES | C CLASS | 2011 - 2014 (W204) |
| MERCEDES | CLK | 2002 - 2004 (W208) |
| MERCEDES | CLK | 2005 - 2011 (W209) |
| MERCEDES | CLS | 2005 - 2010 (W219) |
| MERCEDES | E CLASS | 1999 - 2002 (W210) |
| MERCEDES | E CLASS | 2002 - 2007 (W211) |
| MERCEDES | E CLASS | 2008 - 2011 (W212) |
| MERCEDES | G CLASS | 2006 - 2012 (W463) |
| MERCEDES | GL CLASS | 2006 - 2012 (X164) |
| MERCEDES | M CLASS | 1999 - 2004 (W163) |
| MERCEDES | M CLASS | 2005 - 2011 (W164) |
| MERCEDES | R CLASS | 2006 - 2012 (W251) |
| MERCEDES | S CLASS | 1998 - 2006 (W220) |
| MERCEDES | SL CLASS | 2005 - 2013 (R230) |
| MERCEDES | SLK CLASS | 2004 - 2011 (R171) |
| MERCEDES | SPRINTER | 2000 - 2006 (W905) |
| MERCEDES | SPRINTER | 2007 - 2018 (W906) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2004 - 2007 (W639) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2007 - 2015 (W639) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2015 - 2019 (W447) |
| MITSUBISHI | ASX | 2010 - 2013 (XA) |
| MITSUBISHI | ASX | 2013 - 2019 (XB - XC) |
| MITSUBISHI | COLT | 2004 - 2007 (RG) |
| MITSUBISHI | COLT | 2007 - 2011 (RZ) |
| MITSUBISHI | GRANDIS | 2004 - 2011 (BA) |
| MITSUBISHI | LANCER (Inc Evolution) | 2007 - 2013 (CJ) |
| MITSUBISHI | LANCER (Inc Evolution) | 2014 - 2018 (CF) |
| MITSUBISHI | OUTLANDER | 2003 - 2006 (ZE-ZF) |
| MITSUBISHI | OUTLANDER | 2007 - 2012 (ZG-ZH) |
| MITSUBISHI | OUTLANDER | 2013 - 2018 (ZJ-ZK) |
| MITSUBISHI | PAJERO | 2015 - 2021 (NT-NX) |
| MITSUBISHI | PAJERO SPORT | 2016 - 2018 (KR - KS - QE) |
| MITSUBISHI | TRITON | 2007 - 2013 (ML) |
| MITSUBISHI | TRITON | 2013 - 2015 (MN) |
| MITSUBISHI | TRITON | 2015 - 2018 (MQ) |
| MITSUBISHI | TRITON | 2019 - 2021 (MR) |
| MITSUBISHI | TRITON | 2020 - 2022 (MR) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | ALTIMA | 2013 - 2016 (L33) |
| NISSAN | CUBE | 1998 - 2016 (Z11 - Z12) |
| NISSAN | ELGRAND | 2001 - 2004 (E51) |
| NISSAN | ELGRAND | 2005 - 2010 (E51) |
| NISSAN | JUKE | 2013 - 2015 (F15) |
| NISSAN | JUKE | 2016 - 2018 (F15) |
| NISSAN | MICRA | 2003 - 2009 (K12) |
| NISSAN | MICRA | 2010 - 2014 (K13) |
| NISSAN | MICRA | 2015 - 2016 (K13) |
| NISSAN | MURANO | 2005 - 2008 (Z50) |
| NISSAN | MURANO | 2009 - 2011 (Z51) |
| NISSAN | MURANO | 2012 - 2018 (Z51) |
| NISSAN | NAVARA | 2005 - 2015 (D22-D40) |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) RX-DX MODELS |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | PATHFINDER | 2005 - 2013 (R51) |
| NISSAN | PATHFINDER | 2013 - 2015 (R52) |
| NISSAN | PULSAR | 2013 - 2016 (C12) |
| NISSAN | QASHQAI | 2014 - 2017 (J11) |
| NISSAN | QASHQAI | 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | QASHQAI | 2017 - 2019 (J11) |
| NISSAN | QASHQAI | 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | SKYLINE | 2005 - 2007 (V35) |
| NISSAN | SKYLINE | 2009 - 2011 (R35) |
| NISSAN | TIIDA | 2006 - 2011 (C2) |
| NISSAN | XTRAIL | 2003 - 2007 (T30) |
| NISSAN | XTRAIL | 2007 - 2013 (T31) |
| NISSAN | XTRAIL | 2014 - 2017 (T32) |
| NISSAN | XTRAIL | 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | XTRAIL | 2018 - 2019 (T32) |
| NISSAN | XTRAIL | 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM |
| OPEL | ASTRA | 2012 - 2013 (AS) |
| OPEL | CORSA | 2012 - 2014 (D) |
| OPEL | INSIGNIA | 2012 - 2014 (A - MK 1) |
| PEUGEOT | 206 | 2002 - 2010 (No Chassis Code) |
| PEUGEOT | 207 | 2006 - 2011 (A7) |
| PEUGEOT | 208 | 2012 - 2014 (A99) |
| PEUGEOT | 3008 | 2009 - 2015 (T8) |
| PEUGEOT | 307 | 2001 - 2012 (T5-T6-T7) |
| PEUGEOT | 308 | 2007 - 2014 (T7) |
| PEUGEOT | 308 | 2015 - 2016 (T9) |
| PEUGEOT | 4007 | 2009 - 2011 (No Chassis Code) |
| PEUGEOT | 407 | 2004 - 2011 (SERIES 1 - SERIES 2) |
| PEUGEOT | 508 | 2011 - 2014 (No Chassis Code) |
| PEUGEOT | 607 | 2005 - 2011 (No Chassis Code) |
| PEUGEOT | PARTNER | 2002 - 2014 (B9P) |
| PEUGEOT | RCZ | 2010 - 2015 (No Chassis Code) |
| PORSCHE | 911 | 2005 - 2012 (997) |
| PORSCHE | 911 | 2011 - 2016 (991) |
| PORSCHE | BOXSTER | 2004 - 2012 (987) |
| PORSCHE | BOXSTER | 2012 - 2016 (981) |
| PORSCHE | CAYENNE | 2002 - 2012 (9PA) |
| PORSCHE | CAYENNE | 2013 - 2018 (92A) |
| PORSCHE | CAYMAN | 2005 - 2011 (987C) |
| PORSCHE | CAYMAN | 2012 - 2016 (981) |
| RENAULT | CLIO | 2006 - 2011 (X85) |
| RENAULT | CLIO | 2012 - 2014 (X85) |
| RENAULT | FLUENCE | 2011 - 2013 (L38 (PHASE 1 - 2)) |
| RENAULT | KANGOO | 2000 - 2007 (I) |
| RENAULT | KANGOO | 2008 - 2012 (F61) |
| RENAULT | KANGOO | 2013 - 2017 (II (F61)) |
| RENAULT | KOLEOS | 2008 - 2015 (H45 PHASE 1 - 2 - 3) |
| RENAULT | LAGUNA | 2007 - 2011 (III (B91)) |
| RENAULT | MASTER | 2011 - 2018 (X62) |
| RENAULT | MEGANE | 2002 - 2006 (II (X64)) |
| RENAULT | MEGANE | 2007 - 2009 (II (B84)) |
| RENAULT | MEGANE | 2010 - 2011 (III (B95 - B35)) |
| RENAULT | MEGANE | 2012 - 2013 (III (B95 - B35)) |
| RENAULT | SCENIC | 2005 - 2011 (II (J84 PHASE 1 - 2)) |
| RENAULT | TRAFIC | 2002 - 2005 (X83) |
| RENAULT | TRAFIC | 2005 - 2011 (X83) |
| RENAULT | TRAFIC | 2011 - 2014 (X83) |
| RENAULT | TRAFIC | 2015 - 2018 (X82) |
| RENAULT | TWINGO | 2007 - 2011 (I) |
| SKODA | FABIA | 2007 - 2015 (5J) |
| SKODA | FABIA | 2015 - 2019 (NJ) |
| SKODA | OCTAVIA | 2004 - 2008 (1U) |
| SKODA | OCTAVIA | 2009 - 2012 (1Z) |
| SKODA | OCTAVIA | 2013 - 2019 (NE - 5E) |
| SKODA | RAPID | 2013 - 2015 (NH) |
| SKODA | ROOMSTER | 2006 - 2011 (5J) |
| SKODA | SUPERB | 2009 - 2015 (3T) |
| SKODA | YETI | 2009 - 2019 (5L) |
| SUZUKI | ALTO | 2009 - 2013 (GF) |
| SUZUKI | GRAND VITARA | 2005 - 2014 (JB) |
| SUZUKI | GRAND VITARA | 2015 - 2018 (JB) |
| SUZUKI | SWIFT | 2006 - 2010 (RS416) |
| SUZUKI | SWIFT | 2011 - 2016 (FZ) |
| SUZUKI | SWIFT | 2017 - 2020 (AZ) |
| SUZUKI | VITARA | 2015 - 2016 (LY) |
| TOYOTA | 86 | 2012 - 2017 (PRE-FACELIFT) |
| TOYOTA | 86 | 2017 - 2020 (POST-FACELIFT) |
| TOYOTA | C-HR | 2017 - 2019 (AX10 Series) |
| TOYOTA | CAMRY | 2007 - 2011 (XV40 Series) |
| TOYOTA | CAMRY | 2012 - 2017 (XV50 Series) |
| TOYOTA | CAMRY | 2018 - 2020 (XV70 Series) |
| TOYOTA | COROLLA | 2003 - 2009 (E140 - E160 Series) |
| TOYOTA | COROLLA | 2009 - 2012 (E120 Series) |
| TOYOTA | COROLLA HATCH | 2013 - 2015 (E180 Series) |
| TOYOTA | COROLLA HATCH | 2015 - 2018 (E180 - E200 Series) |
| TOYOTA | COROLLA SEDAN | 2014 - 2016 (E170 Series) |
| TOYOTA | COROLLA SEDAN | 2017 - 2018 (E170 Series) |
| TOYOTA | ESTIMA | 2006 - 2016 (XR50 Series) |
| TOYOTA | FORTUNER | 2015 - 2019 (AN150 - AN160 Series) |
| TOYOTA | HIACE | 2005 - 2019 (H200 Series) |
| TOYOTA | HILUX | 2015 - 2020 (AN120 - AN130 Series) |
| TOYOTA | LANDCRUISER | 2007 - 2019 (70 Series - 79 Series) |
| TOYOTA | LANDCRUISER | 2008 - 2012 (200 Series) |
| TOYOTA | LANDCRUISER | 2013 - 2015 (200 Series) |
| TOYOTA | LANDCRUISER | 2016 - 2021 (200 Series) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series with NAV) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series without NAV) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
| TOYOTA | PRIUS | 2010 - 2015 (XW30 Series) |
| TOYOTA | PRIUS | 2017 - 2019 (XW50 Series) |
| TOYOTA | PRIUS C | 2012 - 2018 (XP130 Series) |
| TOYOTA | PRIUS V | 2012 - 2015 (ZVW40R Series) |
| TOYOTA | PRIUS V | 2015 - 2019 (ZVW40- ZVW41 Series) |
| TOYOTA | RAV4 | 2006 - 2011 (XA30 Series) |
| TOYOTA | RAV4 | 2012 - 2013 (XA40 Series) |
| TOYOTA | RAV4 | 2014 - 2018 (XA40 Series) |
| TOYOTA | TUNDRA | 2007 - 2013 (XK50 Series) |
| TOYOTA | TUNDRA | 2014 - 2017 (XK50 Series) |
| TOYOTA | YARIS | 2005 - 2011 (XP90 Series) |
| TOYOTA | YARIS | 2012 - 2014 (XP90 Series) |
| TOYOTA | YARIS | 2014 - 2017 (XP130 Series) |
| TOYOTA | YARIS | 2018 - 2019 (XP130 Series) |
| VOLKSWAGEN | AMAROK | 2011 - 2015 (2H Series) |
| VOLKSWAGEN | AMAROK | 2015 - 2020 (2H Series) |
| VOLKSWAGEN | BEETLE | 2013 - 2015 (1L Series) |
| VOLKSWAGEN | BEETLE | 2016 - 2017 (A5 Series) |
| VOLKSWAGEN | CADDY | 2005 - 2015 (2K Series) |
| VOLKSWAGEN | CADDY | 2015 - 2019 (2K Series) |
| VOLKSWAGEN | CRAFTER | 2007 - 2017 (2E - 2F Series) |
| VOLKSWAGEN | CRAFTER | 2017 - 2018 (SY Series) |
| VOLKSWAGEN | EOS | 2005 - 2013 (1F) |
| VOLKSWAGEN | GOLF (Incl GTI) | 2005 - 2013 (Mk 5 - Mk 6 (5K Series)) |
| VOLKSWAGEN | GOLF (Incl GTI) | 2014 - 2018 (Mk 7 (5G Series)) |
| VOLKSWAGEN | JETTA | 2005 - 2015 (A5 - A6 Series) |
| VOLKSWAGEN | JETTA | 2016 - 2017 (A5 Series) |
| VOLKSWAGEN | PASSAT | 2005 - 2014 (B6 - B7 Series) |
| VOLKSWAGEN | POLO | 2005 - 2009 (6Q - 9N - 9N3 Series) |
| VOLKSWAGEN | POLO | 2010 - 2014 (6R Series) |
| VOLKSWAGEN | POLO | 2014 - 2017 (6C) |
| VOLKSWAGEN | SCIROCCO | 2008 - 2014 (3rd Generation) |
| VOLKSWAGEN | TIGUAN | 2007 - 2016 (5N Series) |
| VOLKSWAGEN | TIGUAN | 2017 - 2018 (5N Series) |
| VOLKSWAGEN | TOUAREG | 2004 - 2010 (7L) |
| VOLKSWAGEN | TOUAREG | 2011 - 2018 (7P) |
| VOLKSWAGEN | TRANSPORTER (Incl MULTIVAN or CARAVELLE) | 2004 - 2009 (T5 Series) |
| VOLKSWAGEN | TRANSPORTER (Incl MULTIVAN or CARAVELLE) | 2010 - 2015 (T5 Series) |
| VOLKSWAGEN | TRANSPORTER (Incl MULTIVAN or CARAVELLE) | 2015 - 2019 (T6 Series) |
| VOLKSWAGEN | UP! | 2013 - 2015 (1st Generation) |
| VOLVO | C30 | 2007 - 2013 (1st Generation) |
| VOLVO | C70 | 2005 - 2014 (2nd Generation) |
| VOLVO | V50 | 2004 - 2012 (1st Generation) |
| VOLVO | V70 | 2004 - 2007 (2nd Generation) |
| VOLVO | V70 | 2008 - 2011 (3rd Generation) |
| VOLVO | XC70 | 2003 - 2007 (2nd Generation) |
| VOLVO | XC90 | 2002 - 2014 (1st Generation) |
Specifications
| SKU | C8NECTPULSE |
|---|---|
| Barcode # | 9342270002720 |
| Brand | Canm8 |
| Shipping Weight | 1.5000kg |
More infoMake 4 payments of $49.75 over 8 weeks and get it now!
Calculate Shipping
Description
Selected Part Number: C8NECTPULSE
General Product Information
The CANM8 CANNECT PULSE is a CAN Bus interface designed to provide a square pulsed speed signal output from vehicles which feature CAN Bus wiring.
Outputs
| Speed Signal | > | 12v square pulsed output at approximately 1 pulse per 1 MPH. |
N.B. Also available with speed signal output at frequencies of 4 Hz or 10 Hz.
Applications
The CANM8 CANNECT PULSE is most commonly used to provide a speed signal for taxi meter installation via the CAN Bus system, this interface is the speed pulse interface of choice amongst taxi meter installers around the globe.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
| Flashing Red: Searching for CAN information. |
| Solid Red: CAN Data received but vehicle not yet identified. |
| Solid Green: CAN Data received and vehicle type recognised. |
| Flashing Green: Vehicle speed detected. |
Wiring Harness Details
| Connect via a 5A fuse to a PERMANENT 12v supply. | ||
| Connect to a good chassis GROUND point. | ||
| CAN HI Connection : Vehicle CAN HI wire. | ||
| CAN LO Connection : Vehicle CAN LO wire. | ||
| Speed Signal Output : 12v pulsing (1 Hz = 1 MPH approx). |
Important Product Compatibility Information
Product Vehicle Applications
This product is compatbile with the following vehicles. If no vehicles are listed, this product is universal product (non vehicle specific)
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| ALFA ROMEO | 147 | 2000 - 2010 (937) |
| ALFA ROMEO | 156 | 2001 - 2007 (932) |
| ALFA ROMEO | 159 | 2005 - 2014 (939) |
| ALFA ROMEO | BRERA | 2006 - 2011 (939) |
| ALFA ROMEO | GIULIETTA | 2010 - 2014 (940) |
| ALFA ROMEO | GIULIETTA | 2014 - 2015 (940) |
| ALFA ROMEO | GT | 2004 - 2008 (937) |
| ALFA ROMEO | GT | 2008 - 2010 (937) |
| ALFA ROMEO | MITO | 2008 - 2014 (955) |
| ALFA ROMEO | MITO | 2014 - 2015 (955) |
| AUDI | A1 | 2010 - 2018 (8X) |
| AUDI | A3 (Incl S3) | 2004 - 2013 (8P) |
| AUDI | A3 (Incl S3) | 2012 - 2019 (8V) |
| AUDI | A4 (Incl S4) | 2001 - 2008 (B6-B7) |
| AUDI | A4 (Incl S4) | 2009 - 2015 (B8) |
| AUDI | A5 (Incl S5) | 2007 - 2011 (8T3 - 8F7 - 8TA) |
| AUDI | A5 (Incl S5) | 2016 - 2019 (F5) |
| AUDI | A6 (Incl S6) | 2005 - 2011 (4F) |
| AUDI | A6 (Incl S6) | 2011 - 2019 (4G) |
| AUDI | A7 | 2011 - 2018 (4G) |
| AUDI | A8 (Incl S8) | 2004 - 2009 (D3-4E) |
| AUDI | A8 (Incl S8) | 2011 - 2017 (4H) |
| AUDI | Q3 | 2011 - 2018 (8U) |
| AUDI | Q5 | 2009 - 2016 (8R) |
| AUDI | Q5 | 2017 - 2019 (FY) |
| AUDI | Q7 | 2006 - 2015 (4L) |
| AUDI | Q7 | 2015 - 2019 (4M) |
| AUDI | R8 | 2007 - 2015 (42) |
| AUDI | TT | 1999 - 2005 (8N) |
| AUDI | TT | 2006 - 2014 (8J) |
| AUDI | TT | 2014 - 2019 (FV-8S) |
| BMW | 1 SERIES (Incl M1) | 2004 - 2013 (E81-E82-E87-E88) |
| BMW | 2 SERIES | 2015 - 2019 (F25) |
| BMW | 3 SERIES (Incl M3) | 2005 - 2014 (E90) |
| BMW | 4 SERIES | 2013 - 2019 (F32-F33) |
| BMW | 5 SERIES (Incl M5) | 2004 - 2011 (E60) |
| BMW | 6 SERIES | 2004 - 2011 (E63) |
| BMW | 6 SERIES | 2011 - 2019 (F12-F13) |
| BMW | 7 SERIES | 2001 - 2008 (E65-E66-E67-E68) |
| BMW | 7 SERIES | 2008 - 2013 (F01-F02) |
| BMW | X1 | 2009 - 2015 (E84) |
| BMW | X2 | 2016 - 2019 (F39) |
| BMW | X3 | 2003 - 2010 (E83) |
| BMW | X4 | 2014 - 2018 (F26) |
| BMW | X4 | 2018 - 2019 (G02) |
| BMW | X5 | 2000 - 2005 (E53) |
| BMW | X5 | 2006 - 2011 (E70) |
| BMW | X5 | 2013 - 2019 (F15) |
| BMW | X6 | 2008 - 2013 (E71) |
| BMW | Z4 | 2003 - 2008 (E85-E86) |
| BMW | Z4 | 2009 - 2016 (E89) |
| CADILLAC | ESCALADE | 2002 - 2006 (SECOND GEN) |
| CADILLAC | ESCALADE | 2007 - 2014 (THIRD GEN) |
| CHEVROLET | CAMARO | 2010 - 2015 (5TH GEN) |
| CHEVROLET | CAMARO | 2016 - 2019 (6TH GEN) |
| CHRYSLER | 300C | 2005 - 2008 (FIRST GEN) |
| CHRYSLER | 300C | 2009 - 2011 (SECOND GEN) |
| CHRYSLER | 300C | 2011 - 2018 (THIRD GEN) |
| CHRYSLER | VOYAGER (Incl GRAND VOYAGER) | 2008 - 2014 (5TH GEN) |
| CITROEN | BERLINGO | 2003 - 2007 (FIRST GEN) |
| CITROEN | BERLINGO | 2008 - 2015 (SECOND GEN) |
| CITROEN | C2 | 2006 - 2008 (FIRST GEN) |
| CITROEN | C3 | 2002 - 2009 (FIRST GEN) |
| CITROEN | C3 | 2010 - 2016 (SECOND GEN) |
| CITROEN | C4 | 2004 - 2010 (FIRST GEN) |
| CITROEN | C4 | 2011 - 2018 (SECOND GEN) |
| CITROEN | C5 | 2004 - 2007 (DC-DE) |
| CITROEN | C5 | 2008 - 2013 (RD-TD) |
| CITROEN | DS3 | 2009 - 2016 (FIRST GEN) |
| DODGE | CALIBER | 2006 - 2009 (FIRST GEN) |
| DODGE | CALIBER | 2009 - 2012 (SECOND GEN) |
| DODGE | CHALLENGER R/T | 2008 - 2014 (THIRD GEN) |
| DODGE | JOURNEY | 2008 - 2011 (FIRST GEN) |
| DODGE | JOURNEY | 2012 - 2015 (SECOND GEN) |
| DODGE | RAM | 2009 - 2012 (4TH GEN) |
| DODGE | RAM | 2013 - 2020 (4TH GEN) |
| FIAT | 500 | 2008 - 2015 (SERIES 1 - SERIES 3) |
| FIAT | 500 | 2015 - 2018 (SERIES 5) |
| FIAT | BRAVO + RITMO | 2007 - 2014 (TYPE 198) |
| FIAT | DUCATO | 2006 - 2012 (THIRD GEN) |
| FIAT | DUCATO | 2012 - 2014 (THIRD GEN) |
| FIAT | DUCATO | 2015 - 2018 (FOURTH GEN) |
| FIAT | PUNTO | 2005 - 2013 (THIRD GEN) |
| FIAT | SCUDO | 2007 - 2011 (SECOND GEN) |
| FIAT | SCUDO | 2012 - 2013 (THIRD GEN) |
| FORD | ESCAPE | 2006 - 2011 (2ND GEN) |
| FORD | ESCAPE | 2016 - 2018 (ZG) |
| FORD | F SERIES | 2005 - 2008 (11th Gen) |
| FORD | F SERIES | 2009 - 2014 (12th Gen) |
| FORD | F SERIES | 2015 - 2019 (13th Gen) |
| FORD | FIESTA | 2002 - 2005 (WP) |
| FORD | FIESTA | 2006 - 2008 (WQ) |
| FORD | FIESTA | 2009 - 2016 (WS-WT-WZ) |
| FORD | FOCUS (Incl XR5) | 2005 - 2007 (LS-LT) |
| FORD | FOCUS (Incl XR5) | 2008 - 2011 (LV) |
| FORD | FOCUS (Incl XR5) | 2012 - 2015 (LW) |
| FORD | FOCUS (Incl XR5) | 2016 - 2019 (LW) |
| FORD | KA | 1997 - 2011 (FIRST GEN) |
| FORD | KUGA | 2011 - 2013 (1ST GEN) |
| FORD | KUGA | 2013 - 2015 (2ND GEN) |
| FORD | MONDEO | 2007 - 2014 (MB - MC) |
| FORD | MONDEO | 2015 - 2019 (MD) |
| FORD | MUSTANG | 2005 - 2011 (5TH GEN) |
| FORD | MUSTANG | 2010 - 2014 (5TH GEN) |
| FORD | MUSTANG | 2015 - 2017 (6TH GEN) |
| FORD | RANGER | 2011 - 2015 (PX) |
| FORD | RANGER | 2015 - 2019 (PX2-PX3) |
| FORD | SUPER DUTY (F SERIES) | 2008 - 2010 (2ND GEN) |
| FORD | SUPER DUTY (F SERIES) | 2011 - 2016 (3RD GEN) |
| FORD | SUPER DUTY (F SERIES) | 2017 - 2019 (4TH GEN) |
| FORD | TRANSIT | 2007 - 2014 (VM) |
| FORD | TRANSIT | 2015 - 2017 (VO) |
| FORD | TRANSIT CUSTOM | 2013 - 2016 (VN-EURO 5) |
| FORD | TRANSIT CUSTOM | 2016 - 2017 (VN-EURO 6) |
| FORD | TRANSIT CUSTOM | 2018 - 2019 (VN) |
| GMC | YUKON | 2007 - 2014 (GMT900 (3RD GEN)) |
| HOLDEN | ASTRA COUPE | 2005 - 2009 (AH) |
| HOLDEN | ASTRA COUPE | 2015 - 2018 (BK) |
| HOLDEN | ASTRA SEDAN | 2005 - 2009 (AH) |
| HOLDEN | ASTRA SEDAN | 2017 - 2018 (BL) |
| HOLDEN | ASTRA WAGON | 2005 - 2009 (AH) |
| HOLDEN | ASTRA WAGON | 2016 - 2018 (BK) |
| HOLDEN | CAPTIVA | 2016 - 2017 (CG) |
| HOLDEN | CAPTIVA 5 (Incl MAXX) | 2006 - 2015 (CG) |
| HOLDEN | CAPTIVA 7 (Incl Variants) | 2006 - 2015 (CG) |
| HOLDEN | COLORADO (Incl 7) | 2009 - 2011 (RC) |
| HOLDEN | COLORADO (Incl 7) | 2012 - 2013 (RG) |
| HOLDEN | COLORADO (Incl 7) | 2014 - 2016 (RG) |
| HOLDEN | COLORADO (Incl 7) | 2016 - 2019 (RG) |
| HOLDEN | COMBO | 2002 - 2012 (XC) |
| HOLDEN | COMMODORE | 2013 - 2015 (VF) |
| HOLDEN | CRUZE | 2008 - 2016 (J300) |
| HOLDEN | EPICA | 2006 - 2011 (EP) |
| HOLDEN | MALIBU | 2013 - 2016 (EM) |
| HOLDEN | SPARK | 2016 - 2017 (M400) |
| HOLDEN | VECTRA | 2003 - 2011 (ZC) |
| HONDA | ACCORD | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD | 2008 - 2012 (8TH GEN) |
| HONDA | ACCORD | 2013 - 2015 (9TH GEN) |
| HONDA | ACCORD EURO | 2003 - 2007 (7TH GEN) |
| HONDA | ACCORD EURO | 2008 - 2015 (8TH GEN) |
| HONDA | CIVIC HATCH | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC HATCH | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC HATCH | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC HATCH | 2016 - 2018 (10TH GEN) |
| HONDA | CIVIC SEDAN | 2006 - 2011 (8TH GEN) |
| HONDA | CIVIC SEDAN | 2012 - 2015 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2015 - 2016 (9TH GEN) |
| HONDA | CIVIC SEDAN | 2016 - 2018 (10TH GEN) |
| HONDA | CRV | 2007 - 2011 (RE) |
| HONDA | CRV | 2012 - 2015 (RM) |
| HONDA | CRV | 2015 - 2016 (RM) |
| HONDA | CRV | 2017 - 2018 (RW) |
| HONDA | CRZ | 2010 - 2014 (ZF) |
| HONDA | INSIGHT | 2009 - 2013 (ZE) |
| HONDA | JAZZ | 2008 - 2013 (GE) |
| HONDA | JAZZ | 2014 - 2016 (GF) |
| HONDA | JAZZ | 2017 - 2019 (GF) |
| HONDA | ODYSSEY | 2004 - 2009 (3RD GEN (RB1 - RB2)) |
| HONDA | ODYSSEY | 2009 - 2013 (4TH GEN (RB3 - RB4)) |
| HONDA | ODYSSEY | 2014 - 2018 (5TH GEN (RC1 - RC2)) |
| HUMMER | H2 | 2008 - 2011 (H2) |
| HYUNDAI | ACCENT | 2006 - 2008 (MC) |
| HYUNDAI | ACCENT | 2011 - 2019 (RB) |
| HYUNDAI | i20 | 2010 - 2012 (PB) |
| HYUNDAI | i20 | 2012 - 2015 (PB) |
| HYUNDAI | i30 | 2007 - 2011 (FD) |
| HYUNDAI | i30 | 2012 - 2016 (GD-GD2) |
| HYUNDAI | i30 | 2017 - 2021 (PD) |
| HYUNDAI | i40 | 2012 - 2018 (VF-VF2-VF3) |
| HYUNDAI | ILOAD (Incl IMAX) | 2016 - 2018 (TQ3-V Series II) |
| HYUNDAI | ILOAD (Incl IMAX) | 2018 - 2019 (TQ4) |
| HYUNDAI | ix35 | 2010 - 2013 (LM) |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITH NAV |
| HYUNDAI | ix35 | 2014 - 2015 (LM) - WITHOUT NAV |
| HYUNDAI | KONA | 2017 - 2018 (OS - OS2) |
| HYUNDAI | SANTA FE | 2007 - 2009 (CM) |
| HYUNDAI | SANTA FE | 2009 - 2012 (CM) |
| HYUNDAI | SANTA FE | 2012 - 2018 (DM) |
| HYUNDAI | SONATA | 2006 - 2008 (NF) |
| HYUNDAI | SONATA | 2009 - 2011 (YF) |
| HYUNDAI | SONATA | 2014 - 2016 (LF) |
| HYUNDAI | TUCSON | 2005 - 2010 (JM) |
| HYUNDAI | TUCSON | 2015 - 2018 (TL) |
| HYUNDAI | TUCSON | 2018 - 2019 (TL) |
| HYUNDAI | VELOSTER | 2012 - 2017 (1ST GEN) |
| ISUZU | DMAX | 2009 - 2011 (RA - RC) |
| ISUZU | DMAX | 2012 - 2016 (RT50 - RT85) |
| ISUZU | DMAX | 2016 - 2019 (RT50 - RT85) |
| IVECO | DAILY | 2007 - 2014 (5TH GEN) |
| IVECO | DAILY | 2015 - 2017 (6TH GEN) |
| IVECO | DAILY | 2018 - 2019 (6TH GEN) |
| JAGUAR | S-TYPE | 2003 - 2008 (No Chassis Code) |
| JAGUAR | X-TYPE | 2002 - 2015 (No Chassis Code) |
| JAGUAR | XJ8 | 2003 - 2008 (No Chassis Code) |
| JEEP | CHEROKEE | 2001 - 2007 (KJ) |
| JEEP | CHEROKEE | 2007 - 2012 (KK) |
| JEEP | CHEROKEE | 2014 - 2018 (KL) |
| JEEP | COMMANDER | 2005 - 2008 (XK) |
| JEEP | COMMANDER | 2008 - 2010 (XK) |
| JEEP | COMPASS | 2007 - 2009 (MK) |
| JEEP | COMPASS | 2009 - 2017 (MK) |
| JEEP | COMPASS | 2017 - 2018 (M6) |
| JEEP | GRAND CHEROKEE | 2005 - 2007 (WH-WK) |
| JEEP | GRAND CHEROKEE | 2008 - 2011 (WH-WK) |
| JEEP | GRAND CHEROKEE | 2012 - 2013 (WK2) |
| JEEP | GRAND CHEROKEE | 2014 - 2020 (WK2) |
| JEEP | PATRIOT | 2007 - 2009 (MK) |
| JEEP | PATRIOT | 2010 - 2016 (MK) |
| JEEP | RENEGADE | 2015 - 2016 (BU-520) |
| JEEP | WRANGLER | 2007 - 2018 (JK) |
| KIA | CARNIVAL | 2015 - 2017 (YP) |
| KIA | CARNIVAL | 2018 - 2019 (YP) |
| KIA | CERATO | 2004 - 2009 (LD) |
| KIA | CERATO | 2010 - 2012 (TD) |
| KIA | CERATO | 2013 - 2018 (YD) |
| KIA | MAGENTIS | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2006 - 2010 (MG) |
| KIA | OPTIMA | 2010 - 2013 (TF1) |
| KIA | OPTIMA | 2013 - 2015 (TF2) |
| KIA | OPTIMA | 2016 - 2017 (JF) |
| KIA | PICANTO | 2016 - 2017 (TA) |
| KIA | PICANTO | 2017 - 2018 (JA) |
| KIA | PRO CEED | 2014 - 2015 (JD) |
| KIA | RIO | 2006 - 2009 (JB) |
| KIA | RIO | 2010 - 2014 (UB) |
| KIA | RIO | 2014 - 2017 (UB) |
| KIA | SORENTO | 2007 - 2008 (BL) |
| KIA | SORENTO | 2009 - 2012 (XM) |
| KIA | SORENTO | 2013 - 2015 (XM) |
| KIA | SORENTO | 2015 - 2018 (UM) |
| KIA | SOUL | 2009 - 2011 (AM) |
| KIA | SOUL | 2011 - 2013 (AM) |
| KIA | SOUL | 2014 - 2018 (PS) |
| KIA | SPORTAGE | 2005 - 2009 (KM) |
| KIA | SPORTAGE | 2010 - 2015 (SL) |
| KIA | SPORTAGE | 2016 - 2018 (QL) |
| KIA | SPORTAGE | 2018 - 2019 (QL) |
| LAMBORGHINI | GALLARDO | 2005 - 2011 (No Chassis Code) |
| LAND ROVER | DEFENDER | 2008 - 2015 (No Chassis Code) |
| LAND ROVER | DISCOVERY III | 2005 - 2010 (L319) |
| LAND ROVER | DISCOVERY IV | 2010 - 2016 (L319) |
| LAND ROVER | EVOQUE | 2011 - 2013 (L538) |
| LAND ROVER | FREELANDER | 2004 - 2006 (L314) |
| LAND ROVER | FREELANDER II | 2007 - 2011 (L359) |
| LAND ROVER | FREELANDER II | 2012 - 2014 (L359) |
| LAND ROVER | RANGE ROVER (Incl HSE - VOGUE) | 2002 - 2012 (L322) |
| LAND ROVER | RANGE ROVER SPORT | 2005 - 2010 (L320) |
| LAND ROVER | RANGE ROVER SPORT | 2010 - 2013 (L320) |
| LAND ROVER | RANGE ROVER SPORT | 2013 - 2015 (L494) |
| LDV | V80 | 2013 - 2014 (Maxus) |
| LDV | V80 | 2013 - 2016 (Maxus) |
| LEXUS | CT | 2011 - 2013 (C10) |
| LEXUS | CT | 2014 - 2018 (A10) |
| LEXUS | IS | 2006 - 2015 (XE20) |
| LEXUS | IS | 2016 - 2018 (XE30) |
| LEXUS | RX | 2003 - 2008 (XU30) |
| LEXUS | RX | 2010 - 2015 (AL10) |
| LEXUS | RX | 2016 - 2018 (AL20) |
| MAZDA | 2 | 2003 - 2007 (DY) |
| MAZDA | 2 | 2007 - 2015 (DE) |
| MAZDA | 2 | 2015 - 2016 (DJ) |
| MAZDA | 3 | 2004 - 2009 (BK) |
| MAZDA | 3 | 2009 - 2013 (BL) |
| MAZDA | 3 | 2013 - 2016 (BM) - WITH MONOCHROME DISPLAY |
| MAZDA | 3 | 2016 - 2018 (BN) |
| MAZDA | 6 | 2003 - 2005 (GG) |
| MAZDA | 6 | 2005 - 2008 (GG) |
| MAZDA | 6 | 2008 - 2010 (GH) |
| MAZDA | 6 | 2010 - 2012 (GH) |
| MAZDA | 6 | 2013 - 2015 (GJ) |
| MAZDA | BT-50 | 2007 - 2011 (B Series) |
| MAZDA | BT-50 | 2012 - 2015 (B32Q) |
| MAZDA | BT-50 | 2015 - 2019 (UR) |
| MAZDA | CX5 | 2012 - 2015 (KE) |
| MAZDA | CX5 | 2015 - 2017 (KE) |
| MAZDA | CX5 | 2017 - 2021 (KF) |
| MAZDA | CX7 | 2006 - 2010 (ER) |
| MAZDA | CX7 | 2010 - 2011 (ER) |
| MAZDA | CX9 | 2012 - 2015 (TB) |
| MAZDA | MX5 | 2006 - 2008 (NC) |
| MAZDA | MX5 | 2009 - 2013 (ND) |
| MAZDA | RX8 | 2004 - 2008 (FE) |
| MAZDA | RX8 | 2008 - 2012 (FE) |
| MERCEDES | A CLASS | 2005 - 2007 (W169) |
| MERCEDES | A CLASS | 2007 - 2011 (W169) |
| MERCEDES | A CLASS | 2013 - 2016 (W176) |
| MERCEDES | B CLASS | 2005 - 2007 (W245) |
| MERCEDES | B CLASS | 2007 - 2011 (W245) |
| MERCEDES | C CLASS | 2000 - 2004 (W203) |
| MERCEDES | C CLASS | 2005 - 2008 (W203) |
| MERCEDES | C CLASS | 2008 - 2011 (W204) |
| MERCEDES | C CLASS | 2011 - 2014 (W204) |
| MERCEDES | CLK | 2002 - 2004 (W208) |
| MERCEDES | CLK | 2005 - 2011 (W209) |
| MERCEDES | CLS | 2005 - 2010 (W219) |
| MERCEDES | E CLASS | 1999 - 2002 (W210) |
| MERCEDES | E CLASS | 2002 - 2007 (W211) |
| MERCEDES | E CLASS | 2008 - 2011 (W212) |
| MERCEDES | G CLASS | 2006 - 2012 (W463) |
| MERCEDES | GL CLASS | 2006 - 2012 (X164) |
| MERCEDES | M CLASS | 1999 - 2004 (W163) |
| MERCEDES | M CLASS | 2005 - 2011 (W164) |
| MERCEDES | R CLASS | 2006 - 2012 (W251) |
| MERCEDES | S CLASS | 1998 - 2006 (W220) |
| MERCEDES | SL CLASS | 2005 - 2013 (R230) |
| MERCEDES | SLK CLASS | 2004 - 2011 (R171) |
| MERCEDES | SPRINTER | 2000 - 2006 (W905) |
| MERCEDES | SPRINTER | 2007 - 2018 (W906) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2004 - 2007 (W639) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2007 - 2015 (W639) |
| MERCEDES | VITO (Inc VIANO or VALENTE) | 2015 - 2019 (W447) |
| MITSUBISHI | ASX | 2010 - 2013 (XA) |
| MITSUBISHI | ASX | 2013 - 2019 (XB - XC) |
| MITSUBISHI | COLT | 2004 - 2007 (RG) |
| MITSUBISHI | COLT | 2007 - 2011 (RZ) |
| MITSUBISHI | GRANDIS | 2004 - 2011 (BA) |
| MITSUBISHI | LANCER (Inc Evolution) | 2007 - 2013 (CJ) |
| MITSUBISHI | LANCER (Inc Evolution) | 2014 - 2018 (CF) |
| MITSUBISHI | OUTLANDER | 2003 - 2006 (ZE-ZF) |
| MITSUBISHI | OUTLANDER | 2007 - 2012 (ZG-ZH) |
| MITSUBISHI | OUTLANDER | 2013 - 2018 (ZJ-ZK) |
| MITSUBISHI | PAJERO | 2015 - 2021 (NT-NX) |
| MITSUBISHI | PAJERO SPORT | 2016 - 2018 (KR - KS - QE) |
| MITSUBISHI | TRITON | 2007 - 2013 (ML) |
| MITSUBISHI | TRITON | 2013 - 2015 (MN) |
| MITSUBISHI | TRITON | 2015 - 2018 (MQ) |
| MITSUBISHI | TRITON | 2019 - 2021 (MR) |
| MITSUBISHI | TRITON | 2020 - 2022 (MR) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | ALTIMA | 2013 - 2016 (L33) |
| NISSAN | CUBE | 1998 - 2016 (Z11 - Z12) |
| NISSAN | ELGRAND | 2001 - 2004 (E51) |
| NISSAN | ELGRAND | 2005 - 2010 (E51) |
| NISSAN | JUKE | 2013 - 2015 (F15) |
| NISSAN | JUKE | 2016 - 2018 (F15) |
| NISSAN | MICRA | 2003 - 2009 (K12) |
| NISSAN | MICRA | 2010 - 2014 (K13) |
| NISSAN | MICRA | 2015 - 2016 (K13) |
| NISSAN | MURANO | 2005 - 2008 (Z50) |
| NISSAN | MURANO | 2009 - 2011 (Z51) |
| NISSAN | MURANO | 2012 - 2018 (Z51) |
| NISSAN | NAVARA | 2005 - 2015 (D22-D40) |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) RX-DX MODELS |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) ST-STX-SL MODELS |
| NISSAN | NAVARA | 2015 - 2019 (D23 - NP300) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | PATHFINDER | 2005 - 2013 (R51) |
| NISSAN | PATHFINDER | 2013 - 2015 (R52) |
| NISSAN | PULSAR | 2013 - 2016 (C12) |
| NISSAN | QASHQAI | 2014 - 2017 (J11) |
| NISSAN | QASHQAI | 2014 - 2017 (J11) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | QASHQAI | 2017 - 2019 (J11) |
| NISSAN | QASHQAI | 2017 - 2019 (J11) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | SKYLINE | 2005 - 2007 (V35) |
| NISSAN | SKYLINE | 2009 - 2011 (R35) |
| NISSAN | TIIDA | 2006 - 2011 (C2) |
| NISSAN | XTRAIL | 2003 - 2007 (T30) |
| NISSAN | XTRAIL | 2007 - 2013 (T31) |
| NISSAN | XTRAIL | 2014 - 2017 (T32) |
| NISSAN | XTRAIL | 2014 - 2017 (T32) WITH 360 DEGREE CAMERA SYSTEM |
| NISSAN | XTRAIL | 2018 - 2019 (T32) |
| NISSAN | XTRAIL | 2018 - 2019 (T32) WITH 360 DEGREE CAMERA SYSTEM |
| OPEL | ASTRA | 2012 - 2013 (AS) |
| OPEL | CORSA | 2012 - 2014 (D) |
| OPEL | INSIGNIA | 2012 - 2014 (A - MK 1) |
| PEUGEOT | 206 | 2002 - 2010 (No Chassis Code) |
| PEUGEOT | 207 | 2006 - 2011 (A7) |
| PEUGEOT | 208 | 2012 - 2014 (A99) |
| PEUGEOT | 3008 | 2009 - 2015 (T8) |
| PEUGEOT | 307 | 2001 - 2012 (T5-T6-T7) |
| PEUGEOT | 308 | 2007 - 2014 (T7) |
| PEUGEOT | 308 | 2015 - 2016 (T9) |
| PEUGEOT | 4007 | 2009 - 2011 (No Chassis Code) |
| PEUGEOT | 407 | 2004 - 2011 (SERIES 1 - SERIES 2) |
| PEUGEOT | 508 | 2011 - 2014 (No Chassis Code) |
| PEUGEOT | 607 | 2005 - 2011 (No Chassis Code) |
| PEUGEOT | PARTNER | 2002 - 2014 (B9P) |
| PEUGEOT | RCZ | 2010 - 2015 (No Chassis Code) |
| PORSCHE | 911 | 2005 - 2012 (997) |
| PORSCHE | 911 | 2011 - 2016 (991) |
| PORSCHE | BOXSTER | 2004 - 2012 (987) |
| PORSCHE | BOXSTER | 2012 - 2016 (981) |
| PORSCHE | CAYENNE | 2002 - 2012 (9PA) |
| PORSCHE | CAYENNE | 2013 - 2018 (92A) |
| PORSCHE | CAYMAN | 2005 - 2011 (987C) |
| PORSCHE | CAYMAN | 2012 - 2016 (981) |
| RENAULT | CLIO | 2006 - 2011 (X85) |
| RENAULT | CLIO | 2012 - 2014 (X85) |
| RENAULT | FLUENCE | 2011 - 2013 (L38 (PHASE 1 - 2)) |
| RENAULT | KANGOO | 2000 - 2007 (I) |
| RENAULT | KANGOO | 2008 - 2012 (F61) |
| RENAULT | KANGOO | 2013 - 2017 (II (F61)) |
| RENAULT | KOLEOS | 2008 - 2015 (H45 PHASE 1 - 2 - 3) |
| RENAULT | LAGUNA | 2007 - 2011 (III (B91)) |
| RENAULT | MASTER | 2011 - 2018 (X62) |
| RENAULT | MEGANE | 2002 - 2006 (II (X64)) |
| RENAULT | MEGANE | 2007 - 2009 (II (B84)) |
| RENAULT | MEGANE | 2010 - 2011 (III (B95 - B35)) |
| RENAULT | MEGANE | 2012 - 2013 (III (B95 - B35)) |
| RENAULT | SCENIC | 2005 - 2011 (II (J84 PHASE 1 - 2)) |
| RENAULT | TRAFIC | 2002 - 2005 (X83) |
| RENAULT | TRAFIC | 2005 - 2011 (X83) |
| RENAULT | TRAFIC | 2011 - 2014 (X83) |
| RENAULT | TRAFIC | 2015 - 2018 (X82) |
| RENAULT | TWINGO | 2007 - 2011 (I) |
| SKODA | FABIA | 2007 - 2015 (5J) |
| SKODA | FABIA | 2015 - 2019 (NJ) |
| SKODA | OCTAVIA | 2004 - 2008 (1U) |
| SKODA | OCTAVIA | 2009 - 2012 (1Z) |
| SKODA | OCTAVIA | 2013 - 2019 (NE - 5E) |
| SKODA | RAPID | 2013 - 2015 (NH) |
| SKODA | ROOMSTER | 2006 - 2011 (5J) |
| SKODA | SUPERB | 2009 - 2015 (3T) |
| SKODA | YETI | 2009 - 2019 (5L) |
| SUZUKI | ALTO | 2009 - 2013 (GF) |
| SUZUKI | GRAND VITARA | 2005 - 2014 (JB) |
| SUZUKI | GRAND VITARA | 2015 - 2018 (JB) |
| SUZUKI | SWIFT | 2006 - 2010 (RS416) |
| SUZUKI | SWIFT | 2011 - 2016 (FZ) |
| SUZUKI | SWIFT | 2017 - 2020 (AZ) |
| SUZUKI | VITARA | 2015 - 2016 (LY) |
| TOYOTA | 86 | 2012 - 2017 (PRE-FACELIFT) |
| TOYOTA | 86 | 2017 - 2020 (POST-FACELIFT) |
| TOYOTA | C-HR | 2017 - 2019 (AX10 Series) |
| TOYOTA | CAMRY | 2007 - 2011 (XV40 Series) |
| TOYOTA | CAMRY | 2012 - 2017 (XV50 Series) |
| TOYOTA | CAMRY | 2018 - 2020 (XV70 Series) |
| TOYOTA | COROLLA | 2003 - 2009 (E140 - E160 Series) |
| TOYOTA | COROLLA | 2009 - 2012 (E120 Series) |
| TOYOTA | COROLLA HATCH | 2013 - 2015 (E180 Series) |
| TOYOTA | COROLLA HATCH | 2015 - 2018 (E180 - E200 Series) |
| TOYOTA | COROLLA SEDAN | 2014 - 2016 (E170 Series) |
| TOYOTA | COROLLA SEDAN | 2017 - 2018 (E170 Series) |
| TOYOTA | ESTIMA | 2006 - 2016 (XR50 Series) |
| TOYOTA | FORTUNER | 2015 - 2019 (AN150 - AN160 Series) |
| TOYOTA | HIACE | 2005 - 2019 (H200 Series) |
| TOYOTA | HILUX | 2015 - 2020 (AN120 - AN130 Series) |
| TOYOTA | LANDCRUISER | 2007 - 2019 (70 Series - 79 Series) |
| TOYOTA | LANDCRUISER | 2008 - 2012 (200 Series) |
| TOYOTA | LANDCRUISER | 2013 - 2015 (200 Series) |
| TOYOTA | LANDCRUISER | 2016 - 2021 (200 Series) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series with NAV) |
| TOYOTA | LANDCRUISER PRADO | 2009 - 2013 (150 Series without NAV) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2013 - 2017 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) |
| TOYOTA | LANDCRUISER PRADO | 2017 - 2020 (150 Series) WITH 360 DEGREE CAMERA SYSTEM |
| TOYOTA | PRIUS | 2010 - 2015 (XW30 Series) |
| TOYOTA | PRIUS | 2017 - 2019 (XW50 Series) |
| TOYOTA | PRIUS C | 2012 - 2018 (XP130 Series) |
| TOYOTA | PRIUS V | 2012 - 2015 (ZVW40R Series) |
| TOYOTA | PRIUS V | 2015 - 2019 (ZVW40- ZVW41 Series) |
| TOYOTA | RAV4 | 2006 - 2011 (XA30 Series) |
| TOYOTA | RAV4 | 2012 - 2013 (XA40 Series) |
| TOYOTA | RAV4 | 2014 - 2018 (XA40 Series) |
| TOYOTA | TUNDRA | 2007 - 2013 (XK50 Series) |
| TOYOTA | TUNDRA | 2014 - 2017 (XK50 Series) |
| TOYOTA | YARIS | 2005 - 2011 (XP90 Series) |
| TOYOTA | YARIS | 2012 - 2014 (XP90 Series) |
| TOYOTA | YARIS | 2014 - 2017 (XP130 Series) |
| TOYOTA | YARIS | 2018 - 2019 (XP130 Series) |
| VOLKSWAGEN | AMAROK | 2011 - 2015 (2H Series) |
| VOLKSWAGEN | AMAROK | 2015 - 2020 (2H Series) |
| VOLKSWAGEN | BEETLE | 2013 - 2015 (1L Series) |
| VOLKSWAGEN | BEETLE | 2016 - 2017 (A5 Series) |
| VOLKSWAGEN | CADDY | 2005 - 2015 (2K Series) |
| VOLKSWAGEN | CADDY | 2015 - 2019 (2K Series) |
| VOLKSWAGEN | CRAFTER | 2007 - 2017 (2E - 2F Series) |
| VOLKSWAGEN | CRAFTER | 2017 - 2018 (SY Series) |
| VOLKSWAGEN | EOS | 2005 - 2013 (1F) |
| VOLKSWAGEN | GOLF (Incl GTI) | 2005 - 2013 (Mk 5 - Mk 6 (5K Series)) |
| VOLKSWAGEN | GOLF (Incl GTI) | 2014 - 2018 (Mk 7 (5G Series)) |
| VOLKSWAGEN | JETTA | 2005 - 2015 (A5 - A6 Series) |
| VOLKSWAGEN | JETTA | 2016 - 2017 (A5 Series) |
| VOLKSWAGEN | PASSAT | 2005 - 2014 (B6 - B7 Series) |
| VOLKSWAGEN | POLO | 2005 - 2009 (6Q - 9N - 9N3 Series) |
| VOLKSWAGEN | POLO | 2010 - 2014 (6R Series) |
| VOLKSWAGEN | POLO | 2014 - 2017 (6C) |
| VOLKSWAGEN | SCIROCCO | 2008 - 2014 (3rd Generation) |
| VOLKSWAGEN | TIGUAN | 2007 - 2016 (5N Series) |
| VOLKSWAGEN | TIGUAN | 2017 - 2018 (5N Series) |
| VOLKSWAGEN | TOUAREG | 2004 - 2010 (7L) |
| VOLKSWAGEN | TOUAREG | 2011 - 2018 (7P) |
| VOLKSWAGEN | TRANSPORTER (Incl MULTIVAN or CARAVELLE) | 2004 - 2009 (T5 Series) |
| VOLKSWAGEN | TRANSPORTER (Incl MULTIVAN or CARAVELLE) | 2010 - 2015 (T5 Series) |
| VOLKSWAGEN | TRANSPORTER (Incl MULTIVAN or CARAVELLE) | 2015 - 2019 (T6 Series) |
| VOLKSWAGEN | UP! | 2013 - 2015 (1st Generation) |
| VOLVO | C30 | 2007 - 2013 (1st Generation) |
| VOLVO | C70 | 2005 - 2014 (2nd Generation) |
| VOLVO | V50 | 2004 - 2012 (1st Generation) |
| VOLVO | V70 | 2004 - 2007 (2nd Generation) |
| VOLVO | V70 | 2008 - 2011 (3rd Generation) |
| VOLVO | XC70 | 2003 - 2007 (2nd Generation) |
| VOLVO | XC90 | 2002 - 2014 (1st Generation) |
Specifications
| SKU | C8NECTPULSE |
|---|---|
| Barcode # | 9342270002720 |
| Brand | Canm8 |
| Shipping Weight | 1.5000kg |
