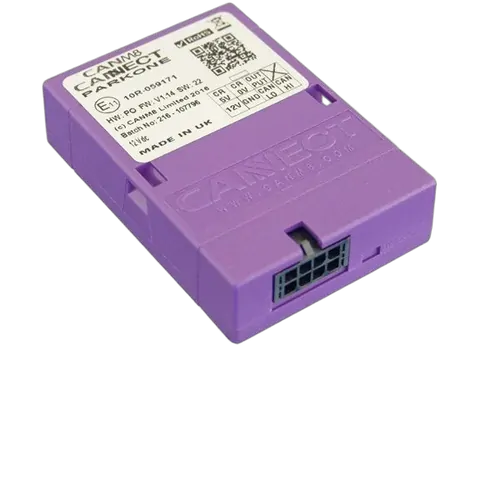

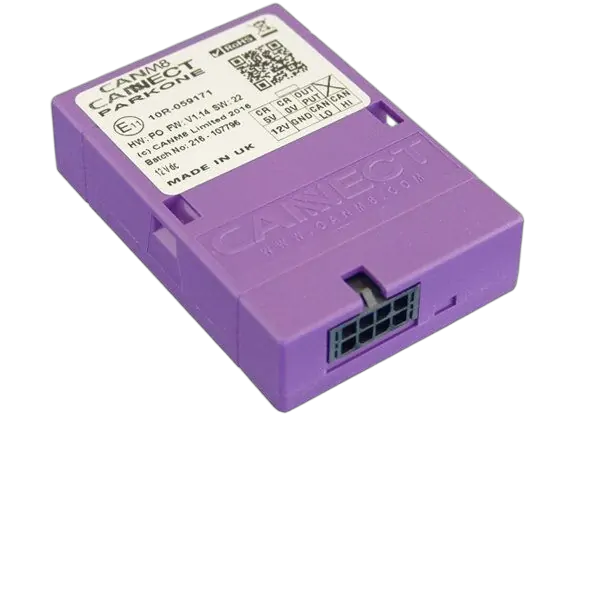

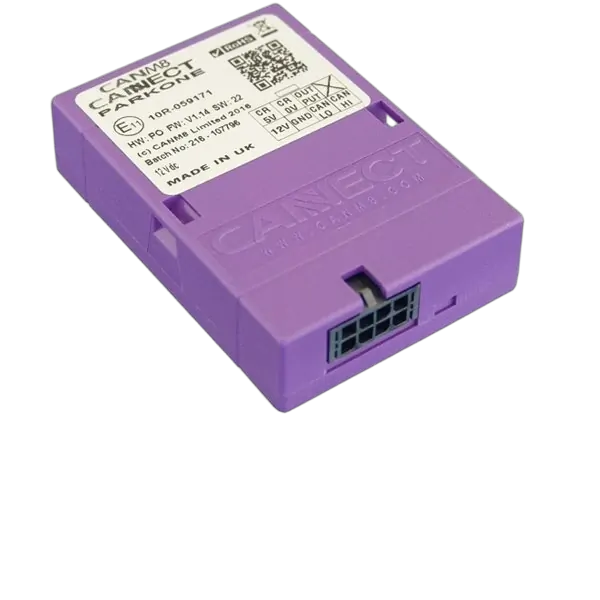

The CANM8 CANNECT PARK ONE is a CAN Bus interface that provides accurate control for after-market front parking sensors, side view systems and other equipment that requires a control signal within a specific speed range.

Outputs

Speed  >1 2v (1A max) when the vehicle speed is 0 – 6 MPH.

Applications

The CANM8 CANNECT PARK ONE is ideal for use when installing after-market front parking systems that require a control input between 0 – 6 MPH.

Installation Details

The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.

The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

LED Status Details

Flashing Red: Searching for CAN information.

Solid Red: CAN Data received but vehicle not yet identified.

Solid Green: CAN Data received and vehicle type recognised.

Flashing Green: Vehicle speed detected.

Wiring Harness Details

RED > Connect via a 5A fuse to a SWITCHED 12v supply.

BLACK > Connect to a good chassis GROUND point.

WHITE > CAN HI Connection : Vehicle CAN HI wire.

BLUE > CAN LO Connection : Vehicle CAN LO wire.

PURPLE > Speed Dependent Output : 12v (1A max) when the vehicle speed is 0 – 6 MPH.
