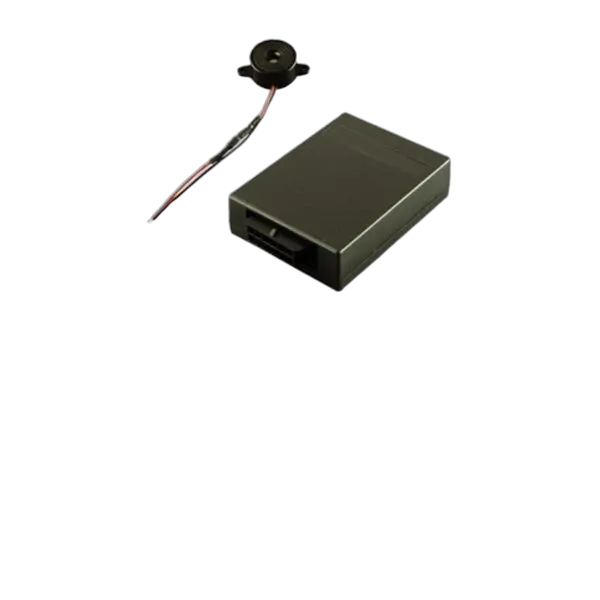

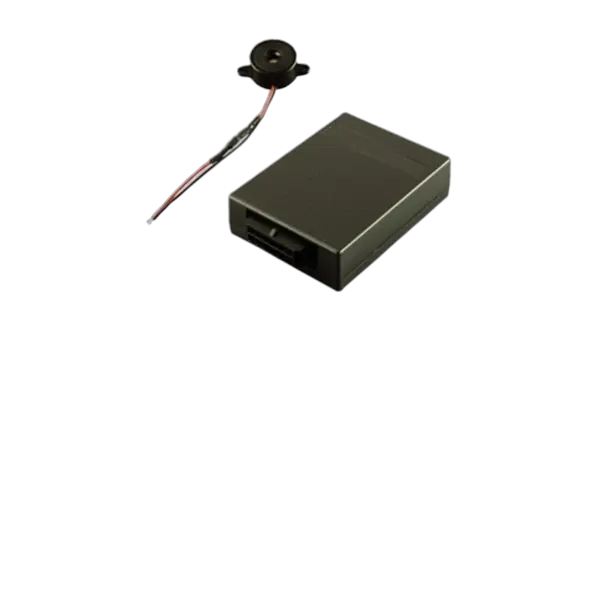

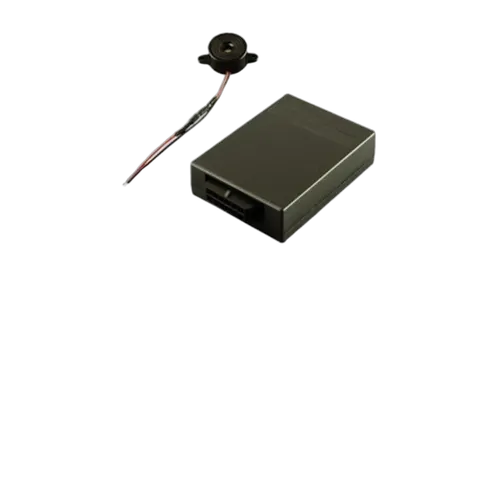

The CANM8 CANNECT PARKTONER is a CAN Bus Interface that provides retention of rear factory parking sensors (vehicle dependant) when installing an aftermarket radio.
Outputs
Reverse | > | 12v (1A max) when reverse gear is selected. |
Piezo Output | > | 12v (1A max) when sensors detect a object |
Applications
The CANM8 CANNECT PARKTONER is an ideal solution for use when replacing the OEM radio in the vehicle and wishing to keep the OEM rear parking sensors working.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
Flashing Red: Searching for CAN information. | |
Solid Red: CAN Data received but vehicle not yet identified. | |
Solid Green: CAN Data received and vehicle type recognised. | |
Flashing Green: Vehicle speed detected. |
Wiring Harness Details
Connect via a 5A fuse to a PERMANENT 12v supply. | ||
Connect to a good chassis GROUND point. | ||
CAN HI Connection : Vehicle CAN HI wire. | ||
CAN LO Connection : Vehicle CAN LO wire. | ||
GREEN | Piezo Buzzer Output NEGATIVE | |
Rear Sensor Output POSITIVE | ||
Front Sensor Output POSITIVE |
Vehicle Notes | Compatible for Freelander II models with rear parking sensors only |
---|
SKU | C8PARKTONER |
---|---|
Barcode # | 9342270000726 |
Brand | Canm8 |
Shipping Weight | 1.5000kg |
